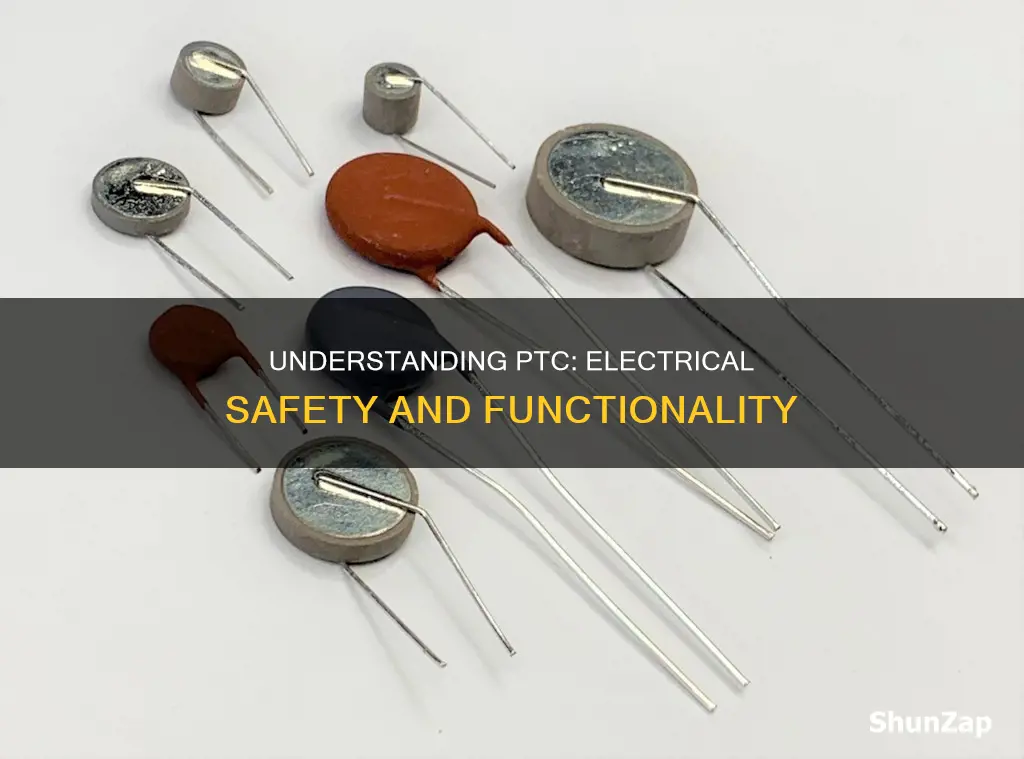

PTC stands for Positive Temperature Coefficient in electrical engineering. PTC thermistors are temperature-dependent resistors that are used in a variety of applications, including temperature control, over-current protection, and surge protection. They are made of semiconductor ceramics with a high positive temperature coefficient, allowing for better electrical current flow at low temperatures. PTC thermistors are also used to regulate temperature in industrial machines, detect overcurrent conditions, and protect sensitive electronic equipment. With their self-regulating characteristic, PTC heating elements are safe and reliable, making them a popular choice for various manufacturing processes.
| Characteristics | Values |
|---|---|
| Full Form | Positive Temperature Coefficient |
| Type | Thermistor |
| Material | Ceramic, Metal Oxide, Semiconductor, Polymers, Polymeric Positive Temperature Coefficient (PPTC) |
| Shape | Thick, Irregular, Disk, Rectangle, Flexible |
| Applications | Self-regulating heaters, Temperature control, Over-current protection, Surge protection, Motor winding protection, Liquid level sensing, Resettable fuses, Inrush current limiting, Switch-mode power supplies, Telecom, Consumer electronics, Process control, Medical devices, Computer components, Automotive components, HVAC systems |
| Properties | Self-limiting, Self-heating, Temperature-dependent resistance, High reaction time, High temperature limit, Low power consumption, Resistant to shock and vibration, Safe, Reliable, Durable, Inexpensive |
Explore related products
What You'll Learn
- PTC thermistors are used for overcurrent protection in electrical circuits
- PTC heating elements are self-regulating and do not overheat
- PTC thermistors are used in motor winding protection
- PTC thermistors are used in temperature control and measurement
- PTC thermistors are used in automotive, medical, industrial and consumer electronics applications
PTC thermistors are used for overcurrent protection in electrical circuits
PTC stands for Positive Temperature Coefficient, and PTC thermistors are used for overcurrent protection in electrical circuits. PTC thermistors are temperature-dependent resistors that experience an increase in electrical resistance as temperatures rise. This effect can be used to protect circuits against overcurrents. PTC thermistors are made of ceramics or polymers and can be fabricated in various shapes and sizes.
When an overcurrent occurs, the temperature of the PTC thermistor increases, leading to a rapid rise in resistance. This limits the current flow in the circuit, preventing potential damage to the circuit and its components. PTC thermistors are self-regulating and act as self-resetting or automatic resettable fuses, restoring normal circuit operation once the fault is cleared.
PTC thermistors are commonly used in switch-mode power supplies (SMPS) to limit inrush currents. When an SMPS is switched on, a high inrush current flows, which can negatively impact the service life of the smoothing capacitor and damage other components. By using a PTC thermistor in combination with a thyristor or relay, the inrush current can be limited to a safe level.
PTC thermistors are also used in motor starters to protect against inrush currents during motor startup. The low resistance of the PTC thermistor when the circuit is turned on allows current to pass through the startup winding. As the motor starts, the PTC thermistor heats up and transitions to a high-resistance state, reducing the current through the startup winding.
Additionally, PTC thermistors can be used in fluorescent lamps to extend lamp life. When power is applied, the thermistor heats up along with the electrodes, and once the Curie temperature is reached, the lamp begins normal operation. This preheating of the electrodes helps to prolong their lifespan.
Fixing Sunbeam Electric Blanket: Blinking Issue Troubleshooting
You may want to see also
Explore related products
PTC heating elements are self-regulating and do not overheat
PTC stands for Positive Temperature Coefficient. PTC thermistors are devices made from semiconductor materials that contain a natural resistance to electricity. PTC heating elements are self-regulating and do not overheat.
The key characteristic of PTC thermistors is that they have a positive temperature coefficient, meaning that as the temperature of the thermistor increases, its resistance to electric current also increases, resulting in a resistance change proportional to the temperature change. This is the opposite of Negative Temperature Coefficient (NTC) thermistors, which have a lower resistance to current as the temperature increases. PTC thermistors have much faster reaction times and higher temperature limits than NTC thermistors.
The self-regulating nature of PTC heating elements means that they are safer and more reliable than other heating elements. PTC heating elements have a fixed maximum temperature that cannot be exceeded due to the PTC effect. As the temperature rises, the PTC's natural resistance increases, while its current conductivity and power output decrease until a state of equilibrium is reached and the current can barely flow anymore. This self-limiting effect means that PTC heating elements do not require any additional thermal fuse.
PTC heating elements can be made in more shapes than conventional heating elements. Conventional heating elements are typically long and thin to prevent current hogging. If a conventional heating element was made thick or irregularly shaped, there would be multiple paths for the electrical current, and the path with the least resistance would heat up more than the rest of the element, potentially causing a cascading failure where the path of least resistance overheats and fails, leading to a dangerous situation. In contrast, PTC heating elements can be built thick or irregularly shaped because if one path through the element heats up more than the rest, the resistance of that path will increase, redirecting the electrical current without causing a failure or overheating.
PTC thermistors are used in a variety of applications, particularly when temperature sensitivity is required. They are often used in self-regulating heaters, motor winding protection, and sensing liquid levels. They are also used for temperature control, over-current protection, and surge protection in automotive, medical, and industrial applications, as well as in consumer electronics. PTC thermistors are highly reliable and durable, making them a cost-effective and safe choice for long-term use in industrial settings.
Best Ways to Reheat Food in an Electric Oven
You may want to see also
Explore related products
PTC thermistors are used in motor winding protection
PTC stands for Positive Temperature Coefficient. PTC thermistors are used in motor winding protection. They are a type of resistor that can detect and control specific temperatures. When the temperature increases, the resistance increases, and when the temperature decreases, the resistance decreases. This property makes them useful for protecting circuits and devices from overcurrent and overheating.
PTC thermistors are made from polymer or ceramic materials, which are more accurate than pure metals because they only measure a specific range of temperatures. They are often used in resettable fuse installations to protect products and systems from overcurrent conditions.
In the context of motor winding protection, PTC thermistors can be used to protect motors from thermal overstress caused by overcurrent. For example, if an object blocks the side mirror of a car, attempting to adjust or retract the mirror can result in an overcurrent in the motor winding. The PTC thermistor detects the high current, heats up, and increases resistance, reducing the current to levels that do not overstress the system.
PTC thermistors can also be used in conjunction with a tripping unit (automatic circuit breaker) to protect motors from overheating. By thermally bonding three motor protection sensors to the stator-side winding of a motor, the PTC thermistor can activate the tripping unit to shut off the power supply when it reaches a certain temperature.
Additionally, PTC thermistors can be used in switch-mode power supplies (SMPS) to limit inrush currents. When an SMPS is turned on, a high peak current flows through the device, which can negatively impact the service life of its components. By connecting a PTC thermistor in series with a smoothing capacitor, the inrush current can be limited to a desired lower level, protecting the SMPS from potential damage.
Israel's Electricity Blockade on Gaza: Collective Punishment?
You may want to see also
Explore related products
PTC thermistors are used in temperature control and measurement
PTC stands for Positive Temperature Coefficient. PTC thermistors are used in a variety of applications for temperature control and measurement. They are semiconductor resistors with a resistance that is strongly dependent on temperature. As the temperature of a PTC thermistor increases, its resistance to electric current also increases, resulting in a resistance change proportional to the temperature change.
PTC thermistors are made from ceramic or polymer materials and are available in various sizes and temperature ranges. They are used in circuits requiring temperature compensation, helping to stabilize the performance of components by counteracting the effects of temperature changes. This ensures consistent and reliable operation. For example, they can be used in fluorescent lamps to preheat electrodes, extending lamp life. PTC thermistors can also be used to provide inrush current protection in motor starters, limiting the initial high current drawn by the motor during startup and preventing damage to the motor windings and associated components.
PTC thermistors can also serve as heating elements in devices such as hair dryers, heaters, and soldering irons. They exhibit a high resistance at low temperatures, generating heat as current flows through them. This makes them useful for applications where quick warm-up times are desirable. PTC heating elements can be made in more shapes than conventional heating elements, allowing for increased surface area.
PTC thermistors are also used in consumer products such as air conditioners, refrigerators, and other temperature-sensitive devices. They are employed in medical equipment for temperature measurement and control, as well as in automotive applications like engine temperature sensors and airbag deployment systems. PTC thermistors offer advantages such as quick detection of temperature changes, high accuracy, low power consumption, and cost-effectiveness.
Electric Daisy Carnival: Vegas' Festival of Music and Lights
You may want to see also
Explore related products
PTC thermistors are used in automotive, medical, industrial and consumer electronics applications
PTC stands for Positive Temperature Coefficient. PTC thermistors are semiconductor resistors that demonstrate an increase in resistance as temperatures rise. This makes them ideal for temperature-sensitive applications.
Automotive Applications
PTC thermistors are used in the automotive industry for a variety of purposes. They are often used as sensors to monitor fluid temperatures, such as engine coolant, cabin air, external air, or engine oil temperature. They can also be used to provide cabin heating, or to heat diesel fuel in cold conditions before engine injection. PTC thermistors are also used in engine temperature sensors and airbag deployment systems, where their ability to detect temperature changes quickly and accurately is crucial.
Medical Applications
In the medical field, PTC thermistors are used in temperature-sensitive equipment such as thermometers to measure body temperature. They are also used in medical equipment that requires temperature control, such as in incubators or to maintain the temperature of certain drugs and biological samples.
Industrial Applications
Due to their reliability, durability, and resistance to shock and vibration, PTC thermistors are well-suited for long-term use in industrial settings. They are used to regulate temperature in industrial machines and HVAC systems, as well as to detect overcurrent conditions and protect sensitive electronic equipment from overvoltage or overcurrent. Their ability to sense temperature differences makes them useful for preventing overheating, monitoring machine performance, and increasing efficiency.
Consumer Electronics Applications
PTC thermistors are used in a variety of consumer products, including air conditioners, refrigerators, and other temperature-sensitive devices. They are also used in consumer electronics to provide over-current and surge protection, preventing damage to sensitive electronic equipment. Their small size and low power consumption make them ideal for use in consumer electronics.
Converting Electric to Hydraulic Brakes: A DIY Guide
You may want to see also
Frequently asked questions
PTC stands for Positive Temperature Coefficient.
A PTC thermistor is a type of resistor or resistance thermometer that is made from a semiconductor material. It has a natural resistance to electricity that increases as temperature increases.
PTC thermistors are used in a variety of applications such as temperature control, over-current protection, and surge protection. They are also used in automotive, medical, industrial, and consumer electronics applications.
PTC thermistors have a positive temperature coefficient, which means that as the temperature increases, the resistance to electric current also increases. This relationship between temperature and resistance results in a self-regulating heating element that prevents overheating.
