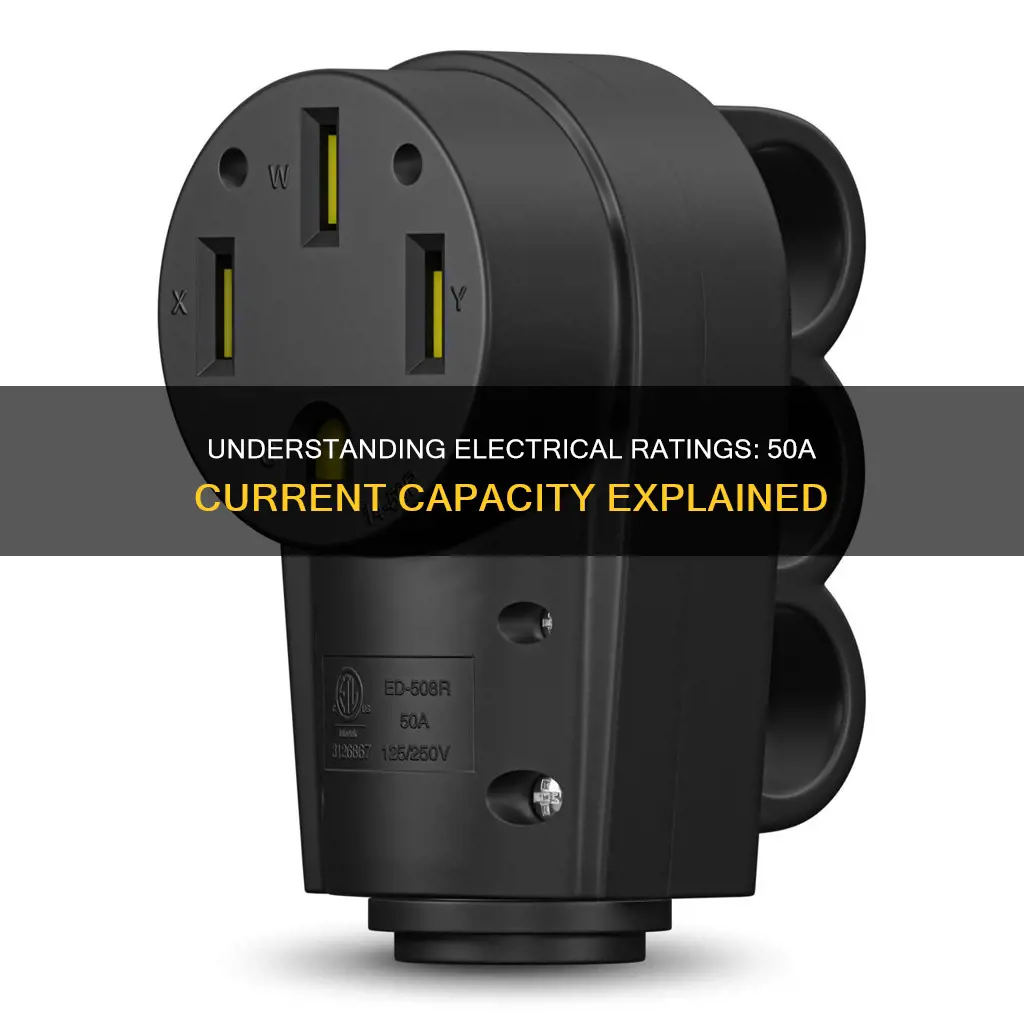

A 50-amp circuit is designed to accommodate high-energy appliances like electric ranges, dryers, hot tubs, and large RVs. It is a common circuit size that a builder would install for a wall oven or range. 50-amp circuits are used in residential, commercial, and industrial settings and are considered the circuits for high-demand appliances. The right wire size for a 50-amp circuit is essential for ensuring safety and efficiency in electrical setups. The power rating of an electrical appliance specifies the voltage at which it is designed to operate and the current consumption at that voltage.
50A Rating Characteristics
| Characteristics | Values |
|---|---|
| Typical use | High-demand appliances in residential, commercial, and industrial settings |
| Examples of appliances | Electric power dryers, ovens, air conditioning units, and hot tubs |
| Wire type | 6 AWG copper wires and 4 AWG aluminum wires |
| Wire length | For wires shorter than 100 feet |
| Safety margin | 80% rule – a circuit breaker should only carry up to 80% of its total capacity under continuous load |
Explore related products
What You'll Learn
50A is a standard circuit size for wall ovens or ranges
The option of 40A or 50A is often given for electric ovens and ranges. This is because 40A is sufficient to power most ovens and ranges, and 50A is recommended for future upgrades. A 50A circuit can be used to power an oven or range with a 40A requirement, as the appliance will only draw the amount of power it needs to function.
It is important to note that the wire size must be appropriate for the circuit breaker. For example, a #8 wire is not suitable for a 50A breaker. A 50A circuit breaker will typically use 6 AWG copper wires or 4 AWG aluminum wires for cables that are 100 feet or less. For cables longer than 100 feet, larger cables must be used to account for voltage drop.
In some cases, a 50A circuit may not be necessary, especially if the stove or oven is not frequently used at maximum capacity. A qualified electrician can advise on the appropriate circuit size and wiring for a particular appliance.
Overall, while 50A is a standard circuit size for wall ovens or ranges, it is important to consider the specific requirements of the appliance and local electrical codes when determining the appropriate circuit size and wiring.
Understanding Electrical Infinity: Infinite Possibilities, Infinite Power
You may want to see also
Explore related products
50A circuits are used for high-demand appliances
50A circuits are commonly used for high-demand appliances in residential, commercial, and industrial settings. These circuits are designed to handle a large amount of power and are, therefore, suitable for appliances with high electrical demands.
Electric ovens, for example, often offer the option of 40A or 50A breakers. The reason for this is that 50A is a standard circuit size installed for wall ovens or ranges, and while a 40A circuit is sufficient to power the oven, a 50A circuit allows for future upgrades. Ovens have specific power requirements and are designed with a continuous load in mind, meaning they can be on for extended periods. As a result, they are designed to use less power, typically 80% or less of the rated current, ensuring a safety margin even at 40A.
Other high-demand appliances found in residential settings that often require 50A circuits include electric dryers, air conditioning units, and hot tubs. These appliances require a significant amount of electricity to operate and, therefore, benefit from the higher power capacity of 50A circuits.
In commercial and industrial settings, the use of 50A circuits may be even more prevalent due to the presence of heavy-duty equipment and machinery. In these environments, 50A circuits help ensure that appliances and machinery do not draw too much power, reducing the risk of overload, short circuits, or potential fires.
It is important to note that the wire size used in a 50A circuit must be appropriate for the breaker. For example, using a #8 wire on a 50A breaker is not recommended. Additionally, for cables longer than 100 feet, larger cables should be used to account for voltage drop.
Understanding Electric Potential: A Key to Unlocking Voltage Secrets
You may want to see also
Explore related products
50A circuits are used in residential, commercial, and industrial settings
50A circuits are used in a variety of applications across residential, commercial, and industrial settings. In residential settings, 50A circuits are commonly used for powering appliances such as tankless water heaters, electric vehicles (EV) chargers, and ovens. For instance, a tankless water heater may require two separate 50A circuits to function properly, with a combined power draw of 100A. Similarly, electric vehicle chargers and ovens can also have high power requirements, making 50A circuits necessary for their operation.
In commercial settings, 50A circuits are often used for lighting applications. The National Electrical Code (NEC) specifies that the maximum breaker size for a lighting circuit should not exceed 50A. This is an important consideration for commercial spaces, as lighting can contribute significantly to the overall energy consumption of a building. By adhering to the 50A maximum, commercial buildings can ensure safe and efficient lighting installations.
In industrial settings, 50A circuits are also prevalent and play a crucial role in powering machinery and equipment. Similar to commercial lighting, industrial applications must also adhere to electrical codes and standards to ensure safe and proper use of 50A circuits. This includes considerations for disconnecting means, marking requirements, and proper insulation, as outlined in electrical codes such as the Electrical Code of Texas.
Additionally, 50A circuits are used in residential, commercial, and industrial settings to support various electrical devices and systems. For example, in residential and commercial settings, 50A circuits can be utilized for air conditioning units, which typically operate at lower amperages but can benefit from the capacity that 50A circuits offer. In industrial settings, 50A circuits may be employed for specific equipment or processes that require higher amperage, such as motors or specialized machinery.
Overall, 50A circuits are a versatile electrical standard that serves a wide range of applications across residential, commercial, and industrial sectors, helping to power everyday appliances, lighting systems, and industrial equipment. Understanding the proper use and limitations of 50A circuits is essential for ensuring safe and efficient electrical installations in various settings.
Inductive Electricity: Understanding the Basics of Inductance
You may want to see also
Explore related products
50A circuits require #6 AWG copper or #4 AWG aluminium wire
A 50A circuit is a common electrical circuit for high-demand appliances in residential, commercial, and industrial settings. These circuits are used to power appliances such as electric power dryers, ovens, air conditioning units, and hot tubs.
Now, when it comes to the wiring for a 50A circuit, it is crucial to select the appropriate wire size to prevent overheating, which can lead to damage and fire hazards. The standard wire used for 50A circuits is #6 AWG copper or #4 AWG aluminium wire for cable runs of up to 100 feet. These wires are recommended because they adhere to the National Electrical Code (NEC), which stipulates that the maximum loading capacity of an electrical circuit should not exceed 80%.
#6 AWG copper wire is the more standard choice for 50A circuits due to copper's higher conductivity compared to aluminium. This higher conductivity means that a smaller wire gauge can be used to safely carry the same amount of current. However, #4 AWG aluminium wire is also a viable option and is more affordable than copper.
If the distance between the power source and load exceeds 100 feet, it is recommended to upgrade to #4 AWG copper or #2 AWG aluminium wire to minimise voltage drop. Voltage drop occurs as electricity travels through the wire, resulting in a loss of voltage. By using a larger wire size, the voltage drop can be minimised, ensuring the efficient and safe operation of the connected appliances.
It is important to note that local electrical codes and regulations may vary by region, so consulting a licensed electrician is advised to ensure safe installation and compliance with local standards.
Understanding NC: Electrical Wiring and its Intricacies
You may want to see also
Explore related products
50A circuits should only supply appliances drawing 40 amps or less
A 50-amp circuit is designed to power high-energy appliances such as electric ranges, dryers, hot tubs, and large RVs. It is commonly used in residential, commercial, and industrial settings for high-demand appliances.
While a 50-amp circuit can handle high-powered appliances, it is important to note that it has limitations. To ensure safe operation, it is recommended to follow the 80% rule, which states that a circuit breaker should only carry up to 80% of its total capacity under continuous load. This means that a 50-amp circuit should supply appliances drawing 40 amps or less at any given time.
The 80% rule is crucial for preventing overloading and ensuring the safe operation of the circuit. By staying within this limit, you can avoid potential issues such as excess current, voltage drop, and electrical component damage.
Additionally, it is important to consider the wire size when using a 50-amp circuit. The National Electrical Code (NEC) recommends using #6 AWG copper wire or #4 AWG aluminum wire for most 50-amp circuits. However, if the circuit extends over 100 feet, upgrading to a larger wire size, such as #4 AWG copper or #2 AWG aluminum, is advised to maintain voltage levels and prevent voltage drop.
In some cases, you may encounter appliances with ambiguous specifications, such as those rated for 50A but mentioning the use of a 40A breaker. It is generally safe to follow these specifications, as long as you ensure that the wiring can handle the load. If you have any doubts or concerns, it is always best to consult a qualified electrician to ensure safe and proper installation.
Understanding Electrical Load and Its Meaning
You may want to see also
Frequently asked questions
'Rated 50A' refers to a 50-amp circuit, which is designed to power high-energy appliances like electric ovens, dryers, hot tubs, and large RVs.
A 50A circuit is required for high-demand appliances that need a lot of power to function.
50A is a standard circuit size installed for wall ovens or ranges. 40A is sufficient to power an oven, but 50A allows for future upgrades.
For a standard 50A circuit, the National Electrical Code (NEC) suggests using a 6-gauge copper wire or 4-gauge aluminum wire for cables up to 100 feet.
The 80% rule states that a circuit breaker should only carry up to 80% of its total capacity under continuous load. For a 50A circuit, this means a maximum load of 40A to ensure safe operation.
