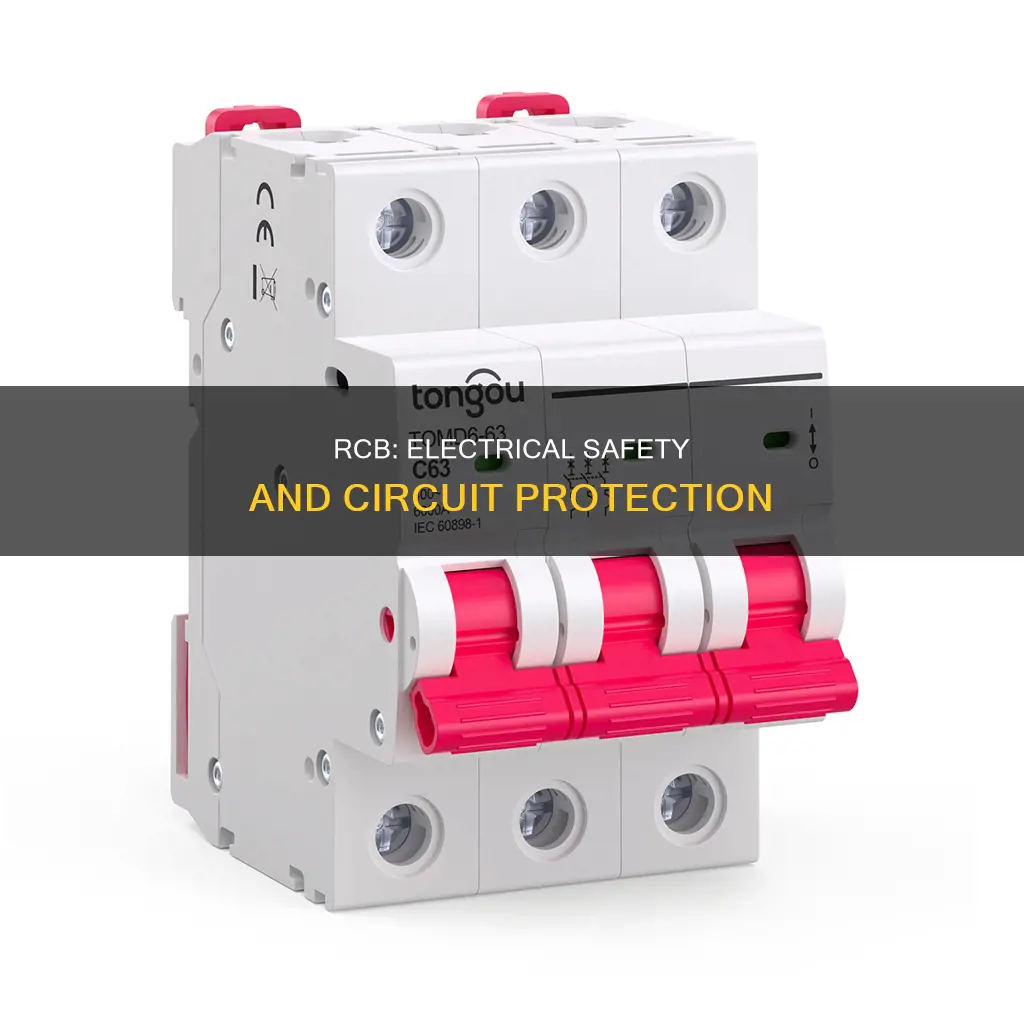

Circuit breakers are essential in safeguarding electrical systems and preventing electrical accidents. One such device is the RCB, which stands for Residual Current Breaker. It is a general term that includes both RCD Residual Current Device and RCCB Residual Current Circuit Breaker. These devices are designed to protect electrical circuits from overload, short circuits, and ground faults, quickly disconnecting the circuit when a residual current exceeds a certain value, thereby preventing electric fires and potential equipment damage.
| Characteristics | Values |
|---|---|
| Full Form | Residual Current Breaker |
| Other Forms | Residual Circuit Breaker, RCCB (Residual Current Circuit Breaker) |
| Purpose | Protects electrical devices from high voltage supply, protects human lives |
| Function | Disconnects the circuit when a residual current exceeds a certain value, disconnects the current source in case of overload |
| Use Cases | Residential places, rural areas |
| Protection Against | Residual currents, electric shocks, overload, short circuits |
Explore related products
What You'll Learn
Residual Current Breaker
RCB stands for Residual Current Breaker. It is a general term that encompasses both RCD (Residual Current Device) and RCCB (Residual Current Circuit Breaker). These devices are essential in modern electrical systems.
RCBs are protective devices widely used for personal and equipment protection against flaws in the current flow and electrical shocks. They are designed to quickly disconnect the circuit when a residual current exceeds a certain value. Residual current refers to a current imbalance between the live and neutral conductors.
An RCCB, also known as an RCD, is a safety device that detects and interrupts a circuit when there is a leakage current to the ground. It operates based on Kirchhoff's current law, which states that the sum of the currents entering a node must equal the sum of the currents leaving that node. RCCBs are classified into types AC, A, B, and F, each suited for different kinds of leakage currents and applications.
RCBOs, on the other hand, integrate the functionalities of both an RCD and an MCB or MCCB. They combine the features of circuit protection against surge currents, residual currents, and short-circuiting in a single device. They provide individual circuit protection, allowing for selective disconnection in the event of a fault, without affecting other circuits.
