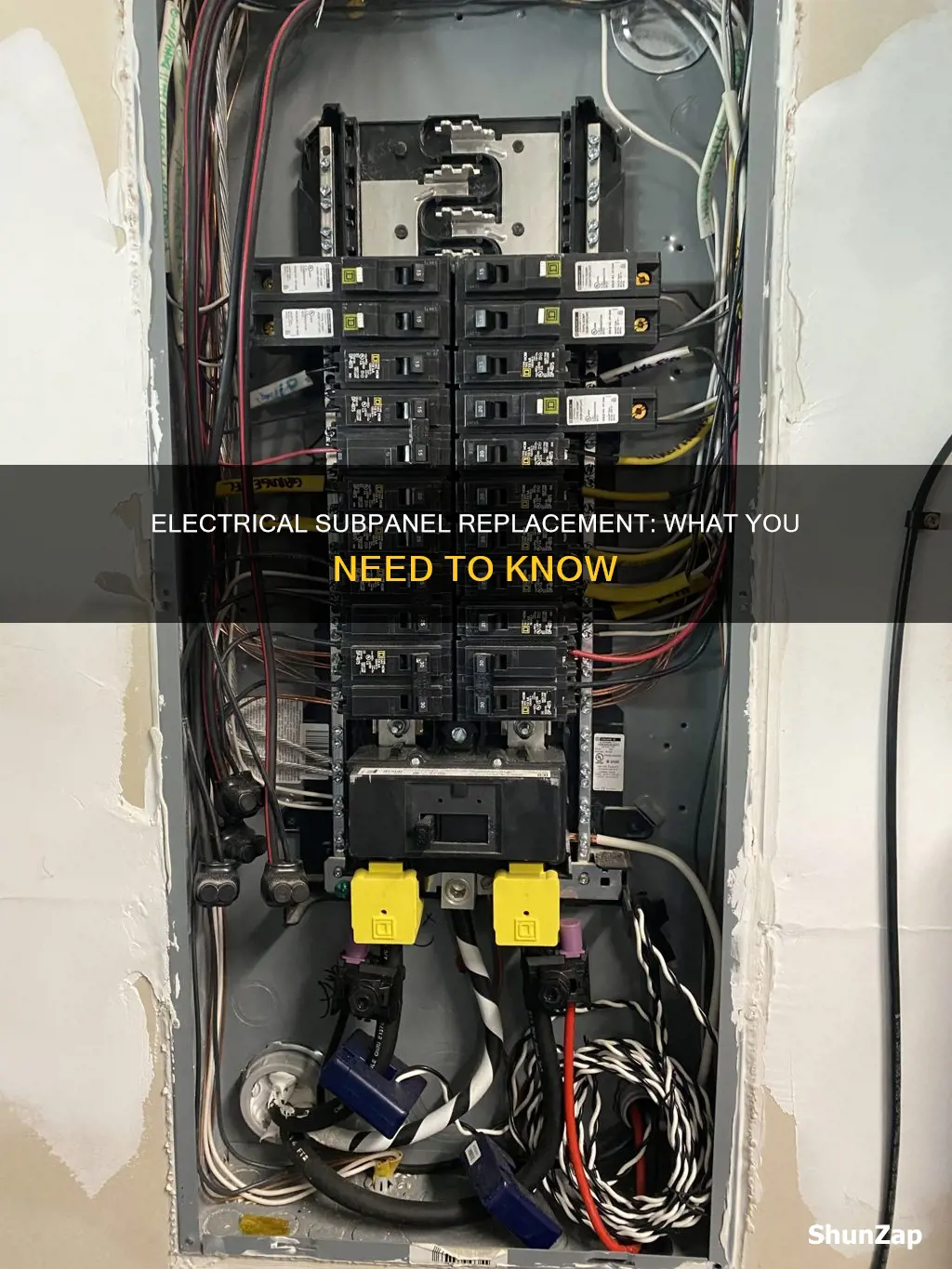

Replacing an electrical subpanel typically involves upgrading the electrical service to accommodate future needs and ensure safety standards are met. This process may include upgrading the ampacity, adding spaces for future circuitry, and addressing any issues with double tapping, where multiple wires are connected to a single breaker. The replacement process involves shutting off the main breaker, mounting the new subpanel, routing and connecting wires, and ensuring compliance with local electrical codes. Costs for replacing a subpanel can vary depending on factors such as location, wiring distance, and the number of circuits involved.
| Characteristics | Values |
|---|---|
| Reasons for replacement | Insufficient space for circuits, property expansions, future electrical demands, outdated/unsafe panels, compliance with local regulations |
| Considerations | Current and future load, electrical codes and safety standards, ampacity, presence of main disconnect, overcurrent protection, grounding |
| Installation process | Consult an inspector/electrician, shut off power, mount subpanel, route/cut/strip wires, connect to terminals/breakers, clamp cable, ensure neat wiring |
| Costs | $1,400-$2,800 for 200-amp breaker box replacement; $150-$300 per circuit breaker; $250-$900 for dedicated circuit; $50-$350 for permits; $100-$250 for inspection; $7-$10 per linear foot for wiring; $10-$100+ for GFCI circuit breaker; $100-$175 for GFCI outlet replacement; $100-$300 for outlet grounding; $40-$100 per hour for electrician labour |
Explore related products
$55.63
What You'll Learn
Installation costs
The cost of installing a new circuit breaker is between $150 and $300 per breaker, while installing a dedicated circuit costs $250 to $900. The cost of materials and upgrades, such as wiring, connectors, fasteners, junction boxes, and possibly GFCI circuits and outlets, should also be considered. GFCI circuit breakers add $10 to $100+ to the material cost, while GFCI outlets cost $100 to $350. Electricians typically charge $40 to $100 per hour for their services, with a service call fee of $75 to $125.
The size and location of the subpanel also impact the cost. Larger subpanels with more circuits and longer wiring distances require more labour and materials. Electrical permits, which cost $50 to $350, and inspections, which cost $100 to $250, are often required when installing a subpanel.
The cost of trenching to bury electrical wiring ranges from $6 to $13.50 per foot, while new subpanel electrical wiring costs $7 to $10 per linear foot.
In some cases, it may be necessary to replace the cable when installing a subpanel. This is especially true if a grounding wire needs to be installed, as it would need to run from the subpanel back to the main panel.
Upgrading to a higher ampacity, such as from a 100-amp to a 200-amp panel, can also increase the cost of installation. Breaker box replacement typically costs between $1,400 and $2,800 when upgrading to 200-amps.
It is important to consult with a licensed electrician to ensure proper wiring, grounding, and code compliance, especially when dealing with electrical projects.
Smart Tips to Save Electricity with Your AC
You may want to see also
Explore related products
Safety standards
Safety is paramount when installing anything with wires or electrical work. Before beginning any electrical project, the power must be shut off at the main breaker in the service panel.
It is important to adhere to current local electrical codes and safety standards, and to ensure that any work done meets these standards. For example, some subpanel circuits may require GFCI protection for code compliance. Bathrooms, kitchens, garages, and unfinished basements typically require this safeguard at the circuit breaker or outlet. Installing a GFCI circuit breaker adds $10 to $100+ to the material cost.
In the United States, the National Electrical Code (NEC) provides load calculation guidelines to ensure that the new subpanel's demand is feasible and compliant. Local codes may also require GFCI breakers when installing a new subpanel.
A well-wired panel is important for safety. In a well-wired panel, wires route in neat paths around the perimeter, making it easy to tell which wire goes to which breaker. Orderly wires are also less likely to brush against hot bus bars, which would create a serious fire hazard.
It is recommended to replace Federal Pacific and Zinsco subpanels as soon as possible due to a known fire risk. Experts also recommend upgrading outdated Challenger and PushMatic/Bulldog panels.
Testing Electrical Current: DIY Safety Checks
You may want to see also
Explore related products
Wiring and connections
The wiring and connections process for installing a subpanel involves several steps and considerations to ensure safety and functionality. Here is a detailed guide:
Firstly, it is crucial to consult a licensed electrical contractor or inspector to assess the current load on the panel and determine the anticipated load with any additional circuits or appliances. This step ensures that the electrical system can handle the new load and helps identify if a subpanel is indeed necessary. It is also important to calculate the maximum load capacity to avoid overloading the system.
Before beginning any installation work, the main breaker in the service panel must be shut off to ensure safety. The next step is to mount the subpanel in a suitable location. The National Electrical Code (NEC) guidelines recommend mounting the subpanel at least 78 inches above the floor. While the subpanel can be placed anywhere in the house, it is preferable to install it within a foot of the main service panel to simplify the wiring process and reduce installation time.
The wiring process involves planning the routes for the wires, including the ground, neutral, and two hot wires (black and red). The wires should be routed neatly around the perimeter of the panel, making it easy to identify which wire connects to which breaker. Orderly wiring also reduces the risk of wires brushing against hot bus bars, preventing potential fire hazards.
After routing the wires, they must be cut and stripped. The black and red wires are connected to the hot bus bars, the neutral wire to the main neutral terminal, and the ground wire to the ground bus bar. It is important to ensure that the wiring is correct to avoid issues like corrosion, electrical shocks, or fires.
Additionally, when dealing with subpanels in separate structures, a main disconnect becomes necessary if the panel exceeds six spaces. This ensures compliance with safety standards and provides the correct overcurrent protection. In such cases, the main breaker must match the capacity of the incoming service cables for accurate overcurrent protection.
It is worth noting that some subpanel circuits may require GFCI (Ground Fault Circuit Interrupter) protection for code compliance, especially in areas like bathrooms, kitchens, garages, and unfinished basements. Installing a GFCI circuit breaker or outlet can enhance safety and ensure compliance with local electrical codes.
The Mystery of Electrical Substations: Why Are They Fenced Off?
You may want to see also
Explore related products
Breaker boxes
Firstly, it is important to assess the current electrical demands and future needs of the property. This includes considering any plans to increase electrical usage or add new appliances that may require additional power. Upgrading to a higher-amp panel, such as replacing a 100-amp panel with a 200-amp one, can accommodate future electrical demands and higher-capacity needs. Additionally, ensuring there is enough space in the panel for future circuitry is crucial. This can be achieved by installing a larger panel or adding a subpanel to provide extra capacity.
Before installing a subpanel, it is essential to consult with a licensed electrical contractor or inspector to ensure that your system can handle the additional load without overloading. A subpanel is typically installed when the main service panel cannot accommodate new circuit breakers. It connects to the main panel using a thick three-wire cable, including ground, neutral, and two hot wires (black and red). The feeder breaker in the main panel acts as the disconnect for the subpanel. It is important to note that subpanels do not increase the total power available but only enhance power distribution, making them useful for adding circuits to specific areas like new rooms or garages.
When replacing or installing a subpanel, safety must be the top priority. Ensure that the power is shut off at the main breaker before beginning any electrical work. The subpanel should be mounted at least 78 inches above the floor, typically within a foot of the main service panel, but it can be placed anywhere in the house. The wiring should be neat and orderly, with wires routed in clear paths to prevent them from brushing against hot bus bars, reducing the risk of a fire hazard.
The cost of replacing a breaker box typically ranges from $1,400 to $2,800 when upgrading to 200-amps. The cost depends on factors such as location, amps, wiring distance, and the number of circuits. It is important to consult with a licensed electrician to ensure proper wiring, grounding, and compliance with local electrical codes and safety standards.
Adjusting BodyMed Electrical Stimulator: Easy Steps to Follow
You may want to see also
Explore related products
Circuitry and capacity
When replacing a subpanel, it is essential to assess the current and future electrical needs of the property. If there are plans for property expansions or the addition of electrical appliances that will increase electrical usage, it may be necessary to upgrade to a larger panel with higher ampacity. For example, replacing a 100-amp panel with a 200-amp panel can accommodate future electrical demands without the need for another panel change.
The number of circuits required will also impact the replacement process. Replacing a subpanel typically requires less labour as the circuit wiring is already in place. However, if additional circuits are needed, this will involve more work and materials. Each new circuit breaker must be wired to a receptacle or appliance, and dedicated circuits may need to be installed.
To ensure the safety and functionality of the electrical system, it is crucial to comply with local electrical codes and safety standards. This includes proper wiring techniques, such as avoiding "double-tapping" breakers and ensuring that wires are routed neatly to prevent contact with hot bus bars, reducing the risk of electrical fires.
Before replacing a subpanel, it is recommended to consult a licensed electrician to assess the electrical system's current load and future load requirements. They can also advise on whether a service upgrade is necessary, which involves running heavier wires and connections from the grid to the property, in addition to installing a new breaker panel.
Electric Train Setup: A Simple Guide to Hooking Up
You may want to see also
Frequently asked questions
Replacing an electrical subpanel involves upgrading the electrical service to meet current and future needs. This may include increasing the ampacity, adding spaces for future circuitry, and addressing any safety concerns such as double-tapping breakers.
An electrical subpanel may need to be replaced if it is outdated, poses a safety risk, or cannot accommodate the electrical demands of the property. For example, if you are planning to add a new room or garage, you may need to install a subpanel to extend the circuit capacity.
Replacing an electrical subpanel can provide additional space for circuit breakers, improve electrical distribution within the home, and prepare for higher-capacity needs without requiring a full system overhaul. It also ensures compliance with local electrical codes and safety standards.
The cost of replacing an electrical subpanel can vary depending on factors such as location, ampacity, wiring distance, and the number of circuits. Breaker box replacement typically ranges from $1,400 to $2,800 when upgrading to 200 amps. Additional costs may include permits, inspections, and materials.
While it is technically possible to replace an electrical subpanel without a professional, it is not recommended due to safety concerns. Electrical work can be complex and dangerous, and incorrect wiring may lead to corrosion, electrical shocks, or fires. It is always best to consult a licensed electrician to ensure proper installation, grounding, and compliance with electrical codes.
