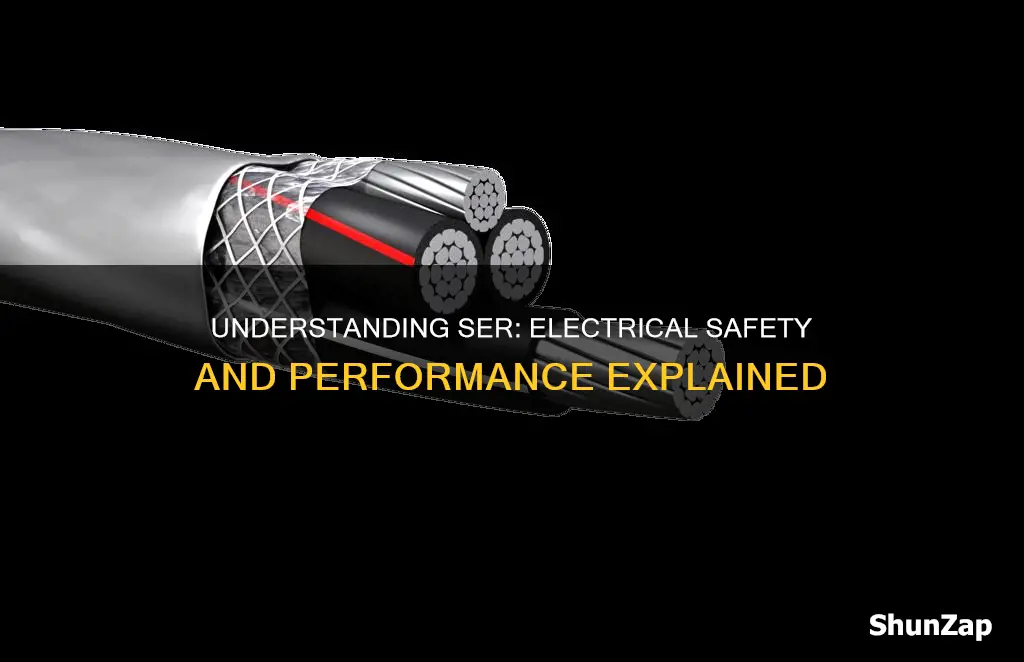

SER is an acronym for Service Entrance cable with Reinforcement tape. It is a type of electrical cable that brings power from electrical companies to residential buildings and homes. SER cables are rated at 600 volts and are suitable for use in both dry and moist conditions. They are also flame-retardant and resistant to moisture. SER cables are made of copper or aluminum wires reinforced with Style R tape. They are used as above-ground service entrance cables, panel feeders, and in branch circuits.
Explore related products
What You'll Learn
SER cables are used as an above-ground service entrance cable
SER cables, or Service Entrance cables, are used to bring power from electrical companies to residential buildings and homes. They are rated at 600 volts and are suitable for use in dry or moist conditions. They are also flame-retardant and resistant to moisture. SER cables are made of copper or aluminium wires reinforced with special Style R tape. They are used as above-ground service entrance cables, panel feeders, and in branch circuits.
SER cables have both a neutral and a ground conductor, which means they can be used after the service disconnect. The bare neutral conductor of a SER cable must be fastened to both the utility pole and the service pole. The neutral cable and two hot conductors are then connected to the service entrance cable, which is pulled through a protective metal hood called a "waterhead". A 36-inch drip loop is required to prevent water from entering and causing corrosion or a short circuit.
SER cables are commonly used to deliver power from the service drop-down to the meter base and then from the meter base to the distribution panel board. They are suitable for use in a range of applications where Type SE cable is permitted by the NEC.
SER cables are an important component of electrical systems, providing a safe and reliable means of delivering power to residential buildings and homes.
The Electrical Axis: What Does It Mean?
You may want to see also
Explore related products
SER cables are rated at 600 volts
The National Electric Code (NEC) indicates that these cables are used for services. SER cables have a neutral conductor and a ground conductor, which makes them safe to use after the service disconnect. The bare neutral conductor of a SER cable must be fastened securely at the end of the utility pole and the service pole. This is typically done with an insulator and an archer bolt.
SER cables are also flame-retardant and resistant to moisture. They are made from copper or aluminium wires reinforced with Style R tape. This style of tape means that SER cables are suitable for use above ground.
SER cables are also LEAD FREE and RoHS compliant. They have a voltage rating of 600 volts and a maximum operating temperature of 90ºC.
Understanding PAC in Electrical Engineering: A Comprehensive Guide
You may want to see also
Explore related products
SER cables are flame-retardant and moisture-resistant
SER stands for Service Entrance Cable, which is a type SE (service entrance), Style R (reinforcement tape) cable. These cables are used to bring power from electrical companies to residential buildings and homes, as well as commercial buildings. SER cables are rated at 600 volts and 90ºC and are suitable for use in wet and dry locations.
SER cables are composed of compact, stranded aluminum alloy conductors made of AA-8000 series. The cable also features a flame-retardant binder tape made of fiberglass. This flame-retardant property is essential in minimizing the risk of fire and other electrical hazards. The binder tape is also resistant to sunlight, which helps maintain the cable's integrity even when exposed to ultraviolet rays.
The individual conductors in SER cables have XHHW-2 insulation with distinct colors. These insulated conductors are bundled together with a bare ground wire. SER cables are designed to meet strict safety standards set by industry organizations such as the National Electrical Code (NEC) and the National Fire Protection Association (NFPA).
In addition to being flame-retardant, SER cables are also moisture-resistant. This makes them suitable for use in various environments, including wet locations. SER cables are designed to withstand harsh environmental conditions, including exposure to moisture. This moisture resistance is achieved through the XHHW-2 cross-linked polyethylene (XLP) insulation of the conductors.
The durability of SER cables is further enhanced by their resistance to UV rays and other environmental factors that can cause damage. This makes them suitable for use in both indoor and outdoor applications. SER cables are easy to install and can be run from the main electrical service to the electrical panel with minimal effort. They are compatible with standard electrical fittings, allowing for simple integration with other parts of the electrical system.
The Electric Body: A Song of Self-Expression
You may want to see also
Explore related products
![El Ser [Blu-Ray]](https://m.media-amazon.com/images/I/71Z5aj4y5WL._AC_UY218_.jpg)
SER cables have both neutral and ground conductors
SER is a type SE (service entrance), Style R (reinforcement tape) cable. It is used to bring power from electrical companies to residential buildings and homes. SER cables are rated at 600 volts and are suitable for use in both dry and moist conditions. They are flame-retardant and resistant to moisture.
Ground conductors, on the other hand, are not intended to carry current for normal operation. Instead, they connect exposed metallic components, such as equipment enclosures or conduits enclosing wiring, to earth ground. A ground conductor only carries significant current if there is a circuit fault that would otherwise energize exposed conductive parts and present a shock hazard.
The presence of both neutral and ground conductors in SER cables makes them safe to use after the service disconnect. According to the National Electrical Code, neutral and ground wires must be separated when feeding a panel, so using service ground cables is crucial to meeting NEC requirements.
Buzzing Electrical Lines: What's the Deal?
You may want to see also
Explore related products
![FRASIER-DIE KOMPLETTE SER - MO [DVD]](https://m.media-amazon.com/images/I/61QbEqpPJ4L._AC_UY218_.jpg)
SER cables are made of copper or aluminium wires
SER stands for Service Entrance Cable, which is a type SE (service entrance), Style R (reinforcement tape) cable. They are electrical cables that bring power from electrical companies to residential buildings and homes. SER cables are commonly used for residential electrical projects and provide power from the main electrical panel to various areas of the house. They are rated at 600 volts and are suitable for both dry and moist applications.
The choice between aluminium and copper SER cables depends on various factors, including budget, electrical load requirements, and local codes. For DIY enthusiasts, consulting with a qualified electrician is recommended to ensure the selection of the most suitable option for specific electrical wiring and cable needs.
Both types of SER cables are flame-retardant and resistant to moisture. They can be used in wet or dry locations with a maximum temperature of 90°C. SER cables have a neutral conductor and a ground conductor, making them safe to use after the service disconnect. The installation process for SER cables involves fastening the bare neutral conductor at the utility pole and service pole, leaving the neutral cable and two hot conductors for splicing.
Grounding Electrical Devices: Safety and Functionality Basics
You may want to see also
Frequently asked questions
SER stands for Service Entrance cable with Reinforcement tape. It is a type of electrical cable that brings power from electrical companies to residential buildings and homes.
Service Entrance cables are electrical cables that connect and carry electrical currents from electrical companies to commercial or residential buildings. They are used for services, according to the National Electric Code (NEC).
SER and SEU are two common types of Service Entrance (SE) cables. SER cables have both a neutral and ground conductor, while SEU cables only have a neutral conductor. SER cables are also known as Style R due to the reinforcement tape, while SEU cables are Style U, meaning they are unarmored.
