In electrical installations, the term 'single pole' refers to a switch that operates on a single circuit. This type of switch is typically used to control a single light fixture or appliance and is commonly found in residential buildings, powering bedroom, bathroom, and kitchen lights, as well as wall outlets. Single pole switches are also used for low-current 120VAC applications. They are usually identified by the ON/OFF symbols embossed on the switch face and the presence of two brass-colored screw terminals and a green screw connected to the metal strap. While single pole switches are legal and safe for many appliances, double pole switches are often recommended for safer isolation of plugged-in devices.
Explore related products
What You'll Learn
Single-pole switches are used for low current 120VAC applications
Single-pole switches are the most common option for residential buildings. They are used to control the lighting in small spaces, such as a closet or bathroom. Single-pole switches are also used to control bedroom lights, kitchen lights, and wall outlets. They are used for low current 120VAC applications.
A single-pole switch is called so because it controls only one circuit, and there are two wires connected or separated by the switch mechanism. It receives incoming power from the electrical panel and then routes that power through the outgoing terminal to a single light fixture or appliance.

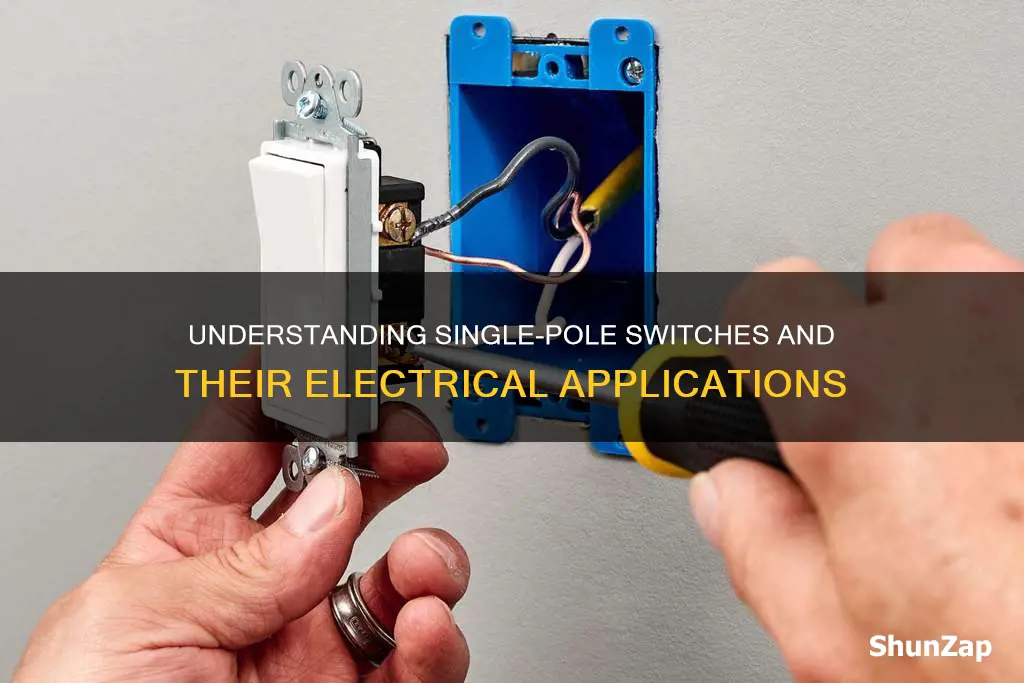

Single-pole switches are usually identifiable by the ON/OFF symbols embossed on the face of the switch. They have two brass-coloured screw terminals attached to the body of the switch, plus a green screw connected to the metal strap. This green screw is connected to a ground wire to protect against electrical faults.
Single-pole switches are also used in combination with other electrical devices, such as a USB charging port, to reduce the number of wall boxes needed in a room. They are also popular in older homes, along with pull switches.
Troubleshooting an Electric Oven: Clicking Noises Explained
You may want to see also
Explore related products
![[50 Pack] BESTTEN Single Pole Decorator Wall Light Switch with Wallplate, 15A 120/277V, On/Off Rocker Paddle Interrupter, UL Listed, White](https://m.media-amazon.com/images/I/71pklf7G38L._AC_UL320_.jpg)
They are used to control a single circuit
A single pole switch is used to control a single circuit. It is a standard light switch that receives incoming power from the electrical panel and then routes that power through the outgoing terminal to a single light fixture or appliance. Single pole switches are used to control the light in small spaces like a closet or a bathroom. They are also used throughout the home to control bedroom lights, bathroom lights, kitchen lights, and wall outlets.
Single pole switches are also referred to as single-pole, single-throw (SPST) switches. They are the most common type of switch and are usually the cheapest. They are safe for many appliances but it is still safer to use a double pole switch for full isolation.
A single pole switch has two brass-coloured screw terminals attached to the body of the switch, plus a green screw connected to the metal strap. The two wires connected or separated by the switch mechanism are usually black and red. There is also a ground wire to protect against electrical faults.
Single pole switches are used for low current 120VAC (Volts of Alternating Current) applications. They are often used for switching a 120VAC supply. Single pole switches are also used in older homes, while modern houses tend to have single pole, triple light switches, or smart switches.
Understanding PNP Electrical Circuits: What Does PNP Mean?
You may want to see also
Explore related products
They are the most common option for residential buildings
Single-pole switches are the most common option for residential buildings. They are standard light switches that receive incoming power from the electrical panel and then route that power through the outgoing terminal to a single light fixture or appliance. They are used throughout the home to control bedroom lights, bathroom lights, kitchen lights, and wall outlets.
Single-pole switches are the simplest type of on/off switch, with two brass-colored screw terminals attached to the body of the switch, plus a green screw connected to the ground strap. They are also the cheapest option and are perfectly safe for many appliances.
Single-pole switches are also known as single-pole, single-throw (SPST) switches. They control just one circuit and are used for low current 120VAC (Volts of Alternating Current) applications. They are often used in older homes, but can also be found in modern houses, sometimes paired with a USB charging port in a combination switch.
However, in some applications, such as hallways and larger rooms, having a single switch can be inconvenient, so it might be useful to control the light from two locations, and this is where 3-way switches are used.
Electrical Lighting Controls: Understanding Functionality and Features
You may want to see also
Explore related products
They are cheaper than double-pole sockets
A single-pole switch is a standard light switch that controls a single circuit. It is used to control the lighting in small spaces, such as a closet or bathroom. These switches are commonly found in residential buildings and are used to control bedroom, bathroom, kitchen lights, and wall outlets. Single-pole switches are also used for low current 120VAC applications.
On the other hand, a double-pole switch controls two circuits and is used for more powerful electrical devices with a 240VAC supply. They are often used for appliances with heavy loads, such as cookers and showers, and as a safety shut-off for residential appliances. Double-pole switches are generally safer than single-pole switches as they can completely isolate appliances from the power source.
While single-pole sockets are cheaper than double-pole sockets, the latter offers safer isolation of plugged-in appliances. Single-pole sockets are legal and safe for many appliances, but double-pole sockets are always recommended for safer isolation. The wires that feed electricity to double-pole switches are typically larger than those for single-pole switches.
Although double-pole sockets are more expensive, they are only a few pence more than single-pole sockets. Therefore, it is advisable to install double-pole sockets for enhanced safety.
KWP in Electricity: Understanding the Key Word Protocol
You may want to see also
Explore related products
They are not always the safest option
A single pole switch is a standard light switch used to control a single circuit. They are commonly found in residential buildings and are used to control lighting in small spaces, such as closets or bathrooms. These switches are simple to operate and are typically safe for many appliances. However, it's important to note that they are not always the safest option, especially in certain contexts.
While single pole switches are widely used and generally considered safe, there are situations where they may pose potential risks. For instance, in larger rooms or hallways, a single switch may be inconvenient, and it might be preferable to have the option to control the light from multiple locations. In such cases, a 3-way switch or a double pole switch might be a safer and more practical choice. These switches allow for more flexible lighting control and can enhance safety in areas where a single switch may not be easily accessible.
Additionally, single pole switches are typically used for low current applications, usually up to 120VAC. For more powerful electrical devices or appliances with heavy loads, such as cookers, showers, or certain motors, a double pole switch is recommended. Double pole switches provide safer isolation of plugged-in appliances and can be used as a safety shut-off mechanism. They are designed to handle higher voltages, typically 240VAC, and offer better protection against electrical faults.
The safety concerns surrounding single pole switches also extend beyond the switches themselves. In the context of utility poles, which are used for electricity distribution, there are inherent dangers associated with high-voltage power lines. Even in urban areas where the voltage is typically lower, around 4 to 25 kilovolts, touching a power line can result in severe injuries, including the possibility of amputation or cardiac arrest. Stray voltage is another concern, where degraded insulation of underground wires can lead to electrical currents travelling through the soil and into nearby metal objects.
Furthermore, electric pole failures due to design deficiencies, corrosion, or environmental factors can pose significant safety risks. Instances of electric street lamp poles failing prematurely due to corrosion and mud accumulation have been documented, highlighting the potential hazards of pole infrastructure failures. Therefore, it is crucial to regularly inspect and maintain utility poles and electrical infrastructure to mitigate safety concerns.
Understanding Rec in Electrical Terms: What Does It Mean?
You may want to see also
Frequently asked questions
A single pole switch controls the flow of current within an electrical system. It is used to control a single circuit.
Single pole switches are used for low current 120VAC applications. They are used to control lighting in small spaces such as closets or bathrooms.
A single pole switch has ON/OFF symbols embossed on its face. It has two brass-colored screw terminals attached to the body of the switch, plus a green screw connected to the metal strap.
