The electrical axis of the heart is a crucial aspect of ECG diagnostics, representing the average direction of ventricular depolarization during ventricular contraction. This axis is determined by the sum of all depolarization vectors generated by the heart's cardiac myocytes. Clinically, this is reflected by the ventricular axis, which is interpreted by assessing the relationship between the QRS axis and limb leads of the ECG. The normal cardiac axis, directed downward and slightly to the left, is indicated by a QRS axis between -30° and +90°. Deviations from this range can signify underlying pathologies, such as left or right axis deviation, or extreme axis deviation in cases of right ventricular hypertrophy or acute cor pulmonale.
| Characteristics | Values |
|---|---|
| Definition | The mean electrical axis of the heart is the average of all the instantaneous mean electrical vectors occurring sequentially during depolarization of the ventricles. |
| Direction | The mean electrical axis normally points towards the left ventricle, as this is the larger of the two ventricles. |
| Deviation | Abnormal axis deviation, indicating underlying pathology, is demonstrated by: Left Axis Deviation = QRS axis less than -30°; Right Axis Deviation = QRS axis greater than +90°; Extreme Axis Deviation = QRS axis between -90° and 180°. |
| Causes of Deviation | Deviations of the mean electrical axis result from either right ventricular hypertrophy or a block in the intraventricular conduction system. |
| Visualisation | The electrical axis of the heart may be visualised on a Cartesian coordinate system in the frontal plane, using the "circle of axes". |
| Determination | The mean electrical axis can be determined using trigonometry, vector analysis, or by evaluating the QRS complex in leads I and II of an ECG. |
Explore related products
What You'll Learn
- The mean electrical axis is the average of all the instantaneous electrical vectors during ventricular depolarisation
- The axis is described in degrees, with 0° indicating a horizontal direction towards the heart's left side
- The normal axis range is between -30° and +90°
- A right axis deviation is indicated by an axis of more than 90°
- A left axis deviation is indicated by an axis of less than -30°
The mean electrical axis is the average of all the instantaneous electrical vectors during ventricular depolarisation
The mean electrical axis of the heart is a fundamental aspect of ECG diagnostics. It is the average of all the instantaneous electrical vectors during ventricular depolarisation. This average is calculated by determining the direction of the net flow of current through the heart, which is the sum of all depolarisation vectors generated by individual cardiac myocytes.
The mean electrical axis is also known as the principal vector of ventricular depolarisation. It is influenced by the fact that the left ventricle comprises most of the heart muscle and generates the most electrical force visible on the ECG. This is because the left ventricle is the larger of the two ventricles. Therefore, the mean electrical axis typically points towards the left ventricle.
The direction of the depolarisation, and thus the mean electrical axis, is generally alongside the heart's longitudinal axis, to the left and downwards. This is reflected by the ventricular axis, which is determined by the relationship between the QRS axis and limb leads of the ECG. The QRS axis represents the average direction of all cardiac vectors and typically positions at 59° in a normally situated heart.

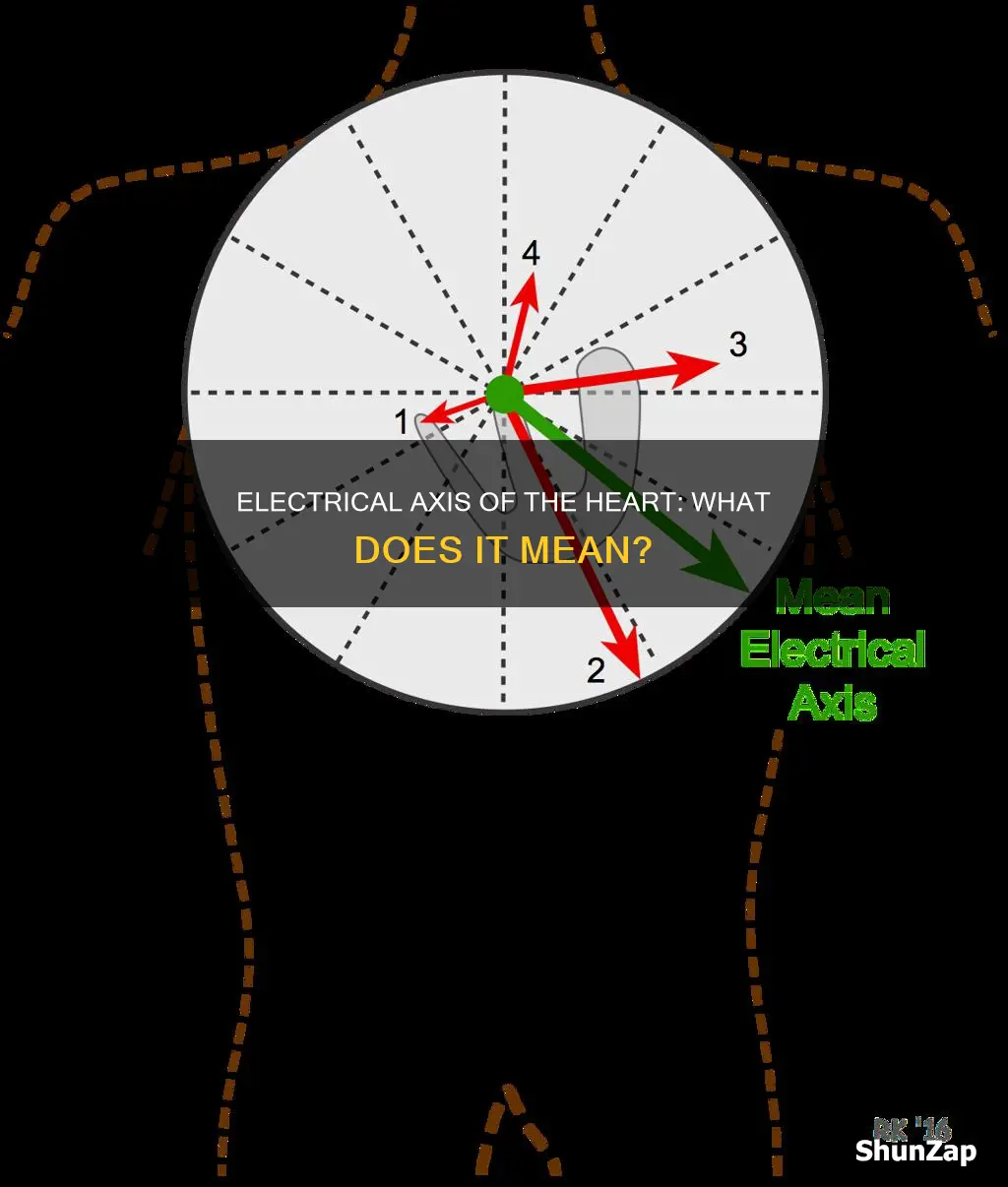

The mean electrical axis can be determined using the "circle of axes", which involves plotting the net voltage of the QRS complex in two bipolar limb leads. The hexaxial lead system is also used to determine the vertical axis of the heart, with the horizontal axis calculated using chest leads.
Abnormal axis deviation, indicating underlying pathology, is demonstrated by a QRS axis of less than -30° (left axis deviation) or greater than +90° (right axis deviation).
