A circuit breaker tripping means that there is an electrical problem that needs to be addressed. This could be due to an overloaded circuit, a short circuit, faulty appliances, or a ground fault. A tripped circuit breaker interrupts the electrical current from the electrical panel to a specific area of your home, disrupting the power to the corresponding areas. This is a safety mechanism to prevent damage, fire, and injury by cutting off the power supply when there is an overload or short circuit in the circuit.
Characteristics and Values of Tripping in Electricity
| Characteristics | Values |
|---|---|
| Definition | A tripped circuit breaker interrupts the electrical current from the electrical panel to a specific area. |
| Cause | Too much electricity flowing through the circuit breaker, or when it cannot handle the excess current load. |
| Circuit Overload | Occurs when too many devices or appliances are running simultaneously, causing the circuit to draw more electrical load than it can handle. |
| Short Circuit | Occurs when a "hot" or active wire comes into contact with another active or neutral wire, causing a spike in current. |
| Ground Fault | A type of short circuit that happens when a live wire touches the ground, a ground wire, or grounded equipment. |
| Open-Circuit Fault | Occurs when the connection breaks apart, severing the electrical wire or breaker that connects two circuit nodes. |
| Safety Mechanism | The tripping of a circuit breaker is a safety feature designed to prevent costly and damaging surges in electrical current, as well as potential fires. |
| Troubleshooting | Before calling an electrician, users can try resetting the circuit breaker, unplugging devices, and plugging them into different circuits to identify the issue. |
| Prevention | Understanding power outlets and circuit capacity is critical to preventing circuit overload. Regular maintenance and inspection of electrical systems can also help prevent tripping issues. |
Explore related products
What You'll Learn
Circuit breakers as a safety mechanism
Circuit breakers are a vital safety mechanism in any electrical system, especially in residential settings. They are designed to detect and prevent electrical faults and issues that could lead to costly and dangerous surges in electrical current.
Circuit breakers work in tandem with fuses to act as an electrical unit's internal sensing mechanism. They are designed to trip or shut off the current flow when they detect an electrical fault, such as a circuit overload or a short circuit. This tripping action triggers a cease in all electrical activity within the circuit, helping to prevent electrical fires and other damage.
The circuit breaker's protective relays detect a fault and trigger the operating mechanism to open or shut the breaker, thus fulfilling its protective role. This process is known as the trip unit or protective mechanism, and it is a critical safety feature. The breaker's frame, made of metal or moulded insulating materials, provides the strength and insulation needed to successfully interrupt the electrical current and protect people and equipment.
Additionally, circuit breakers may incorporate arc chutes, which are located near the contacts to prevent damage and heat from interfering with the circuit breaker's functionality. They also have different types of contacts, such as arcing, auxiliary, or main contacts, which ensure optimal airflow inside the breaker. In some cases, solid-state circuit breakers (SSCBs) or digital circuit breakers offer advanced capabilities and can be operated remotely for maximum safety.
Understanding how circuit breakers work as a safety mechanism is essential for maintaining a safe electrical system. They are designed to detect and prevent electrical issues, and their rapid response helps ensure the safety of people and equipment.
Understanding Single-Stage Electric: A Simple Guide
You may want to see also
Explore related products
Troubleshooting a circuit breaker issue
The first thing to do is to ensure your and your family's safety. Check for signs of excess heat or burning, and smell for what could be smoke from an electrical fire. If you sense any signs of a fire, evacuate and call 911. Check for any discolouration around an outlet and make a note of any sparks or popping noises coming from the outlet.
The most common cause of a tripped circuit breaker is an overloaded circuit. This can be caused by having too many appliances plugged into a single outlet or by an appliance that has a higher amperage than the circuit it is on. To fix this, you can try to reset the breaker, move high-load devices to different circuits, or upgrade your circuit to one with a greater load capacity.
Another common cause of a tripped circuit breaker is a short circuit. This can occur when a "hot" or active wire comes into contact with another active wire or a neutral wire. Short circuits can also be caused by faulty components such as switches, plugs, cords, appliances, or lighting fixtures. If you suspect a short circuit, it is important to call a professional as they can be dangerous and are a common cause of electrical fires.
If your circuit breaker is humming or sparking, it may be overloaded and need to be replaced. You can try to reset it by turning the switch off and then back on, but this may not work if the load on the circuit is too high.
Understanding the SPT-3 Cable: Electrical Applications and Meanings
You may want to see also
Explore related products
Circuit overload
A circuit breaker "trip" is an indication of an electrical issue. Circuit overload is a common problem that occurs when too much current flows through a circuit, exceeding the limited amount of electricity allowed. This can result in overheating, electrical fires, and damage to appliances and devices.
An electrical circuit is overloaded when it draws more electricity than it can safely handle. Circuits are designed to handle a limited amount of electricity, and the electricity usage of each device adds to the total load on the circuit. The most familiar example of circuit overload is an over-stuffed power outlet. When too many gadgets are plugged in and turned on, the outlet's capacity will be exceeded, and the circuit will trip.
To prevent circuit overload, it is important to understand your power outlets and know which circuits power which devices. Mapping out the basic circuit layout will help you calculate the safe load rating of each circuit and determine how many things you can operate on that circuit. For example, if your kitchen lights dim when you turn on your toaster oven, it means that the toaster and lights are on the same circuit and that you are close to maxing out the circuit capacity.
If you consistently experience overloads, you may need to upgrade the circuit or install a dedicated circuit for high-power appliances. An electrical panel upgrade can increase the capacity of your electrical system, allowing it to handle more power and distribute it more evenly throughout your home, reducing the risk of overload.
It is important to address circuit overload issues promptly to ensure safety and avoid costly repairs.
Understanding Service Electrical Systems: Meaning and Basics
You may want to see also
Explore related products
Short circuits
A circuit breaker tripping can indicate that the circuit breaker has detected an electrical issue, which should not be ignored. Circuit breakers are a vital part of a home's electrical system as they are designed to prevent surges in electrical current.
A short circuit is when the electrical current takes a shortcut and follows a new, unintended path—usually the shortest path, which is the path of least resistance. This can be caused by a "hot" or active wire coming into contact with another active wire or a neutral wire. This results in a spike in current, which can trip the circuit breaker.
Understanding Electrical In-Conduit Wiring: What, Why, and How?
You may want to see also
Explore related products
Faulty appliances
A circuit breaker is a critical safety mechanism that prevents wires from overheating and causing a fire. When a circuit breaker trips, it means that a single circuit has received too much electrical current, and the breaker automatically shuts down to prevent a fire.
If you suspect that a faulty appliance is causing your circuit breaker to trip, it is important to discontinue use immediately and seek professional help. A repair professional can fix the underlying issue and advise you on whether it is safe to use the appliance again.
To determine whether a faulty appliance is causing the tripping, you can perform the following steps:
- Turn off all electronics and appliances in the affected area.
- Reset the breaker.
- Turn the appliances back on one at a time.
- If the breaker trips after a particular appliance is turned on, that appliance is likely the cause of the tripping.
It is important to note that attempting to repair a short circuit or ground fault on your own can be complex and dangerous. Always consult a licensed electrician or repair professional for help.
Understanding Negative Electricity: Exploring the Minus Sign's Significance
You may want to see also
Frequently asked questions
Tripping in electricity refers to a power trip or a tripped circuit breaker, which happens when the electrical system in your home is compromised in some way. It is a safety mechanism that automatically shuts down power to one or several systems to prevent further damage.
There are several reasons why tripping occurs. The most common cause is an overloaded circuit, which happens when you draw too much power from a single circuit. A short circuit is another common cause, which occurs when a "hot" or active wire comes into contact with another active wire, a neutral wire, or the ground. Other causes include faulty appliances, RCD faults, and ground faults.

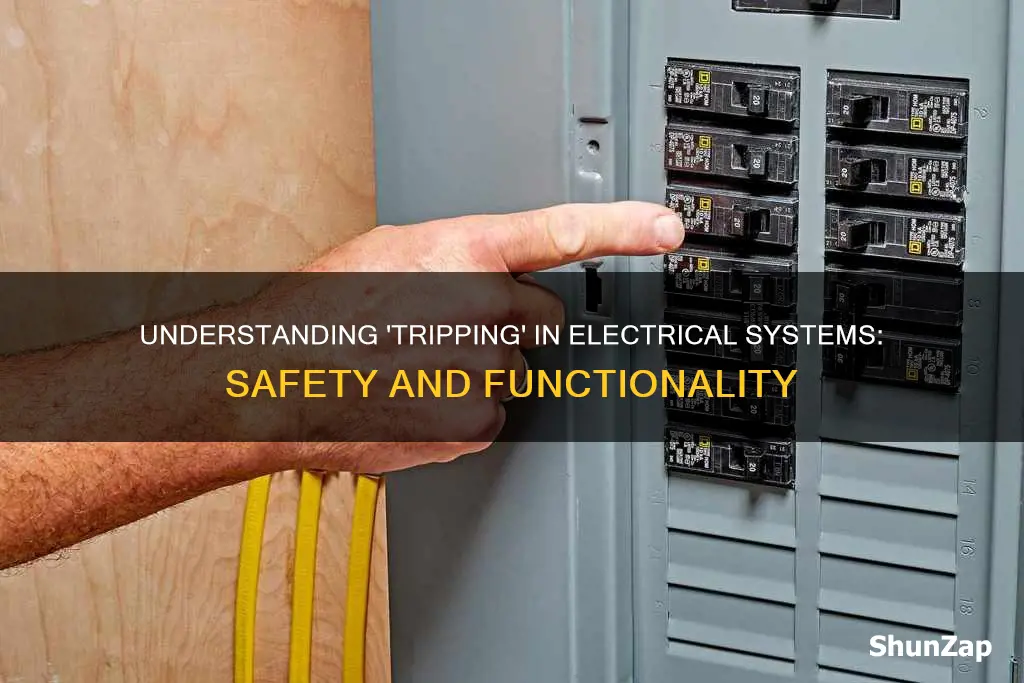

When you look at your electrical panel, you will see small rectangular boxes stacked in one or two columns. These are the circuit breakers. The handle or switch of a tripped circuit breaker will look out of position compared to the other breakers.
First, ensure that you and your family are safe by checking for signs of excess heat, burning, or smoke from an electrical fire. If you sense any signs of a fire, evacuate and call emergency services. Then, turn off all the devices and appliances connected to the affected circuit. Reset the circuit breaker by flipping it to the "off" position and then back to the "on" position. If the problem persists, contact a licensed electrician.
