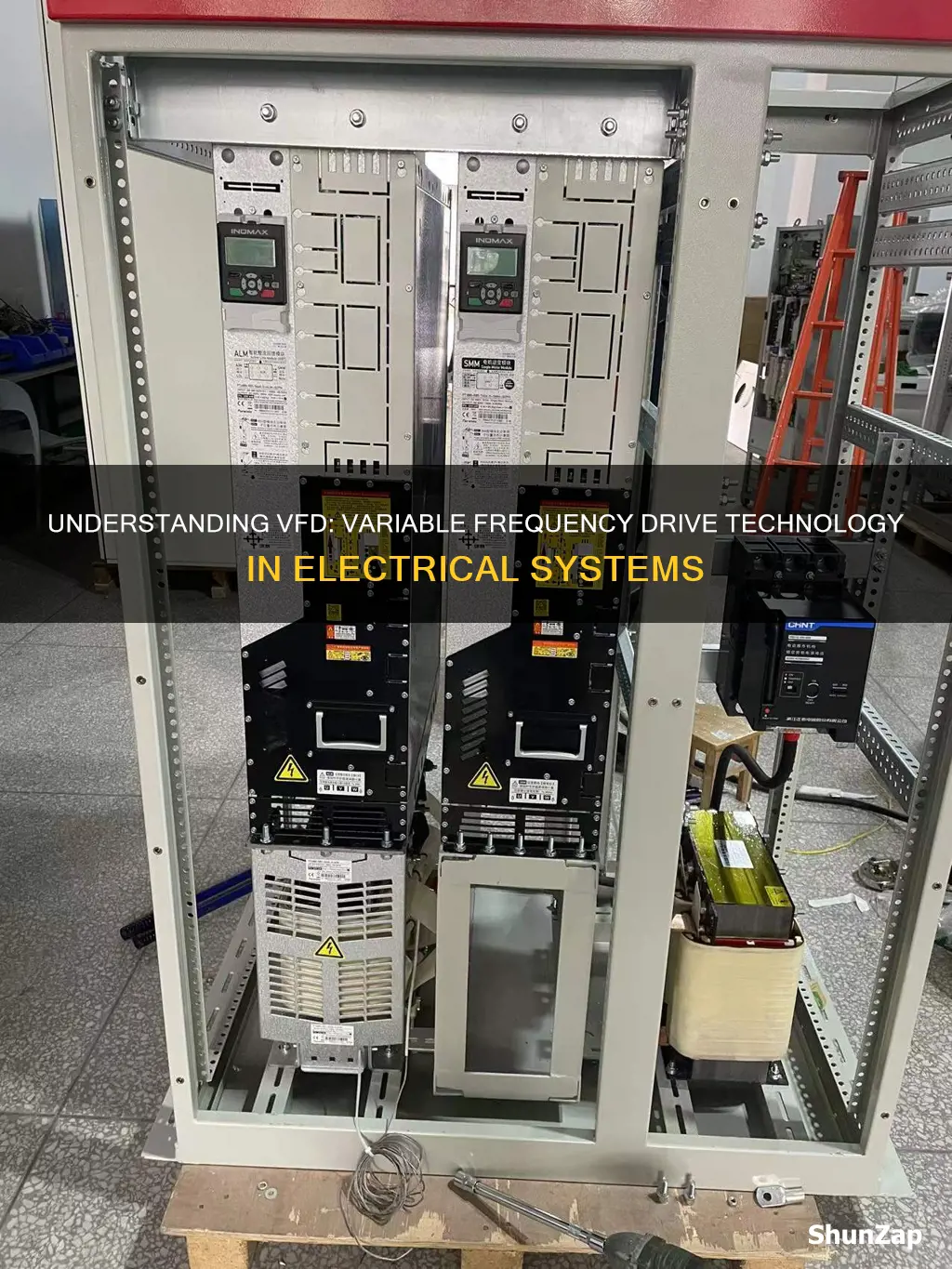

VFD stands for Variable Frequency Drive, also known as an adjustable frequency drive or inverter. It is a type of motor controller that drives an electric AC motor by varying the voltage and frequency of its power supply. VFDs are used to control the rotational speed of an AC motor. They are used in a variety of industrial applications to improve energy efficiency and reduce costs.
| Characteristics | Values |
|---|---|
| Full Form | Variable Frequency Drive |
| Other Names | Adjustable Frequency Drive, Inverter, AC Drive, Variable Speed Drive |
| Function | Controls the speed of an electric AC motor |
| Working | Converts AC voltage to DC and then to AC voltage with adjustable frequency |
| Components | Rectifier Section, DC Bus/Filter Section, Inverter Section, Control Unit Section |
| Benefits | Reduced energy consumption, improved system efficiency, precise motor control, soft starting capabilities, braking option, improved reliability and performance of electric motor systems |
Explore related products
What You'll Learn
VFDs control the speed of AC motors
VFD stands for Variable Frequency Drive, also known as an adjustable frequency drive or inverter. It is a type of motor controller that drives an electric AC motor by varying the voltage and frequency of its power supply. This is possible because frequency, given in Hertz (Hz), is directly related to the motor speed given in revolutions per minute (RPM). The faster the frequency of the supply voltage, the faster the motor speed in RPM.
VFDs offer several benefits, including improved energy efficiency, reduced costs, and enhanced system performance. They are commonly used in HVAC systems, conveyor belts, and heavy machinery, providing precise speed regulation and extending equipment lifespan. VFDs also provide protection to the motor by controlling the frequency and voltage, preventing issues such as high in-rush current during startup, which can cause damage to certain circuits.
Additionally, VFDs can control the ramp-up and ramp-down of the motor during start or stop, ensuring smooth acceleration and deceleration. They enable the motor to start slower and more smoothly, reducing mechanical stress and extending the lifespan of equipment. VFDs also have the capability to control the direction of an electric motor, allowing for forward or reverse operation.
The operating parameters of a VFD can be programmed via dedicated programming software, an internal keypad, an external keypad, or an SD card. This allows for customization based on specific requirements, such as matching the torque or power of a drive to the process needs, improving energy efficiency, and optimizing motor performance.
Electric Fans: Horsepower Gain or Drain?
You may want to see also
Explore related products
VFDs improve energy efficiency
VFD stands for Variable Frequency Drive. It is a type of motor controller that drives an electric AC motor by varying the voltage and frequency of its power supply. This adjustable frequency is what controls the speed of an inductor AC motor.
VFDs also offer other benefits such as less line disturbances, less maintenance, and longer motor life. They can also help in reducing installation and operating costs, optimizing pump operations, improving pump uptimes, and boosting oil production.
VFDs are particularly useful in industrial and commercial applications, where they can optimize the performance and efficiency of various equipment such as pumps, fans, compressors, conveyors, and HVAC systems. By implementing VFDs in these settings, businesses can enjoy benefits such as lower energy bills and carbon footprints, improved power quality, and higher performance and reliability.
Furthermore, VFDs can enhance process control and automation, leading to greater operational efficiency and productivity. They can also help businesses access incentives and savings from demand response programs while meeting environmental and regulatory standards for energy efficiency and emissions.
Are Metalloid Electrical Conductors or Not?
You may want to see also
Explore related products
VFDs provide soft starting capabilities
VFD stands for Variable Frequency Drive, a type of motor controller that drives an electric AC motor by varying the voltage and frequency of its power supply. VFDs are also known as adjustable frequency drives or inverters. They are used to govern the speed and torque of electric motors by modulating the frequency of the power they receive.
VFDs provide soft-starting capabilities, which means they can control the ramp-up of a motor and manage inrush currents. This is possible because frequency, given in Hertz (Hz), is directly related to the motor speed given in revolutions per minute (RPM). The faster the frequency of the supply voltage, the faster the motor speed in RPM.
Soft starters are a type of motor control device that provides a slow ramp-up (soft start-up) of the motor to moderate mechanical shock and electrical peak demand. They are ideal for constant full-speed operation, such as conveyor belts, and low or medium starting torque applications. VFDs, on the other hand, offer precise control over motor speed, allowing for energy savings and enhanced motor performance. They are perfect for applications that require speed modulation or torque control, such as in manufacturing processes requiring variable speed operations, including food and beverage, textile, and paper production.
The soft-starting capability of VFDs helps to eliminate mechanical shocks by providing constant torque across the operating range and giving continuous feedback. This is especially useful for critical position control. Additionally, in power distribution applications, a large motor starting at full voltage can place high demand on the system, leading to voltage dips and increased wear on the motor. VFDs help mitigate these issues by providing soft-starting capabilities and precise control over motor speed.
Overall, the soft-starting capabilities of VFDs make them a valuable tool for industries seeking to optimize energy use, reduce mechanical wear, and extend the lifespan of both the motor and the machinery it drives.
PG&E's Power Outages: When Will the Lights Go Out?
You may want to see also
Explore related products
VFDs control the direction of an electric motor
VFD stands for Variable Frequency Drive. It is a type of motor controller that drives an electric AC motor by varying the voltage and frequency of its power supply. The frequency of the AC voltage supplied to the motor is adjusted by the VFD, which controls the speed of the motor. This is because the frequency, given in Hertz (Hz), is directly related to the motor speed given in revolutions per minute (RPM).
VFDs are also known as adjustable frequency drives or inverters. They are used to govern the speed and torque of electric motors by modulating the frequency of the power they receive. VFDs are equipped with adjustable speed and torque controls, which allow them to be used across a diverse range of applications.
VFDs can be used to control the direction of an electric motor. Most VFDs have simple toggle commands for forward or reverse motor operation. They can also be used to control the ramp-up and ramp-down of the motor during start or stop, providing smooth starting and acceleration of the motor to the desired operational speed. This is often referred to as soft starting of an AC motor.
VFDs have a range of applications, from small appliances to large compressors. They are commonly used in industrial settings to increase the efficiency of AC motors and reduce energy consumption. VFDs can also be used in power conversion for hybrid systems using battery storage, such as in ferries in Amsterdam.
Understanding Digital Electric Meters: A Beginner's Guide
You may want to see also
Explore related products
VFDs can control ramp-down speed
VFD stands for Variable Frequency Drive. It is a type of motor controller that drives an electric AC motor by varying the voltage and frequency of its power supply. By adjusting the frequency of the AC voltage being supplied to the motor, the VFD is able to control the speed of the motor. This is possible because the frequency, given in Hertz (Hz), is directly related to the motor speed given in revolutions per minute (RPM). The faster the frequency of the supply voltage, the faster the motor speed in RPM.
The ability to set the acceleration rates in the drive parameters is another feature of VFDs. The ramp-up and ramp-down can also be controlled externally. Most drives have inputs that can be used to set the motor speed. You can also use a controller to gradually increase the speed command to the drive. This is typically done with a 0-10v or 4-20mA signal.
VFDs are good for variable speed, and in a water pump, this is used to maintain a steady pressure. They smooth out variances in pressure by controlling the speed of the motor. VFDs are also used in swimming pool systems to control pump motor speed.
VFDs are a type of power conversion electronic device that converts a basic fixed-voltage, fixed-frequency sine-wave line power to a variable-voltage, variable-frequency AC output. This adjustable frequency is what controls the speed of an inductor AC motor. The main function of a VFD is to vary/adjust the operating frequency of an AC power supply to a motor.
Adjusting Electric Mirrors in Ford Trucks: A Step-by-Step Guide
You may want to see also
Frequently asked questions
VFD stands for Variable Frequency Drive.
A Variable Frequency Drive is a type of motor controller that drives an electric AC motor by varying the voltage and frequency of its power supply.
A VFD uses transistors acting as electronic switches to convert the DC voltage to AC and sends it out to the connected motor at the desired frequency.
The main function of a VFD is to vary or adjust the operating frequency of an AC power supply to a motor.
VFDs are indispensable in modern industry due to their ability to significantly reduce energy consumption and improve overall system efficiency. They also offer precise motor control, soft-starting capabilities, and phase protection.
