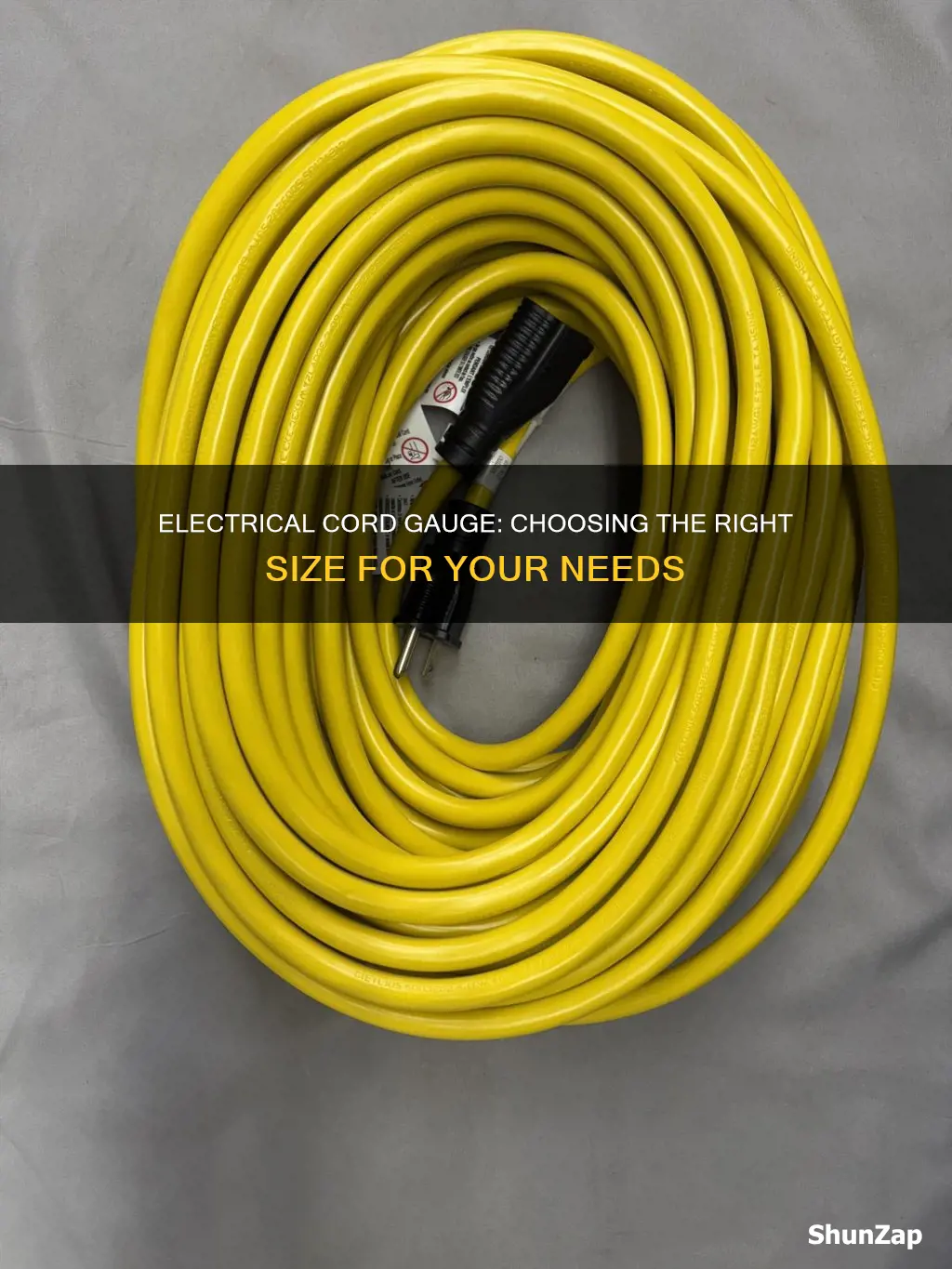

Choosing the right electrical cord is important to ensure safety and efficiency. The gauge of an electrical cord refers to the thickness of the wire, which is expressed in AWG (American Wire Gauge) numbers. A lower AWG number indicates a thicker wire, which can carry more current over long distances. The length of the cord is also a critical factor, as longer cords create more electrical resistance and cannot carry the same amount of amperage and wattage as shorter cords of the same gauge. It is important to match the cord's gauge to the device's power needs and to avoid overloading the cord. Other factors to consider when choosing an electrical cord include indoor or outdoor use, the number of outlets required, and the voltage and wattage ratings of the devices being used.
| Characteristics | Values |
|---|---|
| Purpose | Temporary power solutions in homes, offices, construction sites, or outdoor environments |
| Use | Connect to power tools or appliances a certain distance away from a power source |
| Construction | Plug on one end and a group of sockets on the other for the same type of plugs |
| Type | Light-duty, medium-duty, heavy-duty, regular, outdoor, indoor |
| Gauge | Measured in AWG (American Wire Gauge) numbers. Lower AWG indicates thicker wire and more current over long distances. |
| Length | Critical factor in the current and electricity the cord can carry. Longer cords have more resistance and less power. |
| Wattage | Do not exceed the wattage or amp rating of the cord. Risk of overheating and damage. |
| Safety | Do not use damaged cords. Keep away from heat, water, and sharp objects. |
Explore related products
What You'll Learn
Extension cord safety
Extension cords are a handy way to power devices that are far from electrical outlets. However, they can pose safety hazards if not used correctly. Here are some tips to ensure safe extension cord usage:
Know the Basics
Extension cords have an AWG (American Wire Gauge) rating, which indicates the thickness of the wire. A lower AWG number indicates a thicker wire capable of delivering more power. The gauge also indicates the duty type: light, medium, or heavy. For example, a 14-gauge wire is typically used for medium-duty tasks, while a 12-gauge or lower is suitable for heavy-duty equipment.
Match the Cord to the Device
It is crucial to match the extension cord to the device's power requirements. Check the device's amperage and wattage ratings and choose a cord that can handle them. The cord's amp and wattage ratings should be equal to or greater than those of the device.
Consider Length and Environment
Longer extension cords create more electrical resistance, reducing the power delivered to the device. So, always use the shortest cord possible. Additionally, distinguish between indoor and outdoor cords. Indoor cords are typically shorter and have less insulation, while outdoor cords are weather-resistant and designed for varying temperatures and moisture.
Practice Safe Usage
Never plug one extension cord into another, as it can cause a drop in amperage. Always use a three-prong plug with a three-pronged outlet. Avoid using extension cords with space heaters due to their high power demands. Instead, plug them directly into wall outlets. Regularly inspect your cords and replace any damaged ones immediately.
Look for Safety Features
Choose extension cords with safety features such as surge protection, grounding, and UL Certification. A GFCI (Ground Fault Circuit Interrupter) is another safety feature that automatically shuts down power to the cord in case of a ground fault. These features provide added protection against electrical hazards.
The Lightbulb's Impact: How It Changed Our Lives
You may want to see also
Explore related products
Light-duty vs heavy-duty
The gauge of an electrical cord refers to the thickness of the connecting wires running inside it. This thickness determines how much electrical current (measured in amperes, or amps) the cord can safely carry. Thicker wires (lower gauge) can carry more current without overheating.
Light-duty power cords are designed for indoor use and are meant for low-amperage devices such as lamps, computers, gadgets, and other electronic devices. They are thin and compact with higher gauge wires and are usually not more than 25 feet in length. Common sizes of light-duty extension cords are 18 AWG, 16 AWG, and 14 AWG.
Heavy-duty power cords, on the other hand, are designed for outdoor use and can withstand harsh conditions such as moisture, heat, abrasion, and UV rays. They are thicker and have lower-gauge wires, typically ranging from 10 to 14 AWG. Heavy-duty cords are longer, usually between 50 and 150 feet, and have solid connectors to protect the insulating wires. They are used for high-powered tools and outdoor equipment, such as electric chainsaws, lawnmowers, and power washers.
It is important to select the correct type of electrical cord for safety reasons. Using an extension cord with too high a gauge (thinner wire) for a device that draws a lot of power can lead to overheating and potentially cause a fire. Additionally, using a cord at the wrong place, such as an indoor cord for outdoor use, can be dangerous.
When choosing between a light-duty and heavy-duty electrical cord, consider the intended use, power requirements, and environmental factors. For low-power devices and indoor use, a light-duty cord is suitable. For high-power tools, outdoor use, or harsh conditions, a heavy-duty cord is necessary.
The Intriguing Study of Electricity: Electrology Explained
You may want to see also
Explore related products
Indoor vs outdoor use
When choosing an extension cord, it's important to consider whether you will be using it indoors or outdoors. Indoor and outdoor extension cords differ in terms of their construction, length, and gauge.
Indoor Extension Cords
Indoor extension cords are typically shorter in length, ranging from 6 to 15 feet, although they can be found in various lengths. They are designed for use with small, low-powered appliances such as phone chargers, lamps, and speakers. These cords have thinner wire gauges, usually between 16 AWG and 18 AWG, and less insulation than outdoor cords. They are not weather-resistant and cannot withstand the same amount or type of weather conditions as outdoor cords.
Outdoor Extension Cords
Outdoor extension cords are longer, commonly available in lengths of 25, 50, and 100 feet. They have thicker insulation that can resist moisture, temperature variations, and ultraviolet rays from sunlight. They have lower gauges, typically ranging from 16 to 10 AWG, and higher amp ratings, usually from 10 to 30 or more. They are grounded cords with three-prong plugs, including a grounding pin, and are often brightly coloured to make them highly visible on work sites.
Choosing the Right Gauge
The gauge of an extension cord refers to the thickness of the wire and is measured using the American Wire Gauge (AWG) rating system. A lower AWG number indicates a thicker wire with a higher capacity to deliver power. When selecting an extension cord, it is important to match the cord's gauge to the wattage and amperage requirements of your electrical device. For example, a small appliance drawing up to 13 amps, such as a lamp, would require a 16-gauge cord, while a larger appliance drawing up to 15 amps, such as a refrigerator, would need a 14-gauge cord.
Safety Considerations
It is important to use the correct type of extension cord for your intended application. Indoor-rated cords should not be used outdoors as they can lead to rapid insulation degradation, increasing the risk of short circuits or fires. Additionally, extension cords should never be plugged into high-power appliances like air conditioners or refrigerators, as they can overload the circuit and cause a fire. Always store extension cords indoors in a cool, dry place, and avoid using them if they are damaged or feel hot to the touch.
Calculated Electrical Loads: Precise Power Planning
You may want to see also
Explore related products
Length of the cord
The length of an extension cord is a critical factor in the amount of current and electricity it can carry. Longer cords create more electrical resistance and cannot carry the same amount of amperage and wattage as a shorter cord of the same gauge. For example, a 100-foot extension cord will need to have a lower gauge number to safely deliver the same amount of current and energy as a 25-foot extension cord.
Indoor extension cords are typically between 6 and 15 feet long, though they can be found in many other lengths. Outdoor extension cords are commonly available in lengths of 25, 50, and 100 feet.
The length of the cord also affects its ability to convey power to a corded tool. A longer cord will not be able to deliver the same amount of power as a shorter cord, and the cord length can also affect the voltage drop. For example, a 100-foot cord will yield a 5% voltage drop, which is the maximum allowed.
It is important to keep cables as short as possible for higher-current tools. Longer extension cords (over 100 feet) may require a thicker wire to ensure enough power gets through.
Monitoring 220V Electricity Usage: A Step-by-Step Guide
You may want to see also
Explore related products
Matching the right gauge to the device
When selecting an extension cord, it is important to consider the length of the cord, as longer cords create more electrical resistance and cannot carry the same amount of amperage and wattage as shorter cords of the same gauge. For example, a 100-foot extension cord will need to have a lower gauge number to safely deliver the same amount of current as a 25-foot extension cord.
It is also important to match the cord's gauge to the device's power needs. For small appliances drawing up to 13 amps, such as lamps or clocks, a 16-gauge cord is sufficient. For larger appliances that draw up to 15 amps, such as a refrigerator or portable heater, a 14-gauge cord is safer. Generator extension cords, which connect electrical devices to a portable generator, tend to be heavily insulated, low-gauge cords rated for 30 to 50 amps.
In addition to the gauge, it is crucial to consider the amperage, wattage, and length of the extension cord to ensure it matches the device's specifications. Mismatching the cord and device can lead to poor performance and even damage to the device. Always follow the device and cord manufacturer's specifications and safety instructions.
Voltage Standards in the US: What You Need to Know
You may want to see also
Frequently asked questions
You should consider the length of the cord, the gauge, whether it will be used indoors or outdoors, and the number of outlets.
Indoor extension cords are thinner and not weather-resistant. They are typically between 6 and 15 feet long and have wire gauges between 18 and 14. Outdoor extension cords are designed to withstand weather conditions and have more insulation.
You need to match the cord's gauge to the device's power needs. A lower AWG number indicates a thicker wire that can carry more current. For example, a 16-gauge extension cord can typically handle up to 10 amps and is suitable for light-duty tasks.
