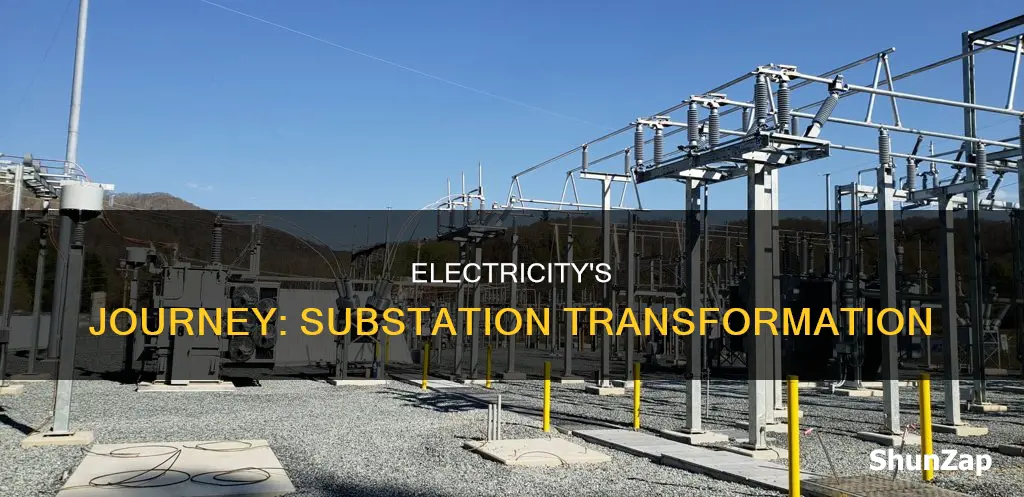

Substations are an important part of the power infrastructure, allowing electricity to be transmitted at different voltages. They are integral to electrical generation, transmission, and distribution systems. Substations transform voltage from high to low, or vice versa, using transformers, which are electrical devices that transfer electrical energy through a changing magnetic field. This conversion is necessary for electricity to be transmitted over long distances and distributed to local neighbourhoods, homes, and businesses. Substations also play a role in switching generators, equipment, and circuits, as well as isolating faults in transmission or distribution systems.
| Characteristics | Values |
|---|---|
| Purpose | To convert electricity into different voltages so it can be transmitted throughout the country and distributed to local neighbourhoods, homes, businesses, and buildings. |
| Classes | Transmission substations (part of the transmission network) and distribution substations (part of the distribution network) |
| Transmission substations | Found where electricity enters the transmission network (often near a major power source) or where it leaves the transmission network for distribution to homes and businesses (known as a grid supply point). |
| Distribution substations | Transfer power from the transmission system to the distribution system of an area. |
| Electricity transmission | Transmitted at very high voltages and low currents to reduce transmission losses. |
| Voltage conversion | Stepped up or down through transformers. |
| Magnetic field | Substations generate a magnetic field. Magnetic field levels at the boundary of a substation are typically at a level of 1 or 2 µT, decreasing as you move away. |
| Electric field | Substations emit electric fields (along with magnetic fields). |
| Design | Substations are usually protected by fences or located within protected buildings, which can only be accessed by trained staff. |
| Size | Larger substation sites can span across acres and contain a significant amount of specialist electrical equipment. |
| Converter substations | May be associated with HVDC converter plants, traction current, or interconnected non-synchronous networks. |
| Switching stations | A substation without transformers, operating at a single voltage level. |
| Circuit breakers | Used to switch generation and transmission circuits in and out of service as needed or during emergencies. |
| Voltage levels | Determined by customer needs and the requirements of any connections to regional grids. |
| Sub-transmission lines | Tend to be put underground due to the development of solid-insulation cables. |
Explore related products
$119.99 $159
What You'll Learn
Electricity is converted into different voltages
Electricity is transmitted at very high voltages and low currents to reduce transmission losses. Substations are an integral part of the electricity distribution system and are located near homes, businesses, and buildings. They convert electricity into different voltages so that it can be transmitted and distributed efficiently.
Substations contain specialist equipment, such as transformers, that allow the voltage of electricity to be transformed or 'switched'. Transformers are electrical devices that transfer electrical energy by means of a changing magnetic field. They consist of two or more coils of wire, and the voltage is stepped up or down depending on the number of times each coil wraps around its metallic core.
There are two classes of substations: those that form part of the transmission network (operating at 275kV and above) and those that form part of the distribution network (operating at 132kV and below). Transmission substations are where electricity enters or leaves the transmission network, and distribution substations transfer power from the transmission system to the distribution system.
Distribution substations are located near the end-users and step down the voltage to a level suitable for local distribution. This is typically between 2.4 kV and 33 kV, depending on the size of the area served and the practices of the local utility. The power is then distributed to industrial, commercial, and residential customers.
Substations may also include other equipment such as circuit breakers, which control high voltages and protect other substation equipment. This equipment helps to keep the electricity transmission and distribution systems running smoothly and safely.
Venting Electric Dryers: A Must or a Myth?
You may want to see also
Explore related products
Transformers transfer electrical energy
Substations are an important part of the power infrastructure and enable electricity to be transmitted at different voltages, securely and reliably. They are integral to electrical generation, transmission, and distribution systems. Substations contain transformers that allow the voltage of electricity to be transformed or 'switched'.
There are two classes of substations: those that form part of the transmission network (operating at 275kV and above) and those that form part of the distribution network (operating at 132kV and below). Transmission substations are where electricity enters the transmission network, often near a major power source. They are the ''junctions'' where circuits connect and create a network for electricity to flow at high voltage.
Distribution substations are located near the end-users and transform the transmission or sub-transmission voltage to lower levels for use by end-users. The feeders run along streets overhead or underground and power the distribution transformers near the customer premises. Distribution voltages are typically medium voltage, between 2.4 kV and 33 kV, but can vary depending on the area.
Transformers are a critical component of substations, enabling the transformation of voltage levels to facilitate the efficient transmission and distribution of electrical energy.
Cutting Off Electricity: Is It Legal?
You may want to see also
Explore related products
$12.99 $17.99
Transmission substations are 'junctions'
Transmission substations are junctions where circuits meet and connect to one another, creating a network through which electricity can flow at high voltage. They are an integral part of the electricity transmission and distribution system, enabling electricity to be transmitted at different voltages, securely and reliably.
Transmission substations are typically located where electricity enters the transmission network, often near a major power source, or where it leaves the transmission network for distribution to homes and businesses (known as a grid supply point). They are also where big energy projects connect to the national electricity grid. For example, in the UK, several gigawatts of power are plugged into the grid each year, including power from zero-carbon sources, such as nuclear plants and wind farms.
Transmission substations are designed to transform voltage from high to low, or vice versa, depending on where electricity is in its transmission journey. This is achieved through the use of transformers, which are electrical devices that transfer electrical energy by means of a changing magnetic field. They consist of two or more coils of wire, and the voltage is determined by the number of times each coil wraps around its metallic core.
In addition to voltage transformation, transmission substations also perform other important functions. They may contain circuit breakers that are used to switch generation and transmission circuits in and out of service as needed, or in the case of emergencies requiring the shut-down of power to a circuit or redirection of power. They can also isolate faults in either the transmission or distribution systems, helping to keep the electrical grid stable.
Outboard Electric Start: DIY Guide to Easy Ignition
You may want to see also
Explore related products
Distribution substations transfer power
Distribution substations are an important part of the power infrastructure. They transfer power from the transmission system to the distribution system of an area. They are typically located near end-users, such as residential customers, and are designed to supply electricity to homes and businesses.
Electricity is transmitted at very high voltages and low currents to reduce transmission losses. Distribution substations are responsible for stepping down these high voltages to lower voltages that can be easily supplied to homes and businesses. This is achieved through the use of transformers, which are electrical devices that transfer electrical energy by means of a changing magnetic field.
The voltage levels in distribution substations can vary depending on the size of the area served and local practices. Typically, the input voltage is higher, ranging from 69 kV to 132 kV or more, while the output voltage is stepped down to medium voltage levels, ranging from 2.4 kV to 33 kV. This ensures that electricity reaches local distribution networks safely and efficiently.
In addition to voltage transformation, distribution substations also play a role in isolating faults in the transmission or distribution systems. They help maintain the stability and reliability of the electricity supply by providing backup systems and supporting the connection of various power sources to the grid.
Distribution substations are an integral component of the electricity distribution system, and their presence near residential areas ensures the safe and efficient delivery of power to end-users.
The True Cost of Running Electric Fires
You may want to see also
Explore related products
$21.99 $27.99
Converter substations change current type
Converter substations are an important part of the power infrastructure. They are responsible for converting electricity into different voltages so that it can be transmitted and distributed to homes and businesses. This is achieved through transformers, which are electrical devices that transfer electrical energy by means of a changing magnetic field.
Converter substations can also be associated with HVDC converter plants, traction current, or interconnected non-synchronous networks. They contain power electronic devices that can change the frequency of the current or convert it from alternating to direct current or vice versa. Formerly, rotary converters were used to change the frequency and interconnect two systems, but such substations are now rare.
Converter substations are particularly relevant for electrified railways, where they may convert alternating current (AC) to direct current (DC) for trains using different frequencies than that of the public grid. In this context, they are also known as transmission substations or collector substations if the railway network operates its own grid and generators.
Switching stations, or switchyards, are a type of converter substation that operates without transformers and at a single voltage level. They are commonly located near power stations and are used for switching the current to backup lines or for parallelizing circuits in case of failure. An example is the switching stations for the HVDC Inga-Shaba transmission line.
Converter substations play a critical role in ensuring the seamless flow of electricity from power plants to our homes and businesses. They are an integral part of the electrical infrastructure, acting as control and conversion centres for electric power.
Is Electro Neame App Wallet Safe to Use?
You may want to see also
Frequently asked questions
A substation is a part of an electrical generation, transmission, and distribution system. It transforms voltage from high to low, or low to high, depending on where electricity is in its transmission journey.
Electricity is transmitted at very high voltages and low currents to reduce transmission losses. At a substation, the voltage is increased to high values by using step-up transformers and decreased for distribution.
A step-up transformer is a device that increases voltage. It is used to transmit electricity over long distances efficiently.
A distribution substation transfers power from the transmission system to the distribution system of an area. It is typically located near the end-users and transforms the transmission voltage to lower levels for use by end-users.
