In electrical engineering, 40 cal/cm^2 refers to the measurement of heat energy, or incident energy, of an arc flash. This is the heat energy produced by an electrical explosion. A 40 cal arc flash suit is a piece of Personal Protective Equipment (PPE) designed to protect electrical workers from arc fault exposure, arc blasts, and extreme heat generated during high-energy incidents.
| Characteristics | Values |
|---|---|
| What it refers to | Arc flash |
| What it measures | Heat energy |
| Hazard Risk Category (HRC) level | 4 |
| Incident energy | Over 25 cal/cm² |
| Suit rating | 40 cal/cm² |
| Suit material | Nomex, Kevlar, CarbonX |
| Suit features | Vented hoods, lift-front face shields, ergonomic tailoring |
| Suit compliance | Meets NFPA 70E and ASTM F1506 standards |
Explore related products
What You'll Learn
- A 40 cal arc flash suit is designed to protect electrical workers from electrical explosions
- NFPA 70E emphasises placing electrical equipment in a safe work condition, regardless of incident energy levels
- Informational Note 3 in the 2015 Edition of NFPA 70E stated that greater emphasis may be necessary with respect to de-energizing when exposed to electrical hazards
- A 40 cal arc flash suit is specialised PPE designed to shield workers from arc fault exposure and extreme heat
- A 40 cal arc flash suit is necessary in environments with a high potential incident energy level, typically in industrial settings
A 40 cal arc flash suit is designed to protect electrical workers from electrical explosions

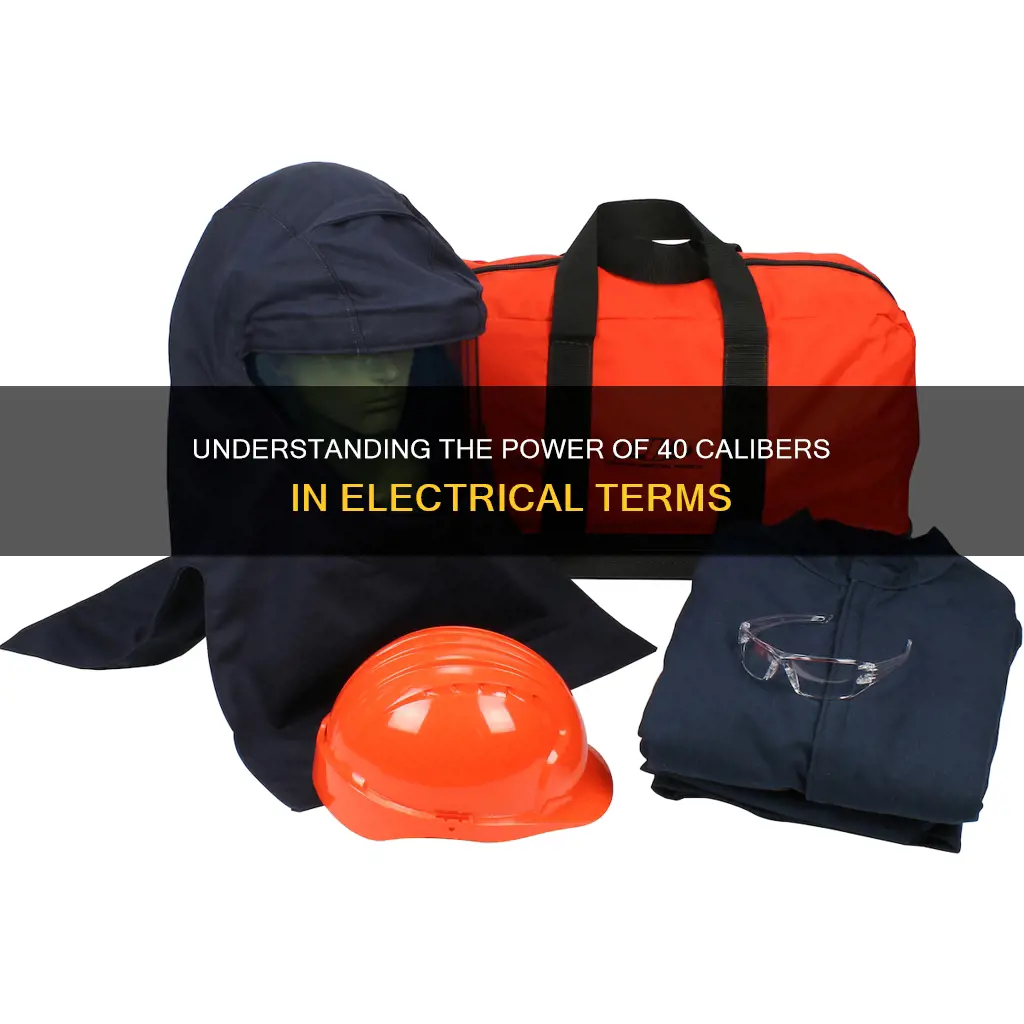

A 40 cal arc flash suit is a specialised personal protective equipment (PPE) designed to protect electrical workers from electrical explosions. It is constructed from flame-resistant materials such as Nomex and Kevlar, which provide full-body protection against intense heat, blinding light, and blast pressure. The suits are rated by ATPV (cal/cm²) and typically fall within the range of 8 to 100 cal/cm².
The 40 cal/cm² rating is a measure of the suit's ability to protect against heat energy or incident energy resulting from an electrical explosion. It is widely considered that incident energy above 40 cal/cm² is extremely hazardous and that electrical work should be avoided in such cases. The 40 cal arc flash suit is designed to protect workers from arc fault exposure, arc blast risks, and extreme heat generated during high-energy incidents.
The 40 cal arc flash suit typically includes an arc-rated hood, face shield, jacket, bib overalls, gloves, and a balaclava for full-body coverage. The suits offer high thermal resistance, withstanding temperatures exceeding 35,000°F to reduce the risk of severe burns and injuries. They are essential for high-risk tasks such as maintenance, testing, and switching operations on energised equipment over 50 volts.
While the 40 cal arc flash suit provides comprehensive protection, it is important to inspect the suit before each use and follow the manufacturer's service life guidelines. The suit should be replaced if it shows any signs of damage, has been exposed to an explosion, or reaches the end of its service life. Proper use and safety procedures must also be followed to ensure optimal protection.
In some cases, a higher level of protection may be required, such as a 100 cal arc flash suit, which offers advanced thermal shielding beyond the limits of 40 cal gear. However, it is important to select the appropriate rating based on a hazard risk assessment and the equipment's incident energy level.
Electric Piano Keyboards: Battery-Powered or Not?
You may want to see also
Explore related products
NFPA 70E emphasises placing electrical equipment in a safe work condition, regardless of incident energy levels
In electrical parlance, "40 cal" refers to 40 calories per square centimetre (cal/cm^2). This unit is used to measure incident energy, which is the amount of thermal energy impressed on a surface a certain distance from its source, generated during an electrical arc event.
NFPA 70E is a standard of the National Fire Protection Association that addresses electrical safety requirements for employees in the workplace. It details how to protect workers from the heat of electric arc exposures, providing a practical safe working area for employees relative to the hazards arising from the use of electricity.
To create an electrically safe work condition, the primary method is to eliminate the hazard. This involves disconnecting conductors from energised parts, locking and tagging them in accordance with established standards, and testing to verify the absence of voltage. If necessary, conductors can be temporarily grounded. It is also important to block or relieve stored non-electrical energy in devices to prevent accidental energisation of conductors or equipment.
While it is always best to work on de-energised equipment, there are exceptions to this requirement. For example, powering down may introduce additional hazards or increase the risk of injury, or the task may not be feasible while de-energised due to operational or design limitations.
It is worth noting that there has been some confusion surrounding the 40 cal/cm^2 threshold. While it was once considered a special threshold where energized work should be avoided, this informational note was deleted from the 2018 Edition of NFPA 70E. However, many still view this value as a critical threshold, and calculations exceeding this value often trigger concerns about how to proceed safely.
Electric Fence Installation: Driveway Edition
You may want to see also
Explore related products
Informational Note 3 in the 2015 Edition of NFPA 70E stated that greater emphasis may be necessary with respect to de-energizing when exposed to electrical hazards
In the context of electrical safety, "40 cal" refers to an incident energy level of 40 calories per square centimetre (cal/cm^2). This unit is used to measure the heat energy of an arc flash, which is a type of electrical explosion.
Informational Note 3 in the 2015 Edition of NFPA 70E stated that "When incident energy exceeds 40 cal/cm^2 at the working distance, greater emphasis may be necessary with respect to de-energizing when exposed to electrical hazards". This note emphasised the importance of de-energising electrical equipment when incident energy levels surpass 40 cal/cm^2 to ensure a safe working condition.
NFPA 70E is a voluntary standard that provides guidance on electrical safety precautions for workers and employers. The standard includes recommendations for personal protective equipment (PPE) and clothing to safeguard against arc flash hazards. For instance, layering non-melting, flammable fibre garments under arc-rated clothing to enhance protection.
The 2015 Informational Note's reference to 40 cal/cm^2 caused some confusion, with people treating it as an absolute threshold for safe working conditions. However, the note was deleted in the 2018 Edition, emphasising that electrical equipment should always be placed in a safe work condition, regardless of whether the incident energy exceeds 40 cal/cm^2.
It's important to note that calculations of incident energy are complex and depend on various factors, such as short-circuit current and arc duration. Additionally, arc flash suits rated above 40 cal/cm^2 are available, but their effectiveness depends on various factors, including the specific hazard level and proper usage.
Overall, while the 40 cal/cm^2 threshold was removed from NFPA 70E, it remains a significant value in electrical safety, indicating a level of incident energy where de-energising equipment and taking extra precautions are crucial to mitigate potential hazards.
Calculating Electric Pump Horsepower: A Simple Guide
You may want to see also
Explore related products
A 40 cal arc flash suit is specialised PPE designed to shield workers from arc fault exposure and extreme heat
In electrical engineering, 40 cal/cm^2 refers to the arc flash threshold where energized work should be avoided. An arc flash is an electrical breakdown of a gas that produces an ongoing electrical arc. It results in a flow of current between two conductors that contact one another or a conductor and the ground.
A 40 cal arc flash suit is a type of personal protective equipment (PPE) designed to protect workers from arc flash incidents. The suits are made from arc-rated, flame-resistant treated cotton and are designed to provide protection from arc fault exposure and extreme heat generated during an arc flash incident.
The suits typically include a hood and coverall set, with the hood featuring a clear window for visibility and anti-fog and anti-scratch coatings. The suits are designed to meet specific standards and regulations, such as the ANSI/ISEA 125 Level 2 Conformity and Arc Flash PPE Category 4 standards.
It is important to note that while a 40 cal arc flash suit provides protection, it is not a guarantee of safety. Electrical workers should always prioritize de-energizing equipment and placing it in an electrically safe work condition before performing any maintenance or repairs.
Additionally, the usage and maintenance of the suit impact its wear life. Infrequent use may result in a longer lifespan, while daily use will reduce the suit's wear life. Regular maintenance and adherence to PPE guidelines are crucial for ensuring the suit's effectiveness.
Effective Ways to Descale Your Electric Kettle at Home
You may want to see also
Explore related products
A 40 cal arc flash suit is necessary in environments with a high potential incident energy level, typically in industrial settings
In electrical engineering, an arc flash is a hazardous fault in equipment that releases a tremendous amount of energy in the form of a cloud of vapourised metal, allowing current to flow through the air. This is similar to a flash of lightning and can result in severe burns and injuries to workers. The potential magnitude of an arc flash is characterised as arc energy, or "incident energy", and is measured in cal/cm2.
Incident energy is used to determine the appropriate level of personal protective equipment (PPE) required when working with energised equipment. A 40 cal arc flash suit is a type of PPE designed to protect workers from arc flash incidents. It is made from arc-rated, flame-resistant treated cotton and features a hood window that provides true colour acuity and includes anti-fog and anti-scratch resistant coatings.
The higher the incident energy level, the more severe the arc flash event can be. Therefore, a 40 cal arc flash suit is necessary in environments with a high potential incident energy level, typically in industrial settings where electrical work is performed. These suits meet specific standards and requirements, such as the ANSI/ISEA 125 Level 2 Conformity and Arc Flash PPE Category 4 standards, to ensure the safety of workers.
It is important to note that personal protective equipment is only one aspect of arc flash mitigation. It is also crucial to incorporate incident energy reduction methods into the design and installation of electrical equipment to lower the potential magnitude of arc flash incidents and provide a safer working environment for electrical workers.
