Three-phase electric power is a type of alternating current (AC) commonly used for electricity generation, transmission, and distribution. It is a polyphase system that employs three wires, or four wires if a neutral return wire is included. Three-phase power is more efficient than single-phase power, as it can transmit three times as much power with just one additional wire. This type of power supply is typically used in commercial and industrial facilities, as it can accommodate higher loads. In Europe, three-phase power is delivered to panelboards and higher-powered devices, with electrical generators converting mechanical power into three AC electric currents.
| Characteristics | Values |
|---|---|
| Common Uses | Commercial and industrial facilities |
| Phase Shift | 120 degrees |
| Wire Count | 3 or 4 |
| Voltage Rating | Up to 1000 V DC or AC |
| Current Rating | Up to 800 A |
| Frequency | 50 or 60 Hz |
| Pin Count | 4 or 5 |
| Connection Types | P+N+E, 2P+E, 3P+E, 3P+N+E |
| Current Ratings | 16 A, 32 A, 63 A, 125 A, 200 A |
| Connection Safety | Weatherproof covers, waterproofing sleeves, interlocked switches |
Explore related products
What You'll Learn
Three-phase power is more efficient than single-phase power
Three-phase alternating current (AC) power is used to deliver electricity to data centres, as well as commercial and industrial buildings that house power-hungry machinery. This is because three-phase power is more efficient than single-phase power.
Single-phase AC power is commonly used for household and light commercial applications, such as lighting and small appliances. However, single-phase power supplies are not suitable for higher loads, unlike three-phase power supplies. Single-phase power supplies are most often used for typical loads such as lighting and heating, rather than large electric motors.
Three-phase power can deliver more power with greater efficiency. For instance, a 30 kW rack powered by a single-phase 240 VAC power supply requires 125 amps of current and a 25 sqmm wire, which is difficult to work with and expensive. On the other hand, a three-phase power supply can deliver the same power with three wires carrying 42 amps (4 sqmm), which are much easier to work with.
Three-phase power supplies can transmit three times as much power as single-phase power supplies while only needing one additional wire. This means that three-phase power supplies use less conductor material to transmit the same amount of electrical power as single-phase power supplies. This efficiency, along with its cost savings and flexibility, makes three-phase power popular in power-hungry, high-density IT installations and data centres, as well as other industrial businesses such as warehouses, fabrication, and manufacturing.
Additionally, three-phase power delivers power at a steady, constant rate, without the peaks and dips in voltage seen in single-phase power supplies. This consistency makes three-phase power ideal for industrial and commercial operations.
Electrical Probing: Brain's Response and Survival
You may want to see also
Explore related products
Three-phase power is used in electricity generation, transmission, and distribution
Three-phase power is a common type of alternating current (AC) used in electricity generation, transmission, and distribution. It is a type of polyphase system that employs three wires (or four, including an optional neutral return wire) and is the most common method used by electrical grids worldwide to transfer power.
Three-phase power was developed in the 1880s by several people. In this system, the voltage on each wire is 120 degrees phase-shifted relative to each of the other wires. As it is an AC system, it allows voltages to be easily stepped up or down using transformers, making it highly efficient. A three-wire three-phase circuit is generally more economical than a two-wire single-phase circuit at the same line-to-ground voltage because it uses less conductor material to transmit a given amount of electrical power.
The invention of the polyphase alternator played a crucial role in the history of electrification. It enabled power transmission over long distances through wires, making it possible to utilise water power via hydroelectric generating plants in large dams. This versatility led to the expansion of power transmission network grids globally.
Three-phase power is used in various configurations, known as wye (Y) and delta (Δ). The wye configuration may include a fourth, neutral wire, while the delta configuration has only three wires. These configurations are chosen based on the specific requirements of current and voltage. For instance, the wye configuration is used for small currents and high voltages, while the delta configuration is suitable for large currents and low voltages.
Electrical Phases in a Home: Single, Double, or Triple?
You may want to see also
Explore related products
$51.61
$26.5 $29.22

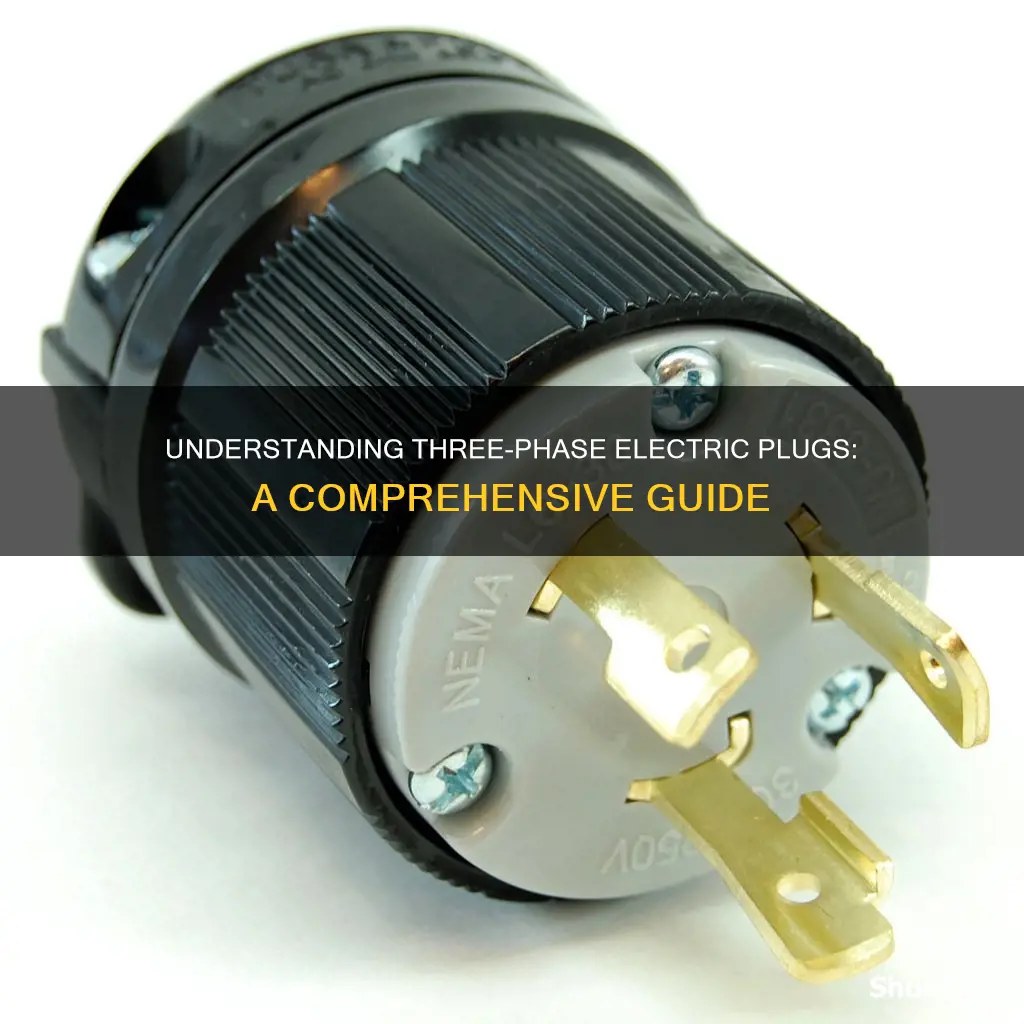

Three-phase power plug types
Three-phase power plugs are used in polyphase systems, high-current setups, or when protection from environmental hazards is required. They are commonly used in industrial settings, but can also be found in households, particularly in former Yugoslavian countries.
Three-phase power plugs have an earth (ground) connection and may or may not have a neutral connection, depending on whether the connected equipment requires it. A machine that requires a neutral connection will have five wires, while one that does not will have four. This means that three-phase power plugs can have four or five pins.
The number of pins is not the only differentiating factor between three-phase power plugs. Plugs also vary in amperage, with common variants including 5 A, 15 A, and 30 A. Additionally, colour-coding is used to represent voltage rating and other characteristics. For example, blue is used to indicate a P+N+E connection, while red indicates a 3P+N+E connection.
The physical design of the pins also varies. For example, the Swiss standard SN 441011 defines a type 15 plug with three round pins of 4 mm diameter and two flat pins for L2 and L3. In contrast, the type 25 plug in the same standard has three rectangular pins measuring 4 mm by 5 mm, also with two flat pins for L2 and L3. These plugs are designed for different amperages, with the type 15 rated for 10 A and the type 25 rated for 16 A.
Electrical Resonance in Hair Cells: Understanding the Science
You may want to see also
Explore related products
Three-phase power supply frequency
A three-phase power supply is a method of supplying three times the amount of electricity through three wires compared to a two-wire setup. It is a smoother form of electricity than single-phase or two-phase power, allowing machines to run more efficiently and last longer. Three-phase power is typically used in industrial applications to drive motors and other devices.
In a symmetric three-phase power supply system, three conductors each carry an alternating current of the same frequency and voltage amplitude, but with a phase difference of one-third of a cycle (120 degrees) between each. This phase delay enables constant power transfer to a balanced linear load and makes it possible to produce a rotating magnetic field in an electric motor.
The generator frequency in a three-phase power supply system is typically 50 or 60 Hz, depending on the country. Transformers are used to change the voltage to a suitable level for transmission, minimising losses. After further voltage conversions in the transmission network, the voltage is transformed to the standard utilisation voltage before being supplied to customers.
Three-phase systems may include a fourth wire, which is a neutral wire commonly used in low-voltage distribution. This neutral wire allows three separate single-phase supplies to be provided at a constant voltage, supplying multiple single-phase loads. Transformers in three-phase systems may be wired with a four-wire secondary and a three-wire primary, accommodating unbalanced loads.
Connecting Electric Netting: The Right Way to Join Fences
You may want to see also
Explore related products
$10.49 $10.99
Three-phase power supply in residential homes
Three-phase power supply is an alternative to the more common single-phase power supply, which is typically used in residential homes. Single-phase power supplies are well-suited to powering most household appliances, including lighting, fridges, washing machines, small air conditioners, and small induction cooktops.
However, single-phase power supplies may not be sufficient for larger homes or those with extensive power needs, such as numerous power points or heavy-duty appliances. In these cases, a three-phase power supply may be required. Three-phase power can handle larger energy demands and support more powerful appliances, such as large electric cooktops, powerful instantaneous electric hot water systems, or machinery in a home workshop.
A three-phase power supply delivers power at a steady, constant rate, with each phase carrying peak power at a different point in time. This consistent delivery of power prevents the single-phase circuits from being overloaded and avoids issues such as tripping breakers or flickering lights.
To determine if your home has a three-phase power supply, you can check the width of your main switch; if it is approximately three finger widths, then it is likely a three-phase electrical power supply. Additionally, this information is usually written on your electricity meter, or you can contact your electricity distributor for confirmation.
While three-phase power supply offers advantages in terms of power capacity and consistency, it is not necessary for all residential homes. Most small homes and apartments can function adequately with a single-phase power supply, and upgrading to three-phase power may result in higher energy bills due to the increased network infrastructure costs.
The Telegraph's Solution to Communication Problems
You may want to see also
Frequently asked questions
A 3-phase electric plug is a type of alternating current (AC) used in electricity generation, transmission, and distribution. It is a polyphase system that employs three wires, or four wires including an optional neutral return wire.
3-phase plugs are used for higher voltages and currents than household plugs and sockets. They are generally used in polyphase systems, high-current systems, or when protection from environmental hazards is required.
3-phase plugs are used in commercial and industrial facilities, whereas residential homes usually use a single-phase power supply. In Europe, 3-phase power is delivered to panelboards and higher-powered devices.
