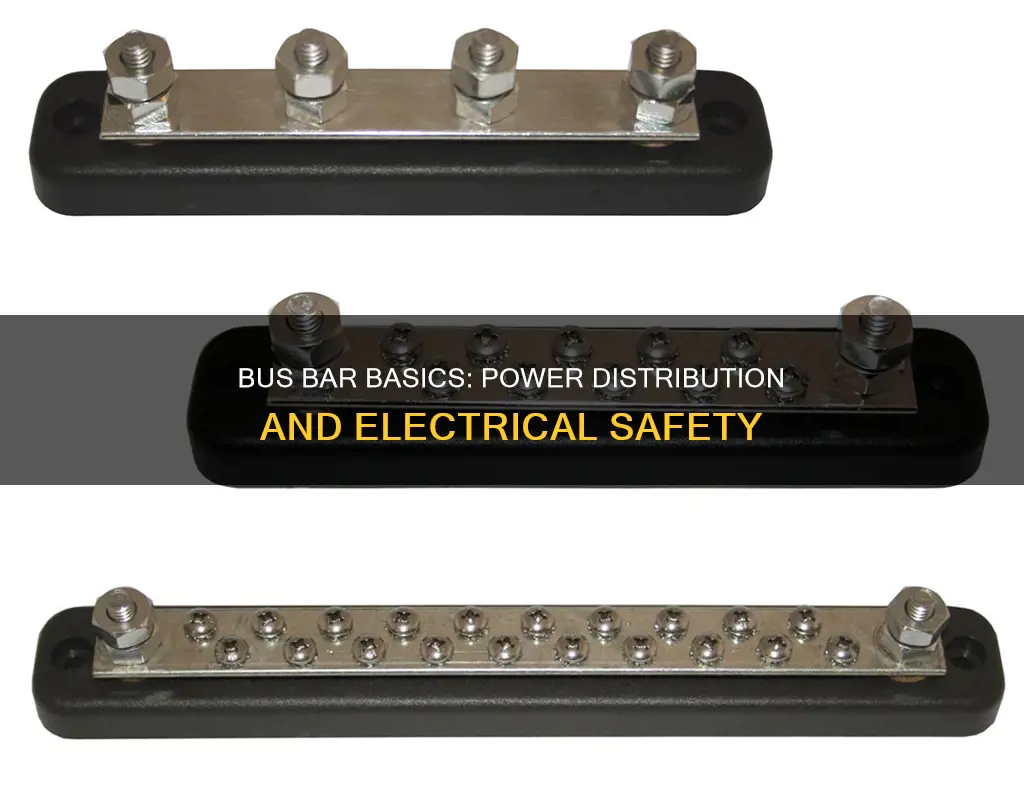

Busbars are a bar or strip of solid, conductive metal used to transport an electric current from one location to another with minimal energy loss. They are used in electrical systems to streamline intricate power distributions, making the process more affordable and easily adaptable. Busbars are produced in a variety of shapes, including flat strips, solid bars, and rods, and are typically composed of copper, brass, or aluminum as solid or hollow tubes. They are usually uninsulated to allow heat to dissipate while conducting electricity.
Explore related products
What You'll Learn
Busbar materials and their advantages
Busbars are indispensable components in electrical systems, acting as pathways for electricity to travel from the source to the load. They are typically made of metals with high conductivity, such as copper, aluminium, and alloys like brass. The specific material chosen depends on various factors, including current density, working temperature, and cost. Here is a detailed look at the advantages of commonly used busbar materials:
Copper
Copper is renowned for its exceptional conductivity, which minimises energy loss due to heat. It has the highest conductivity among common metals, setting the global benchmark for conduction efficacy. Copper also boasts robust tensile strength, good thermal expansion properties, and resistance to corrosion from most organic chemicals. Additionally, copper is soft, flexible, and easy to cut, making it convenient for manufacturing different busbar shapes. However, copper is relatively expensive and prone to oxidation when exposed to air, reducing its electrical conductivity over time.
Aluminium
Aluminium is a lightweight and cost-effective alternative to copper. While it may not offer the same electrical performance as copper, it excels in weight-based efficiency, making it ideal for medium and low-voltage electrical systems. Aluminium busbars are also recyclable, with a lower energy footprint than copper, making them a more environmentally sustainable option.
Alloys
Alloys such as brass and aluminium alloys combine the desirable properties of copper and aluminium. They offer high strength, good corrosion resistance, and ease of machining. Alloys are particularly suitable for harsh working conditions that demand high strength, corrosion resistance, and temperature resistance. However, alloys tend to be more expensive than pure copper or aluminium.
Laminated Busbars
Laminated busbars are constructed by laminating thin metal sheets or foils, resulting in a robust and stable structure. This construction makes them ideal for devices like wind turbines, where they can withstand harsh weather conditions, strong vibrations, and dynamic loads. The lamination also provides protection against short circuits and mechanical damage, enhancing the reliability and safety of the electrical installation.
Farming Electric Organs in Palworld: A Step-by-Step Guide
You may want to see also
Explore related products
Busbar shapes and their uses
Busbars are produced in a variety of shapes, including flat strips, solid bars, and rods, and are typically composed of copper, brass, or aluminum as solid or hollow tubes. The shape of a busbar impacts its functionality. For instance, shapes with a high ratio of surface area to cross-sectional area allow heat to dissipate more efficiently. This is a critical factor in maintaining performance and longevity in high-power settings.
The most common busbar shape is a long, thin, rigid flat bar. Flat busbars are widely used in panels and switchgear because their broad surface area dissipates heat well and provides ample contact surface for connections. Flat busbars are also easier to install in compact environments.
Round busbars have a circular cross-section, either solid or hollow. They have less surface area than flat bars, so they run hotter for the same current. However, a hollow section has higher stiffness than a solid rod of equivalent current-carrying capacity, allowing greater span between busbar supports.
Some busbars use "U", "T", or "L"-shaped cross-sections to provide greater bending stiffness, increase surface area, and provide more connecting options.
In addition to standard shapes, custom-shaped busbars are designed to fit unique applications and are generally made-to-order. They can include complex bends, multiple layers, or special coatings to meet the needs of specialized projects.
General Electric Stock Split: Did it Happen?
You may want to see also
Explore related products
Busbar systems and safety standards
Busbars are metallic conductors that serve as a central link for multiple electrical connections. They are used to transport electric current from one location to another with minimal energy loss. Busbar systems are a modular approach to electrical wiring, where electrical devices are mounted onto an adapter that is directly fitted to a current-carrying busbar. This approach is used in distribution boards, automation panels, and other types of installations in electrical enclosures.
Busbar systems are subject to safety standards for design and installation, which vary between countries and regions. The IEC 61439 standard, for example, covers the grounding requirements for low-voltage switchgear like busbars. The specific standard that applies to a busbar system will depend on the voltage of the equipment it is used with. For instance, busbars are used with high-voltage equipment at electrical switchyards and low-voltage equipment in battery banks.
The material composition and cross-sectional size of a busbar determine the maximum current it can safely carry. Busbars are typically composed of copper, brass, or aluminum, and can be solid or hollow tubes. Copper is the most common material due to its durability and high conductivity, but aluminum is more cost-effective and lightweight. The shape of the busbar also depends on the amount of electricity needed, available space, and the design of the electrical system.
To ensure safety, busbar systems must be properly grounded. Grounding methods, design factors, and standards for busbar systems are critical for both personnel safety and power system reliability. Proper grounding techniques, such as using the correct grounding conductor size and secure connections, help prevent faults and overloads. It is important to follow local and international safety standards when installing and maintaining busbar systems to ensure maximum safety and compliance.
Electricity Sign-Up: A Simple Guide for Beginners
You may want to see also
Explore related products
Busbar applications in power distribution
Busbars are used in power distribution to streamline complex power distribution systems. They are metallic conductors that act as a central link for multiple electrical connections, gathering electrical power in a centralized location. This simplifies distribution by consolidating multiple electrical connections into a single hub. Busbars are typically made of solid, conductive metal, such as copper, which is durable and an excellent electrical conductor. They are designed to efficiently transport and distribute electricity with minimal energy loss.
Busbars are available in various shapes, including thick bars, flat strips, and rods, each suited to different power requirements and space constraints. For example, thick bars are ideal for high-voltage applications where conductivity is a priority, while flat strips and rods are used when space is limited. The size and shape of a busbar determine its current-carrying capacity and heat dissipation capabilities.
Busbars are commonly used in substations, where they are essential for high, medium, and low-voltage systems. They are also found in bus ducts or busways, which are long busbars with protective covers that allow new circuits to branch off anywhere along the busway. Busbars are often used in EOT cranes to supply power from the grid to the crane control panel. Additionally, they are employed in aluminium smelting to carry high amperage currents to the electrochemical cells that produce aluminium from molten salts.
Busbars offer several advantages in power distribution. Firstly, they reduce costs by eliminating the need for multiple individual conductors, resulting in lower material and installation expenses. Secondly, busbars enhance protection by facilitating the integration of protective devices such as isolators and circuit breakers. Lastly, busbars provide adaptability, allowing for the configuration of incoming and outgoing links to meet varying power demands while considering the busbar's capacity to carry current.
Electric Blankets: Auto Shut-Off Feature for Peace of Mind
You may want to see also
Explore related products
Busbar coatings and their benefits
Busbars are solid, conductive metal bars or strips used to transport electric current from one location to another with minimal energy loss. They are typically made of copper, brass, or aluminium and are either uninsulated or wrapped in insulation.
Busbars are usually coated with epoxy powder coatings, which are thermosetting dry powders that act as protective covers. This coating process is called Precision Dip Coating and is done through electrostatic spray or the fluidized bed method. The epoxy coatings offer high mechanical properties, high chemical and temperature resistance, and high electrical resistance, making them ideal for insulating conductors.
Powder coating provides a durable protective layer that guards against corrosion and offers good insulation ratings. It is a superior choice to rubber or plastic as it is form-fitting and space-efficient. Additionally, heat-cured powders are long-lasting and sturdy, withstanding the test of time.
For copper busbars, coatings such as tin or silver are applied to protect the copper from oxidation, corrosion, and galling. These coatings also enhance lubricity and support conductivity.
Overall, busbar coatings provide enhanced protection, improve safety, and ensure the longevity of these vital electrical components.
Free Nights and Weekends: Texas Electricity's Secret
You may want to see also
Frequently asked questions
Busbars are bars or strips of solid, conductive metal used to transport electric current from one location to another with minimal energy loss. They are used in electrical systems to streamline intricate power distributions, making the process more affordable and easily adaptable.
Busbars are typically made of copper, brass or aluminium as solid or hollow tubes. Copper is the most common material as it is a top electrical conductor and very durable. However, aluminium is lighter and less expensive.
Busbars offer a large surface area to conduct electricity, which is especially useful for high-voltage applications. They are also cost-efficient, as they replace the need for multiple individual conductors.
