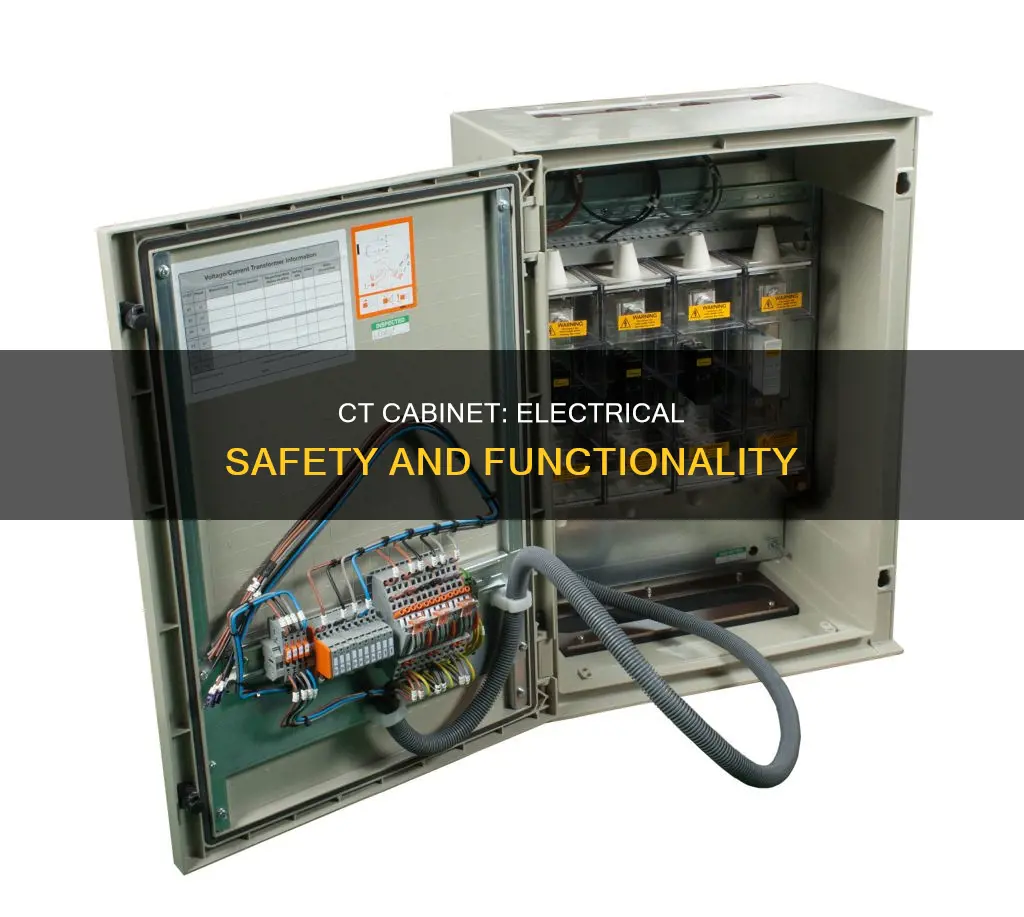

CT cabinets are an essential component of electrical metering systems, encasing current transformers (CTs) that are used for electricity metering. CTs convert primary current into a secondary current of smaller or larger value, and CT cabinets provide a protective barrier to safeguard users from electric shocks and harsh conditions. They are typically made from metals such as carbon steel, galvanized iron, aluminium, or stainless steel, and are classified by their mounting type and access point design. CT cabinets are used in both indoor and outdoor settings, in homes and industries, and are designed to meet safety standards set by organisations such as the National Electrical Manufacturers Association (NEMA) and Underwriters Laboratories (UL).
| Characteristics | Values |
|---|---|
| Purpose | To encase current transformers (CTs) used for electricity metering |
| Use | Essential for electrical metering systems in both indoor and outdoor settings, including homes and industries |
| Protection | Safeguards users from electrocution and electric shocks by setting up a physical barrier |
| Materials | Carbon steel, galvanized iron, aluminium, stainless steel, or synthetic materials |
| Mounting | Wall-mounted, pad-mounted, or freestanding |
| Door Types | Screw cover, lift-off cover, hinged screw, hinged double door, or vented double door |
| Standards | Must meet the standards of the National Electrical Manufacturers Association (NEMA) and/or the Underwriters Laboratories (UL) |
| NEMA Ratings | NEMA Type 1, NEMA Type 3R, and NEMA Type 4X |
| Amperage | Used for amperage higher than 200; at 600 amps and above, a CT cabinet is typically installed |
Explore related products
What You'll Learn
- CT cabinets are an essential part of electrical metering systems
- They prevent electrocution and protect users from large currents
- They are made from materials like carbon steel, galvanized iron, aluminium, and stainless steel
- CT cabinets are classified by their type of mounting and access point/door
- They are used in both indoor and outdoor settings, in homes and industries
CT cabinets are an essential part of electrical metering systems
CT cabinets are an essential component of electrical metering systems. They are used to encase current transformers (CTs) that are used for metering electricity. CTs are used in metering systems to convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio. This is useful for reducing large currents for protection, measurement, and other purposes.
CT cabinets perform the dual role of protecting users from electric shocks and safeguarding the transformers they encapsulate from harsh conditions. They are made from materials such as galvanized iron, carbon steel, aluminium, and stainless steel. The use of steel enables the cabinet to be used as an earthing system in certain transformer setups. The cabinets are designed to meet the safety standards of the Underwriters Laboratories (UL) and/or the National Electrical Manufacturers Association (NEMA). NEMA ratings are used to specify the types of environments in which electrical enclosures can be used, such as their ability to withstand rain, snow, sleet, and windblown dust.
The design of CT cabinets can vary depending on their mounting type and access point or door. Common mounting types include wall-mounting, pad-mounting, and free-standing, while door types include screw cover, lift-off cover, hinged screw, and hinged double door.
CT cabinets are used in both indoor and outdoor settings, in homes and industries. They are particularly useful in commercial and industrial applications where metering accuracy and ease of installation are crucial. For example, in a strip mall situation, each tenant may have their own meter, and a CT cabinet would be required if the amperage is greater than a certain threshold (typically 400A).
Overall, CT cabinets play a critical role in electrical metering systems by ensuring the safety of users and equipment, as well as providing accurate metering of electricity consumption.
