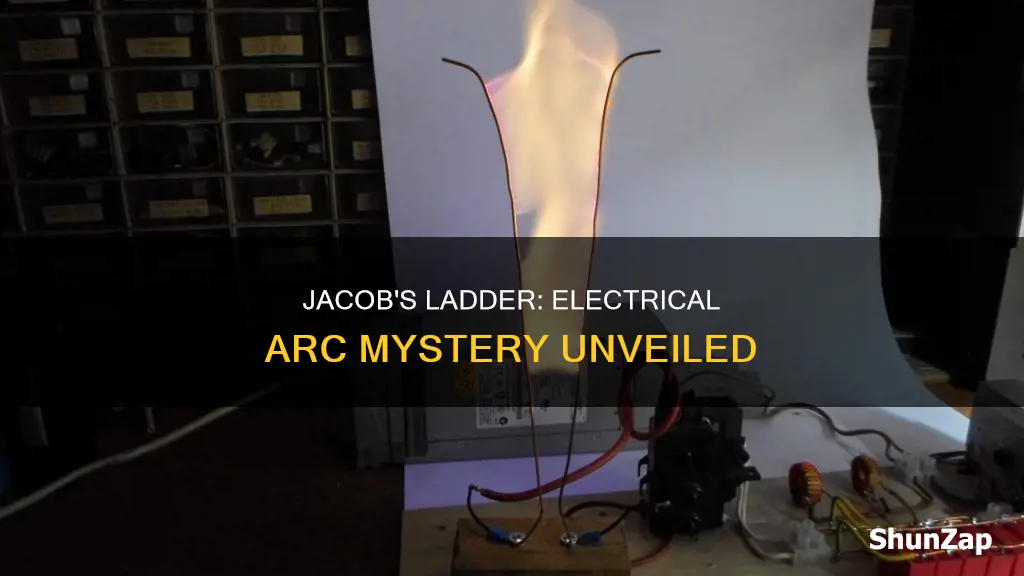

A Jacob's Ladder is a device that consists of two vertical wires that are connected by a buzzing electric arc that slowly climbs up. The device is relatively simple and is often used as a movie prop, such as in the classic Frankenstein film. The big box at the bottom of the device is called a transformer, which changes the voltage going to the device. When voltage is applied between the two wires, electrons on the positive side want to leap to the negative side, creating a spark that climbs up the ladder as it heats the air around it.
| Characteristics | Values |
|---|---|
| Device | Relatively simple |
| Composition | Two vertical wires or conducting bars, a transformer, and a power cord |
| Function | An electric spark jumps between the wires, climbing up the ladder |
| Spark | Dies when it reaches the top of the wires and reappears at the bottom |
| Wires | Connected to the ground |
| Electrons | Repel each other and jump from one wire to the other |
| Spark | Heats up the surrounding air, causing the spark to rise |
| Voltage | High |
| Transformer | Changes the voltage going to a device |
| Voltage | 15,000 V |
Explore related products
What You'll Learn
A Jacob's Ladder is a high-voltage climbing arc
A Jacob's Ladder is a device that consists of two vertical wires that are closer together at the bottom and further apart at the top. When the device is turned on, a high voltage is applied between the wires, causing electrons to jump from one wire to the other, creating a bright spark. This spark then heats the air around it, causing the hot air to rise and taking the spark with it. As the spark rises, it creates an electric arc between the wires that slowly travels upwards until it reaches the top, where it vanishes, and a new spark is generated at the bottom, repeating the cycle.
The transformer at the bottom of the device creates a potential difference between the wires, causing the electrons to repel each other and jump from one wire to the other. The spark produced by the jumping electrons heats the air, and as hot air rises, the spark climbs up the ladder-like structure of the wires. When the spark reaches the top, it dies down, and the process starts over with a new spark at the bottom.
A Jacob's Ladder is relatively simple to construct and can be made using a transformer, copper wires, resistors, and a plywood base. However, it is important to exercise caution when building and operating this device due to the high voltage involved. It is crucial to ensure that the transformer is unplugged before beginning any assembly or adjustments. Proper safety measures, such as standing clear of the electrodes and wearing appropriate personal protective equipment (PPE), including electrical gloves and an insulating floor mat, are essential when working with high voltages.
The device has become iconic, especially after its appearance in the classic movie Frankenstein, where it represented the transformational power of high-voltage electricity. The Jacob's Ladder serves as a fascinating demonstration of the principles of electricity, voltage, and impedance, showcasing the climbing arc of electricity between the two vertical wires.
