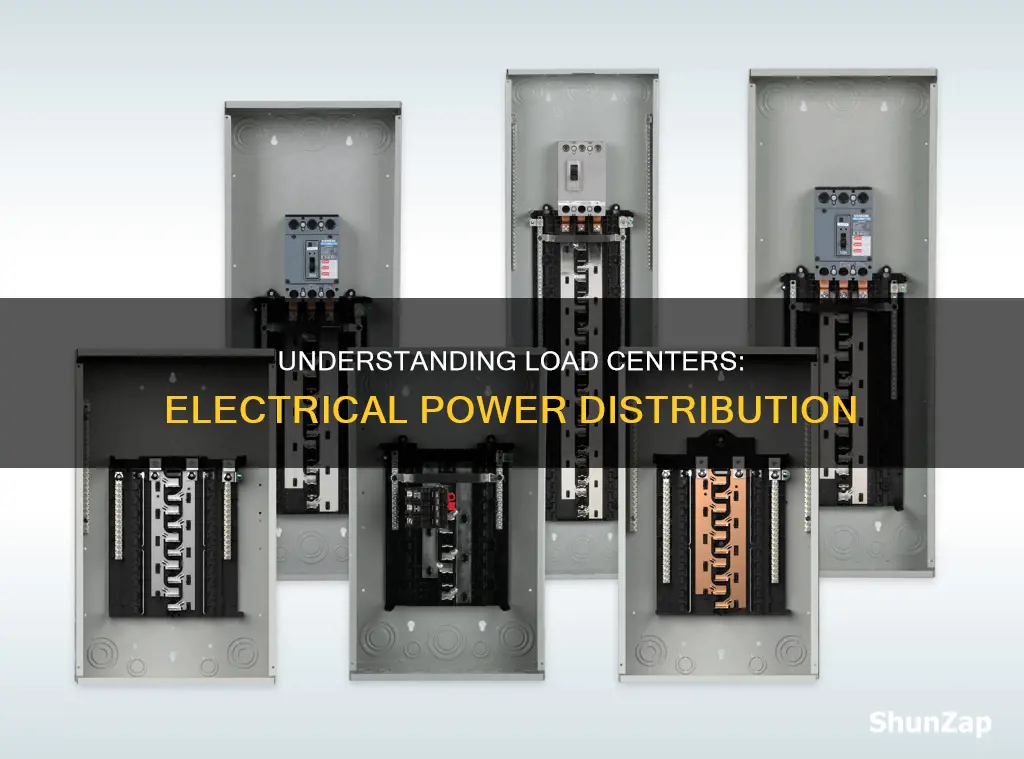

A load centre is an essential component of electrical systems, serving as the heart of a building's power distribution network. It receives electricity from the utility source and channels it to various branch circuits, powering lights, appliances, and devices. Load centres are equipped with circuit breakers that protect against overloads, short circuits, and other electrical faults, ensuring the safety of homeowners and maintenance personnel. They are commonly used in residential and light commercial applications, providing efficient and reliable power distribution. Load centres come in different types, such as main breaker load centres, main lug load centres, and fusible main load centres, each offering unique features and benefits. Understanding the differences between load centres and panelboards is crucial for tailoring electrical systems to specific needs.
| Characteristics | Values |
|---|---|
| Function | Distributes electricity supplied by the utility company throughout the home or building to feed all the branch circuits |
| Usage | Residential and light commercial applications |
| Protection | Each branch circuit is protected by the circuit breaker housed in the load center |
| Safety | Helps prevent contact with energized electrical parts |
| Circuit Breakers | Uses plug-on circuit breakers to distribute electricity to circuits |
| Circuit Overload | In the event of a short circuit or an overload on a branch circuit, the circuit breaker will cut the power |
| Customization | Available in single-phase or three-phase with a variety of circuit configurations and amp ratings |
| Enclosures | Stainless steel or fiberglass enclosures |
| Main Lug Only (MLO) Design | Incoming supply cables are connected directly to the main circuit breaker |
| Main Lug Load Center | Has a single lug instead of a main breaker |
| Main Breaker Load Center | Has a main breaker that works as a primary disconnect for all the circuits |
| Fusible Main Load Center | Uses fuses instead of circuit breakers for overcurrent protection |
| Main Lug Load Center Installation | Ideal for compact spaces and where a main disconnect is located elsewhere |
| Installation | Easy and straightforward with well-labeled compartments and clearly marked wiring areas |
| Power Distribution | Provides efficient and organized power distribution, simplifying wiring and circuit management |
| Size | Designed and sized based on the type of activations and the expected power draw |
Explore related products
$55.63
What You'll Learn
Load centers distribute electricity
Load centers are an essential component of electrical systems, acting as a control hub that distributes electricity throughout a home, office, or industrial facility. They are connected to the local power utility and channel electricity to various branch circuits, powering lights, appliances, and devices. This ensures an even and safe distribution of electricity to where it is needed.
Load centers are designed to protect electrical systems from overloads, short circuits, and other electrical faults. Each branch circuit is equipped with a circuit breaker that will shut off power in the event of an overload or short circuit, preventing potential hazards like electrical fires and property damage. This safety mechanism is vital for maintaining a reliable and secure electrical system.
There are different types of load centers, including main breaker load centers and main lug load centers. Main breaker load centers feature a main breaker that acts as a primary disconnect for all circuits, providing a central point of control. On the other hand, main lug load centers do not have a main breaker; instead, they utilize lugs, which are copper or aluminum connecting terminals, to connect incoming electrical power to the system. Main lug load centers are often used to expand the number of circuits or create independent electrical zones.
Load centers can also be categorized as fusible main load centers, which use fuses instead of circuit breakers for overcurrent protection. Fuses offer faster response times and provide a clear indication of a fault by blowing or disconnecting the circuit. Fusible main load centers are easy to install and maintain, particularly in environments where fuses are more commonly used.
The design and size of load centers vary depending on the specific requirements of a site and the expected power draw. They can be surface-mounted on walls or flush-mounted, recessed into walls. Load centers are typically offered with minimal options, but customization is possible to meet unique needs, including adding more breaker spaces or changing configurations.
Schneider Electric Internships: Application Process and Tips
You may want to see also
Explore related products
They are similar to panelboards
A load center is an electrical distribution board that houses circuit breakers or fuses and distributes electricity supplied by the utility company throughout the home or building to feed all the branch circuits. Each branch circuit is protected by the circuit breaker housed in the load center.
Load centers are similar to panelboards in terms of functionality. Both load centers and panelboards distribute electricity to various parts of a building. Panelboards are usually found in commercial buildings due to their large size and the amount of power they can handle. They are designed for single-phase or three-phase applications, depending on the needs of the building. Panelboards are always mounted to the wall and can be accessed only through the front. They are rated for up to 600 volts and 1200 Amps max.
Panelboards are used for voltages up to 600 V and are the cheapest and smallest option out of the panelboard, switchboard, and switchgear. They are commonly found in residential, commercial, and small industrial facilities. Panelboards are designed to meet UL 67 and NEMA Standard PB1.
Load centers, on the other hand, are limited to 240 V or less and typically provided at 100 A or less, with a maximum current rating of up to 400 A. They are typically offered with no or minimal options, while panelboards can be provided with various optional features, including main and branch circuit energy monitoring, and integrated surge suppression devices.
In North America, the electrical industry refers to smaller, lower-cost panelboards sold primarily in residential applications as load centers. Panelboards are typically deeper than load centers and can accommodate both bolt-on and plug-in circuit breakers, while load centers are limited to plug-in breakers.
Understanding Avoided Costs: Higher Than Wholesale Electricity?
You may want to see also
Explore related products
They protect circuits
A load center is an essential component of any electrical system, acting as the heart of a building's power distribution network. It receives electricity from the utility company and channels it to various branch circuits, powering lights, appliances, and devices. One of its critical functions is circuit protection, ensuring that electrical circuits are safeguarded from potential hazards.
Each branch circuit in a load center is equipped with a circuit breaker, which serves as a protective mechanism. These circuit breakers are designed to detect and respond to issues like overloads or short circuits. When an overload or short circuit occurs, the circuit breaker springs into action, cutting off the power supply to that particular circuit. This prompt response helps prevent electrical fires and other potential dangers, ensuring the safety of both property and individuals.
The circuit breakers within load centers offer a dual benefit: they protect the circuits and provide a means to manually control the power supply. In the event of a problem, the circuit breakers can be manually turned off, allowing for convenient and immediate disconnection of power. This feature is especially useful when maintenance or repairs are necessary, as it ensures that electricians can work on the electrical system without risk.
Load centers may also incorporate fuses, either as an alternative or in addition to circuit breakers. Fuses provide a similar protective function, disconnecting the circuit when an overload or short circuit is detected. Fuses offer faster response times compared to circuit breakers, providing an extra layer of protection for the electrical system.
Additionally, load centers can include a main breaker that acts as a master switch, allowing for the complete disconnection of power to the entire building or a specific section. This feature simplifies the process of shutting down power when necessary, such as during maintenance or in emergency situations. The main breaker provides an efficient way to safeguard the entire electrical system and prevent potential issues.
In summary, load centers play a vital role in protecting electrical circuits. Through the use of circuit breakers, fuses, and main breakers, load centers ensure that power distribution occurs safely, minimizing the risk of electrical hazards and providing a reliable foundation for residential, commercial, and industrial applications.
Electric Prong Imperfections: A Fire Hazard Waiting to Happen?
You may want to see also
Explore related products
They can be flush-mounted
A load center is an electrical distribution board that houses circuit breakers or fuses. It is used to distribute electricity supplied by the utility company throughout a home or building. A load center also provides safety to the homeowner and maintenance personnel by housing all the branch circuits in one enclosure, preventing contact with energized electrical parts.
Load centers can be flush-mounted. Flush-mounted load centers are installed in the wall, as opposed to surface-mounted load centers, which are installed on the wall. Flush-mounted load centers are recessed in the wall between two studs and tend to be long and narrow. They are attached to the wall through designated holes in the equipment. Flush-mounted load centers have covers that are larger than surface-mounted load centers to cover up the edge of both the panel and the wall material.
Flush-mounted load centers can be installed next to the main panel to pick up vital loads, resulting in a better-looking finished product. They are also used in renovation load centers to accommodate older, thicker studs that allow less room for flush-mounted load centers.
However, some manufacturers no longer make flush-mounted load centers due to concerns about water accumulation inside the load center and improper drainage through weep holes, or water draining inside the wall.
Winterizing Your Ryobi Electric Pressure Washer: Step-by-Step Guide
You may want to see also
Explore related products
They are used in residential and commercial buildings
A load center is an essential component of an electrical system, serving as a hub that receives power from the main electrical service and distributes it throughout a building. Think of it like the heart of the electrical system, pumping electricity to where it's needed. Load centers are used in both residential and commercial buildings to manage and control the electrical power supplied to various parts of the structure.
In a residential setting, a load center is typically a metal box mounted on a wall, often in a basement, garage, or utility room. It houses a number of circuit breakers, which are safety devices that protect electrical circuits from overload or short circuits. Each circuit breaker is connected to a specific electrical circuit in the home, such as lighting, outlets, or appliances. For example, one breaker might control the circuits for all the outlets and lights in a specific room, while another might handle the circuits for the air conditioning system. This allows for easy control and management of the electrical load in the home.
Commercial buildings have similar load center setups, but on a larger scale. These load centers are often housed in dedicated electrical rooms and are designed to handle much higher electrical loads to accommodate the increased power demands of commercial spaces. They may also include additional safety features and backup power systems to ensure uninterrupted power supply for critical systems.
The number and type of circuit breakers in a load center can vary depending on the size and requirements of the building. For instance, a larger home with more electrical appliances and systems may require a larger load center with more circuit breakers to handle the increased demand. Similarly, a commercial building with specialized equipment may require specific types of circuit breakers to protect sensitive equipment.
Load centers play a crucial role in ensuring the safe and efficient distribution of electrical power in buildings. By housing circuit breakers and providing a centralized location for electrical distribution, load centers help prevent electrical fires and other hazards that can result from overloaded circuits. They also make it easier to manage and maintain the electrical system, allowing for quick identification and resolution of issues. Understanding the role of load centers is important for homeowners and building managers alike, as it helps ensure the safe and reliable operation of the electrical systems that power our daily lives.
Understanding Electricity Costs: Calculating the Formula
You may want to see also
Frequently asked questions
A load center is an electrical distribution board that houses circuit breakers or fuses. It distributes power to various circuits and protects them from overloads.
A load center ensures power is distributed correctly to various parts of your property. It also provides a vital safety mechanism in case of electrical faults.
In North America, the electrical industry refers to smaller, lower-cost panelboards sold primarily in residential applications as load centers. Panelboards are typically deeper than load centers and can accommodate both bolt-on and plug-in breakers, whereas load centers are limited to plug-in breakers.
A main lug load center has a single lug instead of a main breaker. A lug is a copper or aluminum connecting terminal that clamps down the bare end of an electrical wire. Incoming power from the main breaker load center feeds into a central lug.
A fusible main load center uses fuses instead of circuit breakers for overcurrent protection. Fuses blow or disconnect the circuit when an overload or short circuit occurs, providing faster response times than circuit breakers.
