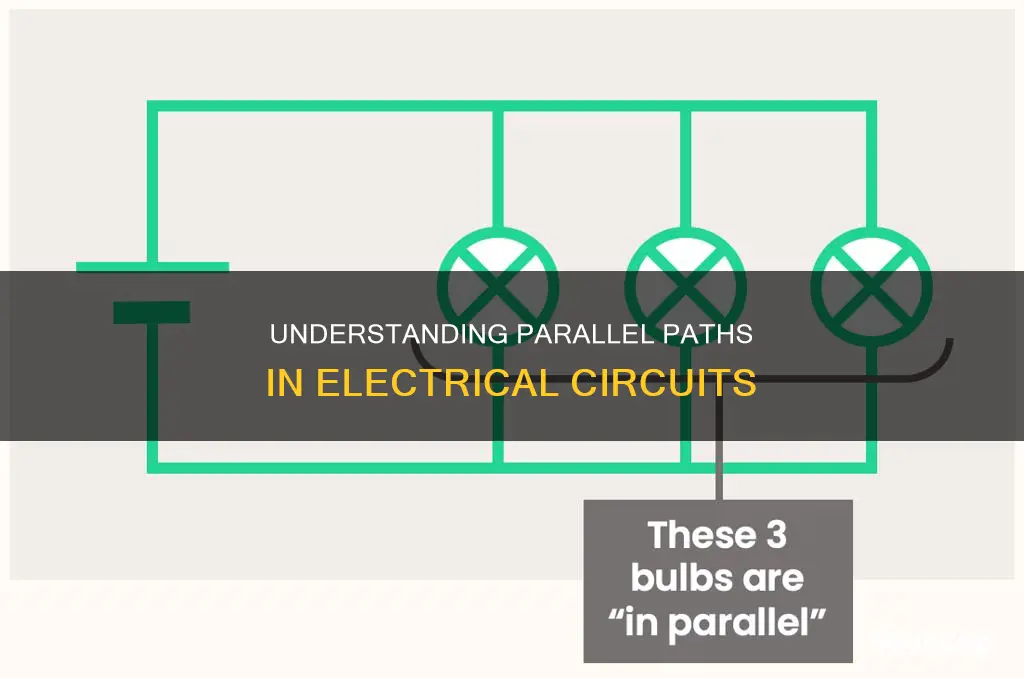

A parallel circuit is an electrical path that branches, allowing current to flow through multiple paths. In a parallel circuit, all components are connected across each other, forming exactly two electrically common nodes with the same voltage across each component. This is in contrast to a series circuit, where all components are connected end-to-end, forming a single path for current flow. In a series circuit, if one light bulb burns out, the entire circuit becomes inoperable until the faulty bulb is replaced. However, in a parallel circuit, if one circuit part breaks, the rest of the circuit still works. For example, when you turn on one light in a room, you don't have to turn on all the other lights. This is because the lights are connected in parallel.
| Characteristics | Values |
|---|---|
| Number of paths for current flow | Many |
| Number of electrically common points | 2 |
| Voltage across each branch | Same |
| Current | May vary |
| Total voltage | Same as the voltage across each branch |
| Total current | Sum of the currents through the individual components |
| Current in case of a series circuit | Same for all components |
| Circuit operation if opened at any point | Continues to operate in case of a parallel circuit, stops in case of a series circuit |
Explore related products
What You'll Learn
Parallel vs. series circuits
A parallel path in an electrical circuit is when the electric current has multiple paths to flow through. In a series circuit, all components are connected end-to-end, forming a single path for the current flow. Each component in a series circuit shares one electrical node with its nearest neighbour, and the same current flows through all of them. The total resistance in a series circuit is equal to the sum of the individual resistances.
In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points. There are many paths for the current to flow, but only one voltage across all components. Each individual path through a component is called a branch. A parallel circuit's defining characteristic is that all components are connected between the same set of electrically common points.
The major difference between series and parallel circuits is the amount of current that flows through each of the components in the circuit. In a series circuit, the same amount of current flows through all the components. In contrast, in parallel circuits, the current is split and flows through each component. The total current in a parallel circuit is the sum of the currents through the individual components.
In a series circuit, every device must function for the circuit to be complete. If one bulb burns out in a series circuit, the entire circuit is broken. In parallel circuits, each light bulb has its own circuit, so all but one light could be burned out, and the last one will still function. Series circuits are sometimes referred to as current-coupled.
Both types of circuits are needed to power and control appliances. For example, offices use parallel circuits to power appliances, but series circuits control the power. Fuses and circuit breakers are another example of series circuits controlling operating parallel circuits.
Understanding Electrical Resistance: Measured in Ohms, Defined by Coulombs
You may want to see also
Explore related products
Voltage and resistance
A parallel circuit is a type of electrical circuit where all the components are connected across each other, forming exactly two electrically common nodes or points. This means that the voltage across each component is the same, but the current may vary depending on the power requirements of the component.
In a parallel circuit, each load resistor acts as an independent branch circuit, and each branch experiences the entire voltage of the supply. The voltage across each branch is the same, and this is true for all parallel-connected elements. This is because the voltage measured between sets of common points must always be the same at any given time.
For example, if we have three resistors, R1, R2, and R3, connected in a parallel circuit, the voltage across R1 is equal to the voltage across R2, which is equal to the voltage across R3. This is because they are all connected between the same two points or nodes.
The total resistance of a parallel circuit is less than any of the individual branch resistances. This is because the equivalent resistance of a parallel combination of resistors is found through reciprocal addition. This means that the total resistance value will always be less than the smallest individual resistor in the combination.
It is important to note that the resistors in a parallel circuit can be interchanged with each other without changing the total resistance or the total circuit current. This is because the total current in a parallel circuit is the sum of all the individual branch currents.
Coal Electricity: Environmental Impact and Concerns
You may want to see also
Explore related products
Multiple paths for current flow
In electrical engineering, a parallel circuit is a type of circuit where the components are connected across each other, forming multiple paths for current flow. This is in contrast to a series circuit, where all components are connected end-to-end, creating a single path for current flow.
In a parallel circuit, there are always exactly two electrically common nodes, and the same voltage is applied across each component. However, the current may vary depending on the power requirements of each load. For example, in a home electrical circuit, each light or appliance connected in parallel experiences the same voltage, but draws a different amount of current according to its needs.
The number of paths or branches in a parallel circuit depends on the number of components connected. For instance, in a circuit with three resistors, there will be three loops for the current to flow from the positive battery terminal back to the negative terminal. Each individual path or branch is electrically independent, allowing the current to flow even if one branch or component is broken or removed. This is a key advantage of parallel circuits over series circuits, where a single break in the circuit can stop the entire system from functioning.
The concept of multiple paths for current flow is also observed in complex series-parallel circuits, where both series and parallel connections are combined. In such cases, the parallel sections of the circuit provide alternate paths for the current, enhancing the overall reliability and functionality of the system.
Engineers carefully consider the number of batteries connected in parallel to ensure sufficient current for a device's operation. Additionally, when an appliance is plugged into a wall outlet, it adds a parallel branch to the circuit, demonstrating the versatility and importance of multiple paths for current flow in everyday electrical systems.
Philippine Electrical Systems: A Comprehensive Guide
You may want to see also
Explore related products
Advantages of parallel circuits
Parallel circuits are an essential aspect of modern life, keeping our homes and workplaces functioning. They are a standard type of circuit found in home electrical wiring and are widely used in various electrical applications.
One of the key advantages of parallel circuits is their ability to ensure the independent operation of devices. In a parallel circuit, if one device fails or is turned off, it does not affect the other devices connected to the circuit. This is because a parallel circuit is set up like a ladder, with all the components running perpendicular and connected by side branches. As a result, if one component becomes inactive, the rest of the branch continues to function normally. This feature enhances safety and convenience, especially in household wiring, as a fault in one branch will not cause a complete power loss.
Another advantage of parallel circuits is that they provide consistent voltage across all components. This means that all devices connected to the circuit will receive the same voltage, regardless of their position in the circuit. This is in contrast to series circuits, where the total voltage is the sum of the voltage drops across each component.
Parallel circuits also offer flexibility in usage. Each device in a parallel circuit can be controlled individually, allowing for independent operation. This is particularly useful in a car, where the headlights, radio, and other electrical components are connected in parallel, ensuring they can operate without interfering with each other.
While parallel circuits offer these significant advantages, they also have some drawbacks. They are more complex and difficult to construct and analyse, requiring advanced formulas and rules to calculate circuit parameters. Additionally, they can create a high current demand, potentially overloading the power source or causing overheating or fire hazards.
Electric Appliance Cords: Why They Twist and Turn
You may want to see also
Explore related products
Applications of parallel circuits
Parallel circuits are used in a wide range of applications, from everyday electronics to industrial processes. Here are some common applications of parallel circuits:
Household Wiring
Parallel circuits are commonly used in home electrical wiring. This is because they offer distinct advantages over other circuits, such as the ability to control devices independently. Each device on a parallel circuit can have its own on/off switch without affecting the other devices on the circuit. For example, turning off a light switch in one room won't turn off the lights in other rooms, as they are on separate branches of the circuit. This is in contrast to series circuits, where all the devices are connected on the same pathway, and turning off one switch interrupts the electrical path for all devices.
Complex Electronic Devices
Parallel circuits are also used in complex electronic devices where uniform voltage is needed and reliability is key. For example, in a factory setting, if a conveyor belt is shut off, it won't impact the performance of other equipment unless it has been designed that way. This is because each branch of a parallel circuit operates independently, and a disruption in one branch does not affect the current flowing through the other branches.
Security Cameras
Security cameras are another application of parallel circuits. While they can be installed using series circuits, this can cause errors if one part of the circuit fails and causes the entire security system to fail. With parallel circuits, if one component fails, it won't compromise the rest of the system.
Batteries
Batteries are another application of parallel circuits. Connecting cells in parallel increases the storage capacity of the battery. Lithium-ion rechargeable batteries, such as laptop batteries, are often connected in parallel to increase the ampere-hour rating.
Automobile Manufacturing
Parallel circuits are used in industrial processes such as automobile manufacturing. They are safe and reliable, allowing complex systems to function even if there is a disruption in one part of the system.
Electric Choice Availability in Middletown, Delaware
You may want to see also
Frequently asked questions
A parallel path, also known as a parallel circuit, is an electrical path that branches to provide multiple paths for the current to flow. This means that if one circuit part breaks, the rest of the circuit will still work.
In a series circuit, all components are connected end-to-end, forming a single path for the current to flow. In contrast, a parallel circuit has multiple paths for the current to flow, with each load resistor acting as an independent branch circuit.
The voltage across each branch of a parallel circuit is the same. However, the currents may vary depending on the power requirements of each load.
When you plug an appliance into a wall outlet in your home, you are adding a parallel branch to the circuit.
