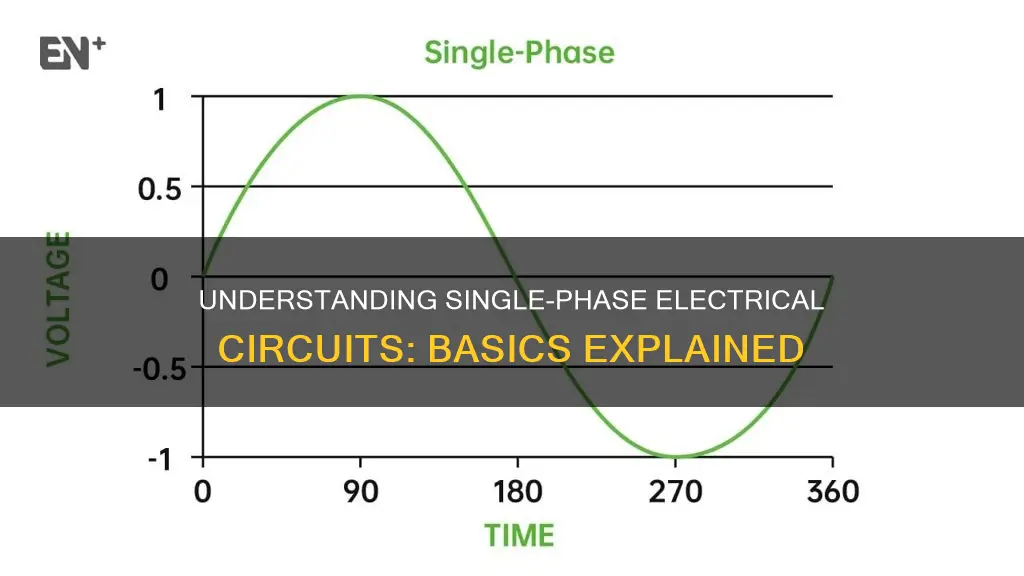

Single-phase electrical circuits are the simplest electrical circuits, requiring only two lines: one for power input and the other serving as a return path for current. These are often labelled Line 1 and Line 2, or Line 1 and Neutral. Single-phase power systems are defined by having an AC source with only one voltage waveform. They are used primarily to achieve a balance between system efficiency and safety. In North America, individual residences and small commercial buildings usually have three-wire single-phase distribution, especially in rural areas. However, three-phase power supplies are more efficient, delivering three times as much power as single-phase power supplies while requiring less conductor material.
Explore related products
What You'll Learn
- Single-phase power systems are defined by having an AC source with only one voltage waveform
- Single-phase power may be used for electric railways
- Single-phase systems are the simplest electrical circuits
- Single-phase power is less efficient than three-phase power
- In North America, individual residences and small commercial buildings will usually have three-wire single-phase distribution
Single-phase power systems are defined by having an AC source with only one voltage waveform
Single-phase power systems are commonly used in individual residences and small commercial buildings, especially in rural areas with lower power requirements. In these settings, a three-wire single-phase distribution system is often employed. However, in densely populated urban areas, network power distribution is utilised to cater to numerous customers with higher power demands.
A single-phase power system may be divided at the distribution transformer's secondary winding to create a split-phase electric power system. This configuration is used for household appliances and lighting, providing power at multiple voltages while maintaining safety through lower load voltages.
In contrast, three-phase power systems offer higher efficiency and power transfer capability. They utilise three current-carrying conductors (Line 1, Line 2, and Line 3) with a 120-degree phase shift in voltage and current waveforms. This arrangement ensures a constant power delivery rate, making it ideal for handling heavy loads.
While a single-phase connection experiences voltage peaks and dips due to the nature of alternating current, a three-phase connection maintains a steady voltage and never drops to zero. This consistency in power delivery is a significant advantage of three-phase systems. However, both single-phase and three-phase power distributions are well-suited for their designated roles, and the choice between the two depends on specific requirements and applications.
