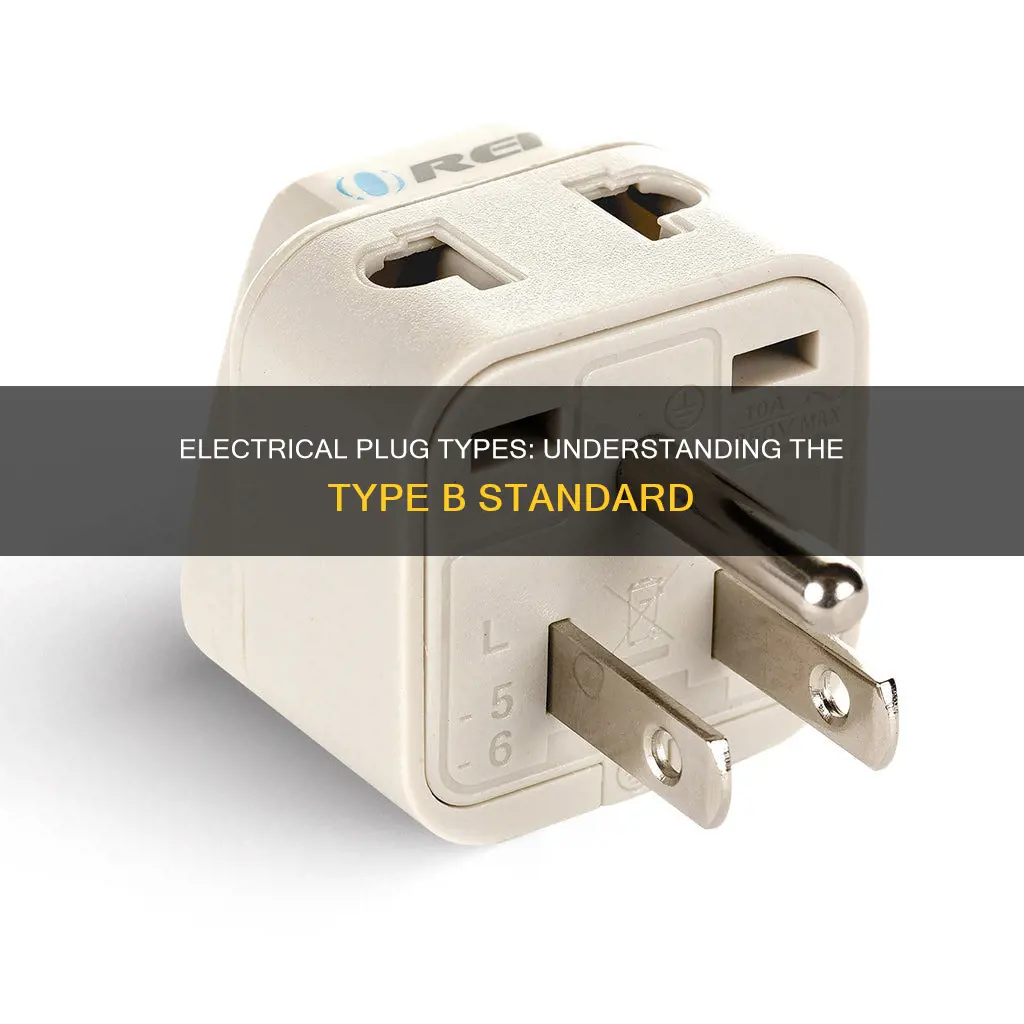

The Type B electrical plug is a three-pronged plug with two flat parallel pins and a rounded grounding pin. It is primarily used in the USA, Canada, Mexico, and Japan, and is also common in North and Central America. Type B plugs are rated at 15 amps and have a voltage range of 100-127 V. They are grounded and compatible with Type A plugs, which are ungrounded and feature two flat parallel prongs. Understanding the differences between two-pronged and three-pronged plugs is essential for electrical safety and ensuring compatibility with appliances.
| Characteristics | Values |
|---|---|
| Number of pins | 3 |
| Pin shape | 2 flat parallel pins and 1 round grounding (or earth) pin |
| Pin dimensions | 1.5 mm thick, 15.9-18.3 mm long, 6.3-7.9 mm wide, 12.7 mm apart |
| Earth pin dimensions | 4.8 mm diameter, 21.4 mm long, 11.9 mm offset |
| Amperage | 15 A |
| Voltage | 100-127 V |
| Countries used | USA, Canada, Mexico, Japan, North America, Central America |
Explore related products
What You'll Learn
Type B plug and socket dimensions
Type B electrical plugs, also known as NEMA 5-15, are commonly used in North and Central America, as well as Japan. They are characterised by having two flat parallel pins and a round grounding (earth) pin. The earth pin is longer than the other two pins to ensure that the device is grounded before the power is connected.
The dimensions of the Type B plug's pins are standardised. The two flat blades are 1.5 mm thick and measure between 15.9 and 18.3 mm in length. These blades are spaced 12.7 mm apart. The earth pin has a diameter of 4.8 mm and is 3.2 mm longer than the two flat blades.
The Type B plug is part of the American household plug system, which also includes the ungrounded Type A plug (NEMA 1-15). Type A and Type B plugs have some similarities in design, both featuring two flat prongs with a hole near the tip. These holes are optional and intended for manufacturing purposes, but they can also be used to secure the plug in the socket.
It is important to note that Type B plugs are not insulated, and the outlets are typically not recessed into the wall. This can pose a safety risk, as partially pulled-out plugs may still have their prongs connected to the socket. In some parts of Central and South America, where grounded Type B outlets are less common, individuals may cut off the earth pin to use the plug with a two-pole ungrounded socket. However, this practice is dangerous and can lead to electrical shocks if the appliance's internal wiring short-circuits.
Philippine Electrical Systems: A Comprehensive Guide
You may want to see also
Explore related products
Type B plug safety considerations
The Type B electrical plug is a grounded, three-pronged plug used in the United States, Canada, Mexico, Japan, and several other countries. It is primarily used for larger appliances and electronic devices that require a secure electrical connection and a grounded plug for safety.
Safety Considerations
- Polarity and Polarization: Type B plugs are polarized, meaning one prong is slightly wider than the other. This ensures that the plug is inserted correctly into the socket, maintaining correct polarity and safer operation. Polarization helps prevent electrical accidents by ensuring the hot and neutral connections are not reversed.
- Grounding: The Type B plug's third, round grounding pin offers an additional safety layer by preventing electric shock in case of a fault. It connects to the electrical system's earth, directing unintended electricity away from the user and into the ground. This feature makes Type B plugs safer for high-power devices.
- Amp and Voltage Range: Type B plugs are designed for a maximum current of 15 amperes (amps) and a voltage range of 100-127 volts (V). It is important to ensure that any device plugged into a Type B outlet falls within these ratings to avoid overloading the electrical system.
- Socket Compatibility: Type B sockets are compatible with Type A and Type B plugs. This backward compatibility is beneficial for travellers with older devices that use Type A plugs. However, it is essential to check the voltage and amp requirements of devices to ensure compatibility with the electrical system.
- Locking Mechanisms: Some Type B sockets have holes in the prongs that allow for locking mechanisms, such as rods inserted through the holes, to secure the plug in place. This feature is useful for vending machines and factory sealing but can also be utilized for additional safety measures.
- Partial Removal: Type B plugs are not insulated, and the outlets are not recessed. Therefore, if the plug is partially removed, the prongs may still be connected to the live socket, creating a risk of electric shock. It is crucial to turn off the power source or unplug the device from the socket before handling the plug.
- Regional Variations: While Type B plugs are commonly used in North America and Japan, there are slight variations in voltage. Japan typically uses 100V, while the United States may use higher voltages within the Type B plug's voltage range. It is important to be aware of these regional differences to ensure device compatibility and safety.
Electricity Costs in Canon City, Colorado: Expensive?
You may want to see also
Explore related products
Type B plug countries
A Type B electrical plug has two flat parallel pins and a longer, round grounding (or earth) pin. The earth pin is longer than the other two pins so that the device is grounded before the power is connected. Type B plugs are rated at 15 amps. They are used in the United States, alongside Type A plugs, and are also found in North and Central America.
The Type B plug is also used in Japan, although the Japanese version varies slightly from the American one. The pins on the American plug are different sizes, with the neutral pin wider than the live pin, whereas on the Japanese plug, both pins are the same size. As a result, Japanese devices will work in the US, but US devices may not work in Japan.
In some parts of Central and South America, grounded Type B outlets are uncommon, so people may cut off the earth pin of a Type B plug to fit it into a two-pole ungrounded socket. However, this is dangerous and could lead to an electric shock.
Type B plugs are also used in Europe, except in the UK, Ireland, Cyprus, and Malta.
Understanding Your Electricity Consumption: Calculating Your Usage
You may want to see also
Explore related products
Type B plug amperage and voltage
A Type B electrical plug is a grounded plug with two flat parallel pins and a round grounding (or earth) pin. The earth pin is longer than the other two pins so that the device is grounded before the power is connected. Type B plugs are rated at 15 amps and 110-120 volts. They are used in North America, Central America, and Japan, although they are less common in the latter.
The Type B plug is also known as NEMA 5-15 and is one of two types of domestic wall outlets used in the US, Canada, Japan, and Central America, the other being the ungrounded Type A (or NEMA 1-15). Type B plugs are also present in some parts of South America, although they are less common.
The amperage and voltage requirements of electrical devices are important factors in determining the appropriate plug type for a given device and location. Type B plugs are typically used for high-voltage or metal-cased equipment, while two-pronged plugs may be sufficient for low-power, double-insulated devices.
When using a Type B plug, it is important to ensure that the wattage rating of the transformer is larger than the wattage rating of the appliance being plugged in, with a 25% buffer to allow for heat buildup. Additionally, when plugging multiple items into a power strip connected to a transformer, the combined wattage of all appliances and the power strip must be calculated, and an additional 25% must be added to that total.
Using the correct plug type is crucial for preventing electrical fires, equipment damage, and safety hazards, especially when travelling internationally.
Finding Electrical Shorts: A DIY Guide
You may want to see also
Explore related products
Type B plug and NEMA standards
A Type B electrical plug is a type of mains plug featuring two flat parallel pins and a round grounding (or earth) pin. The earth pin is longer than the other two pins so that the device is grounded before the power is connected. Type B plugs are rated at 15 amps and are used in North and Central America, Japan, and some parts of South America.
In the American household plug system, the Type B plug is referred to as NEMA 5-15. This is an earthed plug, as opposed to the ungrounded Type A (NEMA 1-15) plug. NEMA stands for the National Electrical Manufacturers Association, which is an organization that forms standards for the manufacturing of electrical equipment. NEMA publishes more than 700 standards to provide safety, environmental, and marketing enhancement for the industry. NEMA standards are voluntary and benefit both the user and manufacturer while improving safety and communication between the purchaser and manufacturer.
NEMA enclosures can protect against electrical shock, dirt, dust, debris, oil, and explosions. NEMA standards also offer protection for enclosures, motors, AC plugs, and magnet wire. For example, NEMA 4 enclosures offer protection against water ingress, while NEMA 6 enclosures offer protection against water submersion.
It is important to understand the differences between two-pronged and three-pronged plugs for proper electrical installation, code compliance, and safety. Two-pronged plugs are standard in many regions for household electrical devices, especially those that are double-insulated or low-wattage. Three-pronged plugs are recommended for high-voltage or metal-cased equipment to maximize safety and protect electronics from power surges and electrical faults.
Schneider Electric: Pension Benefits and Plan Details
You may want to see also
Frequently asked questions
A Type B electrical plug is a three-pronged, earthed plug. It has two flat parallel pins and a rounded grounding pin.
Type B plugs are primarily used in the USA, Canada, Mexico, and Japan. They are also used in parts of Central and South America.
Type A plugs are ungrounded, whereas Type B plugs are grounded. Type A plugs are also known as "American plugs" and are one of the most common types of plugs worldwide.
Three-pronged plugs are safer for high-voltage or metal-cased equipment. They are recommended for new appliance installations or when upgrading electrical systems.
Type B plugs have an amp rating of 15 A and a voltage range of 100-127 V.
