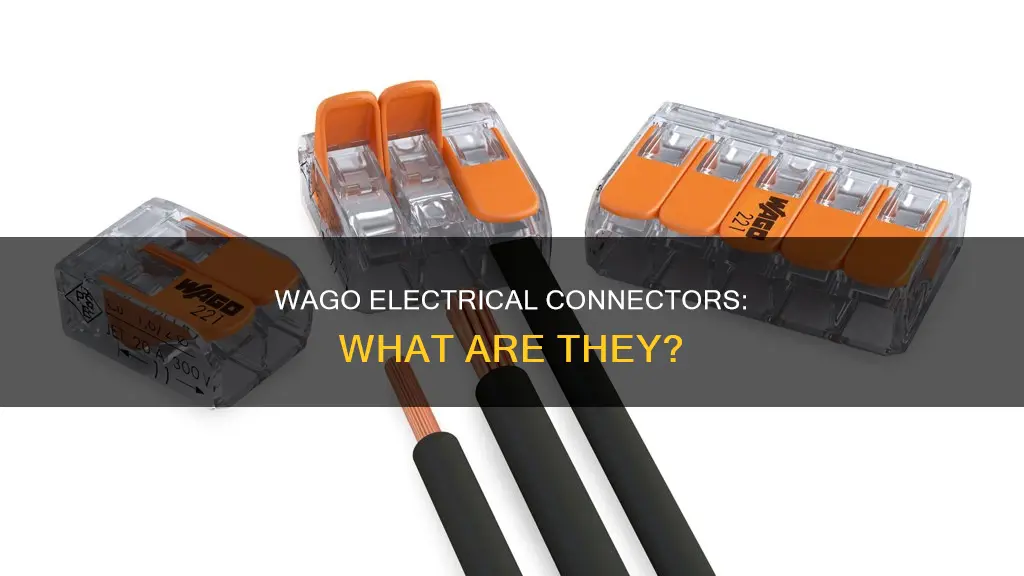

WAGO connectors are electrical connectors used to connect or join multiple electrical wires together. They are known for their ease of use, reliability, and compatibility with all conductor types. WAGO connectors are often used as an alternative to screw-in electrical connectors or wire nuts, offering a more convenient and reliable method for splicing wires. The term WAGO has become so synonymous with lever nut-style connectors that it is now used as a general term for similar products. WAGO connectors come in various series, such as the 221 and 222, each offering unique features and advantages for different applications. These connectors are widely used in building installations, shipbuilding, and railway technology, providing a sustainable and eco-friendly choice for electricians and DIY enthusiasts alike.
Explore related products
What You'll Learn
WAGO connector advantages
WAGO connectors are a type of lever nut connector used to splice wires together. They are known for their ease of use, reliability, and versatility across various applications. Here are some advantages of WAGO connectors:
Easy and Secure Wire Attachment
WAGO connectors offer a simple and reliable method for splicing wires together. Unlike traditional methods that require twisting wires together, WAGO connectors feature a lever that, when pulled up, allows the wire to be inserted. The lever is then flipped back down to secure the wire in place. This eliminates the need for complex techniques and reduces the risk of loose or damaged connections.
Time Savings and Maintenance-Free Operation
WAGO connectors save time by providing a quick and efficient installation process. They are also maintenance-free, requiring no tools for operation and offering easy servicing, inspection, and accessibility.
Compatibility and Versatility
WAGO connectors are compatible with all conductor types, including solid, stranded, and fine-stranded wires. They can accommodate a wide range of wire gauges and sizes, making them versatile for various applications. WAGO connectors are suitable for commercial, residential, and industrial installations, as well as shipbuilding and railway technology.
Compact Design
The WAGO 221 series, in particular, offers a compact design with a 40% size reduction compared to its predecessor. This makes it ideal for applications where space is limited, such as crowded panels or distribution cabinets.
Clear Design and Improved Safety
WAGO connectors feature a clear design that allows users to visually confirm whether the wire is properly positioned inside the clamping compartment. This improves safety and quality control. Additionally, WAGO's TOPJOB® S Series provides clear and legible marking, enhancing the professional impression of electrical installations.
