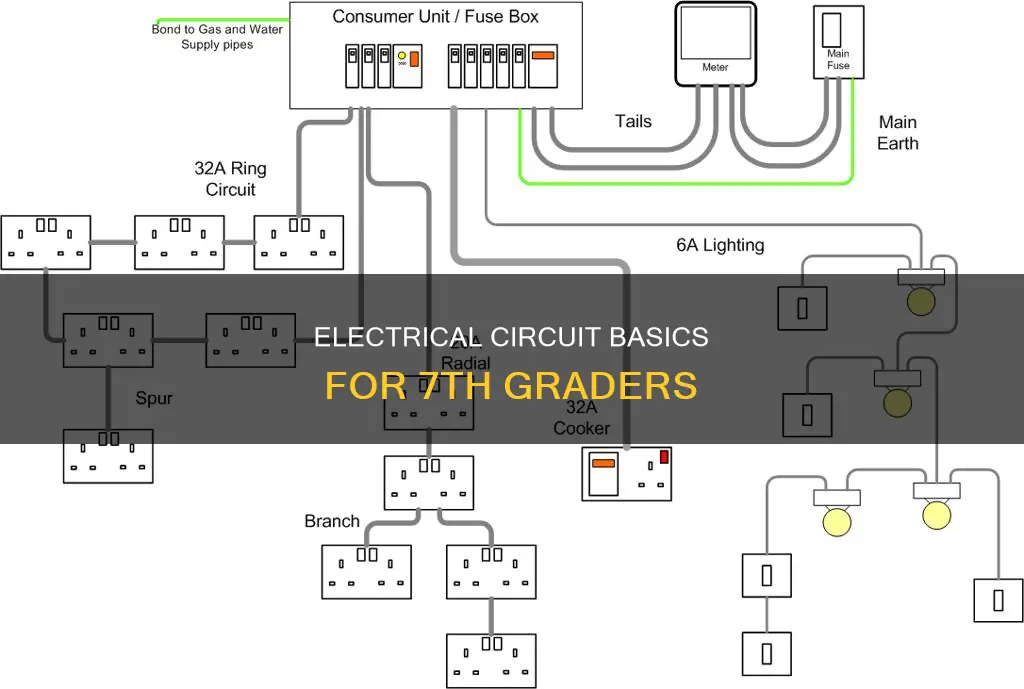

Electric circuits are an essential part of our daily lives, powering everything from lights to appliances and electronic devices. In Class 7, students delve into the fascinating world of electricity and electric circuits, exploring how they function and their various components. Electric circuits are pathways that allow electric current, or the flow of electric charges, to move along and power devices. These circuits consist of essential components like batteries, bulbs, switches, and wires, each playing a unique role in ensuring the smooth flow of electricity. Understanding electric circuits helps us grasp the underlying principles of electricity and its applications in our everyday lives. From simple circuits with basic elements to complex series and parallel circuits, students in Class 7 develop a strong foundation in this intriguing aspect of science.
| Characteristics | Values |
|---|---|
| Definition | A continuous closed path along which electric charge (electrons) flow |
| Components | Electric cell or battery, connecting wires, bulb, switch |
| Construction | Connect the positive terminal of a cell to the negative terminal of another cell |
| Types | Series, Parallel |
| Series Circuit | All components connected in a single loop; if one component is damaged, the entire circuit is broken |
| Parallel Circuit | Multiple paths for current to flow; if one branch is damaged, other branches can still function |
| Current | The rate of flow of charge, measured in Amperes by an ammeter |
| Resistance | Opposition to the flow of electrons, measured in Ohms by an Ohmmeter |
| Fuse | A safety device to protect against overloading; breaks the circuit when too much current flows |
| Switch | A device to control the flow of current; completes or breaks the circuit |
| Conductors | Materials that allow current to flow easily, e.g., copper, silver, aluminium |
| Insulators | Materials that do not allow current to flow easily |
Explore related products
What You'll Learn
Electric circuits and their components
Electric circuits are the pathways along which electric current, or the flow of electric charge, moves. They are made up of four main components: a source of electric current, metal wires, a load, and a switch.
The source of electric current supplies electric charge to the circuit. This can be a battery or a generator. A battery is made up of two or more electric cells, which are devices that convert chemical energy into electrical energy. The positive terminal of a cell is connected to the negative terminal of another cell with the help of metal strips.
Metal wires, usually made of copper or aluminium, are used to connect the source of electric current to the load. They are good conductors of electricity, meaning they allow electric current to flow through them easily.
The load is the component for which the electric circuit is constructed. It can be an electric lamp, electric bell, electric iron, television, or any other electrical appliance. When the current flows through the load, it performs a specific function.
A switch is a device used to control the flow of electric current in a circuit. It can be turned on or off. When the switch is on, it allows the current to flow, completing the circuit. When it is off, it blocks the current, creating a gap in the circuit.
There are two types of electric circuits: series circuits and parallel circuits. In a series circuit, all the components are connected in one single loop, forming a single pathway for the electric current to flow. If one component gets damaged, the entire circuit is broken. In a parallel circuit, there are multiple pathways for the current to flow, and if one component gets damaged, the other branches can still function.
Electric Boogie Song: Its Meaning and History
You may want to see also
Explore related products
Types of circuits: series and parallel
Electric circuits are the paths via which electric current flows. They often include cables, switches, resistors, and power sources (such as batteries or generators).
There are two types of electric circuits: series and parallel. In a series circuit, the components are connected in a single loop or chain, and the same current flows through all of them. If one component gets damaged, the entire circuit is broken. Series circuits are useful if you want to be warned that one of the components has failed. They also use less wiring than parallel circuits.
In a parallel circuit, there are multiple routes connecting components, and the current divides and travels via separate branches. The current entering the circuit is split across the branches and then added up again so that the current leaving the circuit is the same as the current entering it. Each component in a parallel circuit has its own circuit, so if one component gets damaged, the others can still function. Parallel circuits are commonly used in homes and offices to power appliances.
To summarise, the key differences between series and parallel circuits are:
- Series circuits have a single path for the current to flow through, while parallel circuits have multiple paths.
- In series circuits, the same current flows through all components, whereas in parallel circuits, the current is divided across the branches.
- Series circuits are more sensitive to component failure, while parallel circuits can continue functioning even if one component fails.
- Series circuits use less wiring than parallel circuits.
Rebuilding Electric Pressure Washer Pumps: A Step-by-Step Guide
You may want to see also
Explore related products
How switches work
An electric circuit is a closed path that allows electric current to flow through it. The electric current is the flow of electric charges (electrons) in a circuit. Electric circuits are used to power many things we use daily, like lights, appliances, and electronic devices.
An electric switch is a device used to control the flow of electric current in a circuit. It can be turned on or off. When the switch is on, it allows the current to flow, and when it is off, it blocks the current. Switches are either completely on ("closed") or completely off ("open"). When a switch is closed, there is no gap in the circuit, and electric charges can flow through it. When a switch is open, there is a gap in the circuit, and electric charges cannot flow, so the circuit does not work.
Switches are made in many different configurations and can be operated manually or automatically. A common example of a manually operated switch is a light switch. More complex switches can turn on or off in response to a physical stimulus, such as a change in light or a magnetic field. Proximity switches, for example, work like a metal detector, energizing a coil of wire with a high-frequency current. If a metallic object gets close enough to the coil, the current will increase and trip the monitoring circuit.
Switches are essential components of electric circuits as they allow us to control the flow of electricity, helping us save energy and money, and stay safe.
The Ultimate Guide to Manually Raising Electric Leveling Jacks
You may want to see also
Explore related products
Electric cells and batteries
Electric cells are devices that convert chemical energy into electrical energy, thus producing a small amount of electricity. They consist of an electrolyte and two electrodes of different materials. When the electrodes are immersed in the electrolyte solution, they react to produce an electric current. The electric cell has two terminals, a positive and a negative one, and chemicals inside the cell create a chemical reaction that generates electrical energy and allows the flow of electric charges, creating an electric current. This current flows from the positive terminal to the negative terminal of the cell.
There are two types of electric cells: primary cells and secondary cells. Primary cells are designed for one-time use and cannot be recharged, whereas secondary cells can be recharged multiple times by sending electrical energy back into them. Examples of devices that use secondary cells include smartphones, laptops, and electric vehicles.
When multiple electric cells are connected together, they form a battery. Batteries come in different sizes and shapes, depending on the number and type of cells they contain. A battery can be made by connecting the positive terminal of one cell to the negative terminal of another cell. The positive terminal is represented by a longer line, while the negative terminal is represented by a shorter line. The symbol for a battery consists of a series of these long and short lines placed next to each other, indicating the multiple cells it contains.
In summary, electric cells and batteries are essential for converting chemical energy into electrical energy and powering various devices. Electric cells can be used independently or combined to form batteries, providing the necessary electrical energy for a wide range of applications.
Powering Food Trailers: Electricity Sources and Setup Explored
You may want to see also
Explore related products
Conductors and insulators
An electric circuit is a path for electric charge, or electrons, to flow along. Materials that allow electric current to flow through them easily are called conductors. Conductors are materials with atoms that have electrons that are loosely bound and are free to move throughout the material. In other words, conductors have lots of free charges.
Conductors allow the transmission of heat or light from one source to another. They are used in car radiators to eradicate heat away from the engine. Some common examples of conductors include metals like copper, silver, aluminium, and graphite. The human body and the earth are also good conductors of electricity.
On the other hand, insulators are materials that do not allow electric current to flow through them easily. Insulators hinder the free flow of electrons from one particle of the element to another. If a charge is transferred to an insulator, the charge remains at the initial location and is not distributed across the surface. Insulators are generally solid and do not have any free electrons, which is why they do not conduct electricity.
Some common examples of insulators include wood, cloth, glass, mica, quartz, plastic, and rubber. Cotton thread, for example, will not allow current to flow through a circuit, whereas a metallic wire such as copper will.
The Ultimate Guide to Sanding with Electric Sanders
You may want to see also
Frequently asked questions
An electric circuit is a path for electric charge (electrons) to flow along. It is a continuous closed path along which current flows from the positive terminal to the negative terminal of the battery.
All electrical circuits consist of four main components: a source of electric current, a load, metal wires, and a switch. The source of electric current supplies electric current to the circuit. The load is a component for which an electric circuit is constructed, such as an electric lamp, electric bell, electric iron, television, or any other electric appliance. Metal wires are used to connect the source of electric current to the load. A switch is used to start or stop the flow of current in the circuit.
In a series circuit, all the components are connected in a single loop or chain, so the current flows through each component chronologically. If one component gets damaged, the entire circuit is broken. In a parallel circuit, there are multiple paths for the current to flow through, and the current is shared across branches. If one component in a branch gets damaged, the other branches can still function, and the entire circuit does not break.
A fuse is an electrical safety device that protects electrical circuits from overloading. It is designed to break or melt when too much current flows through it, preventing damage to the circuit and connected devices. Once the fuse has melted, the circuit is broken, and no more current flows, eliminating the risk of electrocution.
