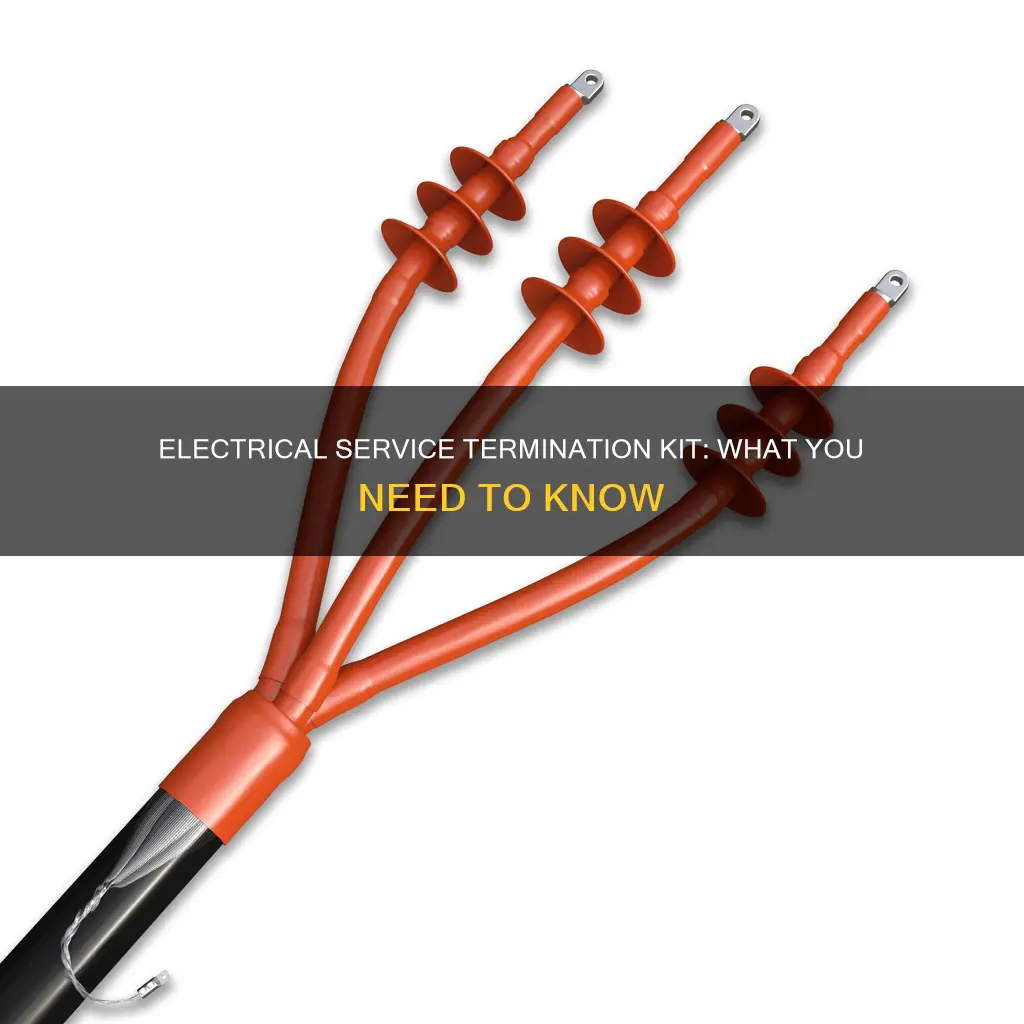

Electrical service termination kits are used for cable termination at distribution voltage. They are used to make physical and electrical connections between the cable and the terminal of the equipment, junction, or another cable. Termination kits are available for heat-shrink, cold-shrink, and pre-moulded push-on cable terminations. Heat-shrink cable terminations, for example, use components or tubing that shrinks when exposed to heat. Cold-shrink terminations do not require heat, and the technician simply removes the supporting cord during installation. Termination kits are available from various manufacturers, including Marshall E. Campbell Co., Compaq International, Thorne & Derrick, and Underground Electric Supply. These kits are designed for different voltage ranges and cable types, ensuring a pliable and tight seal for effective cable termination.
| Characteristics | Values |
|---|---|
| Use | Cable termination at distribution voltage |
| Types | Heat-shrink, cold-shrink, push-on, slip-over, pre-moulded push-on |
| Voltage | 5 kV-35 kV |
| Companies | Marshall E. Campbell Co, 3M, Raychem, Thorne & Derrick, Eaton, TE Connectivity, Elastimold |
Explore related products
What You'll Learn
Cable termination kits
Marshall E. Campbell Co offers termination kits in partnership with 3M and Raychem. Their kits include the Medium Voltage Heat-Shrinkable Motor Connection Stub Type Kit, for single conductors, and the Medium Voltage Heat-Shrinkable Motor Connection In-Line Type Kit, also for single conductors. They also offer the Cold Shrink QT-III Termination Kit, which provides a tight seal for tape shield, wire shield, and UniShield power cables, allowing the termination to withstand voltages of 5 to 35kV.
Underground Electric Supply offers a range of medium-voltage termination kits from brands like 3M, TE Connectivity, Raychem, and Elastimold. Their kits include the 3M Cold Shrink QT-II Silicone Rubber Termination Kits 5620K Series, which contain one-piece, non-skirted, silicone rubber terminations, and the TE Connectivity 15-35kV Cold Shrink Terminations Outdoor (CSTI), which are a one-piece solution for high performance in cold-applied terminations.
There are three main types of cable terminations: heat-shrink type, cold-shrink type, and pre-moulded push-on type. Heat-shrink terminations involve shrinkable components or tubing when exposed to heat. Cold-shrink terminations do not require heat, and the technician simply removes the supporting cord during installation, causing the components or tube to shrink and fit into place.
