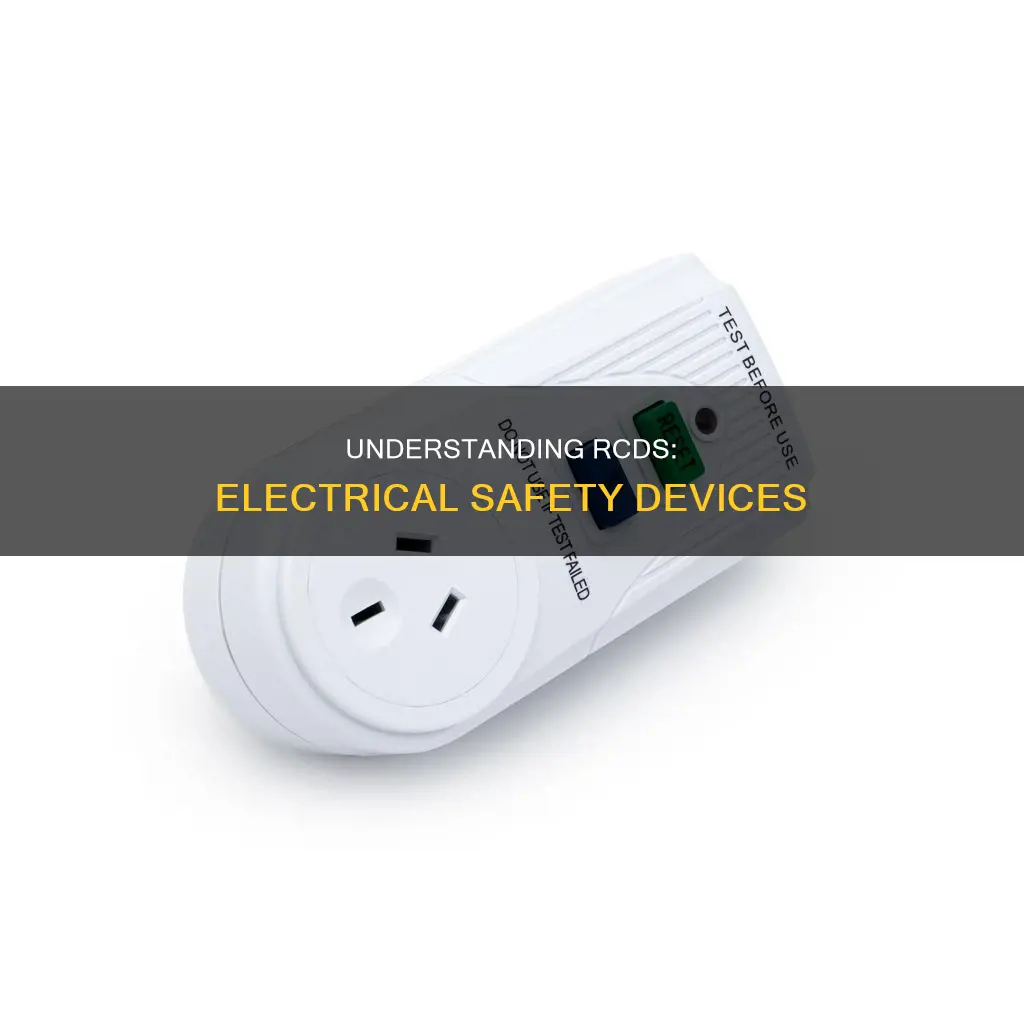

A residual current device (RCD) is a life-saving device designed to prevent fatal electric shocks and protect against electrical fires. RCDs are sensitive safety devices that switch off electricity automatically if there is a fault. RCDs are a key component of modern electrical safety, disconnecting the circuit in the event of a power surge or electrical imbalance, preventing damage to electrical devices and reducing the risk of death or serious injury from electric shock.
| Characteristics | Values |
|---|---|
| Full Form | Residual Current Device |
| Purpose | Preventing electrical shock, reducing severity of injury caused by electrical shock, preventing electrical fires |
| Working Principle | Current balance principle, Kirchhoff's Current Law |
| Installation | Installed by qualified electricians, paired with a consumer unit |
| Appearance | Small switch, located inside a consumer unit or fuse board |
| Types | Fixed RCD, Socket-outlet RCD, Plug-in RCD, RCBO (Residual Current Circuit Breaker with Overload Protection) |
| Protection | RCDs offer dual protection by combining residual current protection and overload protection (circuit breaker) in one unit |
| Safety | RCDs are sensitive safety devices that switch off electricity automatically if there is a fault |
| Testing | Press the test button to verify correct operation; if the RCD does not trip, replace the device |
Explore related products
What You'll Learn
RCDs are a type of residual current device
A residual current device (RCD) is a life-saving device designed to prevent fatal electric shocks and protect against electrical fires. RCDs are a crucial component of electrical safety, offering a higher level of personal protection than ordinary fuses and circuit breakers.
RCDs work on the principle of Kirchhoff's Current Law, which states that the electrical current at any point in a circuit must be zero for it to function properly. RCDs constantly monitor the incoming and outgoing current flow through one or more circuits, detecting any imbalances that may indicate a fault.
When an RCD detects electricity flowing down an unintended path, such as through a person who has touched a live wire, it quickly switches off the circuit, reducing the risk of death or serious injury. This rapid response is crucial in preventing ventricular fibrillation, the most common cause of death from electric shock.
RCDs are typically installed by qualified electricians and are paired with a consumer unit or fuse board to house the device and connect it to the electrical network. In the event of a power surge or electrical fault, the RCD trips and disconnects the electrical supply, ensuring the safety of individuals and protecting electrical devices from damage.
There are different types of RCDs, including fixed RCDs and socket-outlet RCDs, each providing varying levels of protection. Fixed RCDs offer the highest level of protection by safeguarding all wiring, sockets, and connected appliances on a circuit. Socket-outlet RCDs, on the other hand, provide protection only to individuals and equipment in direct contact with the RCD. Regular testing and maintenance of RCDs are essential to ensure their effectiveness and maintain safety.
Electric Knife Sharpeners: What You Need to Know
You may want to see also
Explore related products
RCDs are safety devices
RCD stands for Residual Current Device, also known as a residual current circuit breaker (RCCB) or ground fault circuit interrupter (GFCI). RCDs are safety devices designed to prevent electrical accidents and protect against electrical fires. They are sensitive safety devices that constantly monitor the electric current flowing through one or more circuits and switch off the electricity supply if there is a fault.
RCDs work on the principle of Kirchhoff's Current Law, which states that the electrical current meeting at any point in the circuit must be zero to remain operational. RCDs monitor the in-going and out-going current flow and detect any imbalances or leakage currents, which could indicate a potentially harmful situation. If an imbalance or leakage is detected, the RCD will rapidly react and disconnect the electric current, preventing serious injury or death.
RCDs are particularly useful in preventing electric shock, which can occur when electricity flows down an unintended path, such as through a person who has touched a live wire. RCDs can provide protection in potentially dangerous areas like bathrooms and gardens, and they are essential for circuit protection in homes and workplaces. In the UK, since 2008, virtually all circuits in new or rewired homes have been required to include an RCD.
There are different types of RCDs, including fixed RCDs and socket-outlet RCDs, which offer varying levels of protection. Fixed RCDs provide the highest level of protection as they protect all the wiring, sockets, and connected appliances on a circuit. Socket-outlet RCDs, on the other hand, only provide protection to the person in contact with the equipment plugged into the RCD. RCDs can also be combined with circuit breakers to form RCBOs (Residual Current Circuit Breakers with Overload Protection), which offer dual protection in a more compact solution.
Overall, RCDs are important safety devices that play a crucial role in preventing electrical accidents, reducing the severity of injuries, and providing protection against electrical fires.
Polaris Electric UTVs: Who's Driving Change?
You may want to see also
Explore related products
RCDs are sensitive to electrical faults
A Residual Current Device (RCD) is a safety device that protects against electrical faults. RCDs are highly sensitive to electrical imbalances and will automatically disconnect the electric current if a fault is detected, preventing fatal electric shocks and reducing the risk of electrical fires.
RCDs are designed to respond to electrical faults by quickly interrupting the protected circuit. They detect when the electric current is unbalanced between the supply and return conductors of the circuit, indicating a leakage current which presents a shock hazard. RCDs will then disconnect the conducting wires ("trip") rapidly to prevent serious injury or death and damage to electrical devices.
The sensitivity of RCDs is expressed as the rated residual operating current, noted IΔn. RCDs can be classified into three groups according to their IΔn value: high sensitivity (5, 10, and 30 mA), medium sensitivity (100, 300, 500, and 1000 mA), and low sensitivity (3, 10, and 30 A). High-sensitivity RCDs are suitable for direct-contact or life injury protection, while medium-sensitivity RCDs provide fire protection. Low-sensitivity RCDs are typically used for machine protection.
In addition to their sensitivity, RCDs can also be categorised as fixed, socket-outlet, or portable. Fixed RCDs are installed in the consumer unit (fusebox) and provide protection to individual or groups of circuits, sockets, and connected appliances. Socket-outlet RCDs are built into special socket-outlets, providing protection to the person in contact with the equipment plugged into the socket. Portable RCDs plug into standard socket-outlets, and appliances can then be plugged into them. While socket-outlet and portable RCDs only protect the person in direct contact with the equipment, fixed RCDs offer a higher level of protection by safeguarding all components on a circuit.
RCDs are essential safety devices that play a crucial role in preventing electrical faults and ensuring the safety of individuals and properties. Their sensitivity to electrical imbalances and rapid response in disconnecting the electric current make them a reliable safeguard against electric shocks and potential fires.
Fixing Stuck Electric Windows: DIY Guide and Tips
You may want to see also
Explore related products
RCDs are installed by qualified electricians
A residual current device (RCD) is a life-saving device designed to prevent fatal electric shocks and protect against electrical fires. RCDs are highly sensitive safety devices that constantly monitor the electric current flowing through one or more circuits and automatically switch off the electricity if there is a fault.
RCDs are typically installed by qualified electricians and are usually paired with a consumer unit to house the device and connect it to the electrical network. The consumer unit, or fusebox, is typically located in areas such as underneath the stairs, the garage, a basement, or a kitchen cupboard. It is important to understand where your RCD is located in case of any electrical issues that need attention.
There are various types of RCDs available, each providing different levels of protection. A fixed RCD, for example, provides the highest level of protection as it protects all the wiring and sockets on a circuit and any connected appliances. These RCDs are built into special socket-outlets and can be used in place of standard socket-outlets. Plug-in RCDs are also available and can cost as little as £10, although they provide a lower level of protection.
It is important to regularly test RCDs to ensure they are functioning properly. Manufacturers recommend testing fixed and socket RCDs every three months and portable RCDs every time they are used. If the RCD does not switch off the electricity supply when the test button is held for a long time, it is recommended to seek advice from a registered electrician.
Since 2008, virtually all circuits in new or rewired homes in the UK have been required by law to include an RCD. Similarly, properties constructed since 2009 in Australia are required by law to have RCDs installed. It is the duty of a qualified electrician to ensure that RCDs are installed in accordance with legal requirements and safety standards.
Vibrant Blues: Carpets to Compliment Electric Blue Walls
You may want to see also
Explore related products
RCDs are required in new or rewired homes
A residual current device (RCD) is a life-saving device designed to prevent fatal electric shocks and reduce the risk of electrical fires. RCDs constantly monitor the flow of electricity in a circuit, and if they detect an abnormal activity, such as a power surge or a live wire coming into contact with a person, they rapidly shut off the electricity supply, preventing potential fatalities.
Since 2008, RCDs have been mandatory in virtually all new or rewired domestic circuits in the UK. This regulation was introduced as part of the latest edition of BS 7671, also known as the 18th Edition Wiring Regulations, to enhance electrical safety in homes.
RCDs are typically installed by qualified electricians and are usually paired with a consumer unit, also known as a fusebox, to house the device and connect it to the electrical network. The consumer unit is often located in areas like underneath the stairs, the garage, a basement, or a kitchen cupboard.
There are different types of RCDs available, including fixed RCDs, socket-outlet RCDs, and portable RCDs. Fixed RCDs offer the highest level of protection as they cover faults in any circuits they protect, as well as any appliances plugged into those circuits. Socket-outlet RCDs, on the other hand, provide protection only to the person in contact with the equipment plugged into the special socket outlet. Portable RCDs are useful when neither fixed nor socket-outlet RCDs are available, and they need to be tested each time they are used.
By installing RCDs, homeowners can have peace of mind knowing that their loved ones and property are protected from electrical hazards. RCDs act as silent protectors, ensuring the electrical system functions safely and effectively, providing an additional layer of fire prevention, and safeguarding against potentially catastrophic electrical faults.
What Makes a Spherical Conductor Electrically Neutral?
You may want to see also
Frequently asked questions
RCD stands for Residual Current Device.
RCDs are life-saving electrical safety devices that prevent fatal electric shocks and protect against electrical fires.
RCDs work on the principle of Kirchhoff's Current Law, which states that the electrical current meeting at any point in the circuit must be zero to remain operational. RCDs constantly monitor the incoming and outgoing current flow through the circuits they protect. If there is an imbalance in the current, indicating a leakage, the RCD will immediately switch off the circuit.
An RCBO (Residual Current Circuit Breaker with Overload Protection) combines the functions of an RCD and a circuit breaker in one device, offering dual protection.
RCDs are typically installed in the consumer unit or fusebox by qualified electricians. It is usually located in areas such as underneath the stairs, the garage, a basement, or a kitchen cupboard.
