Continuity in electricity refers to the presence of a complete and unbroken path for electric current to flow between two points. It is an important element to check with a multimeter because poor continuity can cause fires, shocks, or damage to electrical devices. A continuity test can be performed by sticking two terminals on a multimeter against two ends of an electrical current and checking for an audible or visual indication of continuity. The multimeter will beep or display a low resistance reading if there is continuity. This test is useful for identifying faults or broken circuits, verifying connections in new installations, and ensuring safety.
| Characteristics | Values |
|---|---|
| Definition | Continuity refers to the presence of a complete and unbroken path for electric current to flow between two points. |
| Purpose | Continuity testing is used to check if a circuit or electrical connection is complete and unbroken. |
| Function | Continuity testing is performed by sending a small current through the circuit and measuring the resulting current or checking for an audible or visual indication of continuity. |
| Symbol | The continuity symbol on a multimeter is typically represented by a diode symbol or a sound wave symbol. |
| Safety | Continuity testing should only be performed on unpowered circuits to avoid electrical hazards and damage to the multimeter. |
| Results | A beep or a low resistance reading close to zero indicates continuity, while a break in continuity may be indicated by a reading of "OL" (open loop) or infinite resistance. |
| Applications | Continuity testing can be used to identify faults or broken circuits, verify connections in new installations, and ensure safety by detecting potential hazards. |
Explore related products
$7.99 $9.85
What You'll Learn

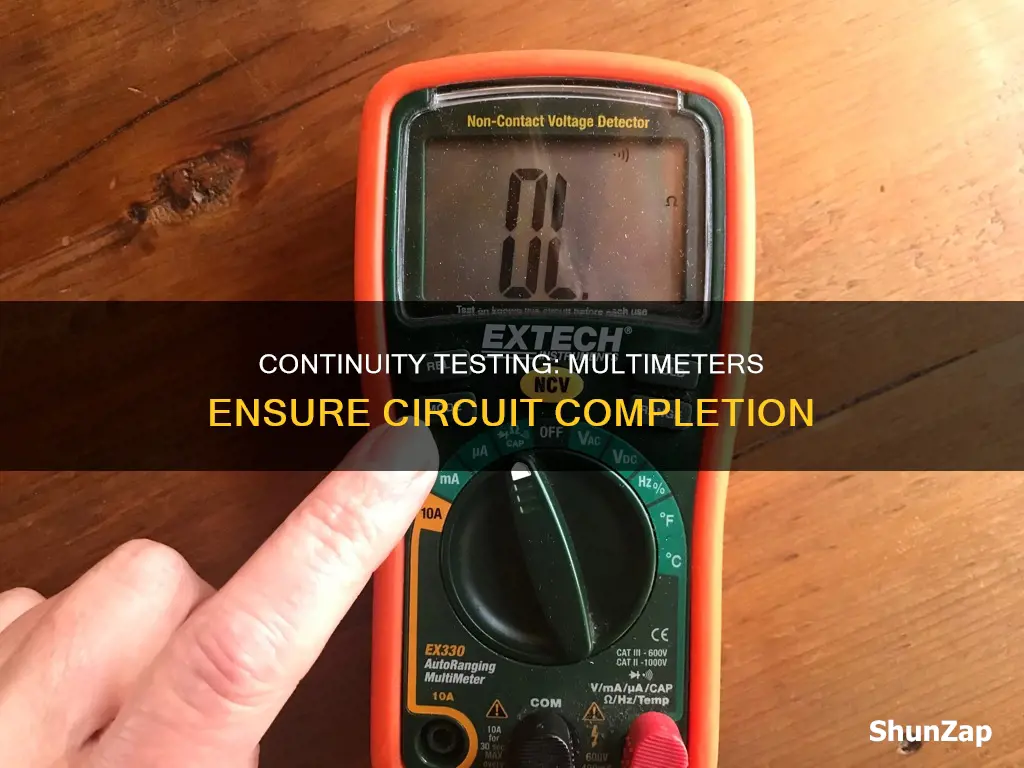

How to test continuity with a multimeter
Testing continuity in a wire, current, or fuse is a good idea when installing or repairing electrical components in an outlet, fuse box, car, or appliance. Continuity refers to how much resistance there is in a closed electrical current, and poor continuity can cause fires, shocks, or damage to devices.
To test continuity, you need to stick two terminals on your multimeter against two ends of an electrical current. First, turn off and unplug the device you are testing to prevent shocks or fires. Then, connect the black and red terminals with the corresponding slots. Plug the black cord into the slot labelled "COM" and the red cord into the slot labelled "mAVΩ" or "AVΩ". "COM" is short for "common" and is the ground, while "mAVΩ" stands for "measure amperage, voltage, ohms" and is used to measure the current.
Next, turn the dial on the multimeter to the continuity setting. This is usually indicated by a diode symbol, which is a triangle with a line on the right side, or a symbol that looks like sound waves. If your multimeter does not have a dedicated continuity setting, turn the dial to the lowest number in resistance mode (measured in ohms, symbolised by Ω). Touch the metal parts of your terminals together to make sure it works. To test the continuity setting's calibration, touch the two terminals together and hold them in place. If the number on the multimeter is less than 1, the multimeter is functioning correctly. Most multimeters will beep if the signal is good.
Finally, position the multimeter probes on both sides of the connected area or joint that you want to test. If you hear a continuous beep or a faint, disjointed tone, the traces are touching, continuity has been detected, and a short circuit may be present. If there is no sound, the traces are not touching, and there is no electrical connection between them.
Electric Fence Joules: Bear Safety
You may want to see also
Explore related products
Continuity test applications
Continuity testing is a crucial aspect of electrical work, ensuring devices function as intended and preventing safety hazards. Here are some specific applications of continuity testing with a multimeter:
Wiring and Cable Checks
Continuity testing can be used to check if a wire or cable is damaged. By testing continuity across both ends of a wire, you can determine if it is intact or if there is a break that prevents current flow. This is especially useful when dealing with paper circuits, where unintended connections can occur.
Appliance Repair
Multimeters aid in identifying broken or faulty components within household appliances. By checking for continuity, you can locate faulty fuses, lights, or wiring that may need repair or replacement.
Automotive Diagnostics
Continuity testing is valuable for testing circuits in a car's electrical system. It helps identify faulty fuses, lights, or wiring issues, ensuring the car's electrical components function properly.
Switch Testing
Continuity testing is used to verify the functionality of switches. When the switch is in the "on" position, the multimeter should beep, indicating a complete circuit. Conversely, when the switch is "off," the absence of a beep confirms the circuit is open as intended.
Circuit Path Verification
Continuity testing helps verify circuit paths. By sending a small current through the circuit, you can determine if there is an uninterrupted path for the current to flow. This is essential for troubleshooting and ensuring the proper operation of electrical devices.
Installation Verification
During new installations, continuity testing ensures that all connections are solid. This proactive approach helps prevent future issues and enhances the reliability of the electrical system.
Electrical Burns: First Aid for Finger Injuries
You may want to see also
Explore related products
Continuity test safety considerations
When performing a continuity test with a multimeter, there are several safety considerations to keep in mind to ensure the process is carried out correctly and without harm.
Firstly, it is crucial to ensure that the device or circuit being tested is unplugged or turned off at the main circuit breaker. This is because continuity tests should only be performed when there is no voltage present in the circuit. Testing an active circuit can be dangerous and may not even work, as the meter needs to send a small current through the circuit to measure resistance. Additionally, testing an active circuit can lead to shocks or fires. Therefore, it is always recommended to disconnect the power source and ensure all capacitors are discharged before commencing the test.
Secondly, it is important to correctly identify the terminals and their corresponding slots on the multimeter. The black terminal is typically the ground, while the red terminal is for the active current. These terminals should be connected to the corresponding slots, usually labelled as "COM" for common ground and "mAVΩ" or "AVΩ" for measuring amperage, voltage, and ohms. Incorrectly connecting the terminals can lead to inaccurate readings.
Thirdly, it is essential to pay attention to the multimeter's settings. The multimeter should be set to the continuity mode, which is often indicated by a diode symbol or soundwaves symbol. If the multimeter lacks a dedicated continuity setting, the dial should be turned to the lowest number in resistance mode, as resistance is measured in ohms. A correct setting ensures accurate readings and helps avoid confusion.
Furthermore, it is crucial to interpret the readings correctly. A reading of 0 ohms indicates perfect continuity, while a reading lower than 1 may suggest dirty terminals. If the reading is between 1 and 10 ohms, it is advisable to refer to the device's manual to determine if this level of resistance is acceptable. Playing it safe by avoiding using the device until clarification is obtained is always a good idea.
Lastly, it is important to handle the multimeter with care and keep it in good condition. This includes regularly cleaning the terminals and ensuring they are free from dirt or debris, which can affect the accuracy of the readings. Additionally, keeping the multimeter's battery charged is essential, as a dying battery may cause erratic readings.
By following these safety considerations, individuals can effectively and securely perform continuity tests with a multimeter, minimising the risk of accidents, misinterpretations, or equipment damage.
Switching Showers: Converting Electric to Mains
You may want to see also
Explore related products
Interpreting continuity test results
It is important to note that the absence of a beep does not always indicate a problem. For example, when testing a switch, the multimeter should only beep when the switch is in the "on" position, indicating that the circuit is complete. When the switch is "off," the absence of a beep is expected, as it indicates that the circuit is open and no current should be flowing.
Additionally, some multimeters may provide a more precise resistance measurement by switching to their resistance (Ω) setting. This can be useful for a more detailed understanding of the circuit's continuity. If you are using a multimeter with a continuity beeper, it is important to remember that the level of resistance needed to trigger the beeper may vary by meter. Typically, continuity is indicated by a measurement between 0-50 ohms.
It is also crucial to ensure the multimeter is functioning correctly. To verify this, touch the two probes together, and they should indicate continuity with a beep or a display change to show a reading close to zero. If this does not happen, the multimeter may need calibration, repair, or a battery change.
Ben Franklin's Electric Legacy: A Pioneer's Journey
You may want to see also
Explore related products
Continuity test symbols
The continuity test symbol on a multimeter is used to indicate continuity or lack thereof in electrical diagrams or test equipment. It is a graphical representation that shows the presence or absence of a continuous path in the circuit. Continuity refers to the presence of a complete electrical connection between two points in a circuit, indicating a continuous path for the flow of electric current.
The continuity symbol on a multimeter can vary depending on the model and manufacturer. Some common symbols used to indicate continuity include:
- Diode Symbol: This symbol is commonly used to represent the continuity testing mode. It is usually depicted as an arrow pointing towards a vertical line, resembling a triangle with a line on the right side. This symbol can also be used to test for diode function, which allows current to flow in one direction (forward-biased) and blocks it in the opposite direction (reverse-biased).
- Sound Wave Symbol: Another frequently used continuity symbol is the sound wave symbol, which resembles a series of curved lines or waves, similar to sound waves emerging from a speaker or a musical note symbol (♫).
- Speaker Symbol: Some multimeters may display a small speaker symbol on the screen when in continuity mode.
- "CONT" or "BEEP": Certain multimeters may use labels like "CONT" or "BEEP" to indicate the continuity testing mode.
It is important to consult the multimeter's manual to understand the specific continuity symbol used and how to set the device to continuity mode correctly.
When performing a continuity test, it is crucial to ensure that the circuit being tested is disconnected from its power source to avoid potential damage or safety hazards. By applying the continuity test, you can verify the presence of a continuous electrical connection and identify any breaks or open paths in the circuit.
Speed Queen Electric Dryers: Top Performance?
You may want to see also
Frequently asked questions
Continuity in electricity refers to the presence of a complete and unbroken path for electric current to flow between two points. When a circuit or wire has continuity, it means there is no break, and current can travel freely.
First, ensure your multimeter is set to continuity mode. Then, place the probes on each side of the connected area or joint that you want to test. If there is continuity, the multimeter will beep or display a low resistance reading.
Testing continuity is crucial in ensuring electrical devices work as intended. A lack of continuity due to a break or fault can prevent components from functioning and pose safety hazards such as fires or shocks.
During a continuity test, a multimeter sends a small current through the circuit and measures the resulting current or resistance. It can also check for audible or visual indications of continuity, such as a beep or a low resistance reading.
