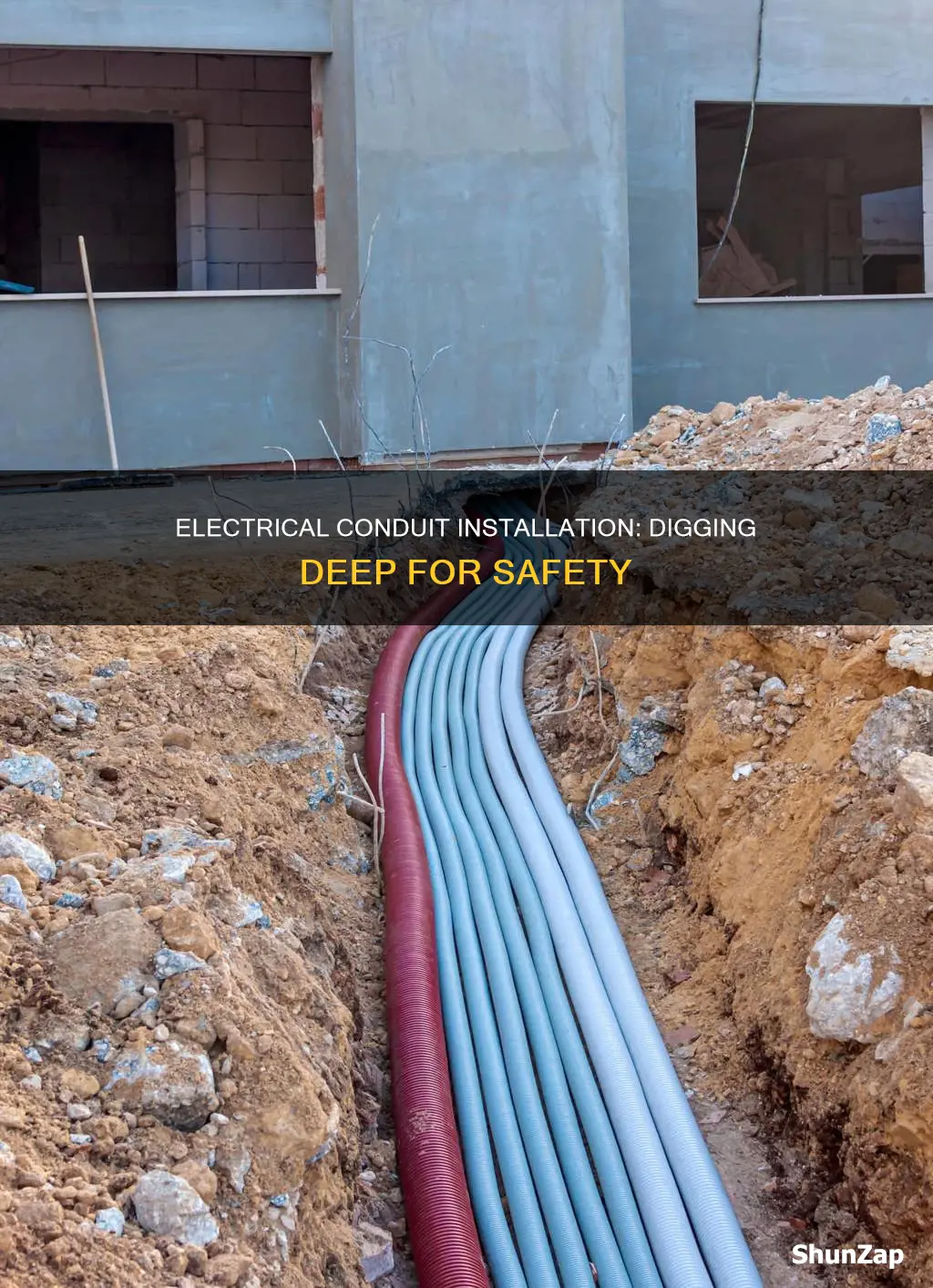

Knowing how deep to run electrical conduit is crucial for safety and compliance with building codes. The depth of electrical conduits varies depending on location, purpose, and type of conduit. For instance, PVC conduit must be buried at least 18 inches deep, while galvanized metal electrical conduits must be buried at a minimum depth of 6 inches. Burial depth also depends on the type of wiring and cable used, with low-voltage wires requiring a minimum depth of 6 inches and direct-burial wires needing to be at least 24 inches underground. Local building codes, soil type, and environmental factors also play a role in determining the appropriate depth for electrical conduits.
Explore related products
What You'll Learn
Burial depth depends on conduit type
Burial depth depends on the type of conduit being used. For instance, PVC conduit must be buried at least 18 inches deep, while galvanized metal electrical conduits must be buried at a minimum depth of 6 inches. In the case of direct burial low-voltage landscape wires (12V and 24V) connected to a transformer, a minimum burial depth of 6 inches is required, but no conduit is necessary.
The burial depth for underground electrical wiring varies depending on the type of wiring, location, and purpose. For instance, under concrete or roadways, a burial depth of 18 inches is typically sufficient, whereas an underground electrical service beneath a parking lot necessitates a depth of 24 inches regardless of the wiring method employed. The type of soil also plays a role in determining burial depth; if the soil is granular and easy to dig, you may be able to save on electrical materials by forgoing metal or plastic conduit protection and opting for deeper burial instead.
Local building codes and safety standards also influence burial depth requirements. For example, in areas with extreme temperatures and deep ground freezes, local codes may mandate burial depths that prevent frost heave. Additionally, safety codes typically require a burial depth of 24 inches to provide adequate protection and reduce the risk of damage.
It is important to consult local authorities, building codes, and safety standards to ensure compliance and determine the specific burial depth required for a given location and type of conduit.
