In electrical engineering, EHV refers to voltages in the range of 345,000–765,000 V, though the definition depends on context. EHV is an acronym for extra-high voltage, which is used in power transmission from plants to load centres or between power grids. EHV is one of several voltage classifications, including high voltage (HV) and ultra-high voltage (UHV). The use of high and extra-high voltages in power transmission increases efficiency by allowing for thinner, lighter-weight cables, which reduces construction costs.

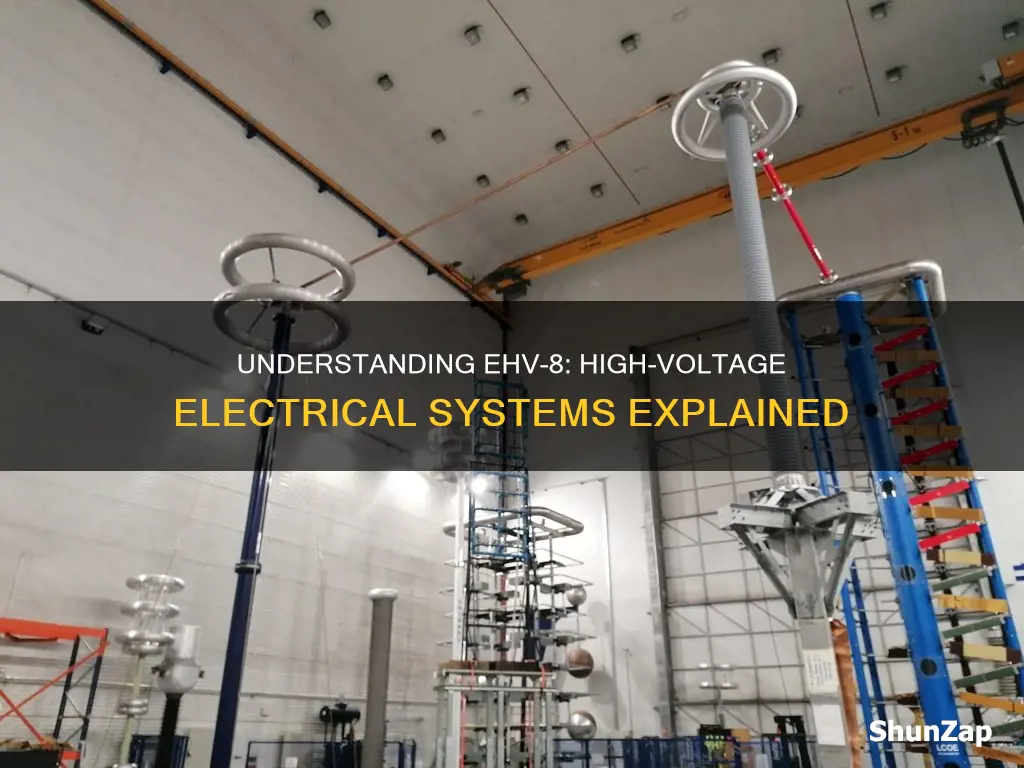

EHV-8 in electrical terms
| Characteristics | Values |
|---|---|
| Definition | Extra-high voltage |
| Range | 345,000–765,000 V |
| Context | Electrical power transmission engineering |
| Other Voltage Contexts | Voltages over 50V can cause dangerous amounts of current to flow through a human being |
| Voltages below 500-700V cannot produce easily visible sparks or glows in air at atmospheric pressure | |
| Voltages above 1000V for alternating current and 1500V for direct current are considered high voltage by the International Electrotechnical Commission | |
| High voltage ranges from 115,000 to 230,000 VAC | |
| Nominal voltage ranges from 35 kV to 220 kV |
Explore related products
What You'll Learn
EHV is an abbreviation for extra-high voltage
In electronics systems, a power supply that provides greater than 275,000 volts is called an EHV Power Supply. This type of power supply is often used in physics experiments. The accelerating voltage for a television cathode ray tube may also be described as extra-high voltage or extra-high tension (EHT), compared to other voltage supplies within the equipment. This type of supply ranges from 5 kV to about 30 kV.
In the context of alternating current (AC) transmission voltage classes, EHV typically refers to a nominal voltage range of 330 kV to below 1000 kV. Internationally, this is the standard definition, though this range may vary by country. For example, in China, EHV AC networks refer to 330 kV, 500 kV, and 750 kV.
EHV transmission lines are significantly different from ultra-high voltage (UHV) transmission lines, with differences in overvoltage, key equipment, operation mode of the shunt reactor, requirements for relay protection, and impact on system operation. EHV transmission lines are very long, realising transregional and transbasin transmission.
