Electric flux density is a concept in electromagnetism that describes the interaction of electric fields within substances, including insulators, conductors, and dielectrics. It is defined as the amount of electric flux passing through a specific area within a material, providing insight into the field's intensity at various points. Electric flux, in this context, refers to the total number of electric lines of force emanating from a charged object. The SI unit of electric flux density is coulombs per square meter (C/m²). Electric flux density is closely related to electric field intensity, but they differ in how they change when passing through materials. While the electric field (E field) changes as it moves through materials, the electric flux density (D field) remains constant.
Explore related products
![LDK Soldering Iron Kit, Electric Soldering Gun Welding Tools with ON/OFF Switch, Solder Wire, Flux Paste, Soldering Iron Stand, Sponge, 5pcs Tips [110V US Plug]](https://m.media-amazon.com/images/I/61OG0C7BVyL._AC_UY218_.jpg)
What You'll Learn
- Electric flux density is an alternative to electric field intensity
- The SI unit of electric flux density is coulombs per square meter
- Electric flux density is defined as the amount of electric flux passing through a unit surface area
- Electric flux is the total electric field that crosses a given surface
- Electric flux is directly proportional to the total number of electric field lines going through a surface
Electric flux density is an alternative to electric field intensity
Electric field intensity, on the other hand, is the total electric field that is physically measured. It is denoted by the symbol E and is measured in volts per meter (V/m). Electric field intensity is inversely proportional to the area of a sphere surrounding the charge, indicating that it decreases in proportion to the area of the sphere.
The relationship between electric flux density and electric field intensity is given by the equation D = ε * E, where ε is the electric constant, also known as the permittivity of free space. This equation shows that electric flux density is a description of the electric field in terms of flux, as opposed to force or change in electric potential.
The concept of electric flux density becomes particularly important when dealing with boundaries between media having different permittivities. In such cases, the boundary conditions on electric flux density constrain the component of the electric field perpendicular to the boundary separating the two regions. This makes it easier to analyze capacitors and materials that can be modelled as perfect conductors.
In summary, electric flux density is an alternative way to quantify an electric field, providing actionable insights into how electric fields behave in different scenarios. It offers a partial view of the electric field, focusing on the component that is not directly attributable to a material's electric response.
Cutting Plastic Electrical Wall Plates: Easy Steps to Success
You may want to see also
Explore related products
The SI unit of electric flux density is coulombs per square meter
Electric flux is a fundamental concept in electromagnetism that describes the flow of an electric field through a given area. It is crucial for understanding how electric fields interact with physical objects. Electric flux is also used to calculate the electric field generated by various charge configurations and is key to applying Gauss's Law.
Electric flux density, denoted by the symbol D, is an alternative to electric field intensity (E) as a way to quantify an electric field. It is defined as the number of electric field lines or electric lines of force flowing perpendicularly through a unit surface area. The electric flux density depends on the number of electric lines of force passing through the surface area.
It is important to note that while the SI units for D are C/m², it describes an electric field and not a surface charge density. However, one may describe the amount of charge distributed over a surface using units of C/m².
Electric Toothbrushes: Dental Pain Culprit or Coincidence?
You may want to see also
Explore related products
Electric flux density is defined as the amount of electric flux passing through a unit surface area
Electric flux density is a concept in electromagnetism that helps us understand and predict how electric fields interact with various substances, including insulators, conductors, and dielectrics. It is denoted by the symbol D and has SI units of coulombs per square meter (C/m²).
The concept of electric flux density is closely related to electric field intensity, providing insights into the field's intensity at various points. It is calculated using the charge and the surface area of a hypothetical sphere centered on the charge. This calculation helps in understanding the behaviour of electric fields in different scenarios.
It is important to note that electric flux density becomes particularly significant when dealing with boundaries between media having different permittivities. The boundary conditions on electric flux density constrain the component of the electric field perpendicular to the boundary separating two regions.
In summary, electric flux density is a measure of the electric flux passing through a unit area, aiding in the understanding of electric field behaviour and intensity.
Preventing Electrical Accidents: Understanding the Root Cause
You may want to see also
Explore related products

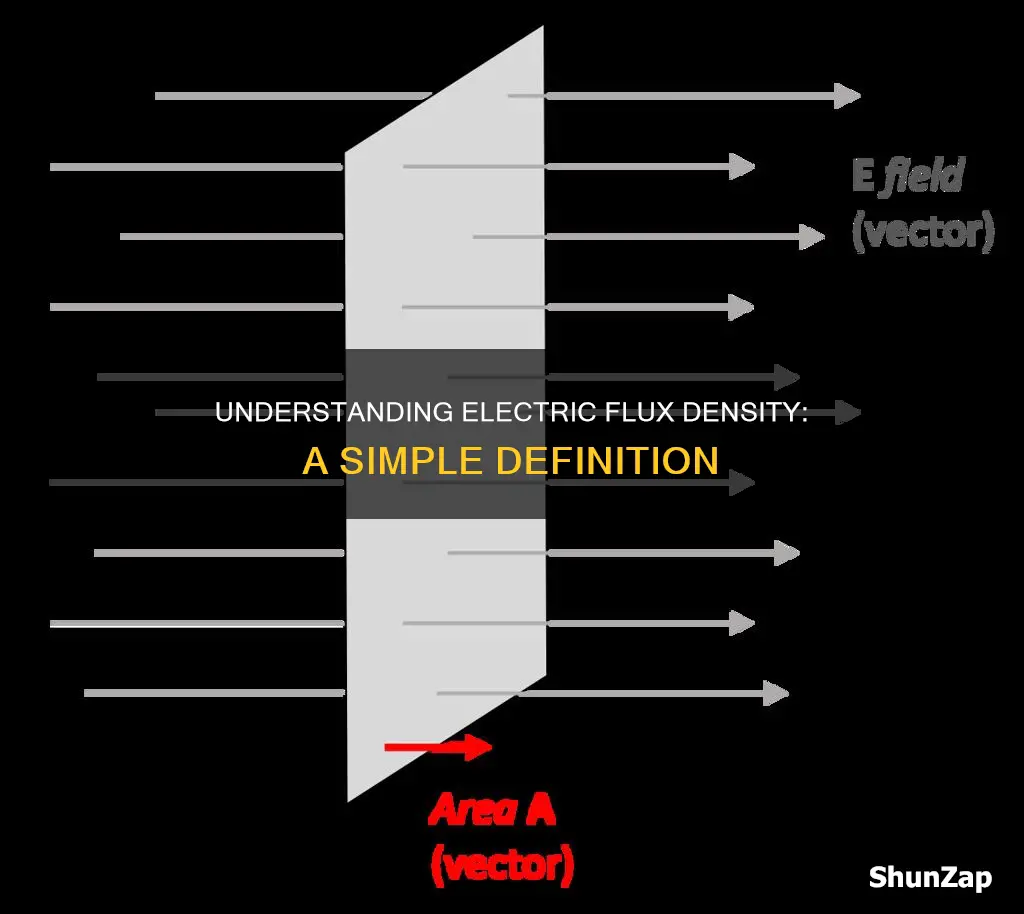

Electric flux is the total electric field that crosses a given surface
Electric flux is a fundamental concept in electromagnetism. It is defined as the total electric field that crosses a given surface. In other words, it is the total number of electric field lines that pass through a closed surface. These lines are imaginary and are considered to originate from positive electric charges and terminate in negative electric charges. The concept of electric flux is closely related to the idea of electric field intensity, which describes the strength and direction of the electric field.
The electric flux passing through a surface is directly proportional to the total charge contained within that surface. This relationship is described by Gauss's law, which states that the total electric flux through a closed surface is equal to the total charge enclosed inside the surface. This law provides a way to calculate the electric flux by considering the charge and the geometry of the surface.
The electric flux density, denoted as D, is a measure of the amount of electric flux passing through a unit area. It is calculated using the charge and the surface area of a hypothetical sphere centred on the charge. Electric flux density provides insight into the intensity of the electric field at different points. It is important to note that electric flux density is not the same as surface charge density, although they share the same SI units of coulombs per square meter (C/m²).
The distinction between electric flux density and electric field is important. The electric field, denoted as E, represents the total electric field and is what is directly measured. On the other hand, electric flux density is a partial electric field, representing only a part of the total electric field that is not directly attributable to a material's electric response. This distinction becomes particularly relevant when dealing with boundaries between media having different permittivities.
In summary, electric flux is the total electric field passing through a given surface, and electric flux density quantifies the amount of electric flux per unit area. These concepts are essential in understanding how electric fields behave in different scenarios and interact with various substances.
Volta's Electric Pile: Unlocking Electricity's Power
You may want to see also
Explore related products
Electric flux is directly proportional to the total number of electric field lines going through a surface
Electric flux is a fundamental concept in electromagnetism that helps us understand the behaviour of electric fields. It is defined as the total number of electric field lines or lines of force passing through a closed surface. These electric field lines are imaginary lines drawn around a charged particle, emanating from positive electric charges and terminating at negative electric charges. The concept of electric flux is closely related to the idea of electric field intensity, denoted as E, which represents the strength and direction of the electric field.
Electric flux density, denoted as D, is an alternative way to quantify an electric field. It is defined as the amount of electric flux passing through a unit surface area, providing insight into the field's intensity at different points. In simpler terms, it represents the number of electric field lines passing through a given area. This measurement helps in understanding how electric fields behave in different scenarios and interact with various substances, including insulators, conductors, and dielectrics.
The relationship between electric flux and electric flux density is crucial. Electric flux density is directly proportional to the total number of electric field lines passing through a surface. This means that as the number of electric field lines passing through a given area increases, the electric flux density at that point also increases. This relationship allows us to calculate the electric flux density by considering the charge creating the field and the distance from the centre of the charge to the point of interest.
Mathematically, the formula for electric flux density is given as D = Flux/Area, where Flux represents the total electric flux passing through the surface. The SI unit of electric flux density is Coulombs per square meter (C/m^2). This unit highlights that electric flux density describes the amount of electric flux per unit area, providing a quantitative measure of the density of electric field lines.
It is important to distinguish between the electric field, denoted as E, and the electric flux density, denoted as D. While E represents the total electric field that can be directly measured, D represents a partial electric field that is not directly attributable to a material's electric response. This distinction becomes particularly relevant when considering the behaviour of electric fields within different materials. By understanding the relationship between electric flux and electric flux density, we can gain valuable insights into the nature and behaviour of electric fields, facilitating further analysis and applications in electromagnetism.
The Evolution of Radios: Powering the 1920s with Electricity
You may want to see also
Frequently asked questions
Electric flux density is the amount of electric flux passing through a unit surface area.
Electric flux is the total number of electric field lines passing through a given closed surface.
Electric flux is the total number of lines of force, whereas electric flux density is the number of lines of force crossing a unit surface area.
The symbol for electric flux density is often denoted by D.
The SI unit of electric flux density is coulombs per square meter (C/m²).
