Electric Power Steering (EPS) is a modern automotive technology that uses an electric motor to assist the driver in steering the vehicle, replacing traditional hydraulic systems. Unlike hydraulic power steering, which relies on a pump driven by the engine, EPS operates independently, drawing power from the car’s electrical system. This system enhances steering ease, especially at low speeds or during parking, while maintaining responsiveness at higher speeds. EPS also contributes to fuel efficiency by eliminating the constant parasitic load of a hydraulic pump, as the electric motor only activates when steering assistance is needed. Additionally, it allows for advanced features like lane-keeping assist and adaptive steering, making it a key component in both conventional and autonomous vehicles.
| Characteristics | Values |
|---|---|
| Definition | A system that uses an electric motor to assist in steering the vehicle. |
| Power Source | Electricity from the vehicle's battery. |
| Components | Electric motor, control module, torque sensor, and steering column. |
| Operation | The motor provides assistance based on steering input and vehicle speed. |
| Energy Efficiency | More efficient than hydraulic power steering; reduces engine load. |
| Weight | Lighter than hydraulic systems, contributing to better fuel efficiency. |
| Maintenance | Requires less maintenance due to fewer moving parts and no fluid changes. |
| Feedback | Can be tuned to provide specific steering feel (e.g., sporty or comfort). |
| Safety Features | Integrates with stability control systems for improved safety. |
| Cost | Generally less expensive to manufacture and maintain than hydraulic systems. |
| Environmental Impact | Reduces emissions by lowering engine power consumption. |
| Adaptability | Easily adaptable to autonomous driving technologies. |
| Common Applications | Widely used in modern cars, from compact vehicles to luxury models. |
| Reliability | Highly reliable with fewer failure points compared to hydraulic systems. |
| Customization | Allows for customizable steering assistance levels (e.g., comfort, sport). |
Explore related products
What You'll Learn
- Electric Power Steering Basics: Overview of EPS, its function, and how it differs from hydraulic systems
- Components of EPS: Motor, control module, sensors, and steering column explained
- Advantages of EPS: Improved fuel efficiency, ease of use, and advanced driver assistance
- How EPS Works: Interaction between driver input, sensors, and motor assistance?
- Common EPS Issues: Symptoms of failure, troubleshooting, and maintenance tips
Electric Power Steering Basics: Overview of EPS, its function, and how it differs from hydraulic systems
Electric Power Steering (EPS) has become a standard feature in modern vehicles, replacing traditional hydraulic systems in many models. At its core, EPS uses an electric motor to assist the driver in steering, reducing the effort required to turn the wheel. This system is controlled by a computer that adjusts the level of assistance based on factors like vehicle speed, steering angle, and driving conditions. For instance, at low speeds, such as when parking, EPS provides more assistance to make maneuvering easier, while at high speeds, it reduces assistance to enhance stability and control.
One of the key advantages of EPS over hydraulic systems is its efficiency. Hydraulic power steering relies on a pump driven by the engine, which constantly draws power, even when steering assistance isn’t needed. In contrast, EPS operates on-demand, activating the electric motor only when the driver turns the wheel. This not only reduces the load on the engine but also improves fuel efficiency by up to 3%. For example, a compact car with EPS can save approximately 0.3 to 0.5 liters of fuel per 100 kilometers compared to a hydraulic system.
The functionality of EPS also differs significantly from hydraulic systems in terms of customization and feedback. EPS allows manufacturers to fine-tune steering feel through software, offering a more tailored driving experience. For instance, some vehicles offer selectable driving modes (e.g., Comfort, Sport) that adjust steering weight and responsiveness. Hydraulic systems, however, provide a more consistent but less adaptable feel, as their behavior is primarily determined by mechanical components. Additionally, EPS can integrate with advanced driver-assistance systems (ADAS), such as lane-keeping assist, by using the electric motor to apply corrective steering inputs.
Despite its benefits, EPS has faced criticism for lacking the "road feel" that hydraulic systems provide. Hydraulic steering offers a direct mechanical connection between the wheels and the steering wheel, delivering more tactile feedback about road conditions. EPS, on the other hand, relies on sensors and software to simulate this feedback, which some drivers find less engaging. However, advancements in technology have significantly improved EPS responsiveness, and many modern systems now rival hydraulic setups in terms of driver engagement.
In practical terms, maintaining an EPS system is generally simpler and less costly than a hydraulic one. Hydraulic systems require periodic fluid changes and are prone to leaks, which can lead to expensive repairs. EPS, being a sealed system with fewer moving parts, typically lasts the life of the vehicle with minimal maintenance. However, if an EPS motor or control module fails, repairs can be more complex and require specialized diagnostic tools. For drivers, understanding the basics of EPS helps in appreciating its role in enhancing both efficiency and safety, while also being aware of its limitations compared to traditional systems.
The Dawn of Urban Electrification: When Cities Embraced Electric Power
You may want to see also
Explore related products

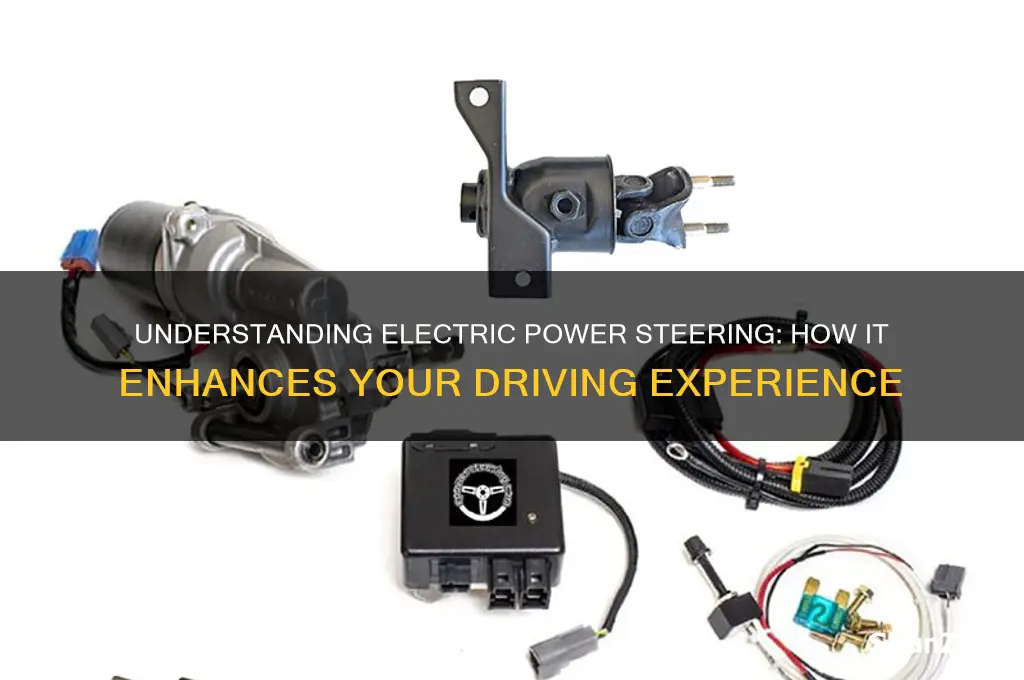

Components of EPS: Motor, control module, sensors, and steering column explained
Electric Power Steering (EPS) has revolutionized the driving experience by replacing traditional hydraulic systems with a more efficient, responsive, and environmentally friendly alternative. At its core, EPS relies on four critical components: the motor, control module, sensors, and steering column. Each plays a distinct role in ensuring precise steering control while adapting to driving conditions.
The Motor: Power Behind the Precision
The electric motor is the muscle of the EPS system, providing the necessary assistance to turn the wheels with minimal effort. Unlike hydraulic systems, which use fluid pressure, the EPS motor operates silently and efficiently, drawing power directly from the vehicle’s electrical system. Typically mounted on the steering column or rack, the motor engages only when needed, reducing energy consumption. Brushless DC motors are commonly used due to their high efficiency and durability, delivering torque assistance that varies based on vehicle speed and driver input. For instance, at low speeds, the motor provides maximum assistance for easy maneuvering, while at highway speeds, it reduces assistance to enhance stability.
Control Module: The Brain of EPS
The control module acts as the central processing unit, interpreting data from sensors and commanding the motor to deliver the appropriate level of assistance. This electronic control unit (ECU) uses algorithms to analyze inputs such as vehicle speed, steering angle, and torque demand. For example, when parking, the module detects slow speeds and sharp turns, signaling the motor to provide full assistance. Conversely, during high-speed driving, it reduces assistance to maintain a firm steering feel. Modern control modules also incorporate fail-safe mechanisms, ensuring the system defaults to manual steering if a malfunction occurs.
Sensors: Eyes and Ears of the System
Sensors are the EPS system’s feedback mechanism, continuously monitoring driving conditions and driver inputs. The torque sensor measures the force applied to the steering wheel, while the speed sensor detects the vehicle’s velocity. Additional sensors, such as the steering angle sensor, track the wheel’s position relative to the driver’s input. These sensors work in tandem to provide real-time data to the control module, enabling it to adjust motor assistance dynamically. For instance, if the torque sensor detects a sudden steering input, the module responds by increasing motor assistance to aid in evasive maneuvers.
Steering Column: The Driver’s Interface
The steering column is the physical link between the driver and the EPS system, housing critical components like the motor, torque sensor, and control module. Designed for ergonomic comfort and safety, it incorporates a collapsible mechanism to reduce injury risk during collisions. In some advanced systems, the column also integrates haptic feedback, providing tactile cues to the driver, such as resistance during lane-keeping assist or vibrations to alert of potential hazards. Proper alignment and maintenance of the steering column are essential to ensure accurate sensor readings and smooth motor operation.
Together, these components form a seamless system that enhances driving comfort, safety, and efficiency. Understanding their functions not only highlights the sophistication of EPS but also underscores its role in modern vehicle design. Whether navigating tight city streets or cruising on the highway, EPS adapts to every scenario, making it a cornerstone of contemporary automotive technology.
Driving Electric: Age Requirements and Getting Started with EVs
You may want to see also
Explore related products
Advantages of EPS: Improved fuel efficiency, ease of use, and advanced driver assistance
Electric Power Steering (EPS) has revolutionized the driving experience by replacing traditional hydraulic systems with an electrically assisted mechanism. One of its most significant advantages is improved fuel efficiency. Unlike hydraulic systems, which constantly draw power from the engine, EPS operates on-demand, activating only when the driver turns the wheel. This reduces the load on the engine, resulting in fuel savings of up to 3-5% depending on driving conditions. For instance, in urban driving where frequent steering adjustments are necessary, EPS can contribute to noticeable reductions in fuel consumption, making it an eco-friendly choice for modern vehicles.
From a usability perspective, EPS offers ease of use that enhances the overall driving experience. The system adjusts steering effort based on vehicle speed, providing lighter assistance at low speeds for effortless parking and maneuvering, and firmer support at higher speeds for better stability. This adaptability eliminates the one-size-fits-all approach of hydraulic systems, catering to diverse driving scenarios. For example, drivers navigating tight city streets or parking in cramped spaces will appreciate the reduced physical effort required, while those on highways benefit from a more responsive and controlled steering feel.
Beyond convenience, EPS serves as the backbone for advanced driver assistance systems (ADAS), enabling features like lane-keeping assist, automatic parking, and adaptive cruise control. The precise control and feedback of EPS allow these systems to make real-time adjustments, improving safety and reducing driver workload. For instance, lane-keeping assist relies on EPS to gently steer the vehicle back into its lane if it drifts, while automatic parking uses the system to execute precise wheel movements. This integration of EPS with ADAS not only elevates the driving experience but also paves the way for semi-autonomous driving technologies.
To maximize the benefits of EPS, drivers should be aware of its limitations and maintenance requirements. While the system is generally reliable, issues like sensor malfunctions or electrical failures can occur, necessitating periodic checks during routine vehicle servicing. Additionally, drivers transitioning from hydraulic systems should allow time to adapt to the lighter, more responsive feel of EPS. Practical tips include using smooth, deliberate steering inputs to fully leverage the system’s capabilities and avoiding over-reliance on ADAS features, as they are designed to assist, not replace, driver attention. By understanding and optimizing EPS, drivers can enjoy its full spectrum of advantages, from fuel savings to enhanced safety.
Mastering Electric Car Basics: A Beginner's Guide to Efficient Driving
You may want to see also
Explore related products
How EPS Works: Interaction between driver input, sensors, and motor assistance
Electric Power Steering (EPS) has revolutionized the way drivers interact with their vehicles, offering a seamless blend of control and assistance. At its core, EPS is a system that uses an electric motor to assist the driver in steering, replacing the traditional hydraulic systems. But how does this interaction between driver input, sensors, and motor assistance actually work?
Imagine turning the steering wheel: the moment you apply force, a torque sensor detects the effort and direction of your input. This sensor is the first critical component in the EPS system, translating your physical action into an electrical signal. The signal is then processed by an Electronic Control Unit (ECU), which calculates the necessary level of assistance based on factors like vehicle speed, steering angle, and driving conditions. For instance, at low speeds (e.g., parking or maneuvering), the ECU instructs the motor to provide maximum assistance, reducing the effort required to turn the wheel. Conversely, at highway speeds, assistance is minimized to maintain a firm, responsive feel.
The electric motor, typically mounted on the steering column or rack, receives commands from the ECU and applies torque to the steering gear. This motor assistance is precise and adaptable, ensuring the driver feels a natural connection to the road while benefiting from reduced physical strain. For example, in a tight turn at 5 mph, the motor might provide up to 80% of the steering force, whereas at 60 mph, it might contribute only 10%, allowing for greater stability and control.
One of the standout advantages of EPS is its ability to integrate with advanced driver-assistance systems (ADAS). Sensors like cameras and radar feed data to the ECU, enabling features like lane-keeping assist or automatic parking. In these scenarios, the EPS system can autonomously adjust the steering angle based on real-time inputs, demonstrating its versatility beyond mere driver assistance. For instance, if a lane departure is detected, the motor can subtly correct the steering to keep the vehicle on course, all without the driver’s direct input.
However, the interplay between driver and machine isn’t without challenges. Calibration is key—the torque sensor must accurately measure input, and the ECU must respond instantaneously to avoid lag or over-assistance. Modern systems often include fail-safes, such as redundant sensors or manual override capabilities, to ensure reliability. For drivers, understanding this interaction highlights the importance of maintaining a light but deliberate touch on the wheel, especially in systems with variable assistance levels.
In practice, EPS not only enhances driving comfort but also contributes to fuel efficiency by eliminating the parasitic losses associated with hydraulic pumps. Its adaptability makes it a cornerstone of both conventional and autonomous vehicles, proving that the marriage of mechanics and electronics can elevate the driving experience. Whether navigating a crowded parking lot or cruising on the highway, EPS ensures the driver remains in control, with just the right amount of help.
Reusing Electric Car Batteries in Windmills: A Sustainable Energy Solution
You may want to see also
Explore related products
Common EPS Issues: Symptoms of failure, troubleshooting, and maintenance tips
Electric Power Steering (EPS) systems, while generally reliable, are not immune to issues. Recognizing the symptoms of failure early can save you from costly repairs and ensure your safety on the road. Common signs of EPS trouble include a stiff or heavy steering wheel, unusual noises during steering, or the illumination of the EPS warning light on your dashboard. These symptoms often indicate underlying problems such as a faulty steering angle sensor, a malfunctioning EPS control module, or worn-out components in the steering column. Addressing these issues promptly is crucial to maintaining optimal vehicle performance.
Troubleshooting EPS problems requires a systematic approach. Start by checking the vehicle’s battery voltage, as low power can cause EPS malfunctions. Next, inspect the wiring harness and connectors for damage or corrosion, which can disrupt the electrical signals essential for EPS operation. If the issue persists, use a diagnostic scanner to read error codes from the EPS control module, as these codes can pinpoint specific faults. For instance, a code related to the torque sensor might suggest a misalignment or failure in the sensor itself. Always consult the vehicle’s manual or a professional mechanic for guidance on interpreting these codes.
Preventive maintenance is key to extending the life of your EPS system. Regularly inspect the steering system for leaks, especially in the steering rack or pump (if your EPS system includes one). Ensure the steering fluid, if applicable, is at the correct level and free from contaminants. Additionally, keep the steering column and surrounding components clean and free from debris, as dirt can interfere with sensor functionality. For vehicles driven in harsh conditions, such as dusty or salty environments, more frequent inspections are recommended.
One often overlooked aspect of EPS maintenance is software updates. Modern EPS systems rely on software to manage their operation, and manufacturers occasionally release updates to address known issues or improve performance. If you experience persistent EPS problems, check with your dealership or authorized service center to see if a software update is available. Ignoring these updates can lead to recurring issues and potential safety risks.
In conclusion, understanding the symptoms of EPS failure, adopting a methodical troubleshooting approach, and adhering to a proactive maintenance routine can significantly reduce the likelihood of EPS-related problems. While some issues may require professional intervention, many can be mitigated through regular care and attention. By staying vigilant and informed, you can ensure your EPS system remains reliable, enhancing both your driving experience and safety.
VW's Ambitious Goal: Electric Cars Dominating Roads by 2025
You may want to see also
Frequently asked questions
Electric power steering (EPS) is a system that uses an electric motor to assist the driver in steering the vehicle, replacing traditional hydraulic systems. It provides power assistance based on driving conditions, such as reducing effort at low speeds and firming up at higher speeds.
Electric power steering uses an electric motor and sensors to provide assistance, while hydraulic power steering relies on a pump driven by the engine and hydraulic fluid. EPS is more energy-efficient, lighter, and allows for advanced features like lane-keeping assist, whereas hydraulic systems are typically heavier and draw constant engine power.
Advantages of EPS include improved fuel efficiency (since it only uses power when needed), better integration with driver-assistance systems, reduced maintenance (no fluid changes), and customizable steering feel. It also contributes to a quieter cabin by eliminating the hydraulic pump noise.
