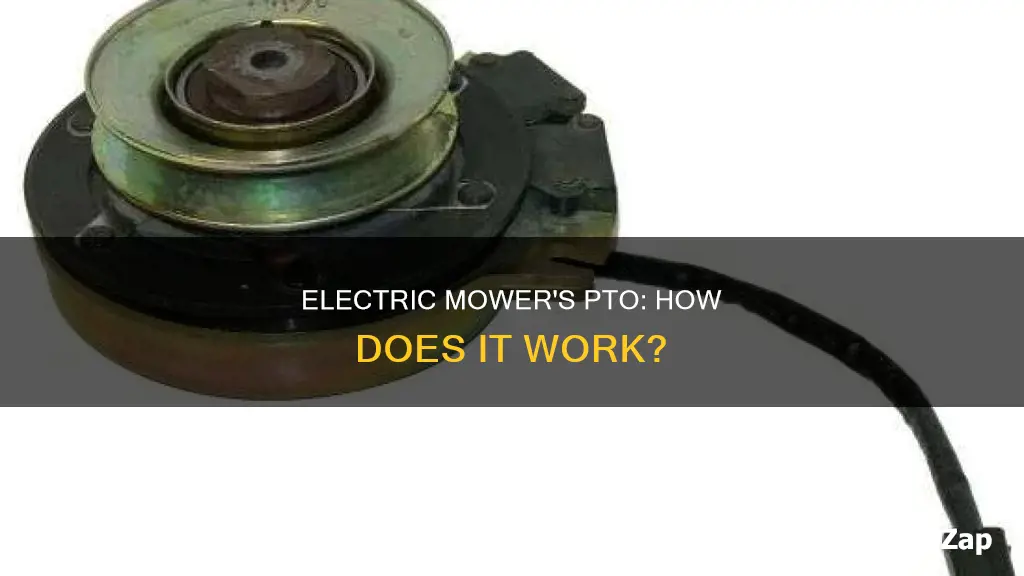

Electric Power Take-Off (PTO) is a feature on riding lawn mowers that allows users to transfer power from the engine to the mower's blades or other attachments. Electric PTOs use an electromagnet to engage a clutch when a switch is pressed, which then powers the blades. This is in contrast to manual PTOs, which require the operator to engage the system by pulling a lever or pressing a button. Electric PTOs offer several advantages, including convenience, ease of use, and safety due to easy blade disengagement. However, they can also have disadvantages, such as engaging hard and fast compared to the slow and easy engagement of manual PTOs. When choosing an electric PTO clutch, it is important to consider factors such as lawn mower size and type, cutting conditions, torque capacity, and smooth activation to ensure optimal performance and durability.
| Characteristics | Values |
|---|---|
| Definition | Power Take-Off (PTO) is a system that allows the transfer of mechanical power from an engine to a different piece of equipment. |
| Mechanism | An electric PTO uses an electromagnet clutch to connect the engine power to the blades. |
| Pros | Requires no manual lever to operate; provides constant speed; has fewer moving parts; is safer. |
| Cons | Requires a strong electromagnet to engage; can be difficult to repair; may experience power loss due to bad connection or safety circuit issue. |
| Considerations | Type of grass being mowed, torque capacity, smooth activation, lawn mower size and type, and cutting conditions. |
Explore related products
What You'll Learn
Electric PTO vs Manual PTO
PTO stands for Power Take-Off, a system that allows the transfer of mechanical power from an engine to a different piece of equipment. A lawnmower's PTO directs power from the engine to the blades, enabling them to rotate and cut the grass. It can also be used to power other lawn mower attachments like mulchers and sprayers. There are two types of PTO systems: manual and electric.
A manual PTO uses a mechanical clutch with physical linkages and a belt to connect the engine power to the blades. The operator can slowly engage the PTO by gradually moving the lever, controlling the speed of the blades. This puts less strain on the engine and the belts. However, the process is more complicated and may involve more parts to lose or break. Additionally, the speed of the PTO varies with engine RPM, and there is a risk of loose linkages and slipping belts.
On the other hand, an electric PTO uses an electromagnetic clutch to connect the engine power to the blades. When the switch is pressed, an electric current flows through a coil, creating an electromagnet. This magnet forces the clutch plates together, transferring power to the blade shaft. Electric PTOs engage quickly and are simpler in their construction, with fewer parts to fail. They offer longer belt life, better belt reliability, and zero slippage. However, they may be more prone to issues with debris getting caught in the leads and causing damage.
Both types of PTO systems have their advantages and disadvantages. Electric PTOs are more modern and convenient, with a simple engagement process that doesn't require stopping the engine. Manual PTOs offer more control over the speed of the blades and may put less strain on the engine and belts. Ultimately, the choice between the two depends on the user's preferences, the specific mower model, and the intended application.
While electric PTOs are more common in commercial and residential mowers, some people still prefer manual PTOs due to their familiarity and mechanical simplicity. It is important to follow safety guidelines when using either system, such as avoiding loose clothing and ensuring the PTO switch is off when not in use. Regular inspections and maintenance can also help ensure safe and proper functioning.
Understanding APS Electric's Economy Hours and Rates
You may want to see also
Explore related products
How to choose the right electric PTO clutch
An electric Power Take-Off (PTO) clutch is a crucial component of a lawnmower, transferring power from the engine to the blades. This small but vital part ensures the blades rotate effortlessly, offering precise control over the cutting mechanism. Without it, a lawnmower cannot perform its primary function.
When choosing the right electric PTO clutch, several factors are important to consider. Firstly, compatibility is key. The clutch must be compatible with the specific model of the lawnmower, ensuring the correct part number and dimensions. The size and type of the lawnmower will dictate the power requirements and the type of PTO clutch needed. For instance, larger riding mowers may require a more powerful clutch, while smaller push mowers may only need a lighter-duty clutch.
Secondly, it is essential to evaluate the cutting conditions and the type of grass being mowed. Certain grasses and cutting conditions may demand a more powerful PTO clutch. The torque capacity of the clutch is a critical specification in this regard, as it determines the clutch's ability to handle heavy loads and prevents premature wear and tear. Smooth activation is another desirable feature, ensuring a seamless and comfortable operational experience.
Thirdly, durability and ease of installation are important considerations. A reputable brand with a good warranty can provide peace of mind and reliable after-sales service. Additionally, checking the owner's manual or parts manual of the lawnmower can be invaluable in determining the correct part number and specifications for the electric PTO clutch.
Finally, some practical steps can be taken to identify the correct PTO clutch. Firstly, identifying the part number or serial number of the existing clutch can help find a suitable replacement. Secondly, searching for the make and model of the lawnmower online can often lead to the correct PTO clutch. However, serial number breaks by manufacturers may cause confusion, so contacting experts in the field can provide valuable advice and guidance in choosing the right electric PTO clutch.
Transferring Electricity to Apartments: A Simple Guide
You may want to see also
Explore related products
$105.99 $119.99
$166.22
The role of the clutch in an electric PTO system
The clutch is the main component of an electric power take-off (PTO) system on a lawnmower. It is responsible for transferring power from the engine to the mower blades, enabling them to rotate and perform their primary function. An electric PTO clutch uses electromagnetic coils to connect the engine power to the blades, while a mechanical PTO clutch uses physical mechanical linkages and a belt.
When the PTO switch is pressed, the clutch engages, and an electric current flows through a coil to create an electromagnet. This magnetic field forces the clutch plates together, transferring power from the engine to the blade shaft. The electromagnet then pulls the rotor plate, spinning a pulley connected to the blades and causing them to rotate. This process is known as activation.
The clutch also plays a crucial role in braking. When the PTO switch is turned off, a brake pad attached to the clutch slows down the pulley and stops the blades from spinning. This dual functionality makes the clutch an essential component in the PTO system, providing both engagement and disengagement of power to the mower blades.
The choice between an electric and mechanical PTO clutch depends on the size and type of lawnmower, as well as the grass and terrain conditions. Larger riding mowers may require more powerful clutches, while smaller push mowers may need a lighter-duty option. Rough terrain and heavy-duty mowing applications will also influence the durability and strength requirements of the clutch.
It is important to note that PTO clutches can experience wear and tear over time, and proper maintenance is crucial. Operators should regularly inspect their mowers for any issues, such as unusual noises, excessive vibration, oil leaks, or increased play in the shaft, as these can indicate the need for replacement parts or adjustments. Additionally, ensuring proper lubrication and preventing overheating can extend the lifespan of the clutch.
Turkey's Electrical Sockets: What You Need to Know
You may want to see also
Explore related products
Differences in speed between electric and manual PTO
The speed of a Power Take-Off (PTO) system on a mower has traditionally depended on engine speed. Manual PTOs are engaged by pushing together a set of spring-loaded clutch plates, which can be done slowly and gently. Electric PTOs, on the other hand, are engaged using an electromagnet, which acts with a hard and fast motion. This means that electric PTOs offer a constant speed, while manual PTOs offer more control over the speed.
Manual PTOs are usually operated by a lever or cable mechanism, which can be awkward to reach while mowing. Electric PTOs, by contrast, are operated by a switch on the control panel or handlebar console, which is more convenient and less prone to accidental activation.
The main advantage of a manual PTO is that it will work as long as the engine is functioning, whereas an electric PTO may stop working if its wiring is damaged by debris. However, electric PTOs are generally more durable than manual PTOs because they have fewer moving parts and do not rely on belts or manual clutch mechanisms, which can wear out over time.
Another advantage of electric PTOs is that they can stop the blades within a set time, in accordance with voluntary safety standards. This means that the engine does not have to be shut down completely when the blades are disengaged. With a manual PTO, the whole engine must be shut down to meet safety requirements.
Overall, the choice between a manual and electric PTO comes down to personal preference. While electric PTOs offer improved efficiency, convenience, and safety, they may be more expensive and can be challenging to repair. Manual PTOs, on the other hand, offer more control over speed and are generally more straightforward to install and maintain.
Drying Electrical Sockets: Quick and Safe Techniques
You may want to see also
Explore related products
Advantages and disadvantages of electric PTO
PTO stands for Power Take-Off, a system that allows the transfer of mechanical power from an engine to a different piece of equipment. An electric PTO clutch uses electromagnetic coils to connect the engine power to the blades.
Advantages of Electric PTO
An electric Power Take-Off (PTO) system offers several advantages over a manual PTO. Firstly, it provides a constant speed and has fewer moving parts, making it a safer option, especially for smaller tractors. The electric PTO switch is conveniently located near the user's hands, eliminating the need to reach for a lever as in manual PTO systems. This makes it more accessible and user-friendly. Additionally, the electric PTO clutch meets voluntary safety standards by stopping the blades within the specified time, enhancing user safety.
Disadvantages of Electric PTO
One disadvantage of electric PTO is the immediate engagement of the clutch, which can put all the load on at once. This is in contrast to manual PTO systems, where the lever can be slowly moved to engage the PTO, reducing strain on the engine. Additionally, electric PTO systems can be more challenging to repair and may require specialized parts, making them potentially more expensive to maintain.
The choice between electric and manual PTO depends on various factors, including user preference, tractor size, and specific application requirements. While electric PTO offers convenience, safety, and constant speed, manual PTO provides more gradual engagement and may be more accessible for repairs. Ultimately, both systems have their advantages and disadvantages, and the ideal choice depends on the user's specific needs and priorities.
Understanding Electrical Feeders: Power Distribution Basics
You may want to see also
Frequently asked questions
PTO stands for Power Take-Off, which is a system that transfers power from the engine to the mower's blades and other components. An electric PTO uses an electromagnet to engage a clutch when a switch is pressed, which then powers the blades.
You should consider the type of grass you will be mowing, as certain grasses may require a more powerful PTO clutch for efficient cutting. You should also look for a reputable brand with a good warranty.
Electric PTOs are safer, provide a constant speed, and have fewer moving parts. They are also more suitable for smaller tractors.
First, locate the old PTO clutch and disconnect the wiring connecting it to the lawnmower. Typically, this involves finding the wiring harness and separating it from the clutch.
