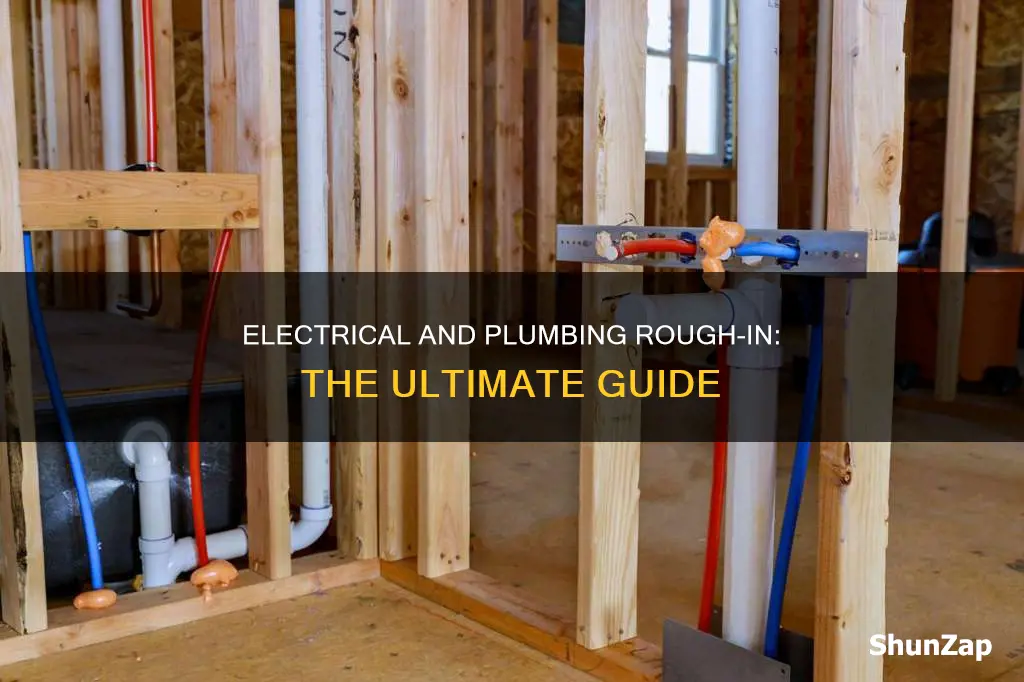

Electrical and plumbing rough-in is a crucial phase in construction projects, involving the installation of essential systems like electrical wiring, plumbing pipes, and HVAC ductwork. This phase sets the foundation for a building's functionality and safety, ensuring proper integration with its structural framework. During rough-in, contractors install infrastructure components hidden behind walls, above ceilings, and under floors, following safety standards and building codes. It requires coordination among professionals to ensure seamless system integration and prevent future issues. Once complete, rough-in work undergoes inspection to ensure compliance with regulations before proceeding to the next construction stage.
| Characteristics | Values |
|---|---|
| Definition | The rough-in stage of a construction project involves installing the mechanical, electrical, and plumbing lines. |
| Stage | Rough-in is the initial phase of construction. |
| Framework | Rough-in requires the basic framework to be completed, including interior wall framing, floor joists, sub-flooring, ceiling joists, and roof rafters. |
| Planning | A plan for rough-in is created by the architect or engineer and outlines the placement of systems and estimates line placement. |
| Mechanical Rough-in | Mechanical rough-in involves installing the HVAC system and ductwork. |
| Plumbing | Plumbing rough-in includes installing water and gas lines, such as hot and cold water pipes and gas lines to appliances. Pipes are capped off until fixtures are installed. |
| Electrical | Electrical rough-in involves running electrical lines, mounting junction boxes, pulling wiring, and setting up the electrical panel, grounding, and overhead service wire. Wiring is not connected to devices, outlets, or switches during rough-in. |
| Safety | Proper safety measures must be followed during rough-in, including complying with local building codes and safety standards. |
| Inspection | Rough-in work must undergo an inspection and approval before moving on to the next construction stage. |
Explore related products
$155.5 $197.01
What You'll Learn
Rough-in is the initial phase of construction
During the rough-in phase, ductwork, plumbing, and wiring are installed to ensure space constraints and accessibility issues are addressed. This includes laying out pipes and fixtures that will supply water and remove waste, as well as running electrical wires throughout the structure and connecting them to outlets, switches, and fixtures. It is important to install ductwork first due to its size and the possibility of it being blocked by electrical or plumbing installations.
The rough-in phase sets the groundwork for the finishing touches that will be added in later stages of construction. It involves laying out the necessary infrastructure for utilities, allowing for future connections and ensuring compliance with building codes and regulations. This includes installing mechanical components under or within the walls of the structure, such as HVAC systems, water and gas lines, and electrical wiring.
The rough-in phase is also an important time for contractors, subcontractors, and designers to communicate clearly and ensure that all systems will work together seamlessly. Before any rough-in work begins, it is crucial for contractors and subcontractors to understand and agree on the plan created by the architect or engineer. This plan outlines where everything will go and provides an estimate of where all lines should be placed.
Once the rough-in phase is completed, it must be inspected to ensure that everything has been done according to code before moving on to the next stage of construction.
Electrical Stimulation: Activating Muscles Functionally
You may want to see also
Explore related products
It involves installing ductwork for HVAC systems
The rough-in stage of a construction project involves installing the basic framework for electrical, plumbing, and HVAC systems. This includes laying out the necessary infrastructure for utilities, allowing for future connections and ensuring compliance with building codes and regulations.
The rough-in phase is crucial for the safe and effective distribution of electricity and the proper functioning of HVAC systems. During this phase, ductwork is installed to ensure the building maintains comfortable temperatures and good air quality.
Installing ductwork for HVAC systems is an essential part of the rough-in process. This involves setting up the ductwork for heating, ventilation, and air conditioning systems. As ductwork is large and may be blocked by electrical or plumbing installations, it is important to install it first. This ensures that space constraints and accessibility issues are addressed.
The rough-in stage for HVAC systems may vary depending on the building and type of equipment. In some cases, contractors may start with the HVAC rough-in first, which includes installing mechanical components under or within the walls of the structure. This may involve installing ductwork, as well as equipment such as air conditioning units or furnaces.
Overall, the rough-in phase for HVAC systems, including ductwork installation, is important for ensuring the building's functionality, efficiency, and compliance with safety and regulatory standards. It also helps streamline the construction process by establishing essential systems early on, preventing delays related to utility installations in subsequent phases.
Coulomb's Law: Unlocking Electricity's Secrets
You may want to see also
Explore related products
Rough-in includes laying out plumbing pipes
The rough-in stage of a construction project involves laying out the necessary infrastructure for utilities, allowing for future connections and ensuring compliance with building codes and regulations. This includes plumbing pipes, which supply water and remove waste from the building.
During the rough-in phase, plumbers install pipes and fixtures for plumbing systems. This involves laying out water and gas lines, including hot and cold-water pipes and gas lines to appliances. These pipes are capped off to prepare for the next phase of construction, as fixtures like sinks, toilets, and water heaters will be installed later. A leak test is conducted during this phase to ensure the proper functioning of the plumbing system.
The rough-in stage is crucial for plumbing because it ensures that all plumbing systems are efficiently integrated into the building's structure and meet local codes and regulations. Proper planning during this phase helps to prevent potential hazards, such as leaks, and ensures that the building's plumbing functions efficiently and safely.
Additionally, the rough-in phase for plumbing fosters better coordination among contractors, subcontractors, and designers. Clear plans and layouts ensure that all systems work together seamlessly, reducing the likelihood of conflicts and rework during later construction stages. This phase also allows for a smoother workflow, as subsequent phases can proceed without delays related to utility installations.
Where Does the Electra Glide Tank Overflow?
You may want to see also
Explore related products
Electrical wiring is run through wall studs
The rough-in stage of a construction project involves installing the basic framework for electrical, plumbing, and HVAC systems. This stage is crucial for ensuring that all essential systems are properly integrated into the building's structure and function safely and efficiently.
During the rough-in phase, electrical wiring is run through interior wall studs, ceiling, and floor joists. This is done to prepare for inspection and future connections. The wiring is not connected to any devices, outlets, or switches during this initial phase. Instead, it is left unconnected to allow for other stages of the project to be completed, such as installing fixtures and appliances.
The rough-in process for electrical systems involves laying out lines, mounting junction boxes, pulling wiring, and setting up the electrical panel, grounding, and overhead service wire. It is important to ensure that all installations comply with safety standards, building codes, and regulations. This includes following specific codes such as the National Electrical Code and complying with local building codes.
The rough-in stage for electrical systems is crucial as it sets the groundwork for the finishing touches that will be added in later stages of construction. It ensures that electrical wiring is safely and efficiently integrated into the building's structure before walls are closed up. This process allows for a smoother workflow as subsequent phases can proceed without delays related to utility installations.
Electricity's Path Through the Heart: Understanding the Process
You may want to see also
Explore related products
Rough-in work must comply with building codes
The rough-in stage of a construction project involves installing mechanical, electrical, and plumbing lines, as well as HVAC systems. This phase sets the groundwork for these systems to function safely and efficiently, so it is crucial that rough-in work complies with building codes to ensure safety, quality, and timely project completion.
Building codes and inspection requirements exist to ensure that rough-in work is carried out correctly and safely. These codes vary depending on the trade, type of system, and local regulations. For example, plumbers must comply with the International Plumbing Code, while electricians must follow the National Electrical Code.
To ensure compliance with building codes, contractors should be provided with safety training, such as Occupational Safety and Health Administration construction industry training. They should also be instructed to wear proper personal protective equipment and maintain a safe and organised work environment.
During the rough-in phase, professionals install infrastructure components that will later be hidden in the walls, under the floor, or above the ceiling. This includes ductwork, plumbing pipes, and electrical wiring. As this work forms the basis for the building's essential systems, it must be carried out correctly and in accordance with relevant codes and regulations.
Once the rough-in work is complete, it must be inspected and approved by a building inspector before moving on to the next stage of construction. This inspection ensures that the work has been carried out according to code and helps to prevent potential hazards, project delays, and client dissatisfaction.
Exploring the E300 Electric Scooter's Impressive Speed
You may want to see also
Frequently asked questions
Rough-in is the initial phase of construction when the basic framework for plumbing, electrical, and HVAC systems is installed.
Electrical rough-in involves installing electrical wiring and setting up electrical panels, grounding, and overhead service wires. The wiring is run through interior wall studs and ceiling and floor joists to prepare for inspection.
Plumbing rough-in involves installing pipes and fixtures for water supply and waste removal. This includes installing hot and cold water pipes and gas lines to appliances. Plumbers cap off plumbing pipes to prepare for the next phase of construction.
HVAC rough-in involves installing ductwork for heating, ventilation, and air conditioning systems. This ensures that the building maintains comfortable temperatures and good air quality.
Rough-in is important because it sets the groundwork for the proper functioning of essential systems in a building. It ensures safety, quality, and timely project completion. It also helps prevent costly changes later in the project by addressing plumbing, electrical, and HVAC needs upfront.
