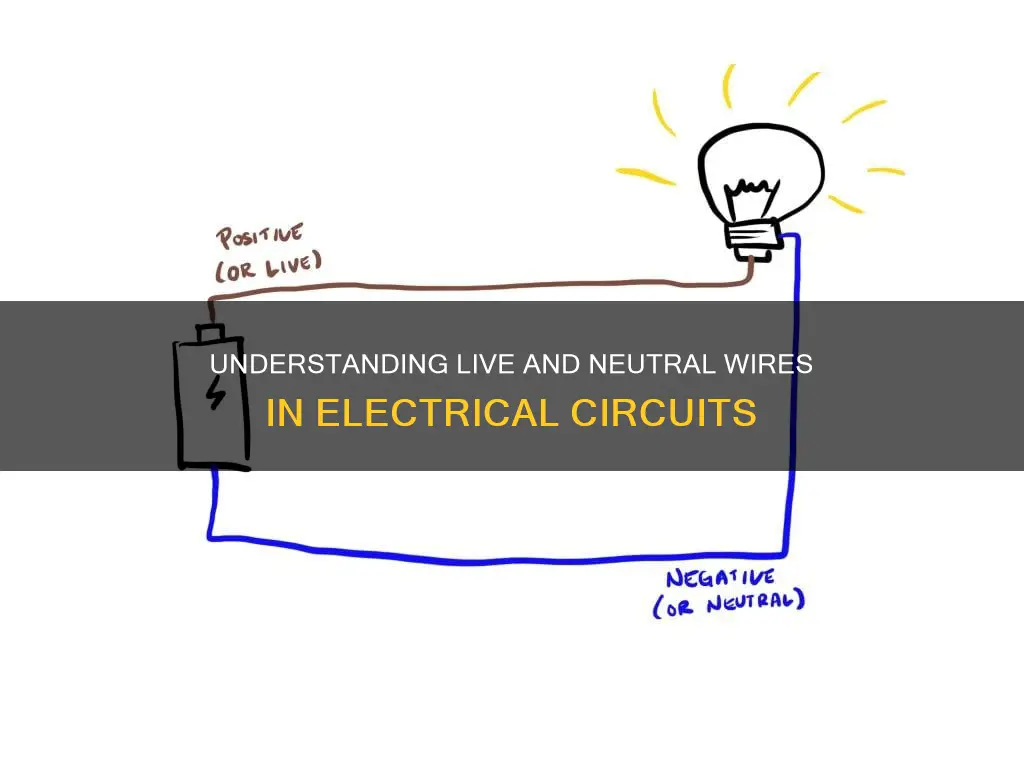

Live wires, neutral wires, and ground wires are essential elements of the electrical distribution system, ensuring a safe power supply to homes and industries. Live wires carry the power from the source to a switch or appliance. The live wire, also known as the hot wire, carries a high voltage and is always carrying an electrical current as long as it is connected to the power source. The neutral wire completes the circuit by carrying the electricity back to the power source. It is also connected to an earth ground and may divert unstable or excess current. The ground wire is specifically designed to ground or send to earth any unstable or excess current.
Explore related products
What You'll Learn
- Live wires carry power from the source to a switch or appliance
- Neutral wires carry electricity back to the power source
- Ground wires protect your electrical system in the event of a short circuit
- The difference between live and neutral wires is generally irrelevant to the device being powered
- The earth wire acts as a safety mechanism, preventing the buildup of dangerous voltages
Live wires carry power from the source to a switch or appliance
Live wires, also known as "hot wires", carry power from the source to a switch or appliance. They are an indispensable component of the electrical system. These wires power the electrical demand or load at various locations, such as light switches, electrical outlets, or junction boxes for light fixtures. The live wire always carries an electrical current as long as it is connected to the power source.
The live wire is responsible for carrying the necessary voltage, and it is always carrying a charge. It is important to assume that the live wire is charged to avoid any accidents. The live wire connects to the primary coil of the transformer, and the voltage is then safely distributed to households through the neutral wire.
The neutral wire is an essential part of the circuit as well. It carries the electricity back to the power source, completing the circuit. It is also known as the return wire, as it acts as the return path for the current to flow back to the source. The neutral wire is connected to the ground at a certain point, resulting in zero volts relative to the ground.
The ground wire is another critical component of the electrical system. It is specifically designed to protect the electrical system by grounding any unstable or excess current. This wire does not normally carry any charge, but in the event of a short circuit or damaged wiring insulation, it intervenes to safeguard the system.
In summary, live wires are responsible for carrying power from the source to switches or appliances, while neutral and ground wires play complementary roles in ensuring the safe and proper functioning of the electrical system.
Powerful Electric Showers: Highest KW Options Explored
You may want to see also
Explore related products
Neutral wires carry electricity back to the power source
Electricity is an essential part of our daily lives, and it is important to understand the basics of electrical wiring, especially if you plan on doing any electrical work yourself. One of the most fundamental concepts to understand is the difference between a live wire and a neutral wire.
In modern construction, you will typically find three types of wiring: live wires, neutral wires, and ground wires. Live wires, also known as "hot" wires, carry electricity from the source to power electrical demands or loads, such as light switches, electrical outlets, or junction boxes for light fixtures.
Neutral wires play a crucial role in ensuring electricity can flow safely and continuously through a circuit and back to the power source. They carry electricity back to the source, completing the circuit after the current has powered a device or appliance. This is essential for the electrical system to function, as without it, there would be no return path for the electricity, which can lead to overheating and other hazardous issues.
The neutral wire is always active as long as it is being used as the return path for electricity. It completes the circuit by directing the current to a ground or busbar, usually located at the electrical panel. This also provides a path to dissipate any excess current in the junctions or outlets, enhancing safety.
The neutral wire is tied to a reference point in your breaker box, which is connected to the lines coming into your home. This reference point is crucial for establishing the voltage potential for electron flow. While the ground wire is primarily a safety feature, the neutral wire is an integral part of the live circuit, ensuring the electricity can return to its source and preventing potential electrical hazards.
Electrical Stimulation: Bone Growth's Electric Boost
You may want to see also
Explore related products
Ground wires protect your electrical system in the event of a short circuit
In any electrical system, it is important to understand the difference between a live wire and a neutral wire. Live wires carry power from the source to a switch or appliance, such as a light switch, electrical outlet, or junction box for a light fixture. These wires always carry an electrical current as long as they are connected to the power source.
Neutral wires, on the other hand, carry the electricity back to the power source, completing the circuit. They are part of the live circuit and are required for the electrical system to function.
Now, let's discuss the role of ground wires in protecting your electrical system in the event of a short circuit. Ground wires, also known as earth wires, are an essential safety feature in any electrical system. They are specifically designed to protect your electrical system and devices in the event of a short circuit or other fault conditions.
In the event of a short circuit, a ground wire will "ground" or divert any unstable or excess electrical current into the ground, preventing it from flowing through your electrical system. This helps to prevent hazardous electrical shocks and potential damage to your devices. The ground wire acts as a shock absorber, providing a safe route for excess electrical charges, which are common in any home due to power surges or malfunctions.
In addition to protecting against short circuits, ground wires also help safeguard against electrical shock hazards. Exposed conductive parts of electrical equipment are often connected to ground wires, ensuring that any excess current is directed away from users and into the ground, offering protection from electrical shocks.
It is important to note that ground wires are typically bare copper or green in colour and are distinct from neutral wires, which are usually white. While neutral wires are part of the live circuit, ground wires are specifically installed to protect against unstable or excess currents.
Electricity's Impact: Transforming Daily Life and Powering the Future
You may want to see also
Explore related products
The difference between live and neutral wires is generally irrelevant to the device being powered
The live wire, also known as the "hot wire", carries a high voltage and is always carrying an electrical current as long as it is connected to the power source. It carries the power from the source to a switch or appliance.
The neutral wire carries the electricity back to the power source. It completes the circuit by directing the current to a ground or busbar, normally located at the electrical panel. The neutral wire carries an electrical current as long as it is being used as the return source for the power.
The difference between the live and neutral wires is generally irrelevant to the device being powered. The voltage between live and neutral is always the same, no matter how you plug it in. However, the voltage from live/neutral to earth is not the same.
In a plug, the live wire and the neutral wire are the two wires that form a complete circuit with a household appliance. The earth wire does not normally form part of the circuit and is included as a safety wire. If a fault occurs, such as a short circuit, the earth wire provides an alternative path for the current to flow directly into the ground, minimising the risk of electric shock and fire hazards.
How Upper Valley Disposal Recycles Electric Cords
You may want to see also
Explore related products
The earth wire acts as a safety mechanism, preventing the buildup of dangerous voltages
The earth wire is an essential safety feature in electrical wiring. It acts as a protective mechanism by providing an alternative path for the current to flow, preventing the buildup of dangerous voltages and safeguarding against electric shocks and fire hazards.
In the event of a fault, such as a short circuit or malfunctioning appliance, the earth wire diverts excess current directly into the ground, ensuring any potential electrical faults are quickly and safely discharged. This safety mechanism is crucial as it helps to prevent electric shocks and reduce the risk of electrical fires.
The earth wire is an integral part of the electrical distribution system, working in conjunction with live and neutral wires to ensure a safe power supply for homes and industries. While the live wire carries high voltage and powers electrical appliances, the neutral wire completes the circuit by returning the current to the power source. However, in certain situations, the current may stray from its intended path, and this is where the earth wire becomes critical.
The earth wire is specifically designed to handle these stray currents and provide a safe pathway to the ground. By doing so, it prevents the buildup of voltage in the system, which could lead to dangerous voltage levels. This safety mechanism is particularly important in residential electrical wiring, where thousands of injuries occur each year from electrical accidents in the United States alone.
It is important to note that while the earth wire provides a critical safety function, it is not typically part of the circuit under normal operating conditions. Its sole purpose is to protect against electrical faults and ensure that any excess or unstable current is safely directed into the ground, preventing harm to people and equipment.
Baking Brownies in an Electric Oven: A Simple Guide
You may want to see also
Frequently asked questions
A live wire, also known as a hot wire, carries a high voltage and supplies the necessary voltage to power electrical appliances.
A neutral wire completes the electrical circuit and carries the electricity back to the power source. It is also grounded at a certain point and has zero volts relative to the ground.
A live wire carries the power from the source to an appliance, while a neutral wire returns the electricity back to the source.
In the UK, the live wire is brown, and the neutral wire is blue.
