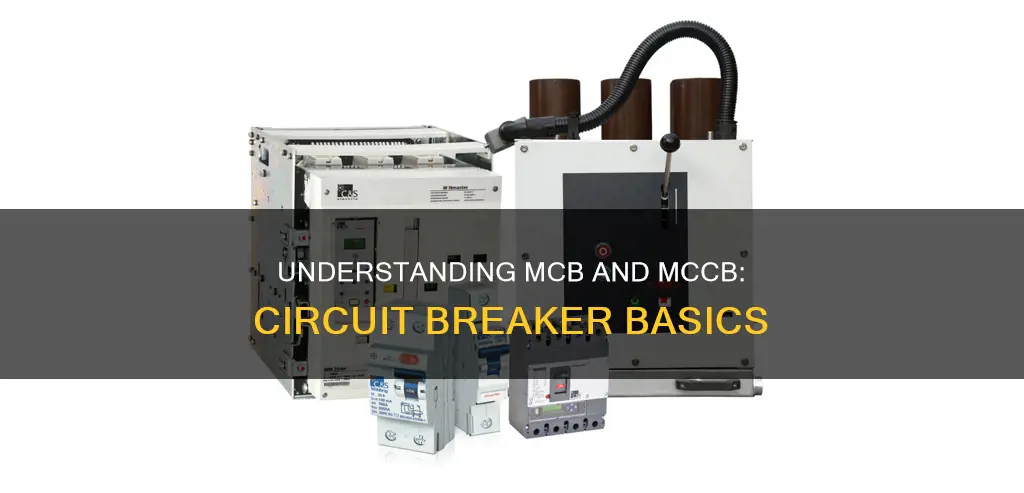

Circuit breakers are essential safety devices in any property that uses electricity, and Miniature Circuit Breakers (MCBs) and Moulded Case Circuit Breakers (MCCBs) are two of the most common types. They are both used to protect electrical circuits from overload or short circuits, but they are designed for different applications and have distinct features. MCBs are used for low energy requirements, typically in domestic or small commercial settings, while MCCBs are used in high energy requirement regions, such as large industrial environments.
| Characteristics | Values |
|---|---|
| Full Form | MCB: Miniature Circuit Breaker; MCCB: Molded Case Circuit Breaker |
| Current Rating | MCB: Up to 100 Amperes; MCCB: 16-1600 Amperes |
| Interrupt Rating | MCB: Up to 1800 Amperes; MCCB: 10k-200k Amperes |
| Trip Circuit | MCB: Fixed; MCCB: Movable |
| Number of Poles | MCB: 1, 2 or 3; MCCB: Up to 4 |
| Usage | MCB: Domestic, Commercial; MCCB: Industrial |
| Size | MCB: Smaller; MCCB: Larger |
| Adjustable Trip Settings | MCB: No; MCCB: Yes |
| Cost | MCB: Less; MCCB: More |
Explore related products
What You'll Learn
MCCBs are used in industrial settings and for heavy-duty machinery
Miniature Circuit Breakers (MCBs) and Moulded Case Circuit Breakers (MCCBs) are both types of electrical switches used to protect circuits from overload or short circuits. However, MCCBs are more suitable for industrial settings and heavy-duty machinery due to their higher current capacity and adjustable trip settings.
MCCBs are designed to handle higher current ratings, typically ranging from 10 to 200 amperes, while MCBs have a lower current rating of up to 100 amperes. This makes MCCBs ideal for industrial applications where higher power is required, such as heavy-duty machinery. They are also used as standby power in industries.
MCCBs offer adjustable trip settings, allowing for greater flexibility in protecting against electrical faults. On the other hand, MCBs typically have fixed trip characteristics, making them more suitable for residential and light commercial settings with lower power requirements.
The larger size of MCCBs is another factor that makes them suitable for industrial settings. Their bigger dimensions are a result of their higher current and interrupting capacity. MCCBs are commonly available in 3 and 4 pole configurations, whereas MCBs usually have 1, 2, or 3 poles.
MCCBs are more expensive than MCBs, reflecting their higher capacity and advanced features. They are also remotely operable by shunt wires, making them convenient for industrial applications. Overall, MCCBs are the preferred choice for industrial settings and heavy-duty machinery due to their ability to handle higher currents, adjustable trip settings, larger size, and remote operability.
