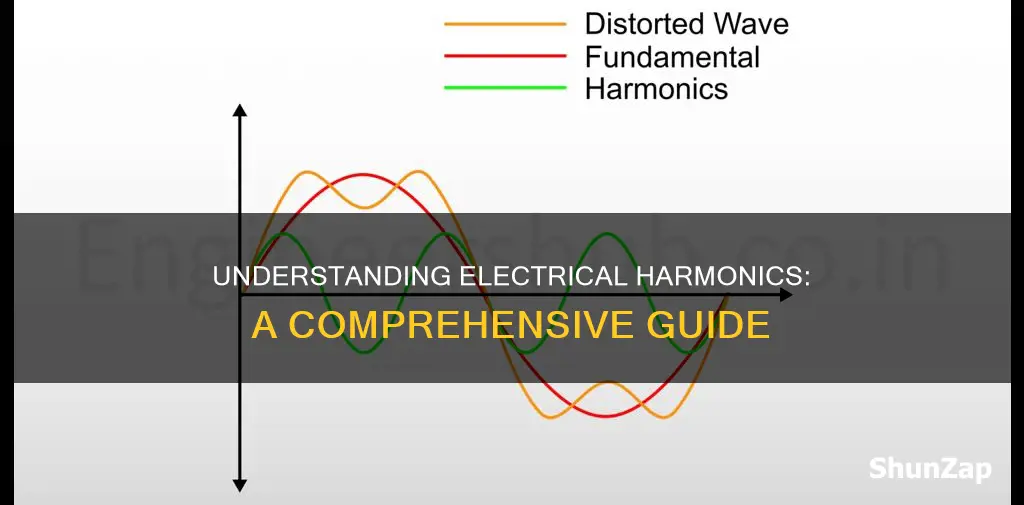

Harmonics in electrical systems refer to the distortion of current and voltage waveforms, causing them to deviate from their ideal sinusoidal shape. This phenomenon occurs when non-linear loads, such as rectifiers, computers, and fluorescent lighting, are connected to the system. These non-linear loads draw current in abrupt pulses, leading to complex waveform distortions. Harmonics are defined as positive integer multiples of the fundamental frequency, with the third harmonic causing a significant increase in the current. The presence of harmonics can have adverse effects on electrical equipment and power lines, resulting in increased heating, equipment inefficiencies, and higher installation and utility costs. Power quality analysis helps identify and address these issues, ensuring optimal performance and protecting equipment from potential damage.
| Characteristics | Values |
|---|---|
| Definition | Harmonics are currents or voltages with frequencies that are integer multiples of the fundamental power frequency. |
| Fundamental Frequency | Usually 50 or 60 Hz. |
| Causes | Non-linear loads, such as rectifiers, computers, printers, TVs, servers, and telecom systems. |
| Effects | Increased heating in equipment, misfiring in variable-speed drives, torque pulsations in motors, power quality issues, increased costs, and downtime. |
| Mitigation | Adding filters, modifying the frequency response with inductors or capacitors, using transformer connections, and changing capacitor size. |
Explore related products
What You'll Learn
Harmonics are caused by non-linear loads
Non-linear loads create current distortions, which then lead to voltage distortions. The current drawn by these loads is in non-sinusoidal pulses, resulting in harmonic currents. These harmonic currents create distortions in the pure sinusoidal voltage waveform supplied by the utility. The voltage THD (total harmonic distortion) is the ratio of the r.m.s. value of all the harmonic components to the fundamental component. Voltage THD can be mid-range or high, depending on the load and the system's characteristics.
The presence of harmonics in electrical systems causes deviations from sinusoidal waveforms in both current and voltage. These deviations are described as waveform distortions. The Fourier theorem states that all non-sinusoidal periodic functions can be represented as a series of simple sinusoids, which are integer multiples of the fundamental frequency. These integer multiples are the harmonics, and they distort the supply voltage, leading to issues such as resonance.
Harmonics can have several effects on power systems. One major consequence is the increase in current, especially for the third harmonic, which results in a sharp rise in the neutral conductor's current. This increase in current can lead to higher core losses in electric motors, causing excessive heating and potentially reducing the motor's lifespan. Additionally, harmonics can cause issues like dips and swells in voltage, unbalance, and flickering lights.
To mitigate the impact of harmonics, it is essential to address the non-linear loads that generate them. This can be achieved by utilizing Harmonics Mitigating Transformers (HMTs) and implementing simple networks of passive components, such as resistors, capacitors, and inductors, within the equipment. By reducing harmonic currents and lowering system impedance, voltage distortion can be minimized, improving the overall power quality and stability of the electrical system.
Electric Wall Heaters: California's Legal Requirements and Regulations
You may want to see also
Explore related products
The effects of harmonics in power systems
In a typical alternating current power system, the current varies sinusoidally at a specific frequency, which is usually 50 or 60 hertz. However, when a non-linear load is connected to the system, it draws a current that is not sinusoidal, causing current harmonics and distorting the sinusoidal voltage waveform. Harmonics in power systems are defined as positive integer multiples of the fundamental frequency. For example, if the fundamental frequency is 60 Hz, then the second harmonic is 120 Hz, and the third is 180 Hz.
Harmonics can also cause unwanted circuit breakers to trip or fuses to blow. They can further result in unexpected resonances and malfunctions of motors and generators, as well as torque pulsations in motors and generators. In addition, harmonics can lead to added efficiency losses in the system composed of electrical installations and equipment.
Flicker is another effect of harmonics, caused by repetitive switching of electrical loads such as arc furnaces. Flicker refers to the fluctuation in light intensity that occurs when voltage fluctuations impact lighting systems. It can be visually discomforting and impact the performance and lifespan of sensitive equipment, especially in industries reliant on precise lighting conditions.
Lastly, harmonics can cause transformers to overheat, wasting energy and potentially damaging the transformer. This issue can be mitigated by installing filters or upgrading to larger systems.
Transform Your Fireplace: Faux Stone Painting Guide
You may want to see also
Explore related products
How to find harmonics in electrical systems
Harmonics in electrical systems refer to the distortion of a waveform that results from the presence of multiple frequencies in systems that use non-linear loads. In a normal alternating current power system, the current varies sinusoidally at a specific frequency, usually 50 or 60 hertz. When a linear load is connected to the system, it draws a sinusoidal current at the same frequency as the voltage. However, when a non-linear load, such as a rectifier, is connected, it draws a current that is not sinusoidal, causing current harmonics and waveform distortion.
To find harmonics in electrical systems, it is important to first understand the concept of power quality and its effects. Power quality refers to the stability of an electrical system, often described as "power quality health". This can be measured on three-phase electrical systems using specialised equipment that considers various variables. By evaluating power quality, facilities can optimise energy use and protect equipment. The first step is to gather data from equipment, infrastructure, and the service panel.
Common issues related to harmonics include flickering lights, which may be caused by machinery with rapid fluctuations in load current or voltage, and overheated transformers and tripped breakers, which can occur when non-linear loads draw current in abrupt pulses.
Harmonics can also be identified by their effects on the system. One major effect is the increase in current, particularly in the case of the third harmonic, which results in a sharp increase in the zero sequence current. This can lead to increased heating of the motor core, potentially shortening its life. Harmonics can also cause malfunctions of motors and generators, efficiency losses, unexpected resonances, and unwanted circuit breakers tripping or fuses blowing.
Harmonic surveys are necessary to discover the K-factor, which is the heating effect due to harmonics. While there are instruments that can calculate the K-factor, it is derived from the harmonics using an IEEE-recommended method. Additionally, power quality surveys should be conducted regularly to monitor system health and identify potential problems early on.
Harmonics can be mathematically analysed using the Fourier series transform, which allows for the deconstruction of a complex waveform into a series of simple sinusoids, starting at the fundamental frequency and occurring at integer multiples. This can help identify and mitigate harmonics in electrical systems.
Camping at Grand Canyon: Power Sources?
You may want to see also
Explore related products
The Fourier theorem and harmonics
In electrical engineering, harmonics refer to sinusoidal waves that are integer multiples of the fundamental frequency. These harmonics are caused by non-linear loads, such as rectifiers, fluorescent lighting, and computers, which distort the pure sinusoidal voltage waveform supplied by the utility company. This distortion can lead to issues such as increased heating in motors and conductors, misfiring in variable-speed drives, and torque pulsations in motors and generators.
Fourier analysis is a branch of mathematics that investigates the connections between a function and its representation in frequency. It is a powerful tool used in harmonic analysis to decompose complex waveforms into simpler ones. The Fourier theorem states that any non-sinusoidal periodic wave can be broken down into a sum of sine waves, or a Fourier series, given certain conditions:
- The integral over one period of the function is a finite value.
- The function has a finite number of discontinuities in a period.
- The function possesses a finite number of maxima and minima in a period.
By applying Fourier analysis, engineers can study the behaviour of harmonics in electrical power systems, including cables, transmission lines, capacitors, transformers, and rotating machines. This helps in understanding and mitigating the negative impacts of harmonics on equipment performance and longevity.
The Fourier series is closely related to the Fourier transform, which is used for functions on unbounded domains, such as the full real line. The Fourier transform can reveal the frequency information even for functions that are not periodic. There are four versions of the Fourier transform, depending on the spaces that are mapped by the transformation:
- Discrete Fourier Transform
- Fourier Series
- Discrete-Time Fourier Transform
- Fourier Transform
The Fourier theorem and its associated transforms have revolutionized both mathematics and physics, with applications in electrical engineering, vibration analysis, acoustics, optics, signal processing, and more. It has provided valuable insights into the behaviour of harmonics in electrical systems, contributing to the design and optimization of power systems to mitigate the adverse effects of harmonics.
Electric Fence Posts: Optimal Spacing and Distance Guide
You may want to see also
Explore related products
$22.88 $26.99
How to prevent harmonics
Harmonics are a critical issue in power systems that can significantly impact efficiency, reliability, and safety. They are caused by non-linear loads, such as rectifiers, transistors, IGBTs, MOSFETs, diodes, and common office equipment like computers and printers. These non-linear loads create distortions in the pure sinusoidal voltage waveform, resulting in unwanted energy that can damage the system. Therefore, preventing harmonics is essential to ensure the stable operation of electrical systems. Here are some strategies to achieve that:
Use Mitigation Techniques in Product Design
Equipment manufacturers play a crucial role in preventing harmonics. They can employ simple mitigation techniques by adding networks of passive components such as resistors, capacitors, and inductors to their products. These electronic filters prevent the generation of higher harmonics, ensuring that the equipment meets the required EMC (Electromagnetic Compatibility) standard. By considering harmonics in their product design, manufacturers can reduce the risk of distortion and improve power quality.
Optimise Equipment Usage and Layout
The arrangement and operation of equipment within a facility can impact harmonic levels. In an industrial environment, various pieces of equipment may contribute to overall distortion. By optimising equipment placement and usage, facilities can minimise harmonic issues. For example, certain equipment may be more susceptible to harmonics when placed near specific types of machinery. Additionally, avoiding unique combinations of higher-than-expected distortion on a network close to capacity can prevent severe distortion that affects other equipment.
Redesign or Replace Non-Linear Loads
Non-linear loads are the primary sources of harmonics. To reduce harmonic contributions, it may be necessary to redesign or replace these loads. This involves selecting alternative components or technologies that draw current in a continuous sinusoidal manner, minimising abrupt pulses that cause distortions. Redesigning or replacing non-linear loads can be a targeted approach to addressing harmonics in specific areas of the power system.
Implement Specially Designed Transformers
Specially designed transformers can be utilised to cancel specific harmonics through winding configurations. These transformers are engineered to counteract the effects of specific harmonic frequencies, reducing their impact on the system. By strategically placing these transformers at critical points in the power network, the overall harmonic distortion can be mitigated.
Regularly Monitor and Evaluate Power Quality
Facilities should invest in tools like a power quality analyser to regularly monitor power quality health. By capturing data from equipment, infrastructure, and service panels, it becomes possible to identify harmonic issues early on. This proactive approach enables facilities to optimise energy use, protect equipment, and troubleshoot power quality problems before they escalate. Regular monitoring helps in identifying specific sources of harmonics within the facility, allowing for more targeted mitigation strategies.
In conclusion, preventing harmonics in electrical systems requires a comprehensive approach that involves manufacturers, facility designers, and operators. By employing mitigation techniques, optimising equipment usage, redesigning non-linear loads, utilising specialised transformers, and regularly monitoring power quality, it is possible to minimise harmonic distortions and improve the overall performance and stability of electrical systems.
Mechanical and Electrical Breakdowns: How Often Do They Occur?
You may want to see also
Frequently asked questions
Harmonics in electrical systems refer to the distortion of current and voltage from their ideal sinusoidal waveforms. This occurs when non-linear loads are connected to the system, causing abrupt pulses in the current that deviate from the expected sinusoidal shape.
Harmonics are primarily caused by non-linear loads, such as rectifiers, variable-speed drives, computers, printers, TVs, servers, and telecom systems. These devices draw current in a non-sinusoidal manner, creating complex waveforms and harmonics.
Harmonics can lead to several issues, including increased heating in equipment, voltage fluctuations, power quality problems, and reduced equipment lifespan. They can also result in higher installation and utility costs due to increased power consumption.
