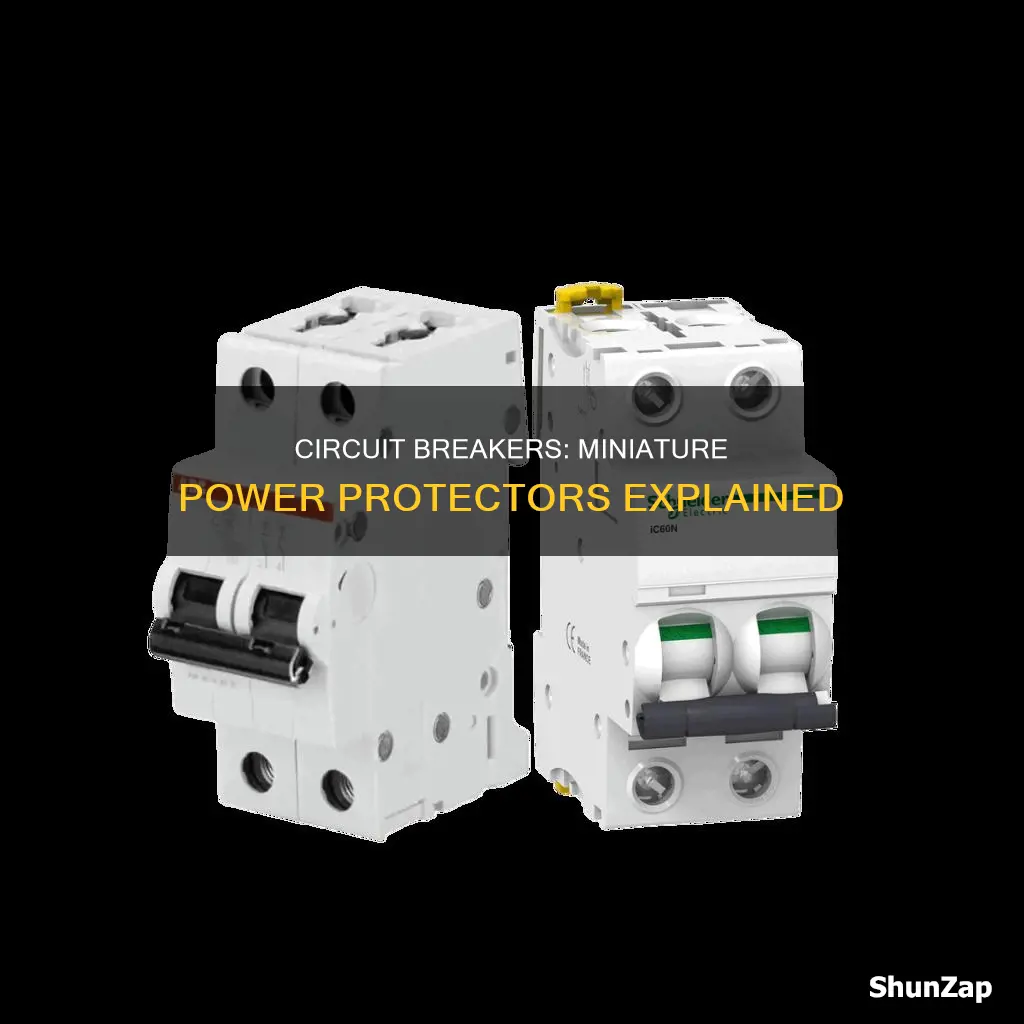

Miniature Circuit Breakers (MCBs) are electromechanical devices that protect electrical circuits from damage caused by excessive current, short circuits, or overloads. They are designed to automatically interrupt the flow of electricity in abnormal conditions, safeguarding electrical systems and preventing potential harm. MCBs are more reliable and sensitive than conventional fuses, offering effective protection and a straightforward reset process. They are commonly used in both residential and industrial settings, with varying current ratings to meet different protection requirements. The core component of an MCB is the trip unit, which monitors the electrical flow and triggers the breaker during incidences of excess current. This vital part acts as a safeguard, swiftly breaking the circuit to prevent any potential damage to appliances or devices.
| Characteristics | Values |
|---|---|
| Purpose | To protect an electric circuit from over-current, overload, and short circuits |
| Function | Detects abnormal conditions and automatically shuts off the circuit during overloads or short circuits |
| Rated Current | Up to 125 A |
| Trip Characteristics | Non-adjustable; based on temperature rise or magnetic force generated by the current |
| Operation | Thermal, magnetic, or a combination of both |
| Components | Main contacts, trip unit, terminal, housing, trip indicator, auxiliary contacts |
| Reset | Manual reset using a control lever |
| Contacts | Made of copper, copper alloys, silver alloys, or other highly conductive materials |
| Service Life | Limited by erosion of contact material due to arcing |
| Arc Extinction | Uses air alone to extinguish the arc |
| Common Style | DIN-rail-mounted thermal-magnetic MCB |
Explore related products
What You'll Learn
- Miniature Circuit Breakers (MCBs) protect electrical circuits from damage caused by overloads or short circuits
- MCBs automatically shut off circuits during abnormal conditions, preventing potential hazards
- MCBs are more reliable and sensitive than traditional fuses
- MCBs are made of copper or copper alloys, silver alloys and other highly conductive materials
- MCBs are electromechanical devices that use thermal and magnetic elements to respond to electrical faults
Miniature Circuit Breakers (MCBs) protect electrical circuits from damage caused by overloads or short circuits
A miniature circuit breaker (MCB) is an electromechanical device designed to protect an electrical circuit from damage caused by overloads or short circuits. MCBs are commonly used in both residential and industrial applications and are foundational components in modern electrical setups. They are also known as over-current protection devices (OCPD).
MCBs work by automatically shutting off circuits during abnormal conditions, such as overloads or short circuits, and are engineered to promptly trip and interrupt the current flow, thus preventing potential harm. The trip unit is the core component of an MCB, monitoring the electrical flow and triggering the device during incidences of excess current or short circuits. This mechanism offers superior reliability and sensitivity compared to traditional fuses, which must be replaced once blown out.
There are several types of MCBs, including thermal, magnetic, hybrid, and electronic. Thermal MCBs utilise a bimetallic strip that bends and trips the breaker when the temperature rises above a certain threshold due to an increase in current. Magnetic MCBs, on the other hand, employ a solenoid that pulls the trip mechanism when the magnetic force exceeds a certain threshold. Hybrid MCBs combine the features of both thermal and magnetic types, while electronic MCBs use electronic components to monitor the current and trip accordingly.
The DIN-rail-mounted thermal-magnetic miniature circuit breaker is the most common style in modern domestic consumer units and commercial electrical distribution boards throughout Europe. MCBs are simple, easy to use, and typically not repaired but replaced. They offer the convenience of 'on/off switching' and provide safer insulation between live parts and other electrical components.
Exploring Electric Sheep Quotes: Androids, Dreams, and Philosophy
You may want to see also
Explore related products
MCBs automatically shut off circuits during abnormal conditions, preventing potential hazards
Miniature Circuit Breakers (MCBs) are electromechanical devices designed to protect electrical circuits from abnormal conditions such as overloads or short circuits. They are essential safety components in modern electrical setups, safeguarding electrical systems and preventing potential hazards.
MCBs work by promptly detecting and responding to various electrical faults, including overloads and short circuits. Overload occurs when a circuit is overloaded with too many appliances, drawing more electrical current than the circuit and cable are designed to handle. This can lead to overheating and potential fires. On the other hand, a short circuit is a more dangerous fault, resulting from a direct connection between the live and neutral conductors. It causes a sudden and dramatic rise in electric current, which can lead to significant damage.
The core component of an MCB is the trip unit, which constantly monitors the electrical flow. When an abnormal condition is detected, the trip unit activates the MCB's tripping mechanism, triggering the breaker to trip and shut off the circuit. This interruption in the current flow prevents potential harm and protects the electrical circuit from damage.
MCBs use electro-mechanical mechanisms, including thermal and magnetic elements, to respond to electrical faults. Thermal MCBs utilise a bimetallic strip that bends and trips the breaker when the temperature rises above a certain threshold due to an increase in current. Magnetic MCBs, on the other hand, employ a solenoid that pulls the trip mechanism when the magnetic force exceeds a safe level. Hybrid MCBs combine the features of both thermal and magnetic types, offering versatility in fault detection.
Compared to traditional fuses, MCBs offer superior reliability and sensitivity in overcurrent scenarios. They are reusable, easy to use, and provide convenient on/off switching for circuit isolation. Additionally, the plastic casing of MCBs enhances safety by insulating live parts from other electrical components. Overall, MCBs play a crucial role in maintaining the safety and integrity of electrical systems by automatically shutting off circuits during abnormal conditions.
Understanding Your Electrical Usage: A Simple Guide
You may want to see also
Explore related products
MCBs are more reliable and sensitive than traditional fuses
Miniature Circuit Breakers (MCBs) are electromechanical devices designed to protect electrical circuits from overload or short circuits. They are a modern alternative to traditional fuses, offering several advantages that make them more reliable and sensitive.
One of the key benefits of MCBs is their reusability. When an overload occurs, an MCB will trip, breaking the circuit and stopping the electricity flow. Unlike traditional fuses, which need to be replaced each time they blow, MCBs can be easily reset and reused, making them a more convenient and cost-effective option in the long term. This also eliminates the need for frequent replacements, enhancing their reliability over fuses.
MCBs are also safer to access and handle than traditional fuses. They are enclosed in a protective plastic casing, providing insulation between live parts and other electrical components. This design ensures that users are not exposed to electrical parts directly, reducing the risk of accidental contact with live wires during replacement, which is a concern with fuses.
In terms of sensitivity, MCBs are more responsive to current abnormalities than fuses. They can detect abnormal conditions in the current flow and respond faster to hazards, automatically switching off the electrical circuit. MCBs are designed to work better in lower voltage settings, making them well-suited for domestic and low-voltage commercial applications.
Additionally, MCBs offer ease of use and convenience. Resetting an MCB is as simple as pushing a knob to the "on" position, whereas replacing a fuse requires more effort and time. This ease of operation further contributes to the overall reliability and user-friendliness of MCBs compared to traditional fuses.
AC Electricity: Energy Efficiency and Cost Savings Tips
You may want to see also
Explore related products
MCBs are made of copper or copper alloys, silver alloys and other highly conductive materials
A miniature circuit breaker (MCB) is a device that protects against excessive current by automatically removing power from a faulty system. It is a modern version of the circuit breaker, which was first described by Thomas Edison in 1879. MCBs are typically used to protect low-current circuits or individual household appliances.
MCBs are made of copper or copper alloys, silver alloys, and other highly conductive materials. The choice of these materials is due to their excellent electrical conductivity and resistance to erosion. Copper is a common conductor of electricity and is often used in household appliances. It is also easy to solder and wrap into wires, making it a cost-effective option. Silver, on the other hand, is the best conductor of electricity due to its high number of movable atoms (free electrons). While silver is more expensive, it is sometimes used in specialized equipment like satellites and circuit boards.
The use of highly conductive materials in MCBs is essential to ensure that the contacts can carry the load current without excessive heating. The contacts must also be able to withstand the heat produced when the circuit is interrupted, known as arcing. Arcing can create conductive ionized gases and molten or vaporized metal, which can lead to further arcing or short circuits. Therefore, the materials used for the contacts play a critical role in the safe and effective functioning of MCBs.
In addition to copper and silver alloys, other highly conductive materials may be used for MCB contacts. These could include metals such as aluminum, gold, brass, or steel. Each of these metals has its own unique electrical conductivity properties, and their selection depends on factors such as cost, availability, and specific application requirements.
Overall, the choice of copper or copper alloys, silver alloys, and other highly conductive materials for MCBs is a careful balance between electrical conductivity, resistance to erosion, cost, and practicality. These materials ensure the safe and efficient operation of MCBs, making them a crucial component in protecting electrical systems from excessive current and potential damage.
Cutting Drywall for Electrical Repairs: A Step-by-Step Guide
You may want to see also
Explore related products
MCBs are electromechanical devices that use thermal and magnetic elements to respond to electrical faults
Miniature Circuit Breakers (MCBs) are electromechanical devices that use thermal and magnetic elements to respond to electrical faults. They are designed to protect electrical circuits from damage caused by overloads or short circuits, which are two types of over-currents.
MCBs are commonly used in domestic and commercial electrical distribution boards. They are usually rated for currents up to 125 amps and are designed to trip and cut off the power when an overload or short circuit is detected, preventing overheating and potential fires.
The thermal element in an MCB is a bi-metal strip that bends and trips the breaker when the temperature rises above a certain threshold due to an overload. This type of fault occurs when too many appliances are connected to one circuit, drawing more current than the circuit and cable are designed to handle.
The magnetic element, on the other hand, protects against electric short-circuit currents. It consists of a solenoid that pulls the trip mechanism and trips the breaker when the magnetic force exceeds a certain threshold. Short circuits are particularly dangerous as they result in a sudden and dramatic rise in electric current, which can cause significant damage if not quickly addressed.
MCBs offer several advantages over traditional fuses. They are reusable, easier to use, and provide more convenient circuit isolation with their on/off switching mechanism. Additionally, the conductor in an MCB is housed within a plastic casing, making it safer to use and operate.
