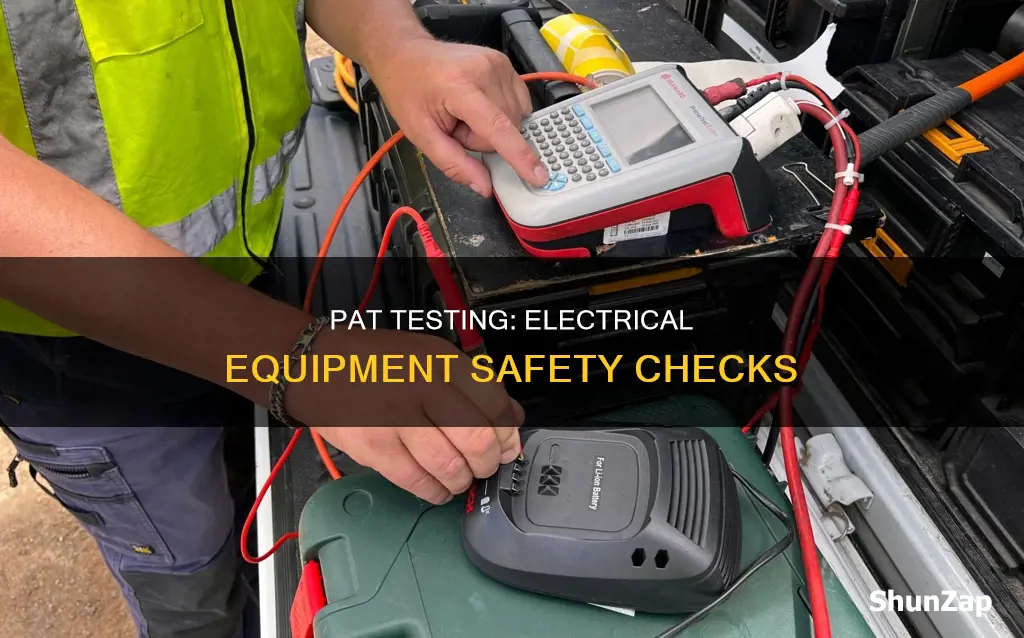

Portable appliance testing (PAT) is a process of checking electrical appliances to ensure they adhere to safety standards and are safe to use. PAT tests are carried out on electrical appliances to ensure they are maintained in a safe condition and to prevent the risk of injury or danger. The frequency of PAT tests depends on the type of appliance, location, and usage patterns. While PAT testing is not a legal requirement in all cases, it is an important part of maintaining electrical safety and can help to prevent electrical hazards and accidents.
| Characteristics | Values |
|---|---|
| Purpose | To ensure electrical appliances are safe to use and maintained to prevent harm to workers and damage to equipment |
| Testing methods | Visual inspections, electronic tests, polarity tests, functional testing |
| Testing equipment | PAT testers, advanced PAT testers, PASS/FAIL testers, basic testers, advanced testing kits |
| Tester features | Mains power connectivity, 500V insulation test voltage, 250V insulation resistance test, test probe |
| Tester suitability | Class 1, Class 2, and Class 3 IT equipment, medical safety equipment |
| Tester accessories | IEC extension lead adapter, labels indicating a passed PAT test |
| Testing frequency | Depends on appliance type, location, and usage patterns; ranges from 3 months to 1 year or longer |
| Testing responsibility | Manufacturer, importer, or competent person such as a registered electrician |
| Testing standards | European Low Voltage Directive, CE mark, AS/NZS3760 (Australia and New Zealand) |
| Legal requirements | No specific legal instrument mandating PAT inspection, but maintenance of safety and evidence of routine maintenance are required |
Explore related products
$15.99 $20.99
$21.98 $24.97
What You'll Learn
Visual inspections
During a visual inspection, it is also important to run your hands across the cable to look for any obvious signs of damage that your eyes might have missed. If the appliance is plugged in, you could receive a shock if the cables' insulation is damaged. As well as cracks, chemical damage can have a disastrous effect on an appliance, so watch out for signs such as chemical burning.
Learn the Electric Slide: Line Dancing Basics
You may want to see also
Explore related products
Testing equipment
Portable appliance testing (PAT) involves checking electrical appliances to ensure they adhere to set safety standards. Testing equipment has been specifically developed for PAT inspections, based on the testing equipment used by manufacturers to ensure compliance with the British Standard Code of Practice and European product standards.
There are various types of PAT testing equipment, designed to ascertain safety levels. These include basic, user-friendly PASS/FAIL testers, which are frequently used for professional purposes. While these models are affordable, they are not suitable for testing the complete range of electrical equipment. Most models also lack functionality for the configuration of test parameters.
Advanced PAT testers are recommended as they offer much more data. These advanced systems are particularly well-suited to facilities management, as they allow for the recording of the location and test status of equipment and appliances. They can be used with Class 1, Class 2, and Class 3 IT equipment, as well as medical safety equipment.
Essential PAT testing accessories include labels that should be attached to items that have passed the PAT test. These labels are made of durable materials in accordance with the regulations outlined in the IET Code of Practice. IEC extension lead adapters are also essential, allowing for the testing of electrical items that would otherwise be impossible.
PAT testing equipment is used to perform an initial visual test to inspect the condition of the equipment and cabling. Following this, tests are carried out to assess the standard of insulation, earthing continuity, and contact with exposed metal. The earth continuity test verifies the path of the earth or ground connection, which is necessary to avoid electric shock. Insulation resistance tests ensure that the insulation on electrical cables is intact by injecting voltage into the machine and looking for breakdowns or leaks that may lead to electric shock or short circuits.
Creating Electromagnetic Pulses: DIY Electromagnetic Pulser Guide
You may want to see also
Explore related products
Safety standards
PAT testing, or Portable Appliance Testing, is a process of checking electrical appliances for safety through visual inspections and electronic tests. It is a way to ensure that electrical appliances are safe to use and well maintained to prevent harm to workers and damage to equipment.
The Electricity at Work Regulations 1989 require that any electrical equipment with the potential to cause injury be maintained in a safe condition. However, the regulations do not specify what needs to be done, by whom, or how frequently. The frequency of testing depends on the type of equipment and the environment in which it is used. For example, a power tool used on a construction site should be examined more frequently than a lamp in a hotel bedroom.
There is no legal requirement to label equipment that has been inspected or tested, nor is there a requirement to keep records of these activities. However, it is recommended that a competent person inspects the installation regularly in any public building or workplace. This can include a qualified electrician or someone with the necessary knowledge, skill, and experience to carry out the inspection safely.
Visual inspections can be an important part of the maintenance process, as some electrical safety defects can only be detected by visual examination. A brief user check, based on simple training and a checklist, can be useful in identifying potential issues. More formal visual inspections and testing by a competent person may be required at appropriate intervals, depending on the equipment and environment.
There are various types of PAT testing equipment, including basic and advanced kits. Basic kits are user-friendly and feature simple interfaces for recording results, while advanced kits offer more data and are suitable for users with a high level of technical knowledge. Essential PAT testing accessories include labels that indicate an item has passed the PAT test, as well as adapters for testing electrical items that require special connections.
Overall, PAT testing is an important tool for maintaining electrical safety and ensuring compliance with health and safety regulations. By identifying potential hazards and defects through visual inspections and electronic tests, PAT testing helps to prevent injuries, protect equipment, and avoid accidents.
Electric Utilities: Multiple Providers, One State
You may want to see also
Explore related products
Testing frequency
The frequency of Portable Appliance Testing (PAT) depends on a variety of factors. There is no legal requirement to conduct PAT testing or how often it should be done. However, the Electricity at Work Regulations 1989 require that electrical equipment with the potential to cause injury is maintained in a safe condition. The frequency of inspection and testing is based on a risk assessment that considers the type of equipment, its usage, and the environment in which it is used.
For example, a power tool used frequently on a construction site should be examined more frequently than a lamp in a hotel bedroom. Similarly, equipment used by untrained users, children, or the elderly, who are more vulnerable to electric shocks, should be tested more often. Additionally, equipment that has been repaired or altered may require more frequent testing due to heightened risks.
The Health and Safety Executive (HSE) provides guidance on suggested initial maintenance intervals in their publication "Maintaining Portable Electrical Equipment". This guidance is based on recommendations from the IET and includes initial intervals ranging from three months for construction equipment to one year, with longer periods for re-testing.
While there is no legal obligation, conducting regular PAT testing is highly advisable to ensure electrical equipment is safe and well-maintained, particularly in businesses and for landlords, to prevent harm to workers, tenants, or visitors.
Running Electricity to Your Shed: Easy or Challenging?
You may want to see also
Explore related products
Testing procedures
Following the visual test, tests are carried out to assess the standard of insulation, the earthing continuity, and contact with exposed metal. The insulation test involves injecting voltage into the machine to check for any breakdown of insulation or leaks that may lead to electric shock or short circuit. The earth continuity test verifies the path of the earth or ground connection, which is required to avoid electric shock. This test involves connecting the item of electrical equipment to the PAT tester and transferring a current along a mains cord to the enclosure, which then flows back to the tester via the protective earth conductor.
Other tests include the polarity test, which verifies that the neutral and live wires are correctly fitted into the plug of the appliance, and functional testing, which verifies that the appliance operates as expected in standard conditions.
The frequency of PAT testing depends on the type of equipment, the location, and usage patterns. For example, a power tool used on a construction site should be examined more frequently than a lamp in a hotel bedroom. While there is no legal requirement to keep records of testing activities, it is recommended that a test certificate is obtained, especially for landlords.
Opening an Electrical Shop in India: A Guide
You may want to see also
Frequently asked questions
PAT, or Portable Appliance Testing, is a process of checking electrical appliances for safety through visual inspections and electronic tests.
PAT testing involves an initial visual inspection of the appliance, its plug, and its lead. For Class I equipment, test signals are injected into the cable and appliance to ensure their integrity. Following this, tests are carried out to assess the standard of insulation, earthing continuity, and contact with exposed metal.
While you do not need to be a qualified electrician to carry out visual inspections, electrical work must be carried out by people with the necessary knowledge, skill, and experience to avoid danger. Many registered electricians perform PAT testing.
