An RV electrical on/off switch is a vital component of an RV's electrical system. The RV electrical system is unique in that it comprises two isolated yet integrated systems: the 12-volt and the 110-volt (or 120-volt) systems. The 12-volt system powers lights, fans, and circuit boards, while the 110/120-volt system is used for higher-power applications. The on/off switch, or battery disconnect switch, is an essential tool for controlling the flow of power from the batteries to these systems. It offers a convenient and safe way to disconnect the primary circuit, protecting deep cycle batteries from constant drain and extending battery life. This switch is particularly useful when installing or maintaining batteries, performing electrical upgrades, or storing the RV, as it prevents appliances from draining the battery over time.
Explore related products
$8.5 $10.68
What You'll Learn
RV battery disconnect switch
An RV battery disconnect switch is an essential component of an RV's electrical system, which typically consists of two isolated yet integrated systems: a 12-volt system and a 110-volt system. The battery disconnect switch serves multiple purposes and offers various benefits to RV owners.
Firstly, it acts as a safety precaution, allowing users to instantly cut off power to the RV's main circuit. This feature is especially useful when performing maintenance or troubleshooting, as it protects against electric shock and ensures uninterrupted work.
The disconnect switch is also useful when the RV is in storage or parked for extended periods. By disconnecting the battery, you can prevent passive power loss caused by appliances drawing a small amount of power even when turned off. This slow discharge can lead to a dead battery and even damage the battery by discharging it too far. Therefore, it is recommended to use the disconnect switch when the RV will be unused for several days to preserve battery health and maximise its lifespan.
Additionally, when plugged into an external power source at a campground, the disconnect switch can be used to run the RV solely on the campground's power supply, preventing any unnecessary strain on the RV battery.
The RV battery disconnect switch is typically located near the battery inside the battery compartment or in a nearby maintenance bay. While newer RV models often come with built-in disconnect switches, older models may require the addition of a switch, which can be requested through local RV centres.
Stay Safe: Power Off During Hurricanes
You may want to see also
Explore related products
Trailer exterior power
The exterior power system of a trailer operates independently, using 12-volt power supplied from the tow vehicle through a plug, usually a 7-way plug. This powers the trailer's taillights, clearance lights, and brakes. The only exception is the emergency breakaway switch, which is engaged when the trailer separates from the tow vehicle. In this case, the switch is powered by the RV battery, supplying full braking power to the trailer brakes.
The 12-volt electrical system in an RV is measured in VDC (Volts of Direct Current) and includes lights, fans, circuit boards, the water pump, radio, LP/CO detector, slide-outs, electric jacks, power awnings, and some TVs. The 12-volt system requires a total of 12 volts, which can be achieved with a single 12-volt battery or several batteries wired together. Using two 6-volt batteries wired in series is often better than a single 12-volt battery as it offers longer battery life.
The 120-volt or 240-volt system, measured in VAC or AC (Volts of Alternating Current), powers items that the 12-volt system cannot, such as the air conditioner, microwave, TVs, outlets, and converter. When plugged into shore power, an RV can be connected to a 110-volt or 120-volt power source, typically with 15 amp, 30 amp, or 50 amp service. When shore power is unavailable, an on-board generator can be used, although some prefer solar panels as an alternative power source.

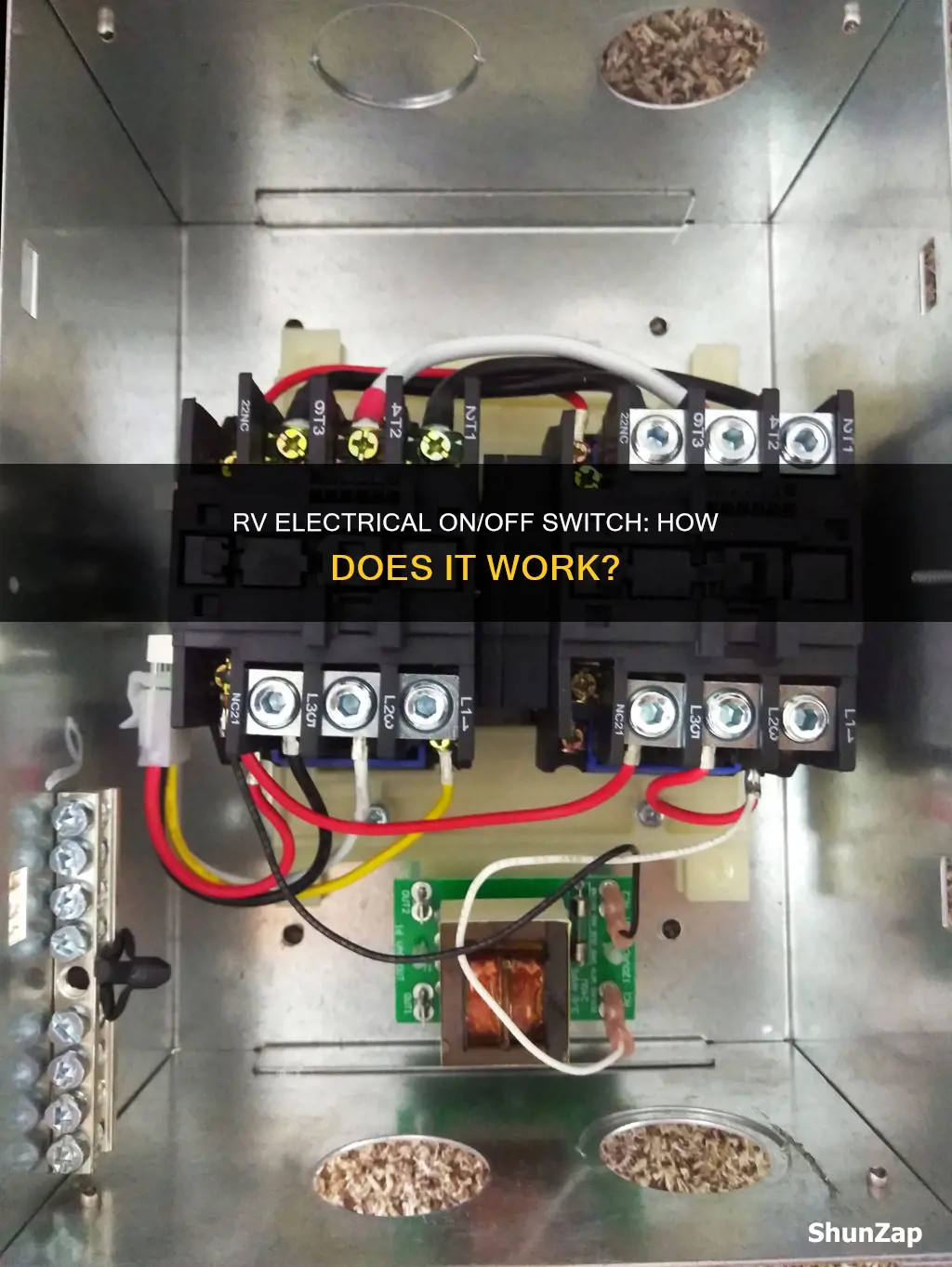

Transfer switches are used to switch between shore power and generator power. Manual transfer switches must be switched manually, while automatic transfer switches do this automatically under certain conditions. Inverters are also used to power certain devices, converting 120-volt AC power from the breaker panel to 12-volt DC power to charge the battery and power 12-volt systems.
Electrical Light Switch: Replacing and Upgrading Your Home
You may want to see also
Explore related products
12-volt and 110-volt systems
Recreational vehicles (RVs) have two electrical systems: a 12-volt system and a 110/120-volt system. These systems are isolated yet integrated. The 12-volt system is powered by the RV's 12-volt battery bank, while the 110/120-volt system operates when plugged into an external power source or generator.
The 12-volt system is similar to a car's electrical system. It powers essential appliances and devices, such as lights, fans, circuit boards, water pumps, radios, LP/CO detectors, slide-outs, electric jacks, power awnings, and some TVs. It also supports the furnace by using a 12-volt fan to circulate warm air. The battery bank can consist of one 12-volt battery or multiple 6-volt or 12-volt batteries. Solar panels can also recharge the battery bank.
The 110/120-volt system, on the other hand, powers larger appliances and devices that the 12-volt system cannot. This includes the air conditioner, microwave, TVs, and all the outlets. This system operates when the RV is plugged into a shore power source or an external generator, providing 110/120-volt AC power. RVs with onboard generators can supply power to the 110-volt system directly. An inverter can also be used to convert 12-volt battery power to 110-volt power, but this depletes the batteries quickly and is typically used only for brief periods.
Understanding these two electrical systems is crucial for RV owners, as it impacts their power usage and availability while on the road or camping off-grid. Proper maintenance of the battery bank is also essential to ensure the reliable operation of the RV's systems and appliances.
Inspecting Electrical Cables: Spotting Damage and Ensuring Safety
You may want to see also
Explore related products
Solar power
When considering solar panels for your RV, you have two main options: portable and permanent. Portable RV solar panel systems are easy to set up and use. They typically plug into a dedicated solar plug on the RV and include one or more 100-watt solar panels that can be attached to the roof with Velcro straps. Portable solar panels are ideal for those who don't need a lot of power. On the other hand, permanent RV solar panel systems are designed for those who want to maximise solar power and operate appliances like refrigerators, microwaves, and air conditioners. These systems are usually installed by an RV dealer or professional company.
To determine the number and wattage of solar panels you need, you must first calculate your RV's power needs. Consider the wattage of all the devices and appliances you want to run on solar power and convert everything to watts. A conservative estimate is that a 100-watt solar panel will collect about 350 watts per day, taking into account factors like weather and sun exposure.
RV solar kits are available for purchase and typically include panels, batteries, and an inverter for reliable energy on the go. These kits provide a convenient and sustainable power solution for RV living.
Disconnecting Honda ATV Electrical Connectors: A Step-by-Step Guide
You may want to see also
Explore related products
Lighting control
When it comes to lighting control, RV owners can choose from a range of switch options, including standard single pole on/off switches, which are suitable for replacement or new installations. These switches are available in different colours, such as green and black, brown, or white, and some are designed with easy-to-operate large rocker switches. For those seeking discreet lighting control options, push-button switches are available in very small sizes, allowing for subtle installations.
RV electrical on/off switches can also come in the form of slide-out switches, which are available in single or double configurations. These switches are used to control slide-out rooms or other applications. Additionally, dimmer switches offer lighting control by allowing you to adjust the brightness of your lights. Indicator lights are another feature of lighting control in RVs, providing a visual indication of whether a switch is in the "on" or "off" position.
It is important to maintain RV switches in optimal working condition to ensure safety and comfort while driving and living on the road. Regularly checking switches and replacing them when necessary can prevent issues with lighting, signal lights, and other essential systems. When replacing switches, it is worth considering the aesthetic aspect as well, choosing switches that complement the décor of your RV.
RV lighting control can also be influenced by factors beyond the switches themselves. For instance, the wiring setup and circuit size can impact the functionality of lighting circuits, especially when integrating additional electrical devices. Understanding the electrical system and its compatibility with lighting setups is crucial for effective lighting control in RVs.
Setting Electric Log Truck Scales: A Step-by-Step Guide
You may want to see also
Frequently asked questions
An RV electrical on/off switch is a switch that controls the lighting, water pumps, and other electrical components in a recreational vehicle (RV).
An RV electrical on/off switch is important for several reasons. Firstly, it allows you to control the lighting and other electrical components in your RV, providing convenience and comfort during your vacation. Secondly, it helps ensure safety by allowing you to disconnect the power when performing maintenance or repairs, or when storing your RV, protecting your batteries from over-draining and extending their lifespan.
An RV electrical on/off switch, also known as a battery disconnect switch, interrupts the connection between the negative cable and the RV. This allows you to shut off the power flow from the batteries to the RV, disconnecting the primary circuit from the power system.
You can find RV electrical on/off switches at various retailers and online stores specialising in RV accessories and equipment. Some websites to consider include recpro.com and battlebornbatteries.com.
