Trystan Casey

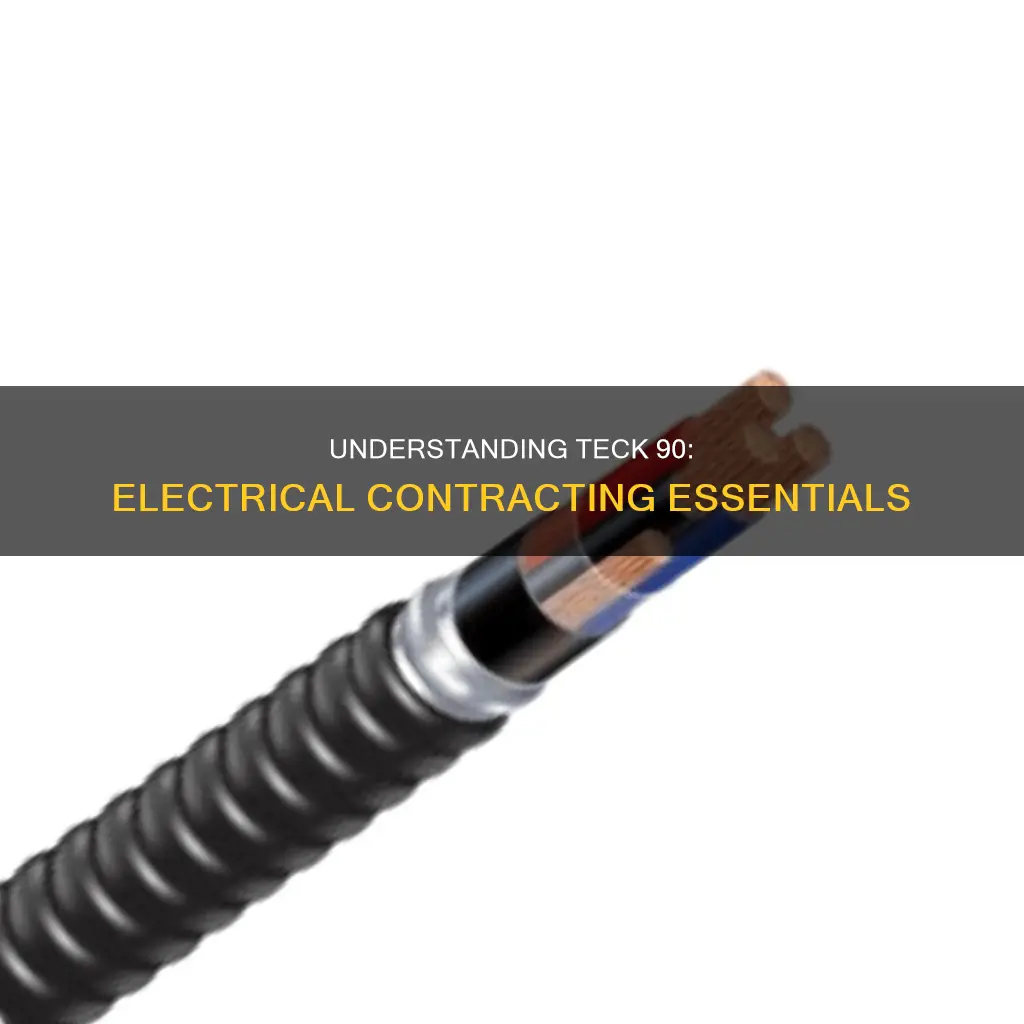

Teck 90 cables are used for electric power transmission and distribution. Teck 90 is a PVC-jacked interlocked armored cable (IAC) with either steel or aluminum armor. The cable was developed for installation in cold climates and remains flexible at lower temperatures than other cable types. Teck 90 cables are commonly used in industrial, residential, and commercial settings, and are often discussed by electricians, contractors, and apprentices on online forums.
| Characteristics | Values |
|---|---|
| Cable Type | Multi-conductor |
| Cable Material | Aluminium Armor or Galvanized Steel, XLPE Insulation, PVC Jacket |
| Temperature Resistance | Remains flexible at low temperatures |
| Voltage | 600V |
| Application | Installation in cold climates, Hydro power projects |
| Cable Construction | Interlocked armoured cable (IAC) with PVC jacket |
| Cable Size | Various sizes available, including 1/2, 3/4, 1, 11/4 |
| Connector Type | TECK 90-degree connectors, flex connectors |
| Support Requirement | Supported within 300mm of a connection point |
Explore related products
What You'll Learn
Teck 90 cable is a flexible armoured cable
Teck 90 cable is made up of multiple conductors enclosed in an overall PVC jacket within an interlocking armoured jacket. This armour can be made of either steel or aluminium. The interlocking armour is different from the wire or strip armour commonly used in electrical contracting. It could be more similar to braided copper flexibles used for bus duct terminations near equipment.
The flexibility of Teck 90 cable makes it a good choice for rigorous applications and installations with many bends. It is also suitable for residential settings, such as outdoor hot tubs, and industrial settings, such as food and beverage facilities.
When working with Teck 90 cable, it is important to note that it needs to be supported within 300mm of a connection point. Regular 1-hole and 2-hole EMT clips can be used for this, tightened with pliers. Additionally, flex connectors can be used with Teck 90 cable, although they are not made to terminate cables but rather to terminate a flexible raceway.
Electric Muscle Stimulation: Increasing Elasticity and Muscle Tone
You may want to see also
Explore related products
It is designed for use in wet or dry locations
TECK 90 cables are designed for use in both wet and dry locations. They are armoured cables with a PVC jacket, and the armour can be made of either steel or aluminium. Teck cables were developed specifically for installation in cold climates and remain flexible at lower temperatures than other cable types.
Teck cables are approved for installation at lower temperatures than other cable types. They are suitable for both indoor and outdoor use and can be used in residential, commercial, and industrial settings. In industrial settings, Teck cables need to be supported within 300mm of a connection point. Regular 1-hole and 2-hole EMT clips can be used to secure the cables, and some inspectors may allow for some leniency in the type of support used as long as an attempt is made to secure the cables.
When used outdoors, it is important to use approved connectors and fittings that are suitable for the specific cable size and type. For example, flex connectors are made for specific sizes, such as 1/2, 3/4, 1, and 1-1/4. Additionally, all electrical materials must be approved for their intended purpose. Flex connectors, for instance, are designed to terminate a flexible raceway rather than individual cables.
Teck 90 cables have been used in a variety of applications, including hydropower projects, oil fields, and residential settings. In residential settings, Teck 90 cables can be used for outdoor installations, such as providing power to an above-ground hot tub. The cables' flexibility and durability make them a popular choice for applications with multiple bends or turns.
Overall, TECK 90 cables are versatile and suitable for a wide range of electrical contracting applications, both indoors and outdoors, due to their design and ability to withstand varying temperatures and environmental conditions.
Electric Cord Replacement: A DIY Guide to Fixing Faulty Wires
You may want to see also
Explore related products
It has a temperature range of -40°C to 90˚C
The temperature rating of a cable is a critical factor in electrical contracting, especially when specifying and installing cables in extreme environments. Teck 90 cables are designed for a wide temperature range, operating safely and reliably between -40°C and 90°C. This temperature rating is an essential specification for electrical contractors when selecting cables for a project.
Starting with the lower end of the temperature range, the -40°C rating ensures that Teck 90 cables can be used in cold environments without compromising performance or safety. This includes outdoor applications in regions with extremely low temperatures, such as cold storage facilities, outdoor installations in arctic or alpine areas, and industrial settings where freezing temperatures are common. The cable's insulation and jacketing materials are designed to remain flexible and durable at these low temperatures, preventing cracking or degradation that could lead to electrical faults.
The upper limit of 90°C is equally important. This rating allows Teck 90 cables to be used in applications where temperatures may exceed those suitable for standard cables. For example, in industrial settings with high-temperature processes, indoor lighting installations with heat-generating fixtures, or data centers with dense equipment generating significant heat. The cable's ability to withstand these higher temperatures ensures that it maintains its structural integrity and electrical properties, reducing the risk of insulation breakdown and potential short circuits.
This wide temperature range of Teck 90 cables provides electrical contractors with the flexibility to specify and use a single cable type across a broad range of environments, simplifying procurement and installation processes. It also ensures that the cable can handle the varying temperatures that may be encountered during its service life, from extreme cold snaps to heatwaves or localized heat sources. By selecting Teck 90 cables, contractors can have peace of mind that the cable can withstand the demands of the application, providing long-term performance and safety.
Conducting Metals: Electric Flow Secrets
You may want to see also
Explore related products
It is used in industrial, commercial and manufacturing facilities
TECK90 cables are used for electric power transmission and distribution. Teck cables are PVC-jacked interlocked armoured cables (IAC) with either steel or aluminium armour. The conductors are enclosed in a PVC jacket within the IAC jacket. Teck cables were developed for installation in cold climates, remaining flexible at lower temperatures than other cable types.
Teck 90 cables are used in industrial, commercial, and manufacturing facilities. In industrial food and beverage facilities, for example, regular 1-hole and 2-hole EMT clips are used for teck. In commercial work, TECK90 cables are used for applications such as powering outdoor hot tubs, where the cable must navigate bends in the run.
In electrical contracting, TECK90 cables are used for residential applications, including services, feeders, and branch circuits for power, lighting, control, and signalling circuits.
Teck cables require support within 300mm of a connection point. When installing Teck cables, it is important to use approved connectors and follow the rules enforced by inspectors. For example, flex connectors are dry location only, and several flex connectors are approved to terminate ACWU or Teck but do not work for most cable sizes.
Building an Affordable Electric Bicycle: A Step-by-Step Guide
You may want to see also
Explore related products
The cable is colour-coded based on the number of conductors
TECK 90 is a Canadian nomenclature for a specific type of electrical cable. This cable is designed with an interlocking armoured exterior, which can be made from either steel or aluminium. The armour provides protection for the individual conductors within, which are enclosed in a PVC jacket.
The number of conductors within a TECK 90 cable can vary, and this affects the colour-coding of the cable. For example, a cable with four conductors will typically be colour-coded with black, and the numbers will be used to differentiate the conductors. Similarly, a 20-pair cable will follow the same colour-coding scheme, with the addition of a white label on one of the pairs.
The colour-coding of the conductors is essential for identifying and differentiating each conductor within the cable. This is particularly important during installation, maintenance, or repairs, as it allows electricians to work with the cables safely and efficiently.
In terms of applications, TECK 90 cables are versatile and suitable for both indoor and outdoor use. They are often used in industrial settings, such as food and beverage facilities, and can also be found in residential settings, especially in regions with cold climates. The cable's ability to remain flexible at low temperatures makes it a unique and advantageous choice for installations in cold environments.
