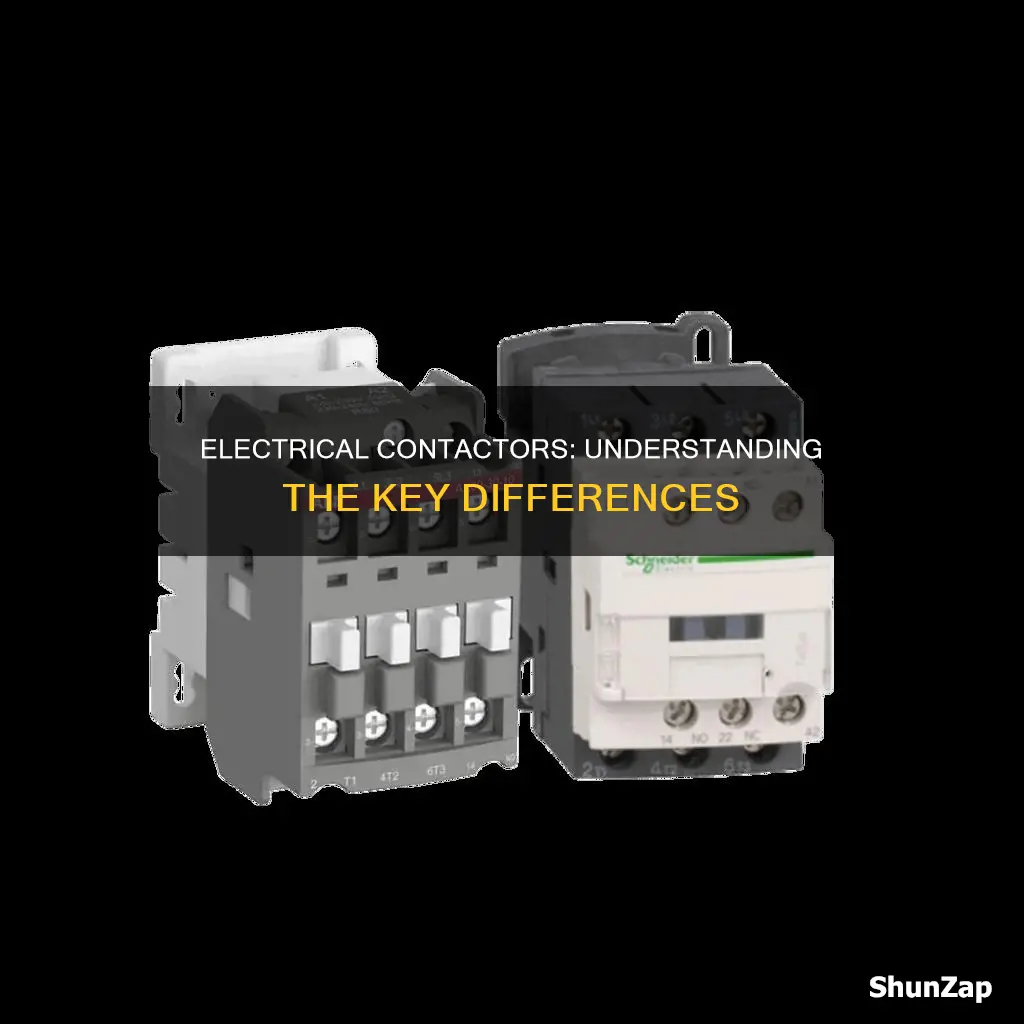

Electrical contactors are electromechanical switches used to control the flow of electrical current in high-power applications. They are a type of relay, but differ in the loads they are designed to handle. Contactors are used in applications with higher current-carrying capacity, typically built for and used in 3-phase applications. They are most commonly used with electric motors and lighting applications. Contactors are rated by designed load current per contact, maximum fault withstand current, duty cycle, design life expectancy, voltage, and coil voltage. They are designed to be directly connected to high-current load devices and range in size from small devices that can be picked up with one hand to large devices approximately a meter in size.
| Characteristics | Values |
|---|---|
| Coil Voltage | 24-volt DC, 12-volt DC, 220-volt DC, 24/120/220-volt AC |
| Wire Terminals | A1, A2, L1, L2, L3, T1, T2 |
| Size | Small enough to be handheld, up to 1 meter in length |
| Applications | Electric motors, lighting, heating, capacitor banks, thermal evaporators, high-voltage devices |
| Function | Switching an electrical circuit on or off, controlling the flow of electrical current |
| Current | Higher current-carrying capacity, 3-phase applications |
| Load Capacity | High-current loads |
| Contacts | Bifurcated, wipe, double break, made of tungsten, molybdenum, copper, silver alloys |
| Enclosure | Plastic, protects against dust, weather, hazards |
Explore related products
What You'll Learn
Electrical contactors are used to control high-power applications
Electrical contactors are a type of relay used for switching an electrical circuit on or off. They are designed for applications with higher current-carrying capacity and are typically built for and used in three-phase applications. Contactors are used to control high-power applications, such as electric motors, lighting, heating, capacitor banks, and other electrical loads.
The main difference between a contactor and a relay is the load they are designed to handle. While contactors are used for higher power applications, relays are used for lower power applications. Relays are electromechanical or solid-state devices that control the flow of electrical current in low to medium-power applications. They are commonly used in applications with lower current requirements, typically below 15 amperes.
Contactors are designed to be directly connected to high-current load devices and can handle a large amount of current. They are rated by designed load current per contact, maximum fault withstand current, duty cycle, design life expectancy, voltage, and coil voltage. Contactors range in size and capacity, from small devices that can be picked up with one hand to large devices approximately a meter in size.
The coil in a contactor provides the driving force that closes the contacts. The coil is usually energised by a low-voltage signal, typically 24 volts DC, which creates an electromagnetic field that causes the magnetic contacts to close. This completes the circuit, and power is applied to the motor or load.
Contactors are essential components in electrical systems, serving as switches for controlling power flow in high-power applications. They are used to safely turn on and off high-voltage devices, ensuring that the control circuit is not damaged by the high-power load.
Xbox Power Consumption: How Much Electricity Does It Use?
You may want to see also
Explore related products
They are designed to handle high-current loads
Electrical contactors are electromechanical switches designed to control the flow of electrical current in high-power applications. They are used to switch high-current loads and are built for 3-phase applications. Contactors are commonly used with electric motors, lighting applications, capacitor banks, thermal evaporators, heating, and other electrical loads.
Contactors are rated by their designed load current per contact (pole), maximum fault withstand current, duty cycle, design life expectancy, voltage, and coil voltage. The load capacity of a contactor refers to the maximum allowable force that can be applied to a stage in a specified direction while meeting stage specifications. Contactors are designed to handle high-current loads, typically above 15 amperes. They are used in applications where a large amount of current needs to be switched and are suitable for high-power applications.
The choice between a contactor and a relay for a specific application depends on the current requirements of the load. Contactors are suitable for high-current applications, while relays are commonly used for lower current or low-voltage switching. Relays are designed for low to medium-current loads and are used as an intermediary between a low-power control signal and a higher-power load. They provide the advantage of isolating the control circuit from the load circuit, preventing electrical interference or damage to the control circuit.
Contactors are typically used in applications such as electric motors, where high-current loads need to be switched on and off. They are designed to handle the high-current loads associated with these applications and provide a reliable means of controlling the flow of electrical current. Contactors are essential components in electrical systems, ensuring the safe and efficient operation of high-power equipment.
The design and construction of contactors enable them to handle high-current loads effectively. The contacts are made of materials with high electrical conductivity, mechanical strength, and stability under arcing and oxidation. Common materials include alloys of tungsten, molybdenum, copper, and silver tin oxide for high-current applications. The enclosure protects the internal parts of the contactor, shielding the contacts from dust, weather, explosion hazards, and oil.
The Best Electrical Resistance Materials: Top Performers
You may want to see also
Explore related products
Contactors are used to control electric motors
Contactors are a type of relay used to switch an electrical circuit on or off. They are commonly used with electric motors, lighting applications, and high-load devices. Contactors are used to control electric motors by acting as an intermediary between the motor and the power supply. This allows users to connect or disconnect the motor from the power supply without causing damage.
Contactors are typically used with high-voltage electric motors, which cannot be safely connected directly to a PLC (programmable logic controller) output. Instead, the PLC output is connected to the contactor's coil, which is usually low-voltage. When the coil is energised by the PLC output, it creates an electromagnetic field that closes the contacts, completing the circuit and turning on the motor. This indirect connection protects the PLC card from potential damage caused by electric surges on the motor's side.
The contactor's coil can work with different voltages, such as 12-volt DC, 24-volt DC, or 220-volt DC, depending on the contactor type. For example, a 24-volt DC signal from the PLC output can energise the coil, leading to the motor turning on. This configuration ensures no direct connection between the PLC and the motor, allowing for safe control of high-voltage electric motors.
Contactors are designed to handle higher current loads compared to relays, making them suitable for 3-phase applications commonly found in electric motors. They are essential components in motor load applications, providing a means to control motors and other high-load devices with reduced risk. Contactors also offer safety features such as power cut-off, short circuit protection, overload protection, and under-voltage protection.
Motor starters may use contactors for remote operation, but they serve different functions. Motor contactors focus on controlling the circuit to connect or disconnect the load from the power supply, ensuring safe and efficient operation of electric motors.
Transform Your Acoustic Violin: Electric Evolution for Beginners
You may want to see also
Explore related products
They are rated by voltage and current capacity
Electrical contactors are rated by voltage and current capacity. Contactors are used to control high-power applications, and their voltage and current capacity will determine their suitability for a given application.
Contactors are a type of relay, designed for switching an electrical circuit on or off. They are used in applications with higher current-carrying capacity and are typically built for and used in 3-phase applications. They are most commonly used with electric motors and lighting applications.
Contactors are rated by their designed load current per contact (pole), maximum fault withstand current, duty cycle, design life expectancy, voltage, and coil voltage. For example, a general-purpose motor control contactor may be suitable for heavy-duty use on large motors, while a "definite purpose" contactor is adapted for applications such as air-conditioning compressor motor starting.
The voltage and current capacity of a contactor will also determine its NEMA standard contactor size. NEMA contactors for low-voltage motors (less than 1,000 volts) are rated according to NEMA size, which gives a maximum continuous current rating. NEMA standard contactor sizes are designated 00, 0, 1, 2, 3 to 9. Contactors for medium-voltage motors (greater than 1,000 volts) are rated by voltage and current capacity.
The voltage and current capacity of a contactor are essential factors in ensuring the reliable operation of the device and minimizing the risk of device failure.
Connecting Electric Netting: The Right Way to Join Fences
You may want to see also
Explore related products
Contactors are larger than relays
Contactors and relays are essential components in electrical systems, serving as switches for controlling power flow. They share similarities in their basic functions, but there are some key differences. One of the primary distinctions is that contactors are larger in size than relays.
Contactors are designed for applications with higher current-carrying capacity and are typically used in 3-phase applications. They are commonly employed with electric motors, lighting applications, capacitor banks, thermal evaporators, and other electrical loads. Contactors can range in size, from small devices that can be picked up with one hand to large devices approximately a meter (yard) in length. Their size depends on the specific application and the current requirements of the load.
Relays, on the other hand, are typically used for lower current or low-voltage switching and are more commonly found in single-phase applications. They are often used to control smaller loads or act as intermediaries between a low-power control signal and a higher-power load. Relays can be designed with multiple contacts, allowing them to control multiple circuits simultaneously.
The size difference between contactors and relays is related to their respective load capacities. Contactors are designed to handle high-current loads, while relays are suitable for low to medium-current loads. The larger size of contactors allows them to accommodate the components necessary for handling higher currents.
The choice between a contactor and a relay depends on the specific requirements of the application. Both devices play crucial roles in electrical systems, and their selection ensures reliable operation and minimizes the risk of device failure.
Electricity and Light: Same Speed, Different Energy?
You may want to see also
Frequently asked questions
A contactor is a special type of relay used for switching an electrical circuit on or off. It is designed for applications where a large amount of current needs to be switched.
The main difference between a contactor and a relay is their load capacity. Contactors are designed for high-current loads, while relays are suitable for low to medium-current loads. Contactors are used for turning on and off heavy high-voltage devices, while relays are used for smaller low-voltage devices.
Contactors are commonly used with electric motors, lighting applications, thermal evaporators, heating, capacitor banks, and other electrical loads.
AC contactors use soft laminated iron as the electromagnetic core material to reduce eddy current loss. DC contactors use solid steel as the electromagnetic core material as eddy currents are not an issue.
