Electrical Switch Symbols: A Comprehensive Guide

what is the electrical symbol for switch

Electrical switch symbols are a type of visual language that is used to represent different switches and their functions in circuit diagrams. These symbols are used by engineers, electricians, and technicians to ensure clear and accurate communication when working with electrical circuits. The symbols can represent different states of a switch, such as open or closed, and different types of switches, such as single-pole single-throw (SPST) or float switches. Understanding these symbols is crucial for designing, installing, and troubleshooting electrical systems safely and effectively. With the help of tools like EdrawMax, users can access a wide range of switch symbols and templates to create professional circuit diagrams quickly and efficiently.

shunzap

Standardised switch symbols

Electrical switch symbols are a standardised visual language used to represent different types of switches and their functions in circuit diagrams. These symbols are designed to be easily understood by engineers, electricians, and technicians, providing a universal mode of communication. Using standardised switch symbols is essential for designing, installing, and troubleshooting electrical systems, promoting collaboration among electrical project team members.

There are numerous switches and corresponding electrical symbols used in circuit diagrams and wiring plans. Some of the commonly used switch symbols include the single-pole, single-throw (SPST) switch, which controls the current flow in a single path with one input and one output connection. When the SPST switch is closed, the circuit is complete, allowing current flow, and when open, it interrupts the circuit, preventing current flow. This type of switch is typically used for basic on/off applications.

Other standardised switch symbols include the float switch, which represents either a normally open or closed state, and the thermal magnetic switch, which combines electromagnetic and thermal breaking. The limit switch is usually depicted as normally open, normally closed, held open, or held closed. The power diode symbol illustrates the conduction and blockage of current based on voltage levels. Additionally, the MOSFET switch symbol represents Drain, Source, Gate, and Body terminals, with the source and body terminals always connected.

Software tools like EdrawMax offer extensive libraries of industry-standard switch symbols, enabling users to create electrical schematics and diagrams quickly and efficiently. These templates can be customised to suit specific needs, making it accessible for both novices and professionals in electrical engineering.

shunzap

SPST switches

SPST stands for Single Pole Single Throw. This is the simplest form of a switch, controlling a single circuit with a basic "on/off" function. SPST switches are used to turn a single device or circuit on or off.

The switch consists of two terminals that serve as electrical connection points. When the switch is on, a connection is established between the two terminals. When the switch is turned off, the circuit breaks and the connection between the terminals is eliminated. A light switch is a good example of an SPST switch in action.

SPST mechanical switches have two terminal connections: the NO (Normally Open) and the C (Common). When the switch is actuated, the circuit is closed and current flows from the common terminal to the normally open terminal. When the switch is not actuated, the circuit is open and not completed.

shunzap

Float switches

A float switch is a type of level sensor or liquid level sensor that detects the level of liquid within a tank and controls pumps, motors, valves, alarms, and other devices. Float switches are commonly used to indicate whether a liquid rises or falls above or below a specific level and to send a signal to the rest of the system or activate a device. They are a popular choice for controlling liquid levels because they are reliable, cost-effective, and can be used with a wide variety of liquids.

shunzap

Capacitive touch switches

A capacitive touch switch is a type of electronic switch that detects touch or proximity by measuring changes in capacitance. Capacitance refers to the ability of a system to store an electric charge. A capacitive touch switch consists of a sensor that detects changes in capacitance caused by the presence or proximity of a conductive object, such as a human finger. When a user touches the surface of the switch or comes close to it, the capacitance changes, and this change is detected by the sensor, triggering a desired response such as turning on a light or executing a device command.

However, there are also some considerations to keep in mind. Capacitive touch switches may be more expensive to implement than traditional mechanical switches, impacting the overall pricing of electronic devices. They can be sensitive to changes in environmental conditions, such as temperature and humidity, which may affect their performance. False touches may occur due to environmental factors or stray capacitance. Furthermore, they lack tactile feedback, which some users may prefer, and they may have limited functionality when the user is wearing gloves as gloves may not conduct electricity.

In terms of electrical symbols, switches are represented by specific symbols in circuit diagrams, indicating their function and connection within a circuit. Common switch symbols include ON/OFF switches, float switches, SPST switches, and DIP switches, among others. These symbols provide a visual representation of the switch's functionality and are used to design and understand the circuitry.

EMR Critique: Harmful or Harmless?

You may want to see also

shunzap

Circuit diagrams

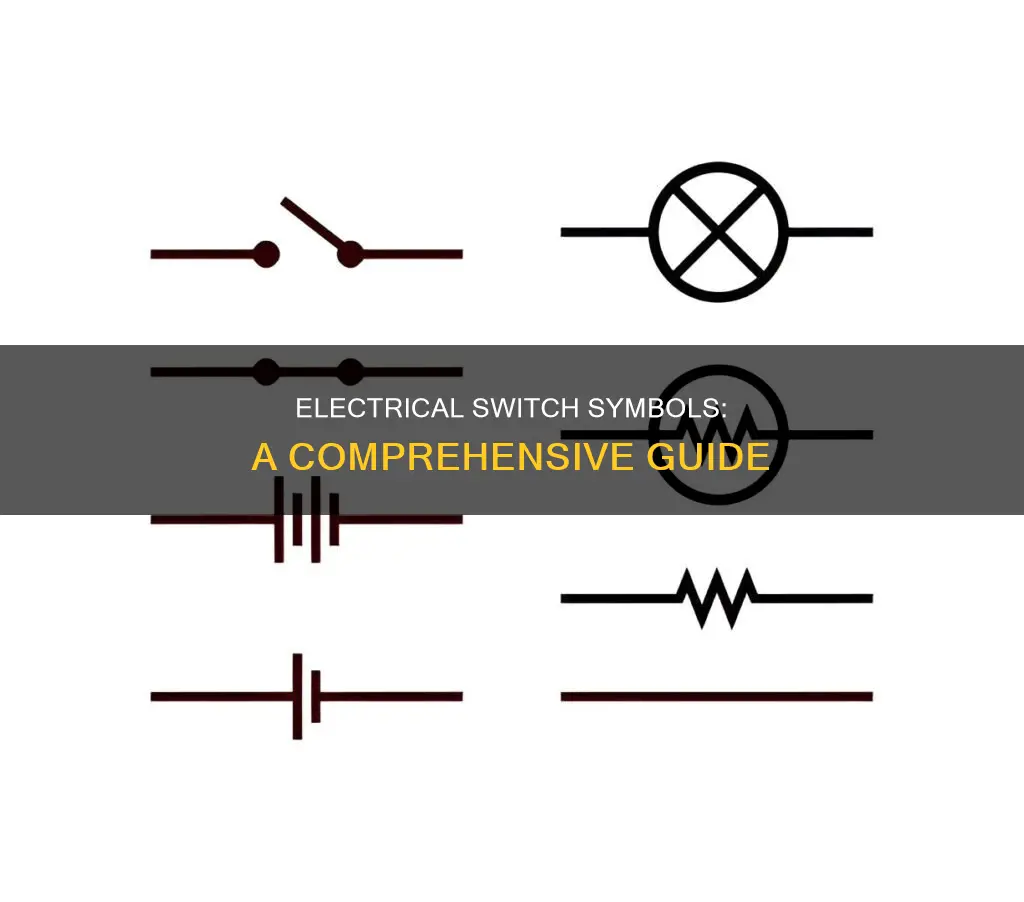

The circuit symbol for a switch in the 'off' position consists of two small circles on either side of a gap, with a straight line drawn at an angle from one of the circles. This angled line indicates an opening in the circuit, showing that it is incomplete. Conversely, when the switch is turned on, the circuit is complete, and energy can flow.
