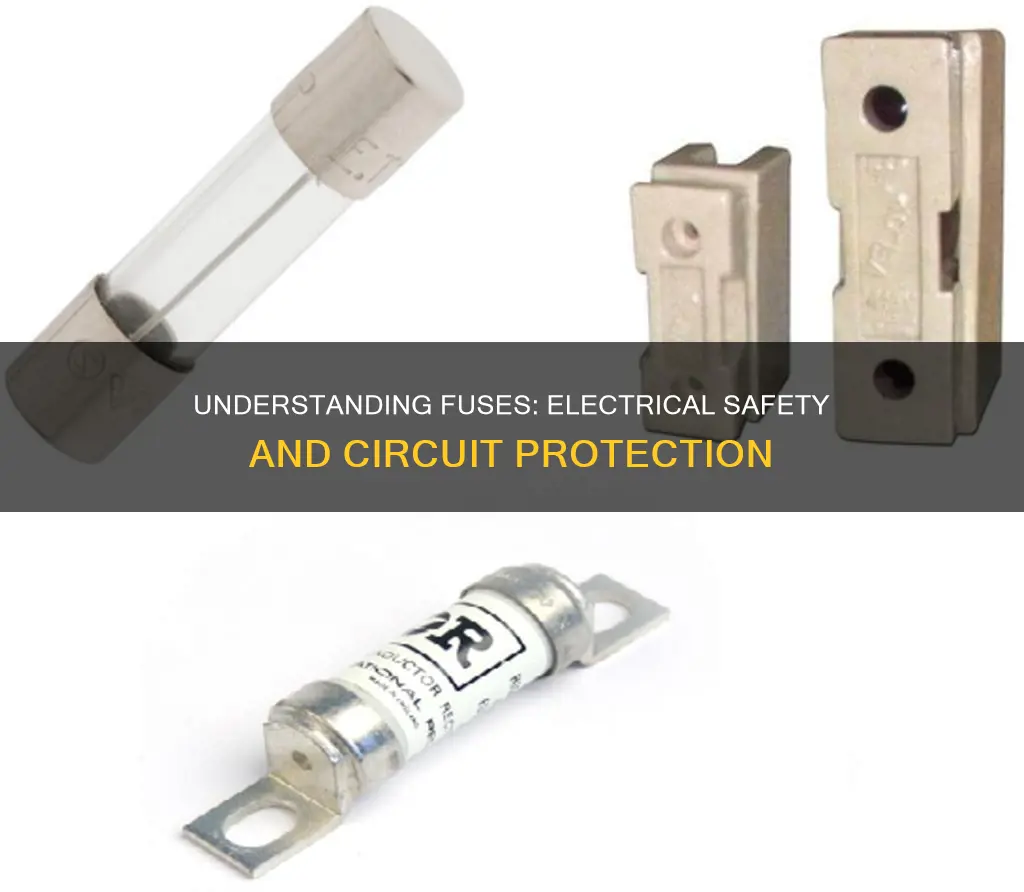

Fuses are electrical safety devices that protect electrical circuits and equipment from excessive current, preventing damage and mitigating safety hazards. They are designed to melt and separate when exposed to an excessive amount of current, interrupting the circuit and stopping the flow of electricity. Fuses are simple, inexpensive, and available in a variety of sizes, designs, and ratings, making them suitable for a wide range of applications. They are an essential component of modern electrical systems, providing protection and ensuring safe operation.
| Characteristics | Values |
|---|---|
| Purpose | To act as a safety device to protect electrical circuits and prevent damage or fire. |
| Function | To break a circuit by melting or separating if there is a fault causing excessive current. |
| Types | AC fuses (for alternating current), DC fuses (for direct current), cartridge fuses, Edison base fuses, Type S fuses, HRC fuses, fast-blow fuses, slow-blow fuses, time-delay fuses, semiconductor fuses |
| Materials | Zinc, copper, silver, aluminium, alloys of these metals, carbon tetrachloride |
| Power Rating | Measured in amps, indicates the maximum current a fuse will accept before blowing. |
| Current Rating | Should be slightly higher than the standard operating current of the device to prevent blowing during a low, harmless surge. |
| Operating Time | Varies depending on the fuse type and current, can range from 0.1 seconds to tens of seconds. |
| Advantages | Less costly and simpler than circuit breakers, quicker protection response time, easily replaced. |
| Disadvantages | Need to be replaced after blowing, which can be dangerous if not done properly. |
Explore related products
What You'll Learn
Fuses are essential safety devices
Fuses are made of a metal strip or wire, usually zinc, copper, silver, aluminium or alloys of these metals, chosen for their stable and predictable characteristics. The fuse is arranged in series to carry all the charge passing through the protected circuit. The metal is heated by the resistance of the current flowing through it, and if the current is too high, the fuse will melt and break the circuit, stopping the current and preventing damage or fire.
Fuses are designed to be easily replaceable, inserted into a holder rather than being directly soldered or bolted to the circuit. They are also inexpensive and simple compared to circuit breakers, which can be reset rather than replaced. However, circuit breakers can take longer to clear a fault, and they are more expensive and prone to failure.
The time and current operating characteristics of fuses vary according to their application. The fuse's current rating, measured in amps, indicates the maximum amount of current the fuse will accept before blowing. The fuse's operating time decreases as the current increases, and it will blow more quickly for a higher current.
Fuses are an important safety feature, preventing damage to wiring and equipment, mitigating short circuits, overloading, mismatched loads and device failure, and protecting against electrical fires.
Understanding Electrical Terminates: What Does It Mean?
You may want to see also
Explore related products
Fuses are used to mitigate short circuits, overloading, mismatched loads, or device failure
Fuses are electrical safety devices that protect electrical circuits from overcurrent. They are made of a metal wire or strip that melts when there is too much current, thereby stopping or interrupting the current. They are sacrificial devices, meaning that once a fuse has been used, it becomes an open circuit and must be replaced or rewired.
Mismatched loads can occur when the characteristics of the load do not match the characteristics of the fuse. This can be mitigated by selecting a fuse with the appropriate operating time and current characteristics for the load. For example, semiconductor devices that heat up rapidly when excess current flows may use a fast or ultrafast fuse.
Finally, fuses can also be used to protect against device failure. For example, a thermal fuse may be used in consumer equipment such as coffee makers or hair dryers to prevent overheating. Self-resetting fuses, which use a polymeric positive temperature coefficient (PPTC) thermistor, are often used in applications where replacement is difficult, such as aerospace or nuclear applications.
Understanding RCDs: Electrical Safety and Circuit Protection
You may want to see also
Explore related products
Fuses are made from metals with varying melting points
A fuse is an essential safety device used in electrical engineering to provide overcurrent protection for an electrical circuit. It consists of a metal strip or wire fuse element, usually enclosed by a non-combustible housing. The fuse is designed to melt or blow when exposed to a certain level of current, which varies depending on the specific fuse and its intended application. This process interrupts the circuit, preventing potential damage or fires.
Zinc, for example, is used in strip form as it does not melt very quickly with a small overload. Silver is another popular choice due to its high conductivity and resistance to oxidation. However, silver is more costly than other metals, so copper or an alloy of lead-tin is often used as a more economical alternative.
The specific design of a fuse, including the type of metal used, will depend on the intended application. For instance, a slow-blow fuse is used in electric motor protection, where inrush currents of up to ten times the normal operating current are common when the motor is started. In this case, a fuse with a higher melting point is necessary to prevent the fuse from blowing immediately. On the other hand, semiconductor fuses are designed to open very quickly in the event of an overcurrent, so a metal with a lower melting point would be chosen.
Fuses are also distinguished by their power rating, which indicates the maximum amount of current they can handle before blowing. This rating is measured in amps or amperes, the standard international unit of electromagnetic force. The specific rating of a fuse will depend on the application and the level of protection required.
Understanding Electrical Diagrams: What Does 'L/W' Mean?
You may want to see also
Explore related products
Fuses are categorised into AC and DC types
A fuse is an essential safety device that has been used since the early days of electrical engineering. It is a metal strip or wire fuse element, usually enclosed by a non-combustible housing. When a current passes through the fuse element, a small voltage drop is created, and some power is dissipated as heat. The fuse element is made of zinc, copper, silver, aluminium, or alloys to provide predictable trip currents.
DC fuses are larger in size compared to AC fuses due to the placement of their electrodes. The difficulty with DC fuses is that the arc produced by the direct current is challenging to extinguish due to the constant value of DC voltage, which is always above 0V. This makes it more likely for an electric arc to form between the melted wires. To minimise this risk, the electrodes in DC fuses are placed further apart, increasing the size of the fuse.
Open Circuits: Understanding the Concept of 'Open' in Electrical
You may want to see also
Explore related products
Fuses are simple to use and trip more quickly than circuit breakers
Fuses are simple electrical components that consist of a metal strip or wire fuse element, which is arranged in series to carry all the charge passing through the protected circuit. The fuse is designed to melt and break the circuit when exposed to high temperatures caused by excess current, preventing damage to the wiring and lowering the risk of fire. The size and construction of the fuse element is chosen so that the heat produced by a normal current does not cause it to attain a high temperature.
Fuses are simple to use and are often less costly than circuit breakers. When a fuse blows, the electrical supply to a particular circuit is immediately cut off, and the fuse can be safely replaced without the risk of electrocution. However, it is important to replace the fuse with one of the same amp rating to avoid the risk of fire. Circuit breakers, on the other hand, can be simply reset, which may encourage people to ignore faults.
Fuses are also advantageous due to their quick response time. They can clear a fault within a quarter cycle of the fault current, while a circuit breaker may take around half to one cycle. The response time of a fuse can be as fast as 0.002 seconds, compared to a circuit breaker's typical response time of 0.02 to 0.05 seconds. This makes fuses particularly suitable for protecting sensitive electrical equipment, where even a short exposure to an overload current could be damaging.
Fuses have been used as essential safety devices since the early days of electrical engineering, and they continue to play an important role in protecting electrical circuits. While circuit breakers have replaced fuses in many contexts, fuses are still preferred in certain applications due to their simplicity, cost-effectiveness, and faster response time.
Understanding the Basics of Electrical Terms: OC Definition and Usage
You may want to see also
Frequently asked questions
A fuse is a mechanical or electrical device that is an integral part of electrical circuits in homes, vehicles and everyday appliances. It is designed to break a circuit by melting or separating if a fault causes the flow of excessive current.
A fuse is a thin conductor that is designed to "fail" when its current rating is exceeded. It is a weak point intentionally placed in the circuit so that it is sacrificed when something goes wrong. The fuse is made of metal with a varying melting point, which is chosen based on the desired current rating of the fuse.
A fuse acts as a hidden protector in a home's wiring, keeping things safe. It helps to prevent fires and protects electrical equipment from damage.
Fuses can be categorised into two main groups: AC fuses and DC fuses. AC fuses are used in circuits with alternating current (AC) power, and DC fuses are used in circuits with direct current (DC) power. Fuses can also be categorised by their design and power rating within the application.
