MCCB stands for Molded Case Circuit Breaker, a type of electrical protection device that can handle higher current ratings and provide adjustable trip settings. It is used to protect electrical circuits from excessive current, which can cause overload or short circuit. MCCBs are typically used in industrial and commercial settings where higher power and more complex systems are required. They are larger in size and more expensive than MCBs (Miniature Circuit Breakers), which are commonly used in residential and light commercial applications.
MCCB Characteristics and Values Table
| Characteristics | Values |
|---|---|
| Full Form | Molded Case Circuit Breaker |
| Use Case | Used in industrial and commercial environments that require handling of higher power and more complex systems |
| Current Handling Capacity | Up to 1000A |
| Trip Settings | Adjustable |
| Size | Larger than MCBs |
| Construction | Durable and robust with a molded case to protect sensitive parts |
| Installation | Easy to install but requires proper cooling and ventilation |
| Maintenance | Critical for reliable operation; requires regular cleaning, lubricating, and testing |
| Safety | Provides protection against overload, short circuit faults, and switching circuits |
| Response Time | Instantaneous response to short circuit faults |
| Operation | Can be operated manually or remotely via shunt wires |
Explore related products
What You'll Learn
MCCB stands for Molded Case Circuit Breaker
MCCBs are larger in size compared to MCBs, making them more suitable for industrial and commercial setups where load demand is greater. They are capable of handling extremely high currents, up to 1000A or even 2500A in some cases. This makes them suitable for safeguarding large electrical loads in industrial applications.
The main function of an MCCB is to protect electrical circuits from excessive current, which can cause overload or short circuit faults. It provides an instantaneous response to short circuit faults, based on the principle of electromagnetism. The MCCB contains a solenoid coil that generates a small electromagnetic field when current passes through it. During normal operation, this field is negligible, but when a short circuit fault occurs, a large current flows through the solenoid, creating a strong electromagnetic field that attracts the trip bar and opens the contacts.
MCCBs also offer adjustable trip settings, allowing for greater flexibility in protecting against electrical faults. They can be manually operated and used as emergency disconnection switches. Additionally, MCCBs are more durable than fuses and require less frequent replacement. They are easy to install and ensure long-term efficiency in operations.
In summary, MCCB stands for Molded Case Circuit Breaker and is a vital electrical protection device used in industrial and commercial applications to safeguard electrical circuits and equipment from excessive current and potential damage caused by overload or short circuit faults.
IRM's Star Electrical Fundamentals: What Does It Mean?
You may want to see also
Explore related products
MCCB provides protection against overload and short circuits
MCCB stands for Molded Case Circuit Breaker. It is a type of electrical protection device that can handle higher current ratings than Miniature Circuit Breakers (MCBs) and can provide adjustable trip settings. MCCBs are used in industrial and commercial environments where higher current load capacity is required. They are also used when the load current exceeds the limit of an MCB.
MCCBs are designed to protect circuits and equipment from overload and short-circuit faults. They are protective devices that control the flow of electrical current within circuits, playing a vital role in maintaining the safety and integrity of electrical systems. They are capable of handling extremely high currents, up to 1000A, and are extensively used in industrial applications where large electrical loads need to be safeguarded.
MCCBs provide protection against overload and short circuits in the following ways:
- In the event of an overload, the temperature between the insulation and conductor increases. If the insulation is not checked, its life will reduce and maintenance will be required. MCCBs can catch this and improve the flow of the circuit.
- In the case of a short circuit, an MCCB can interrupt the current with a range from a few amperes to several kilo-amperes, quenching the arc in the air inside the moulded case.
- MCCBs can also prevent electricity flow by heating up when the circuit is overloaded, which causes the bimetallic components to lead to the cooling down of the MCCB.
MCCBs are useful for protecting the system against faults like overload and short circuit, enhancing the capability of the system and providing complete isolation to the circuit. They are an essential safety feature, preventing damage to the electrical system and reducing the risk of electrical fires.
Electrical Science: Understanding the Meaning of Electricity
You may want to see also
Explore related products
MCCB is used for higher current ratings
MCCB stands for Molded Case Circuit Breaker. It is a type of electrical protection device that can handle higher current ratings compared to Miniature Circuit Breakers (MCB). While MCBs are typically used for circuits with lower current ratings, usually not exceeding 100 Amperes, MCCBs can manage much higher currents, often extending up to 2500 Amperes or more. They are capable of handling extremely high currents, up to 1000A, and are extensively used in industrial applications where large electrical loads need to be safeguarded.
MCCBs are commonly used in commercial and industrial environments that require the handling of higher power and more complex systems. They are larger in size compared to MCBs, making them suitable for industrial settings where space is less of a constraint. The higher current handling capacity of MCCBs makes them ideal for larger commercial or industrial setups where the load demand is greater.
MCCBs offer adjustable trip settings, providing greater flexibility in protecting against electrical faults. This adjustability is particularly useful in high-current applications, where the circuit needs to be manually adjusted to trip at the desired current level. The rated current of an MCCB is an adjustable range, allowing for a more precise and tailored protection solution.
MCCBs play a crucial role in maintaining the safety and integrity of electrical systems by interrupting the current in cases of abnormal flow. They provide protection against overload, short circuit faults, and switching circuits. Their higher interrupting capacity means they can handle larger short-circuit currents without sustaining damage, further enhancing the reliability and safety of the electrical system.
Understanding Impedance: Electrical Resistance and Reactance Explained
You may want to see also
Explore related products
MCCB is larger than MCB
MCCB stands for Molded Case Circuit Breaker, while MCB stands for Miniature Circuit Breaker. Both are protective devices designed to interrupt the flow of current in cases of overload or short-circuiting. However, MCCB is larger than MCB.
MCCBs are used in industrial and commercial environments that require the handling of higher power and more complex systems. They are capable of handling extremely high currents, up to 1000A or even 2500A. They are also larger in size and require more space for installation. MCCBs need proper cooling and ventilation to operate successfully, and their higher capacity and adjustable features make them more expensive than MCBs.
MCBs, on the other hand, are smaller and more compact, making them suitable for residential and light commercial applications where space is constrained. They are typically used for circuits with lower current ratings, usually not exceeding 100 Amperes. MCBs are safer to handle than fuses and are easier to connect to existing electrical panels. They are also less expensive than MCCBs due to their lower capacity and fixed trip characteristics.
The main difference between MCCB and MCB lies in their current handling capacity. MCCB can handle much higher currents and is, therefore, more suitable for high energy requirements. It is also more durable and offers adjustable trip settings, providing greater flexibility in protecting against electrical faults. MCB, on the other hand, is better suited for low energy requirements due to its lower current handling capacity and fixed trip characteristics.
In summary, MCCB and MCB are both circuit breakers designed to protect electrical circuits. MCCB is larger and more suitable for industrial and commercial applications with higher power requirements, while MCB is smaller and more commonly used in residential and light commercial settings with lower power requirements.
Understanding LV Electricity: What Does It Mean?
You may want to see also
Explore related products

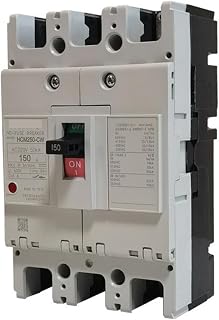

$669.98
MCCB is more durable than MCB
MCB stands for Miniature Circuit Breaker, while MCCB stands for Moulded Case Circuit Breaker. Both are protective devices designed to interrupt the flow of current in cases of overload or short-circuiting. They are used in homes and organisations to prevent potential electrical hazards.
MCCB also offers adjustable trip settings, providing greater flexibility in protecting against electrical faults. It has a movable tripping circuit, allowing for remote operation via shunt wires, which is not possible with MCB's fixed tripping circuit.
The larger size of MCCB makes it more suitable for industrial settings where space is less constrained. MCCB's higher interrupting capacity means it can handle larger short-circuit currents without sustaining damage, enhancing its durability compared to MCB.
In summary, MCCB's ability to handle higher currents, adjustable trip settings, remote operability, larger size, and higher interrupting capacity contribute to its increased durability compared to MCB. The choice between the two depends on the specific requirements of the electrical system, with MCCB being the preferred option for industrial and commercial applications with higher power needs.
Understanding the Basics of Electrical Terms: OC Definition and Usage
You may want to see also
Frequently asked questions
The full form of MCCB is Moulded Case Circuit Breaker.
MCCBs are electrical protection devices that control the flow of electrical current within the circuits. They protect the circuitry and wires from faults, and prevent damage and fires.
MCCBs are used in industrial and commercial settings where higher power and more complex systems are required. They are used for large electrical loads and can handle higher currents.
MCCBs are easy to install and offer long-term efficiency. They are more durable than fuses and do not need frequent replacement. They also provide adjustable trip settings for greater flexibility in protecting against electrical faults.
MCB stands for Miniature Circuit Breaker. While both MCCBs and MCBs are protective devices designed to interrupt the flow of current in cases of overload or short-circuiting, MCCBs can handle higher currents and have adjustable trip settings. MCCBs are larger in size and used in industrial settings, while MCBs are compact and suitable for residential homes.
