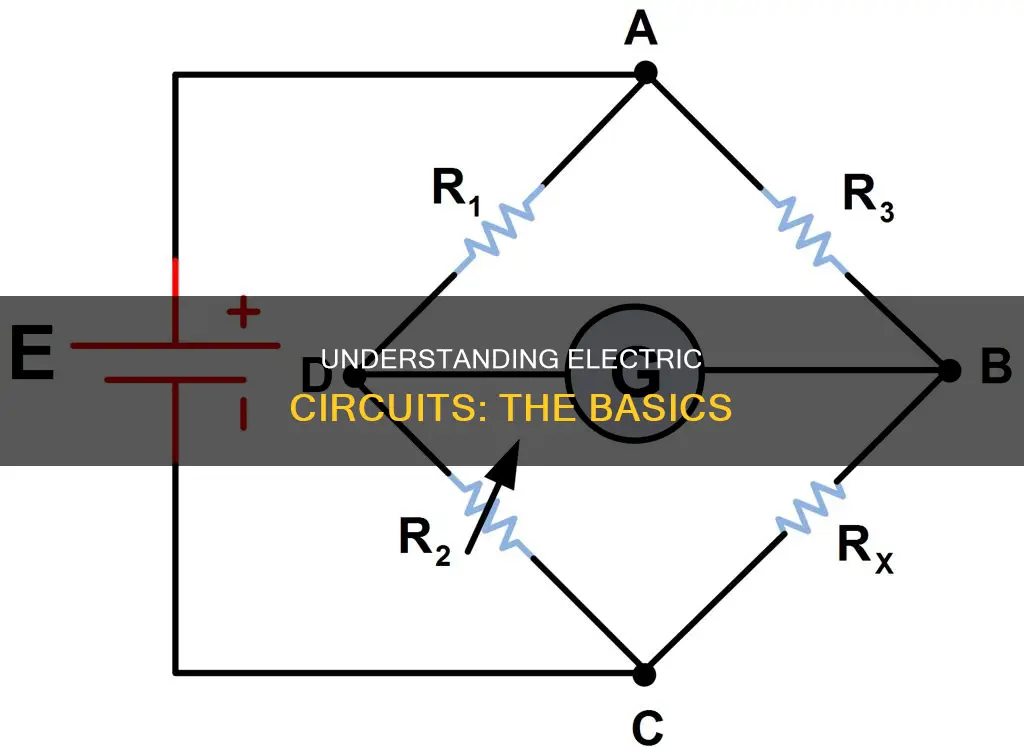

Electric circuits are closed-loop networks of electrical components that allow the flow of electrons. The basic components of a simple circuit include a power source, conductors, a switch, and a load. The power source, such as a battery, provides a voltage that pushes electric current, in the form of free electrons, through the circuit. This current is measured in Amperes, or Amps, and represents the flow rate of electrons. The load, or resistor, is where the electric potential energy of the current is converted into other forms, such as light or heat. The switch allows the circuit to be opened or closed, interrupting or completing the flow of current. Ohm's Law defines the relationship between voltage, current, and resistance in a circuit, and is used to determine the values of these parameters to ensure the circuit functions as intended. Understanding these principles is crucial to working with electric circuits, as improper handling can be dangerous and even lethal.
| Characteristics | Values |
|---|---|
| Definition | Electricity is the flow of electric current along a conductor. |
| Electric Current | The movement of free electrons from one atom to another. |
| Parameters | Volt, Ampere, and Ohm. |
| Electromotive Force (EMF) | The pressure on free electrons that causes them to flow. |
| Voltage | The amount of electromotive force required to push a current. |
| Ampere | The flow rate of electric current, equal to 6.241x10^18 electrons (1 Coulomb) per second. |
| Ohm | The unit of resistance in a conductor. |
| Ohm's Law | Defines the correlation between electric current, voltage, and resistance. |
| Ampacity | The maximum current a conductor can handle before exceeding temperature limits. |
| Resistance | Opposition to the flow of current, influenced by factors like pipe width in water analogies. |
| Capacitor | A device that stores energy in an electric field between two conducting surfaces. |
| Inductor | Stores energy in a magnetic field and can maintain current flow when a voltage source is removed. |
| Electric Circuit | A closed-loop allowing electron flow, comprising a power source, conductors, switches, and load. |
Explore related products
What You'll Learn
Electric circuits are closed loops
Conductors are typically made of copper wires and connect the power source to the load. The load is the resistor, which can be a light bulb, for example. When the circuit is complete and closed, the bulb lights up. The switch is a small gap in the circuit, which can be used to open or close the circuit, interrupting the flow of current.
The electric current in a closed-loop circuit flows from the positive end to the negative end. This flow of current is measured in amperes, or amps, which represent the number of electrons passing through a given point in the circuit per second. The higher the number of amps, the higher the flow of current.
Ohm's Law defines the relationship between electric current, voltage, and resistance in a conductor. It is expressed as V = I x R, where V is voltage, I is current, and R is resistance. This law is useful for determining the resistor value required to achieve a desired current.
How Circuit Breakers Control Electric Flow
You may want to see also
Explore related products
Voltage, current, and resistance
Electric circuits are based on the flow of electric current along a conductor. This electric current is made up of free electrons that move from one atom to another. Voltage, current, and resistance are the three critical factors that influence this flow of electric current.
Voltage is the difference in charge between two points in a circuit. It is measured in volts and represents the potential energy difference between the two points. One volt is defined as the potential energy difference that will impart one joule of energy per coulomb.
Current is the rate at which this charge flows and is measured in amperes or amps. One ampere is defined as 6.241 x 10^18 electrons (or one coulomb) per second passing through a point in a circuit. In equations, amps are represented by the letter "I".
Resistance is a material's tendency to resist the flow of charge or current. It is measured in ohms and is represented by the Greek letter omega (Ω). One ohm is defined as the resistance between two points in a conductor where one volt will push one ampere or 6.241 x 10^18 electrons.
Ohm's Law defines the relationship between voltage, current, and resistance in a circuit. The law is expressed as V = I x R, where V is voltage, I is current, and R is resistance. This law allows us to calculate the voltage, current, or resistance in a circuit when the other two values are known.
By manipulating resistance in a circuit, we can control the amount of current flowing through it. For example, adding a resistor in series with an LED can limit the current flowing through it, preventing it from exceeding its maximum current rating.
Understanding Shop Drawings with Lincoln Electric
You may want to see also
Explore related products
Ohm's Law
The law states that the electric current flowing through a fixed linear resistance is directly proportional to the voltage applied across it but inversely proportional to its resistance. In other words, as voltage increases, so does current, and as resistance increases, current decreases. This relationship is analogous to the flow of water through pipes of varying widths. The narrower pipe "resists" the flow of water, similar to how higher resistance impedes the flow of electric current.
Electrical Stovetops in Basements: Are They Safe?
You may want to see also
Explore related products
Electric potential and energy
The principle of an electric circuit is based on the movement of electric current along a conductor, which is typically a wire. This movement of current is made possible by the presence of free electrons that can transfer from one atom to the next. The more free electrons a material has, the better its conductivity.
Electric potential energy, on the other hand, is the total potential energy a unit charge possesses at any point in space. It is a scalar quantity with only magnitude and no direction, and it is measured in Joules. Electric potential energy depends on two key elements: the electric charge of an object and its relative position to other electrically charged objects. When an object is moved against the electric field, it gains electric potential energy, which is calculated by dividing the potential energy by the quantity of charge.
In an electrical circuit, the potential between two points is defined as the amount of work done by an external agent to move a unit charge from one point to another. This is similar to the concept of water pressure and flow rate in a hose, where voltage is analogous to pressure, and current is analogous to the flow rate.
Ohm's Law defines the relationship between electric current (I), voltage (V), and resistance (R) in a conductor, with the equation V = I x R. Voltage, also known as electric potential difference, represents the pressure or force that causes electrons to flow in a circuit. Current, measured in Amperes (Amps), represents the flow rate of electric current, or the number of electrons passing a given point in a circuit per second. Resistance, measured in Ohms, is the opposition to the flow of current in a circuit, similar to how a narrower hose restricts the flow of water.
By manipulating the values of voltage, current, and resistance in a circuit, one can control the flow of current and ensure it remains within safe limits, as outlined in various electrical codes and standards.
Unlocking Roller Shutters: No Electricity, No Problem
You may want to see also
Explore related products
Capacitors and inductors
Electric circuits are based on the flow of electric current along a conductor. This current is created by the movement of electrons from one atom to another. The three primary electrical parameters are volts, amperes, and ohms. Volts are the unit of pressure, amperes define the flow rate of electric current, and ohms are the unit of resistance in a conductor.
Capacitors store energy in an electric field. When a capacitor is connected to a voltage source, its voltage gradually increases, and its current gradually decreases. The rate of charging and discharging a capacitor is governed by the RC time constant. If a capacitive circuit is disconnected from a power supply, the capacitor will temporarily maintain the voltage.
Inductors, on the other hand, store energy in a magnetic field. When an inductor is connected to a voltage source, its current gradually increases, and its voltage gradually decreases. Inductors often produce voltage fluctuations, either intentionally or unintentionally. The rate of charging and discharging an inductor is governed by the RL time constant, which is the inductance multiplied by the resistance in series with the inductor. If an inductive circuit is disconnected from a power supply, the inductor will temporarily maintain the current.
In summary, capacitors resist changes in voltage, while inductors resist changes in current. They are, in a sense, opposites of each other. As the frequency increases, capacitors can start to behave like inductors, and vice versa, as their parasitics catch up with their component values.
Dorian Electra's Musical Journey: A Comprehensive Song Count
You may want to see also
Frequently asked questions
An electric circuit is a closed-loop or path that forms a network of electrical components, where electrons can flow. It is complete when there is at least one closed loop from the positive end to the negative end.
A simple electric circuit comprises a power source (cell), conductors, a switch, and a load (resistor). The conductors are made of copper wires with no insulation. The switch is used to open or close the circuit.
The three primary electrical parameters are the volt, the ampere, and the ohm. Voltage is the pressure that causes electrons to flow, amperes define the flow rate of electric current, and ohms are the unit of resistance in a conductor.
