The time constant of an electrical circuit, denoted by the Greek letter tau (𝜏), is a fundamental concept in electrical engineering that describes the circuit's response to changes in voltage or input. It is particularly relevant in the analysis of capacitive and inductive circuits, such as RC (resistor-capacitor) and RL (resistor-inductor) circuits. The time constant is defined as the product of the circuit's resistance and capacitance or the ratio of inductance to resistance, depending on the circuit type. This value signifies the circuit's growth or decay rate, with lower time constants indicating faster growth or decay. In an RC circuit, the time constant represents the duration for the capacitor to charge or discharge to a specific percentage of its voltage, typically around 63% or 36.8%. Understanding the time constant is crucial for characterizing the behaviour of complex electrical circuits and their transition between different states.
| Characteristics | Values |
|---|---|
| Definition | The time constant is the response time of a first-order linear time-invariant (LTI) system to a step input. |
| Symbol | Tau, denoted by the Greek letter τ. |
| RC Time Constant | The time constant of a resistor–capacitor circuit (RC circuit) is equal to the product of the circuit resistance and the circuit capacitance. |
| Time Taken | The time required to charge the capacitor, through the resistor, from an initial charge voltage of zero to approximately 63.2% of the value of an applied DC voltage. |
| Discharge Time | The time required to discharge a capacitor to about 36.8% of its value. |
| Significance | The time constant shows how long it takes for the current in a capacitor to drop to 36.7% of its initial value. |
| RL Circuit Time Constant | The time constant of an RL circuit is defined as the ratio of inductance (L) to resistance (R). |
| Significance in RL Circuits | The time constant indicates how long it takes for the current in an inductor to reach 63.3% of its final value. |
Explore related products
What You'll Learn
RC time constant

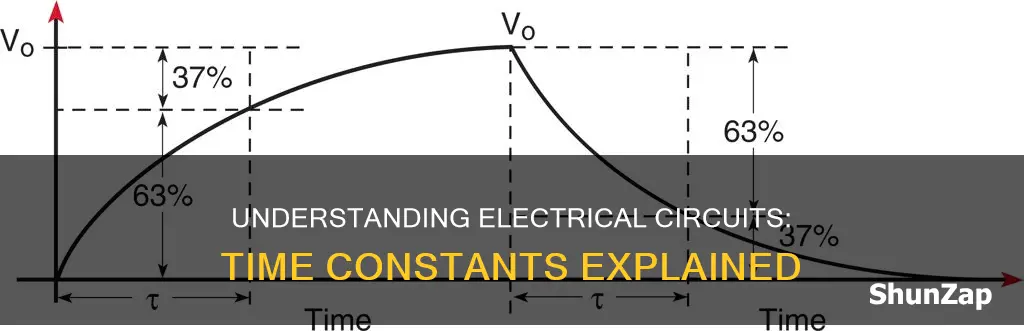

The time constant of a resistor-capacitor (RC) circuit is denoted by the Greek letter tau, τ, and is defined as the response time of a first-order linear time-invariant (LTI) system to a step input. It is the product of the circuit's resistance (R) and capacitance (C) and is measured in seconds. In other words, it is the time required to charge the capacitor through the resistor from an initial charge voltage of zero to approximately 63.2% of the value of the applied DC voltage. Conversely, it is also the time required to discharge the capacitor through the same resistor to approximately 36.8% of its initial charge voltage.
The RC time constant is important because it signifies the circuit's growth or decay rate. A lower value of the time constant indicates a higher rate of growth or decay, while a higher value means a lower rate. The time constant also helps to determine the rate of charging or discharging of a capacitor through a resistor. The charging of a capacitor is not instantaneous and takes time to occur, with the rate of charging being fastest at the start and then slowing down exponentially. The time constant is used to represent the time response of the circuit when an input step voltage or signal is applied.
In more complex circuits with multiple resistors and/or capacitors, the open-circuit time constant method can be used to approximate the cutoff frequency by summing up the individual RC time constants. The time constant also plays a crucial role in improving the speed of microelectronic integrated circuits (ICs). By reducing resistance or capacitance, the RC delay, which hinders IC speed improvements, can be minimised.
The time constant of an RC circuit can be calculated using the equation τ = R x C, where R is the resistance in ohms and C is the capacitance in farads. This equation represents the relationship between the circuit's resistance and capacitance, providing insight into the circuit's behaviour and response to changes in voltage or input.
The Perfect Electric Brush Paste Application
You may want to see also
Explore related products
Time constant in RLC circuits
An RLC circuit is an electrical circuit consisting of a resistor (R), an inductor (L), and a capacitor (C), connected in series or in parallel. The time constant of an RLC circuit is a fundamental quantity that describes how a system transitions between two driving states in the time domain.
The time constant of an RLC circuit is not the same as that of a charging capacitor. Instead, the system has a damping constant, which defines how the system transitions between two states. The time constant in an RLC circuit is essentially equal to the damping constant. However, the actual transient response in these systems depends on the relationship between the damping constant and the natural frequency of the system.
The time constant of an RLC circuit is important for understanding the behaviour of complex electrical circuits. It is a measure of the rate of growth or decay of the circuit. The lower the value of the time constant, the higher the rate of growth or decay, and vice versa.
The time constant of an RLC circuit can be determined by hand for simple underdamped RLC circuits, such as parallel or series RLC circuits. For more complex circuits, the time constant needs to be extracted from measurements or simulation data.
The time constant of an LR circuit is defined as the ratio of inductance (L) to resistance (R). It indicates how long it takes for the current in an inductor to reach 63.3% of its final value. On the other hand, the time constant of an RC circuit is defined as the product of resistance (R) and capacitance (C). It represents the time required to charge the capacitor through the resistor from zero to approximately 63.2% of the applied DC voltage.
The Electro Compass: How Far Does It Stray From Magnets?
You may want to see also
Explore related products
Tau and its significance
Tau, denoted by the Greek letter τ, is a crucial concept in electrical circuits, specifically resistor-capacitor (RC) circuits. It represents the time constant of a circuit, which is a measure of how the circuit behaves over time in response to changes.
In an RC circuit, the presence of resistors and capacitors leads to fluctuations in the circuit's condition due to changing voltage levels and input. When a voltage change occurs, the circuit takes time to adjust and respond to the new input. This response time is characterised by Tau.
Mathematically, Tau is defined as the product of the circuit's resistance (in ohms) and capacitance (in farads), given in seconds. It represents the time required to charge a capacitor through a resistor from zero voltage to approximately 63.2% of the applied DC voltage. Conversely, it also represents the time to discharge a capacitor to approximately 36.8% of its initial voltage. This value is significant because it indicates the circuit's growth or decay rate. A lower Tau value corresponds to a higher growth or decay rate, while a higher Tau value leads to a slower rate of change.
The significance of Tau lies in its ability to characterise the behaviour of a circuit over time. It provides insights into how long it takes for a circuit to respond to changes in voltage or input. This information is crucial in understanding the dynamics of a circuit and can help engineers and physicists make informed decisions when designing and analysing electrical systems.
Furthermore, Tau is essential in the design of microelectronic integrated circuits (IC). As semiconductor feature sizes decrease to increase the clock rate, the resistive-capacitive (RC) delay, characterised by Tau, becomes a critical factor. By understanding and minimising this delay, engineers can improve the speed and performance of integrated circuits, leading to advancements in various electronic devices and systems.
Adjusting Your Electric Awning: Perfecting the Pitch
You may want to see also
Explore related products
Time constant in LR circuits
A time constant is the duration in seconds during which the current through a capacities circuit becomes 36.7% to 36.8% of its initial value. In an RC circuit, the time constant is the product of resistance (R) and capacitance (C).
An LR series circuit consists of an inductor of inductance, L, connected in series with a resistor of resistance, R. The time constant of an LR circuit is defined as the ratio of inductance (L) to resistance (R), or τ = L/R. The time constant is a measure of how quickly the circuit approaches a steady state.
The time required for the current flowing in the LR series circuit to reach its maximum steady-state value is equivalent to about 5 time constants or 5τ. The transient time of any inductive circuit is determined by the relationship between the inductance and the resistance. For a fixed value of resistance, a larger inductance results in a slower transient time and a longer time constant for the LR series circuit. Conversely, for a fixed value of inductance, increasing the resistance value will shorten the transient time and the time constant of the circuit.
The time constant is important because it signifies the circuit's growth rate or decay. The lower the value of the time constant of a circuit, the higher the rate of growth or decay of the circuit. The higher the value of the time constant of a circuit, the lower the rate of growth or decay.
Electric Prices: Will They Ever Decrease?
You may want to see also
Explore related products
![[2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB, Smart Home Controller](https://m.media-amazon.com/images/I/81WS9ok2FqL._AC_UL320_.jpg)
Time constant and its meaning
The time constant, denoted by the Greek letter tau (𝜏), is a term used in the analysis of the behaviour of capacitive and inductive circuits. It is defined as the response time of a first-order linear time-invariant (LTI) system to a step input. In other words, it is a measure of how quickly a circuit responds to changes in voltage or input.
In an RC circuit, which contains resistors and capacitors, the time constant is the product of the circuit's resistance (R) and capacitance (C). It is expressed in seconds and can be calculated using the equation:
𝜏 = R x C
The time constant is significant because it indicates the rate of growth or decay of the circuit. A lower time constant corresponds to a higher rate of growth or decay, while a higher time constant indicates a lower rate of growth or decay.
In terms of voltage, the time constant can be described as the time required to charge a capacitor through a resistor from zero voltage to approximately 63.2% of the value of the applied DC voltage. Conversely, it is also the time required to discharge a capacitor to approximately 36.8% of its initial voltage. This can be calculated using the formula:
V(t) = V0(1-e^-t/𝜏)
The time constant is an important value in understanding the behaviour of complex electrical circuits and their responses to changes in voltage or input.
Electric Spark vs Pilot Light: Which is Superior?
You may want to see also
Frequently asked questions
The time constant in an electrical circuit is the duration in seconds during which the current through a capacitive circuit becomes 36.7-36.8% of its initial value. It is denoted by the Greek letter tau (𝜏).
The RC time constant is the time constant of a resistor-capacitor circuit. It is the time required to charge the capacitor through the resistor to 63.2% of the applied DC voltage.
The time constant signifies the circuit's growth or decay rate. A lower time constant value indicates a higher growth or decay rate, while a higher time constant value indicates a lower growth or decay rate.
The time constant of an RLC circuit can be determined by hand or with a circuit simulator. It describes how the system transitions between two driving states in the time domain.
