Electric current, the flow of electric charge through a conductor, is measured using an ammeter, a device specifically designed for this purpose. Ammeters are connected in series within a circuit to directly measure the current passing through it, ensuring minimal resistance to avoid disrupting the circuit's operation. The unit of electric current is the ampere (A), named after the French physicist André-Marie Ampère. Modern ammeters can be analog, with a needle moving across a scale, or digital, displaying numerical values. Additionally, multimeters, which combine multiple measurement functions, including current, voltage, and resistance, are commonly used for versatility in electrical testing and troubleshooting. Understanding how to measure current accurately is essential for diagnosing circuit issues, ensuring safety, and optimizing the performance of electrical systems.
| Characteristics | Values |
|---|---|
| Device Name | Ammeter |
| Primary Function | Measures electric current in a circuit |
| Unit of Measurement | Amperes (A) |
| Connection Type | Connected in series with the circuit |
| Types | Analog (moving coil), Digital, Clamp, Multirange, Moving-Iron, Hall Effect |
| Accuracy | Varies by type; digital ammeters typically ±0.1% to ±1% |
| Range | Varies; common ranges include 0-10A, 0-20A, 0-50A, etc. |
| Response Time | Digital: milliseconds; Analog: slower, depends on mechanical components |
| Power Source | Battery-operated or externally powered |
| Safety Features | Overload protection, insulation, and fuse protection |
| Applications | Electrical troubleshooting, industrial monitoring, laboratory use |
| Display | Analog: needle pointer; Digital: LCD or LED display |
| Size | Varies from handheld to panel-mounted devices |
| Cost | Ranges from $10 (basic) to $500+ (high-precision models) |
| Calibration | Required periodically to maintain accuracy |
| Environmental Resistance | Some models are waterproof, dustproof, or shockproof |
Explore related products
What You'll Learn
- Ammeters: Devices specifically designed to measure electric current in circuits accurately
- Multimeters: Tools that measure current, voltage, and resistance in various applications
- Clamp Meters: Non-contact devices to measure current flowing through a conductor
- Shunt Resistors: Low-resistance components used to divert and measure current in circuits
- Hall Effect Sensors: Devices using magnetic fields to measure current without direct contact
Ammeters: Devices specifically designed to measure electric current in circuits accurately
Electric current, the flow of electrons through a conductor, is a fundamental concept in electrical circuits. To quantify this flow accurately, ammeters are employed as specialized tools. These devices are designed to measure current directly, providing precise readings essential for troubleshooting, design, and maintenance in various applications. Unlike multimeters, which offer multiple functions, ammeters focus solely on current measurement, ensuring optimal accuracy and reliability in their specific role.
Types and Functionality
Ammeters come in two primary categories: analog and digital. Analog ammeters use a needle deflected by the current to indicate its value on a calibrated scale, offering a visual, real-time measurement. Digital ammeters, on the other hand, display numerical values on an LCD or LED screen, often with higher precision and additional features like data logging. Both types rely on the principle of measuring the voltage drop across a known resistance (shunt resistor) or using Hall effect sensors for high-current applications. For instance, a clamp ammeter allows non-invasive current measurement by clamping around a conductor, making it ideal for live circuits.
Practical Considerations
When using an ammeter, proper connection is critical. The device must be placed in series with the circuit to measure the total current flowing through it. Incorrect placement, such as in parallel, can damage the ammeter or lead to inaccurate readings. Additionally, selecting the appropriate range is essential to avoid overloading the device. For example, measuring a 10A circuit with a 200A range will result in poor resolution, while using a 1A range for a 100A circuit can damage the ammeter. Always start with the highest range and adjust downward to ensure safety and accuracy.
Applications and Limitations
Ammeters are indispensable in industries ranging from electronics to automotive and power distribution. In automotive diagnostics, they help identify issues like short circuits or high-resistance connections. In renewable energy systems, they monitor current output from solar panels or wind turbines. However, ammeters have limitations. They cannot measure current in battery-powered devices without breaking the circuit, and they are not suitable for high-frequency AC measurements, where specialized instruments like current probes are required. Understanding these constraints ensures effective use in the right context.
Advancements and Future Trends
Modern ammeters incorporate advanced features like Bluetooth connectivity, enabling wireless data transmission to smartphones or computers for analysis. Some models include safety enhancements, such as high-voltage insulation and automatic range selection, reducing user error. As technology evolves, we can expect more compact, efficient, and versatile ammeters, potentially integrating artificial intelligence for predictive maintenance. For hobbyists and professionals alike, staying updated on these innovations ensures access to the most accurate and user-friendly tools for current measurement.
Using PVC Electrical Conduit Indoors: Safety, Benefits, and Installation Tips
You may want to see also
Explore related products
Multimeters: Tools that measure current, voltage, and resistance in various applications
Electric current, the flow of electrons through a conductor, is a fundamental concept in electrical systems. To measure this flow accurately, multimeters have become indispensable tools. These devices combine the functions of an ammeter (for current), voltmeter (for voltage), and ohmmeter (for resistance) into a single, portable unit. Whether you're a professional electrician, a hobbyist, or a DIY enthusiast, understanding how to use a multimeter can save time, prevent errors, and ensure safety in electrical projects.
Steps to Measure Current with a Multimeter:
- Set the Multimeter: Turn the dial to the appropriate current range (AC or DC). For most household applications, start with the highest range and adjust downward if needed.
- Break the Circuit: Disconnect power to the circuit you’re testing to insert the multimeter in series with the load.
- Connect the Probes: Attach the red probe to the positive terminal and the black probe to the negative terminal. Ensure proper polarity to avoid damaging the device.
- Read the Display: Observe the multimeter’s screen for the current value. Typical household circuits operate at 15–20 amps, while sensitive electronics may draw only milliamps (mA).
Cautions When Measuring Current:
Always prioritize safety. Never measure current in live circuits without proper training or precautions. High-current applications (e.g., industrial machinery) require specialized multimeters rated for such loads. Avoid overloading the multimeter by exceeding its maximum current rating, as this can cause permanent damage or injury.
Comparative Advantage of Multimeters:
Unlike single-function meters, multimeters offer versatility across applications. For instance, while an ammeter solely measures current, a multimeter can diagnose voltage drops in a circuit or identify faulty resistors in a device. This all-in-one capability makes it a cost-effective and efficient tool for troubleshooting electrical issues.
Practical Tips for Multimeter Use:
- Calibration: Regularly check your multimeter’s accuracy using a known voltage or resistance source.
- Probe Maintenance: Keep probes clean and undamaged to ensure reliable readings.
- Battery Check: Replace the multimeter’s battery if readings become erratic or unresponsive.
- Application-Specific Settings: Use the diode or continuity test modes for advanced diagnostics, such as identifying open circuits or testing transistors.
In summary, multimeters are essential for measuring electric current and other electrical parameters with precision and flexibility. By mastering their use, you can tackle a wide range of tasks, from simple home repairs to complex industrial diagnostics, ensuring both efficiency and safety.
Full Spectrum vs. LED Bulbs: Which Saves More Energy?
You may want to see also
Explore related products

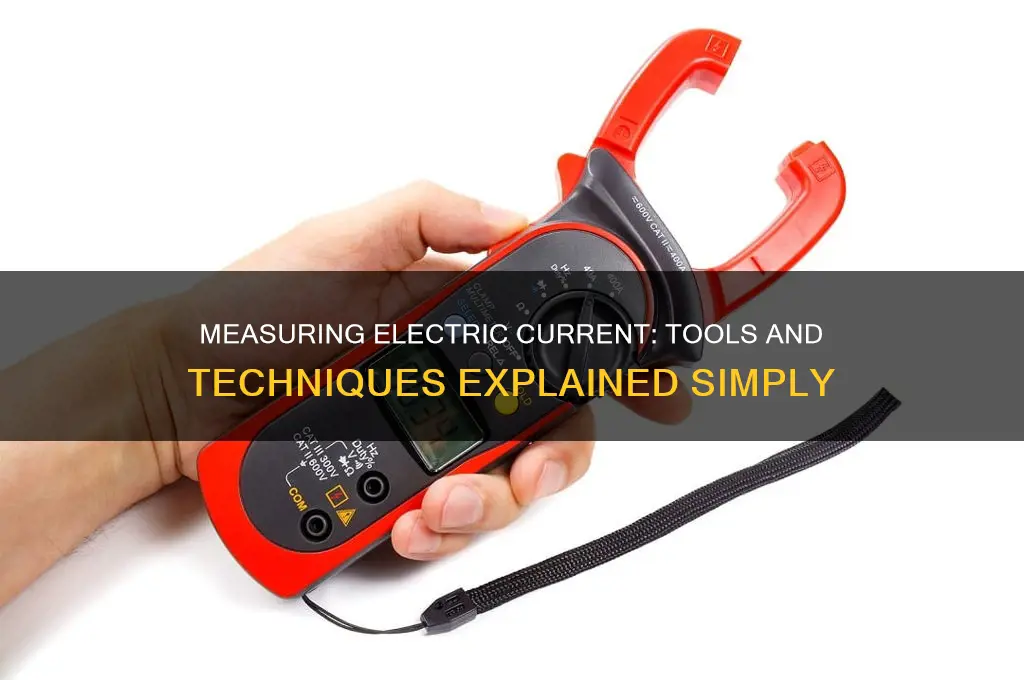

Clamp Meters: Non-contact devices to measure current flowing through a conductor
Electric current measurement is a critical task in various industries, from electrical engineering to home maintenance. While traditional methods like multimeters require direct contact with the circuit, clamp meters offer a safer, non-invasive alternative. These devices are designed to measure current flowing through a conductor without physically interrupting the circuit, making them ideal for live systems. By simply clamping around a wire or cable, clamp meters detect the magnetic field generated by the current, providing accurate readings without the risk of electrical shock or system disruption.
Consider a scenario where an electrician needs to diagnose an overloaded circuit in a residential panel. Using a clamp meter, they can quickly identify which circuit is drawing excessive current by clamping the meter around each wire in turn. This non-contact approach eliminates the need to disconnect or de-energize the circuit, saving time and reducing potential hazards. Modern clamp meters often feature digital displays, offering precise measurements in amperes (A) and sometimes additional parameters like voltage or frequency. Some advanced models even include Bluetooth connectivity for remote monitoring, enhancing both safety and efficiency.
One of the key advantages of clamp meters is their versatility. They can measure both AC (alternating current) and DC (direct current), making them suitable for a wide range of applications, from troubleshooting automotive electrical systems to maintaining industrial machinery. However, it’s essential to select the right clamp meter for the task. For instance, a low-current clamp meter with a resolution of 0.1A is ideal for sensitive electronics, while a high-current model capable of measuring up to 1000A is better suited for heavy-duty applications. Always ensure the meter’s jaw size accommodates the conductor diameter for accurate readings.
Despite their convenience, clamp meters have limitations. They cannot measure current in multiple parallel conductors simultaneously unless specifically designed for that purpose. Additionally, they are ineffective for measuring current in ground wires or when the conductor is too small to fit within the clamp. Users should also be cautious of external magnetic fields, which can interfere with readings. To maximize accuracy, position the clamp perpendicular to the conductor and ensure the wire is centered within the jaw. Regular calibration and adherence to the manufacturer’s guidelines are crucial for reliable performance.
In conclusion, clamp meters are indispensable tools for anyone working with electrical systems. Their non-contact design prioritizes safety and efficiency, allowing professionals to measure current in live circuits without disruption. By understanding their capabilities and limitations, users can leverage these devices effectively, ensuring accurate diagnostics and maintenance. Whether for residential, automotive, or industrial use, clamp meters exemplify innovation in current measurement technology, combining precision with practicality.
Electric Griddle as Warming Tray: Creative Kitchen Hacks Revealed
You may want to see also
Explore related products
Shunt Resistors: Low-resistance components used to divert and measure current in circuits
Electric current measurement is a cornerstone of circuit analysis and power management, and one of the most precise tools for this task is the shunt resistor. These low-resistance components are strategically placed in series with the circuit to divert a portion of the current, allowing for accurate measurement without significantly affecting the circuit’s operation. Unlike high-resistance devices that might disrupt the flow, shunt resistors are designed to minimize voltage drop, ensuring the circuit’s performance remains uncompromised. This makes them ideal for applications requiring both precision and minimal interference, such as battery management systems, motor controls, and power supplies.
To understand how shunt resistors work, consider their role in current measurement. When current flows through a shunt resistor, it generates a voltage drop proportional to the current, as dictated by Ohm’s Law (*V = IR*). By measuring this voltage drop across the shunt, the current can be calculated with high accuracy. For instance, a 10-milliohm shunt carrying 100 amperes would produce a 1-volt drop, easily measurable with a voltmeter. This direct relationship between current and voltage drop simplifies the measurement process, making shunt resistors a preferred choice in high-current applications where amperage meters or Hall effect sensors might be less practical.
Selecting the right shunt resistor involves careful consideration of key parameters. The resistance value, typically ranging from micro-ohms to milliohms, must be low enough to avoid significant power loss but high enough to produce a measurable voltage drop. Power rating is another critical factor, as the shunt must dissipate heat generated by the current without overheating. For example, a 50-milliohm shunt rated for 100 watts can safely handle currents up to 141 amperes. Additionally, the shunt’s temperature coefficient should be low to maintain accuracy across varying environmental conditions. Practical tips include using heat sinks for high-power applications and ensuring proper mounting to maximize heat dissipation.
While shunt resistors offer unparalleled accuracy, they are not without limitations. Their low resistance can introduce slight voltage drops, which, though minimal, may affect sensitive circuits. Furthermore, they are best suited for DC or low-frequency AC applications, as high-frequency currents can lead to inductive effects that skew measurements. Despite these constraints, shunt resistors remain a reliable and cost-effective solution for current measurement in industrial and automotive systems. When paired with a high-precision voltmeter or analog-to-digital converter, they provide a robust method for monitoring current in real-time, ensuring optimal performance and safety in critical applications.
In summary, shunt resistors are indispensable tools for measuring electric current, offering a balance of precision, efficiency, and practicality. By diverting current and generating a measurable voltage drop, they enable accurate monitoring without disrupting circuit operation. While their application requires careful parameter selection and awareness of limitations, their reliability in high-current scenarios makes them a go-to choice for engineers and technicians alike. Whether in battery management, motor control, or power distribution, shunt resistors exemplify how simplicity and ingenuity can solve complex measurement challenges.
Do Appliances Still Consume Power When Turned Off?
You may want to see also
Explore related products
Hall Effect Sensors: Devices using magnetic fields to measure current without direct contact
Electric current measurement traditionally relies on direct contact methods like ammeters, which can be invasive and risky in high-voltage systems. Hall Effect sensors, however, offer a non-invasive solution by leveraging magnetic fields to measure current flow without physical connection to the conductor. This technology is particularly valuable in applications where safety, isolation, and precision are critical, such as automotive systems, industrial machinery, and renewable energy setups.
How Hall Effect Sensors Work:
At the core of a Hall Effect sensor is a semiconductor material placed perpendicular to the current-carrying conductor. When current flows, it generates a magnetic field that interacts with the semiconductor, causing charge carriers to deflect. This deflection creates a voltage difference, known as the Hall voltage, which is proportional to the current. By measuring this voltage, the sensor accurately determines the current without direct contact. The key advantage lies in its ability to operate in high-voltage environments while maintaining electrical isolation, reducing the risk of short circuits or damage.
Practical Applications and Benefits:
Hall Effect sensors are widely used in automotive systems to monitor battery currents, motor control, and ignition timing. For instance, in electric vehicles, these sensors ensure precise current measurement for efficient power management. In industrial settings, they are employed in variable speed drives and power supplies, where reliability and safety are paramount. Additionally, their non-invasive nature makes them ideal for retrofitting into existing systems without disrupting the circuit. Unlike shunt resistors, which require direct connection and can introduce energy loss, Hall Effect sensors offer a contactless, low-power alternative.
Considerations and Limitations:
While Hall Effect sensors excel in many applications, they are not without limitations. Their accuracy can be affected by temperature variations, requiring compensation techniques for reliable performance. Additionally, they are sensitive to external magnetic fields, which can introduce errors if not properly shielded. Cost is another factor, as high-precision sensors can be more expensive than traditional methods. However, advancements in semiconductor technology continue to improve their efficiency and affordability, making them increasingly accessible for a broader range of applications.
Implementation Tips:
When integrating Hall Effect sensors, ensure the sensor is positioned correctly relative to the conductor to maximize accuracy. Use shielding materials to minimize interference from external magnetic fields. For temperature-sensitive applications, select sensors with built-in compensation or pair them with external temperature sensors. Regular calibration is also recommended to maintain precision over time. By understanding these nuances, engineers and technicians can harness the full potential of Hall Effect sensors for safe, efficient current measurement.
Lysol Wipes on Electric Stoves: Safe Cleaning Tips and Precautions
You may want to see also
Frequently asked questions
The primary device used to measure electric current is an ammeter.
An ammeter measures electric current by being connected in series with the circuit, allowing all the current to flow through it for accurate measurement.
Yes, other tools like a multimeter (set to current mode) or a current clamp meter can also measure electric current, offering versatility in different applications.
