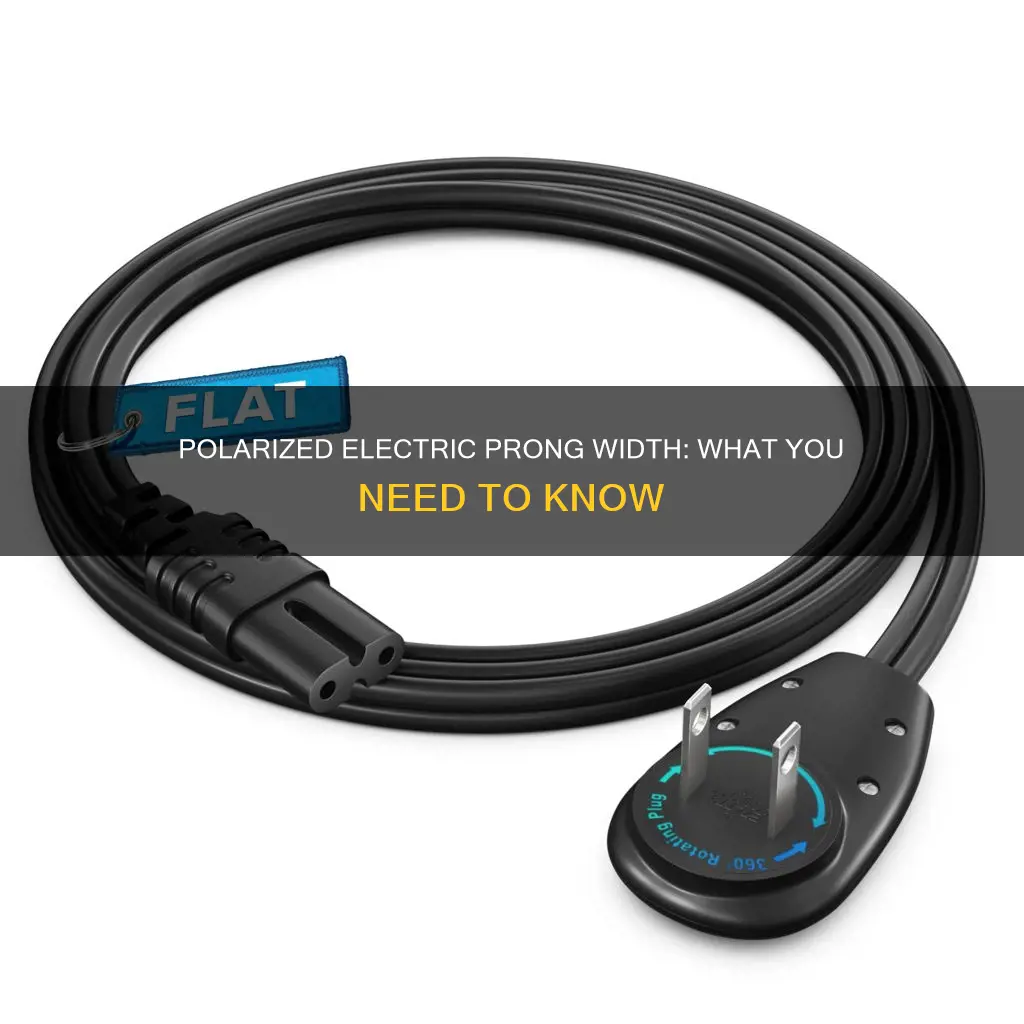

Polarized plugs are electrical plugs that have two prongs of unequal size or three prongs. The prongs are designated for the hot and neutral sides. The hot prong is the smaller of the two and is connected to the black wire, while the larger prong is connected to the white wire. This distinction ensures that the plug can only be inserted into the electrical outlet one way, making it safer. The width of the prongs varies depending on the type of plug and the current rating. For example, Type I plugs have prongs that are 6.3 mm wide for 10A plugs and 8 mm wide for 15A plugs. In North America, polarized outlets and plugs are used as a safety feature to ensure the complete circle of electricity in a circuit.
Explore related products
What You'll Learn
- Safety: polarized plugs are safer as they complete the electrical circuit
- Design: polarized plugs have two prongs of unequal size or three prongs
- Function: the larger prong is neutral, the smaller is the hot wire
- History: non-polarized plugs were common in older homes
- Standards: NEMA Standards are recommended for further reading
Safety: polarized plugs are safer as they complete the electrical circuit
Polarized plugs are electrical plugs that have two prongs of unequal size or three prongs. The smaller of the two prongs is the hot wire, and the larger one is the neutral wire. The hot wire provides a path of 120 VAC (volts alternating current) that electrical devices need to operate, while the neutral wire provides a return path for the current to the electrical panel and is usually connected to an earth ground.
Polarized plugs are designed to ensure the complete circle of electricity in a circuit. When plugged into a polarized outlet, electricity enters through the hot wire prong and exits through the neutral wire prong, completing the circuit. This helps keep the hot-wired pin on the hot-wired side of the outlet and the neutral pin on the neutral side, reducing the risk of electrical shock or arcing.
In North America, with a 110V circuit, polarized outlets and plugs are commonly used as a safety feature. They help prevent reversed polarity, which can occur with non-polarized plugs and outlets, leading to potential safety hazards. The distinct prong sizes in polarized plugs ensure they can only be inserted into the electrical outlet one way, making them safer than non-polarized plugs.
The 3-prong design in polarized plugs also includes a grounding pin, which serves as an extra safety measure. This pin is connected to the metal part of an appliance, providing protection in case the hot and neutral wires come into contact. This feature is especially important in devices like coffee pots or microwaves, where liquids may be present.
While non-polarized plugs were common in older homes, it is now recommended to replace them with polarized outlets to meet current safety codes. Polarized plugs help ensure the proper functioning of some machines and provide additional safety measures by completing the electrical circuit in a controlled and directed manner.
Removing an Electric Cooktop: A Step-by-Step Guide
You may want to see also
Explore related products
Design: polarized plugs have two prongs of unequal size or three prongs
Polarized plugs are electrical plugs that have two prongs of unequal sizes or three prongs. The two-prong variation has one prong that is slightly larger than the other, while the three-prong variation has an additional grounding pin. The purpose of the unequal prong sizes in polarized plugs is to ensure that electricity flows in a complete circuit, with the hot-wired pin on the hot-wired side of the outlet and the neutral pin on the neutral side. This design also ensures that the plug can only be inserted into the electrical outlet in one way, enhancing safety.
The hot wire prong of a polarized plug is the smaller of the two prongs, while the larger prong is the neutral wire. The hot wire is connected to the black wire inside the plug and cable, while the neutral wire is connected to the white wire. In a three-prong plug, the grounding pin is connected to the green wire and serves as an extra safety measure. This grounding pin is designed to be inserted first and disconnected last, providing additional protection against electrical faults.
The design of polarized plugs with unequal prong sizes or three prongs is a safety feature, particularly in North America where 110V circuits are used. The polarization ensures that electricity flows in a complete circuit, reducing the risk of electrical faults and enhancing the safety of electrical devices. This design also prevents the reversal of polarity, which could lead to electrical shocks or arcing.
It is important to distinguish between polarized and non-polarized plugs, especially when working on DIY projects involving plugs or outlets. Non-polarized plugs have two prongs of equal size, and they can be inserted into polarized outlets, but they do not offer the same level of safety as polarized plugs. Older homes may have non-polarized outlets, but it is recommended to replace them with polarized outlets to comply with current safety codes.
Today, most electrical outlets are designed with three prongs to meet modern electrical safety standards. The three-prong design provides a dedicated path for the current to return to the electrical panel, usually connected to an earth ground. This design enhances safety and helps prevent electrical accidents.
Electrical Hazards: 5 Key Dangers to Watch Out For
You may want to see also
Explore related products
Function: the larger prong is neutral, the smaller is the hot wire
Polarized plugs have two prongs of unequal sizes or three prongs. In the case of two prongs, the larger one is neutral, and the smaller one is the hot wire. The hot wire is the one that electricity enters the plug through, and the neutral wire is the one that electricity exits through to complete the circuit. The larger neutral prong is connected to the white wire, and the smaller hot wire is connected to the black wire inside the plug and cable.
The difference in the size of the prongs is a safety feature. The larger neutral prong can accept foreign objects better and more easily than the narrower hot wire prong, reducing the possibility of electric shock. The larger neutral prong is also less susceptible to foreign objects, making it safer if the plug is only partially inserted or slowly falling out.
Polarized plugs are commonly used in North America with 110V circuits. They are designed to ensure the complete circle of electricity in a circuit. The three-prong design has an additional grounding pin as an extra safety measure. This grounding pin is connected to the green wire.
It is important to distinguish between polarized and non-polarized plugs when working on DIY projects involving plugs or building your own antique lamp. Non-polarized outlets were common in older homes, but today, most receptacles in US homes are polarized for safety.
Electricity to Radio Waves: The Power of Electromagnetic Waves
You may want to see also
Explore related products
History: non-polarized plugs were common in older homes
Polarized plugs have two prongs of unequal size or three prongs. The smaller prong is the hot wire, and the larger prong is the neutral wire. The third prong in a three-prong plug is the grounding pin, which is a safety feature. In North America, with a 110V circuit, polarized outlets and plugs are used as a safety feature to ensure the complete circle of electricity in a circuit.
Non-polarized plugs, on the other hand, have two prongs of equal size. These plugs were common in older homes. If you have non-polarized outlets in your home, it is recommended to replace them with polarized outlets to meet current safety codes. This is because when older devices with non-polarized plugs are inserted into non-polarized outlets, the polarity (directional flow of the current) is reversed, which could lead to electrical shock or arcing.
Today, most receptacles in US homes are polarized, and outlets are being installed with a 3-prong design to meet electrical safety codes. It is important to note that non-polarized plugs and outlets should not be modified or forced to fit into polarized ones. A qualified electrician should be consulted to replace old receptacles and install wiring consistent with polarization.
To identify if a plug is polarized, simply look at it. If the 2-prong plug has two equally sized pins, it is non-polarized. Polarized 2-prong plugs will have two differently-sized pins, and polarized 3-prong plugs will have a grounding pin for extra safety.
Black Superheroes: Electric Powers and Their Cultural Significance
You may want to see also
Explore related products
Standards: NEMA Standards are recommended for further reading
The National Electrical Manufacturers Association (NEMA) in the United States has a variety of standards for electrical manufacturers. The dimensional standard for electrical connectors is ANSI/NEMA WD-6 and is available from the NEMA website. NEMA connectors are named following an alphanumeric code consisting of:
- A prefix L for locking
- Numerals
- Numerals
- A suffix R for receptacle, P for plug
There are two basic classifications of NEMA connectors: straight-blade and locking. The metal conductive blades are often informally called prongs (as in 3-prong plug). Numbers prefixed by 'L' are curved-blade, twist-locking connectors. Twist-locking types are used for heavy industrial and commercial equipment, where increased protection against accidental disconnection is required. The numerals preceding the hyphen encode the number of poles (current-carrying terminals) and wires connected to it, the voltage, and single- or three-phase power. A connector with a ground terminal has more wires than poles; for example, two-pole, three-wire; or four-pole, five-wire.
The numerals following the hyphen indicate the current rating of the device in amperes. This number is followed by the letter 'R' to indicate a receptacle (socket) or 'P' to indicate a plug (prongs). For example, the 5-15R is the common 125 V two-pole, three-wire receptacle rated for 15 A. The L5-15R, while sharing the same electrical rating, is a locking design that is not physically compatible with the straight-blade 5-15 design.
NEMA standards exist for 1-15P, 1-20P and 1-30P plugs, and the 1-15R receptacle. There are no 1-20R and 1-30R receptacles, because 1-20P and 1-30P can mate with a corresponding NEMA 5 receptacle. A non-polarized 1-15P plug has two identical blades. One blade is wider on a polarized 1-15P plug. NEMA 1 plugs are still popularly used by manufacturers of small appliances and electronic devices because of the design's low cost and compact size, and they are upward compatible with modern grounded NEMA 5 receptacles. Standards permit ungrounded plugs where the appliance does not require grounding due to the low risk of leakage current, such as on double-insulated devices.
Polarization can have two meanings: electrical or pin. Electrical polarization means there is a standardized method of wiring the plug or socket to circuit wires. These circuit wires need to connect correctly to the line, neutral, and ground contact points on the plug and socket. The components mirror the electrical circuit. Pin polarization means there is a dedicated alignment of the pins—there is only one way of the plug fitting into the socket.
The NEMA 1-15 plug can be polarized or non-polarized. With a NEMA 1-15 polarized plug, there is no ground terminal, only line and neutral. The neutral blade is wider than the line (hot) blade. In the socket, the slot is wider.
Understanding Electric Dipole Moments: A Calculation Guide
You may want to see also
Frequently asked questions
The width of a polarized electric prong varies depending on the type of plug and its current rating. For example, Type I plugs have hot and neutral pins that are 6.3 mm wide for 10A plugs and 8 mm wide for 15A plugs.
A polarized plug has two prongs of unequal size or three prongs. The larger prong is the neutral side, and the smaller prong is the "hot" side.
One reason for the different widths of polarized plug prongs is safety. If a plug is only partially inserted, it is safer for the wider prong, which is the neutral one, to make contact.
Non-polarized plugs have two prongs of equal size. Polarized plugs have two prongs of unequal size or three prongs, allowing the device to be inserted into the electrical outlet in only one way.
Polarized plugs are considered safer than non-polarized plugs because the different sizes of the prongs ensure that the plug can only be inserted into the electrical outlet in the correct orientation, reducing the risk of electrical shock or arcing.
