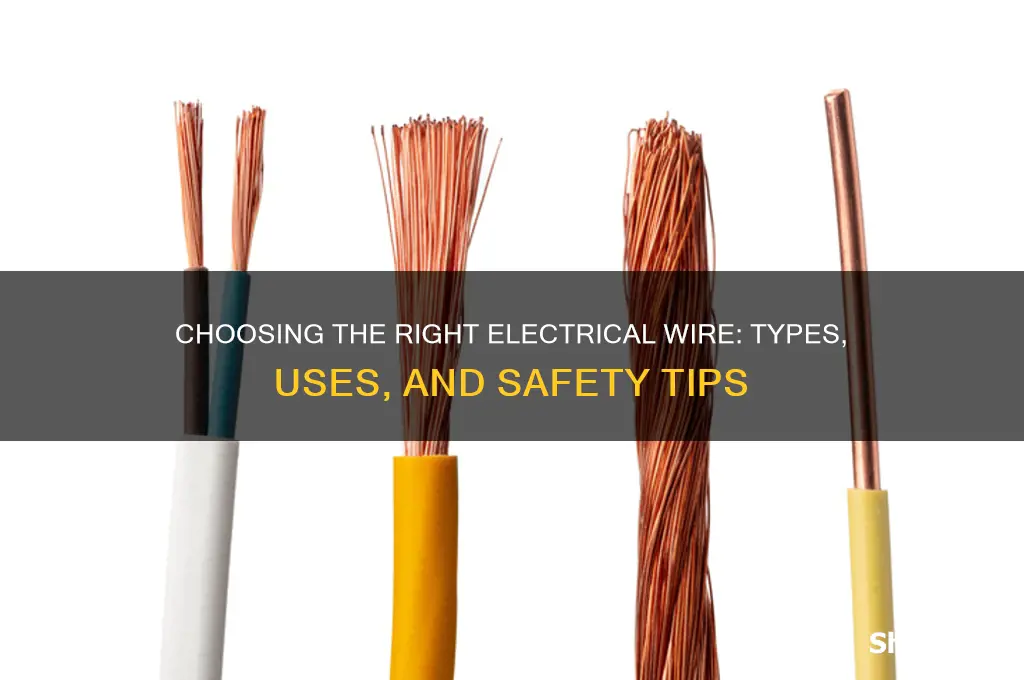

Choosing the right electrical wire is crucial for safety, efficiency, and compliance with building codes. The type of wire you need depends on factors such as the application (e.g., residential, commercial, or industrial), voltage requirements, amperage load, and environmental conditions. Common types include non-metallic (NM) sheathed cable for indoor residential wiring, armored cable (AC) for areas needing extra protection, and underground feeder (UF) cable for outdoor or buried installations. Additionally, wire gauge (thickness) must match the circuit’s amperage to prevent overheating. Always consult local electrical codes and, if unsure, seek advice from a licensed electrician to ensure the correct wire is used for your specific project.
Explore related products
What You'll Learn
- Indoor vs. Outdoor Wiring: Choose wires based on exposure to elements and environmental conditions
- Gauge and Ampacity: Match wire thickness to current load for safety and efficiency
- Solid vs. Stranded Wire: Solid for stability, stranded for flexibility in installations
- Insulation Types: Select insulation material based on heat, moisture, and chemical resistance
- Color Coding Standards: Follow wiring color codes for phase, neutral, and ground identification
Indoor vs. Outdoor Wiring: Choose wires based on exposure to elements and environmental conditions
When selecting electrical wires, one of the most critical factors to consider is whether the wiring will be used indoors or outdoors, as this directly impacts the wire’s exposure to environmental conditions. Indoor wiring is typically shielded from harsh elements like moisture, temperature extremes, and UV radiation. Standard indoor wires, such as THHN (Thermoplastic High Heat-resistant Nylon-coated) or NM-B (Non-Metallic Sheathed Cable), are designed for dry, protected environments. These wires have insulation that can withstand moderate temperatures but are not built to resist moisture or physical damage from outdoor conditions. For indoor applications, prioritize wires that meet local building codes and are rated for the specific amperage and voltage requirements of the circuit.
In contrast, outdoor wiring must endure exposure to rain, snow, UV rays, temperature fluctuations, and potential physical damage from wildlife or debris. Outdoor wires require robust insulation and protective sheathing to withstand these conditions. Common types of outdoor wires include UF (Underground Feeder) cable, which is moisture-resistant and suitable for direct burial, and THWN-2 (Thermoplastic Heat and Water-resistant Nylon-coated), which can handle both high temperatures and moisture. Additionally, outdoor wires often have thicker insulation and may be armored or encased in conduit to protect against mechanical damage. Always ensure outdoor wires are rated for wet locations and comply with local electrical codes.
Another key consideration is the environmental conditions specific to the installation area. For example, wires used in damp or wet indoor locations, such as basements or bathrooms, should be rated for moisture resistance, similar to outdoor wires. In such cases, UF cable or wires with a moisture-resistant jacket (e.g., THWN-2) are appropriate. Conversely, outdoor wires in extremely hot or cold climates should have insulation rated for the temperature extremes in those regions. For instance, wires in desert areas may need UV-resistant jackets, while those in cold climates should remain flexible at low temperatures.
The exposure to elements also dictates the need for additional protection. Outdoor wires installed above ground, such as those running along exterior walls or fences, should be protected from UV damage and physical impact. Using conduit or choosing wires with UV-resistant jackets can extend their lifespan. Similarly, wires buried underground must be resistant to moisture, chemicals in the soil, and potential damage from digging or root growth. UF cable is a popular choice for such applications due to its durable construction.
Finally, safety and compliance are paramount when choosing wires for indoor or outdoor use. Indoor wires must meet standards for fire resistance and smoke emission, as they are used in confined spaces where fire hazards are a concern. Outdoor wires, on the other hand, must comply with standards for weather resistance and durability. Always consult local electrical codes and manufacturer specifications to ensure the selected wire is appropriate for its intended environment. By carefully considering exposure to elements and environmental conditions, you can choose the right wire to ensure safety, longevity, and optimal performance.
