When selecting a junction box for electrical installations, it is crucial to consider factors such as the environment, the number and type of cables, and compliance with safety standards. For indoor applications, plastic junction boxes are often suitable due to their affordability and ease of installation, while outdoor or damp locations require weatherproof or waterproof options, typically made of durable materials like PVC or metal. Additionally, the size of the junction box must accommodate all wires and connections without overcrowding, ensuring proper heat dissipation and accessibility for future maintenance. Always choose a junction box that meets local electrical codes and is rated for the specific voltage and amperage of the circuit to guarantee safety and reliability.
Explore related products
What You'll Learn
Indoor vs. Outdoor Use
When selecting a junction box for electrical installations, one of the most critical factors to consider is whether the box will be used indoors or outdoors. Indoor junction boxes are designed for use in controlled environments where they are protected from moisture, dust, and extreme temperatures. These boxes are typically made from materials like plastic or thin-gauge metal, which are lightweight and cost-effective. They often have knockouts for easy cable entry and are suitable for applications such as connecting light fixtures, outlets, or switches within a home or building. Indoor junction boxes do not require weatherproofing features, as they are shielded from environmental elements by the structure itself.
In contrast, outdoor junction boxes must be built to withstand harsh conditions, including rain, snow, UV exposure, and temperature fluctuations. These boxes are usually made from durable materials like heavy-duty plastic, fiberglass, or corrosion-resistant metals such as stainless steel or aluminum. They are rated for weather resistance, often meeting standards like NEMA (National Electrical Manufacturers Association) or IP (Ingress Protection) ratings, which ensure they can repel water, dust, and debris. Outdoor junction boxes also feature sealed lids and gaskets to prevent moisture intrusion, making them essential for applications like outdoor lighting, security cameras, or underground wiring connections.
Another key difference is the level of protection required. Indoor junction boxes generally need only basic protection against accidental contact with live wires, as they are often concealed behind walls, ceilings, or fixtures. Outdoor junction boxes, however, must provide robust protection against both environmental factors and physical damage. For instance, they may need to be tamper-proof or resistant to vandalism, especially in public spaces. Additionally, outdoor boxes are often larger to accommodate more wiring and connections, as outdoor electrical setups tend to be more complex.
Installation requirements also vary significantly. Indoor junction boxes can be mounted on drywall, wood, or other interior surfaces using simple fasteners. Outdoor junction boxes, on the other hand, must be securely anchored to withstand wind, rain, and other external forces. They are often mounted on exterior walls, poles, or buried underground, requiring additional considerations like proper grounding and corrosion prevention. Using an indoor junction box outdoors, even in a seemingly protected area, can lead to electrical hazards, water damage, or code violations.
Lastly, compliance with local electrical codes is essential when choosing between indoor and outdoor junction boxes. Most regions have specific regulations dictating the type of box required for different environments. For example, outdoor junction boxes must meet certain NEMA or IP ratings to be considered safe and legal for exterior use. Indoor boxes, while less regulated, still need to adhere to basic safety standards. Always consult local codes or a licensed electrician to ensure the correct type of junction box is used for the intended environment, as using the wrong box can compromise safety and functionality.
Exploring the Versatility of Electric Acoustic Guitar Sounds in Music
You may want to see also
Explore related products
Material Types (Plastic, Metal, etc.)
When selecting a junction box for electrical applications, the material type is a critical factor that influences durability, safety, and suitability for specific environments. Plastic junction boxes, typically made from polycarbonate or PVC, are lightweight, cost-effective, and resistant to corrosion. They are ideal for indoor applications, such as residential wiring or dry commercial spaces, where exposure to moisture or harsh chemicals is minimal. Plastic boxes are also non-conductive, reducing the risk of electrical shock during installation or maintenance. However, they may not be suitable for high-temperature environments or outdoor use without UV protection, as prolonged exposure to sunlight can cause degradation.

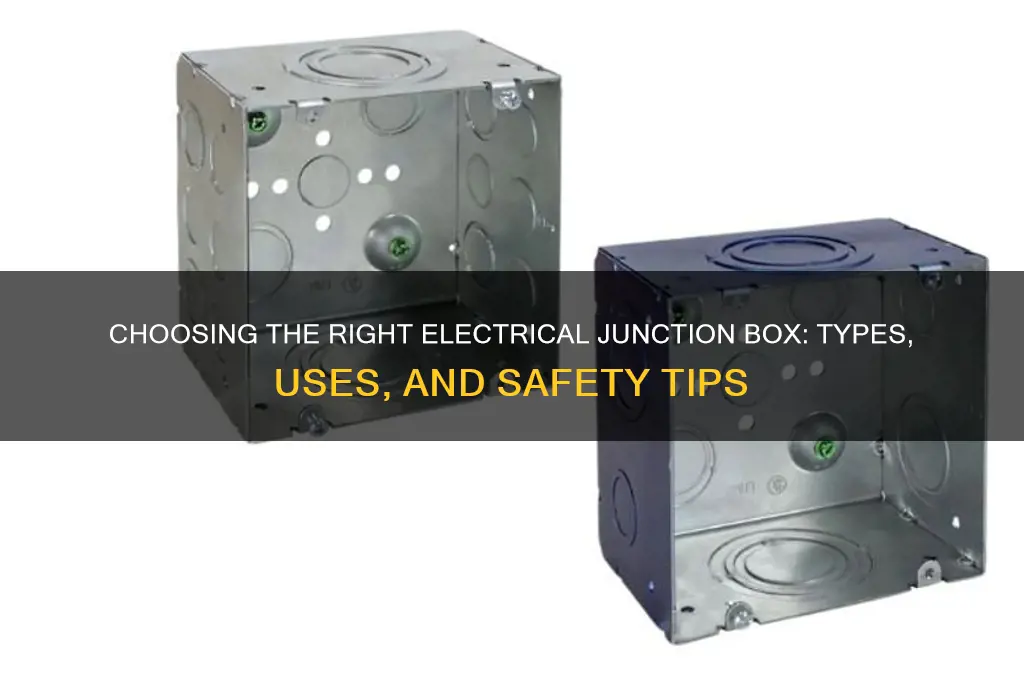

Metal junction boxes, commonly constructed from steel or aluminum, offer superior durability and strength compared to plastic. They are excellent for outdoor installations, industrial settings, or areas prone to physical damage, as metal provides robust protection against impact and fire. Steel boxes, in particular, are often used in commercial and industrial applications due to their ability to withstand harsh conditions. Aluminum boxes are lighter and naturally corrosion-resistant, making them suitable for damp or outdoor environments. However, metal boxes are conductive, so proper grounding is essential to ensure safety. Additionally, they are generally more expensive than plastic alternatives.
Fiberglass junction boxes are another option, combining the benefits of both plastic and metal materials. They are lightweight, corrosion-resistant, and non-conductive, making them suitable for outdoor and industrial applications. Fiberglass boxes are also highly durable and can withstand extreme temperatures, chemicals, and UV exposure without degrading. This makes them an excellent choice for harsh environments, such as chemical plants or coastal areas. However, they are typically more expensive than plastic and may not offer the same level of impact resistance as metal boxes.
For specialized applications, stainless steel junction boxes are used in environments where corrosion resistance is paramount, such as marine or food processing facilities. Stainless steel is highly resistant to rust and chemical exposure, ensuring long-term reliability in demanding conditions. However, it is the most expensive option and may not be necessary for standard electrical installations. Similarly, cast iron junction boxes are used in heavy-duty industrial settings where extreme durability is required, though they are less common due to their weight and cost.
In summary, the choice of junction box material depends on the specific requirements of the installation environment. Plastic is best for indoor, dry, and budget-conscious applications, while metal (steel or aluminum) is ideal for outdoor, industrial, or high-impact areas. Fiberglass offers a balance of durability and corrosion resistance for harsh environments, and stainless steel or cast iron are reserved for specialized, heavy-duty applications. Always consider factors like exposure to moisture, temperature, chemicals, and physical stress when selecting the appropriate material type.
Electric Cars: Sustainable Revolution or Overhyped Greenwashing Scam?
You may want to see also
Explore related products
Size and Capacity Needs
When determining the size and capacity needs of a junction box for electrical installations, the primary consideration is ensuring sufficient space for wires, cables, and devices while adhering to safety codes. The National Electrical Code (NEC) requires that junction boxes provide enough volume to accommodate all enclosed conductors, devices, and fittings without overcrowding. Overcrowding can lead to overheating, insulation damage, and increased risk of electrical faults. Start by calculating the total volume required based on the number and gauge of wires, the presence of devices like switches or outlets, and the number of cable entries. For example, a standard single-gang junction box (18 cubic inches) may suffice for a few 14-gauge wires, but larger projects with multiple 12-gauge wires or additional devices will require a bigger box, such as a double-gang or deep box.
The capacity of a junction box is directly tied to its size and the number of conductors it can safely hold. The NEC provides specific fill capacity tables (e.g., Table 314.16(A)) to guide electricians in determining the minimum box volume based on the number and size of conductors, clamps, and devices. For instance, each conductor counts as one unit, each cable clamp counts as two units, and each device (like a switch or receptacle) counts as two or more units depending on its size. Summing these units and cross-referencing the table ensures the box is adequately sized. Ignoring these calculations can result in code violations and safety hazards, so it’s critical to plan meticulously.
Another factor influencing size and capacity needs is the type of wiring and connections within the junction box. For example, larger wires (e.g., 10-gauge or 8-gauge) take up more space than smaller ones (e.g., 14-gauge or 12-gauge), necessitating a larger box. Additionally, if the box will house splices, ground connections, or neutral bars, extra volume is required to ensure proper bending and termination of wires without damaging insulation. Boxes with removable covers or those designed for specific applications, like ceiling fans or outdoor lighting, may have unique size requirements to accommodate additional components or environmental protections.
The location and accessibility of the junction box also impact its size and capacity. Boxes installed in tight spaces, such as walls or ceilings, must be large enough to allow for future maintenance or modifications. The NEC mandates that all junction boxes remain accessible and not buried within walls or ceilings unless specifically designed for such use (e.g., old-work boxes). Outdoor junction boxes must be weatherproof and large enough to house weather-resistant fittings and additional wiring, while boxes in damp or hazardous locations require corrosion-resistant materials and adequate sealing, which may increase their overall size.
Finally, consider future expansion when determining the size and capacity of a junction box. Even if the current project requires minimal wiring, choosing a slightly larger box can accommodate future upgrades or additional circuits without the need for costly rework. This is particularly important in commercial or industrial settings, where electrical demands may increase over time. Opting for a larger box upfront is a cost-effective strategy that ensures compliance with safety standards and provides flexibility for future needs. Always consult local codes and regulations, as some jurisdictions may have additional requirements beyond the NEC.
Smart Car Fuel Type: Electric or Gas Powered Explained
You may want to see also
Explore related products
Weatherproof and Waterproof Ratings
When selecting a junction box for electrical installations, understanding weatherproof and waterproof ratings is crucial to ensure safety and compliance with regulations. These ratings, often denoted by IP (Ingress Protection) codes, indicate the level of protection the box provides against environmental elements such as water, dust, and debris. For outdoor or damp locations, it is essential to choose a junction box with an appropriate IP rating to prevent damage to electrical connections and reduce the risk of hazards like short circuits or fires.
The IP rating consists of two digits: the first indicates protection against solids (like dust), and the second indicates protection against liquids (like water). For weatherproof applications, look for junction boxes with an IP rating of at least IP44, which provides protection against solid objects larger than 1mm and splashing water from any direction. However, for more demanding environments, such as areas exposed to heavy rain or washing down, consider boxes rated IP65 or higher, which offer complete protection against dust and low-pressure water jets from any angle.
Waterproof junction boxes are critical for installations in wet or submerged environments, such as underground systems, outdoor lighting, or marine applications. For these scenarios, opt for boxes with an IP67 or IP68 rating. IP67 ensures the box is fully protected against dust and can withstand temporary immersion in water up to 1 meter for 30 minutes. IP68 provides the highest level of protection, offering resistance to continuous submersion beyond 1 meter, though the depth and duration should be specified by the manufacturer. Always verify the manufacturer’s guidelines to ensure the box meets the specific requirements of your installation.
It’s important to note that weatherproof and waterproof ratings are not interchangeable. A weatherproof box (e.g., IP44) may suffice for protected outdoor areas but would fail in fully exposed or submerged conditions. Conversely, a waterproof box (e.g., IP68) is overkill for a covered patio but necessary for a poolside lighting system. Assess the environmental conditions of the installation site carefully to choose the correct rating.
Additionally, consider the material of the junction box, as it plays a significant role in its durability and resistance to weather conditions. Boxes made from UV-stabilized PVC, fiberglass, or stainless steel are ideal for outdoor use due to their corrosion resistance and ability to withstand temperature fluctuations. Avoid using indoor-rated boxes outdoors, even in seemingly protected areas, as they lack the necessary seals and materials to handle moisture and temperature changes over time.
Finally, always comply with local electrical codes and standards when selecting a junction box. Regulations like the National Electrical Code (NEC) in the United States specify the minimum requirements for weatherproof and waterproof enclosures based on their intended use. Consulting with a licensed electrician or referring to code guidelines ensures that your installation is both safe and legally compliant. Properly rated junction boxes not only protect electrical connections but also extend the lifespan of your electrical systems in challenging environments.
Plug-in Electric Vehicles: Understanding the Qualified Criteria
You may want to see also
Explore related products
Compliance with Electrical Codes
When selecting a junction box for electrical installations, compliance with electrical codes is paramount to ensure safety, reliability, and legality. Electrical codes, such as the National Electrical Code (NEC) in the United States or the International Electrotechnical Commission (IEC) standards globally, provide specific guidelines for junction box selection and installation. These codes dictate the type of box to be used based on factors like location (indoor/outdoor), environmental conditions (wet, dry, or hazardous), and the type of wiring involved. For instance, outdoor junction boxes must be weatherproof and rated for the specific environmental conditions they will encounter, as outlined in NEC Article 314. Failure to comply with these codes can result in electrical hazards, failed inspections, and legal liabilities.
One critical aspect of compliance with electrical codes is ensuring the junction box is appropriately sized for the number and type of conductors it will house. NEC Article 314.16, for example, provides detailed calculations for box fill, ensuring there is enough space for wires and devices without overcrowding. Overcrowded boxes can lead to overheating, insulation damage, and increased fire risk. Additionally, the material of the junction box must comply with code requirements. For example, metal boxes are often required for grounding purposes, while non-metallic (plastic) boxes are suitable for dry, indoor locations. Using the wrong material can violate codes and compromise safety.
Another key consideration for compliance with electrical codes is the installation location and its impact on junction box selection. Boxes installed in damp or wet locations, such as basements or outdoors, must be rated for moisture resistance, as specified in NEC Article 314.2. Similarly, boxes in hazardous areas, such as those with flammable gases or dust, must meet explosion-proof or dust-tight requirements. Codes also dictate the use of specific box types for concealed installations (e.g., in walls or ceilings) versus exposed installations. Adhering to these location-specific requirements ensures the junction box can withstand its environment without posing a risk.
Proper labeling and accessibility are also essential components of compliance with electrical codes. Junction boxes must be clearly labeled to indicate their purpose, especially in complex electrical systems. Additionally, codes require that junction boxes remain accessible for inspection, maintenance, and repairs. For example, NEC Article 314.20 mandates that boxes installed in walls or ceilings must have a cover that can be removed without damaging the box or its contents. Ignoring these accessibility requirements can lead to code violations and difficulties in troubleshooting electrical issues.
Finally, compliance with electrical codes extends to the installation process itself. Junction boxes must be securely mounted using approved methods and materials, as outlined in NEC Article 314.23. Improper mounting can compromise the box's integrity and safety. Additionally, all connections within the box must be made according to code, including the use of proper wire connectors, torque specifications for terminals, and adherence to wire bending radii. Regular inspections and adherence to local amendments to national codes are also crucial to ensure ongoing compliance. By meticulously following these guidelines, electricians and installers can ensure that junction boxes meet all regulatory requirements, safeguarding both property and occupants.
Audi's Electric Vehicle Plans: What's the Future Hold?
You may want to see also
Frequently asked questions
For outdoor electrical connections, use a weatherproof or waterproof junction box rated for outdoor use. Look for boxes labeled NEMA 3R, NEMA 4, or NEMA 6, which provide protection against rain, snow, and moisture.
Yes, a plastic junction box can be used in a garage, but ensure it is rated for the environment and meets local electrical codes. Plastic boxes are lightweight and corrosion-resistant, making them suitable for dry indoor areas like garages.
In wet or damp locations, use a waterproof or vapor-tight junction box. These boxes are sealed to prevent moisture intrusion and are typically rated for NEMA 4 or NEMA 6 environments.
For high-temperature areas like attics, a metal junction box is generally recommended. Metal boxes are more durable and can better withstand heat compared to plastic, which may warp or degrade under high temperatures. Always check local codes for specific requirements.
