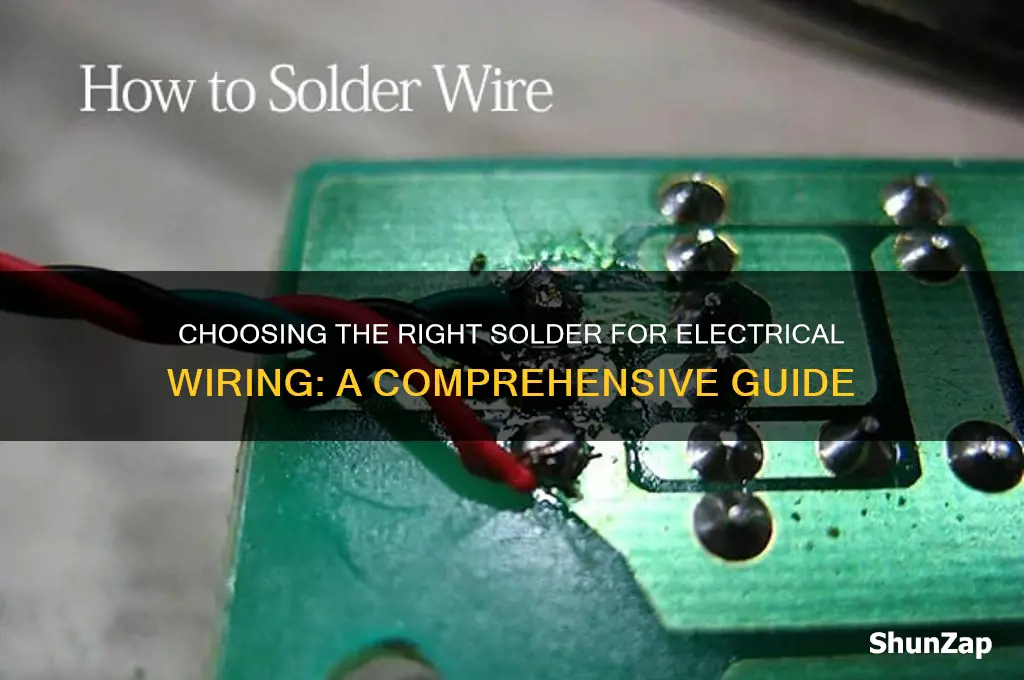

When working on electrical wiring, selecting the right type of solder is crucial for ensuring safe and reliable connections. The most commonly used solder for electrical applications is rosin-core solder, which typically consists of a 60% tin and 40% lead alloy (Sn60/Pb40). This composition offers a low melting point (around 374°F or 190°C), making it easy to work with while providing strong, durable joints. Lead-free alternatives, such as tin-silver-copper (SAC) alloys, are also available for applications requiring compliance with environmental regulations like RoHS. Additionally, the solder should have a flux core to help clean the surfaces being joined and promote proper adhesion. Always ensure the solder is rated for electrical use and avoid acid-core solders, as they can corrode wires over time. Proper technique, such as using a soldering iron with the correct temperature and avoiding overheating, is equally important to achieve professional results.
Explore related products
What You'll Learn
Soldering Irons for Electrical Wires
When it comes to soldering electrical wires, selecting the right soldering iron is crucial for ensuring strong, reliable connections. Soldering irons for electrical wiring are specifically designed to handle the delicate nature of wires while providing enough heat to melt solder effectively. The most common type of soldering iron used for this purpose is the temperature-controlled soldering iron. These irons allow you to set a precise temperature, which is essential for working with electrical wires, as overheating can damage the insulation or the wire itself. A temperature range of 300°C to 400°C (572°F to 752°F) is typically ideal for soldering electrical connections, as it ensures the solder melts properly without causing harm to the components.
Another important factor to consider is the tip size and shape of the soldering iron. For electrical wiring, a fine or chisel tip is often preferred, as it allows for precise application of heat to the joint. Fine tips are particularly useful for working with small gauge wires or tight spaces, while chisel tips provide more surface area for larger wires. It’s also advisable to use a lead-free solder with a rosin core flux, as this ensures the connection is both strong and environmentally friendly. The flux helps clean the wire and promotes better adhesion of the solder.
For professionals or those working on intricate projects, digital soldering stations are highly recommended. These stations offer advanced features such as temperature calibration, multiple preset settings, and interchangeable tips, making them versatile for various soldering tasks. Brands like Hakko, Weller, and JBC are well-regarded in the industry for their high-quality soldering irons and stations. If you’re a hobbyist or working on occasional repairs, a basic analog soldering iron with adjustable temperature control can suffice, though it may require more attention to avoid overheating.
Portability is another consideration, especially for field work or on-the-go repairs. Cordless soldering irons powered by butane or rechargeable batteries are convenient for situations where access to electricity is limited. However, they may not offer the same level of temperature control as their corded counterparts, so they are best suited for simpler tasks. Always ensure the iron has a stand to safely rest it when not in use, preventing accidental burns or damage to surfaces.
Lastly, proper technique is as important as the tool itself. When soldering electrical wires, strip the insulation cleanly, twist the wires together, and apply heat to the joint, not the solder directly. Feed the solder into the joint until it melts and flows evenly around the wires. Allow the connection to cool naturally before handling. With the right soldering iron and technique, you can achieve durable and efficient electrical connections for any wiring project.
Everyday Devices Powered by Direct Current Electricity Explained
You may want to see also
Explore related products
Lead-Free Solder for Safe Connections
When it comes to electrical wiring, choosing the right solder is crucial for ensuring safe and reliable connections. Lead-free solder has emerged as the preferred choice for many professionals and hobbyists alike, primarily due to its safety and environmental benefits. Traditional lead-based solder poses health risks, as lead exposure can lead to serious health issues, especially in enclosed spaces or when inhaled as fumes during the soldering process. Lead-free solder, on the other hand, eliminates these risks, making it a safer alternative for both the user and the environment. It is particularly important in applications where safety is paramount, such as in household wiring, automotive systems, and electronics.
Lead-free solder is typically composed of alloys like tin, copper, and silver, which provide excellent electrical conductivity and mechanical strength. Common formulations include SnCu (tin-copper) and SnAgCu (tin-silver-copper), also known as SAC solder. These alloys have higher melting points compared to lead-based solder, usually ranging between 217°C to 227°C (423°F to 441°F). While this requires a slightly higher temperature for soldering, modern soldering irons with adjustable temperature controls can easily accommodate this need. The higher melting point also ensures that the solder joints remain stable under varying environmental conditions, reducing the risk of failure in electrical connections.
Using lead-free solder for electrical wiring requires attention to technique and tools. A soldering iron with a temperature-controlled feature is essential to achieve the necessary heat without damaging the components. The soldering tip should be clean and properly tinned to ensure efficient heat transfer. Flux is another critical component when using lead-free solder, as it helps remove oxidation from the surfaces being joined and promotes better wetting of the solder. Rosin-based flux is commonly used for electrical applications due to its effectiveness and minimal residue, which can be easily cleaned after soldering.
One of the key advantages of lead-free solder is its compliance with international regulations, such as the Restriction of Hazardous Substances (RoHS) directive, which restricts the use of lead in electrical and electronic equipment. By using lead-free solder, you not only ensure safer connections but also contribute to environmental sustainability. Additionally, lead-free solder joints are less prone to creep (gradual deformation under stress), which enhances the long-term reliability of electrical wiring systems.
In conclusion, lead-free solder is the ideal choice for safe and reliable electrical wiring connections. Its composition, higher melting point, and regulatory compliance make it a superior alternative to lead-based solder. By investing in the right tools, such as a temperature-controlled soldering iron and quality flux, you can achieve professional-grade results while prioritizing safety and environmental responsibility. Whether you're working on household repairs or complex electronic projects, lead-free solder ensures that your connections are both secure and sustainable.
Cost to Repair Car Electrical Issues: What to Expect
You may want to see also
Explore related products
Flux Types for Electrical Soldering
When it comes to soldering electrical wiring, selecting the right flux is as crucial as choosing the appropriate solder. Flux plays a vital role in the soldering process by removing oxides from the metal surfaces, ensuring a clean and strong joint. For electrical applications, the flux must be compatible with the materials involved and should not leave residues that could interfere with the circuit's functionality. There are several types of fluxes available, each with its own characteristics and suitability for different electrical soldering tasks.
Rosin-Based Fluxes are among the most commonly used types for electrical soldering. Rosin flux is derived from pine sap and is available in various forms, including solid rosin, liquid rosin, and rosin-activated flux. It is particularly popular because it is non-corrosive and leaves minimal residue, which is often non-conductive and does not require cleaning. However, some residues might still need to be removed in high-precision applications. Rosin flux is ideal for general-purpose electrical soldering, such as connecting wires or components on a circuit board.
Organic Acid Fluxes are more aggressive than rosin-based fluxes and are typically used when a stronger cleaning action is required. These fluxes contain mild organic acids like citric acid or lactic acid, which effectively remove oxides but can leave residues that are corrosive if not cleaned properly. For electrical wiring, organic acid fluxes are often used in situations where the joint needs to be particularly robust, such as in high-current applications. It is essential to ensure thorough cleaning after soldering to prevent long-term corrosion or conductivity issues.
Water-Soluble Fluxes are another option for electrical soldering, especially in applications where easy cleanup is a priority. These fluxes are designed to be removed with water, making post-soldering cleaning straightforward. However, water-soluble fluxes can be more active and may leave residues that are hygroscopic, meaning they can absorb moisture from the air. This moisture absorption can lead to reduced insulation resistance, making them less ideal for certain electrical applications unless proper cleaning is ensured.
No-Clean Fluxes have gained popularity in the electronics industry due to their convenience. These fluxes are formulated to leave behind residues that are non-conductive and non-corrosive, eliminating the need for post-soldering cleaning. No-clean fluxes are particularly useful in high-density circuit board assemblies where cleaning might be difficult or damaging. However, for electrical wiring, especially in critical applications, it is still advisable to inspect the joints to ensure no residue is present that could affect performance.
In summary, the choice of flux for electrical soldering depends on the specific requirements of the application, including the need for residue removal, the aggressiveness of the flux, and the ease of cleanup. Rosin-based fluxes are generally the safest and most versatile for electrical wiring, while organic acid and water-soluble fluxes offer stronger cleaning capabilities at the cost of more meticulous post-soldering care. No-clean fluxes provide convenience but should be used with caution in critical electrical applications. Understanding the properties and limitations of each flux type ensures that the soldered joints are both reliable and durable.
Who Uses Electric Blankets? Exploring the Diverse Users and Benefits
You may want to see also
Explore related products
Wire Gauge Compatibility with Solder
When working with electrical wiring, selecting the appropriate solder is crucial, but equally important is ensuring compatibility between the wire gauge and the solder being used. Wire gauge refers to the diameter of the wire, and it directly impacts the amount of current the wire can safely carry. Common wire gauges used in electrical applications range from 24 AWG (American Wire Gauge) for small, delicate wires to 10 AWG for heavier-duty applications. The solder you choose must be compatible with the wire gauge to ensure a strong, reliable connection without causing damage to the wire.
For finer wire gauges, such as 24 to 18 AWG, a thinner solder with a lower melting point is ideal. These wires are often used in electronics and require precision soldering. A 0.020" to 0.031" diameter rosin-core solder with a 60/40 (tin/lead) or lead-free composition is recommended. Using a thicker solder or one with a higher melting point can overheat the wire, causing insulation damage or weakening the wire itself. Additionally, a fine-tipped soldering iron is essential to avoid applying excessive heat to these delicate wires.
Medium wire gauges, such as 16 to 12 AWG, are commonly found in household wiring and automotive applications. For these wires, a slightly thicker solder, such as 0.031" to 0.062" diameter, is appropriate. A 60/40 or 63/37 tin/lead solder works well, though lead-free alternatives are also available. The higher current-carrying capacity of these wires allows for more heat during soldering, but care must still be taken to avoid overheating. A soldering iron with a medium-sized tip and controlled temperature settings is recommended for these gauges.
Thicker wire gauges, such as 10 AWG and larger, are used in high-current applications like power distribution. Soldering these wires can be challenging due to their size and heat resistance. A thicker solder, such as 0.062" to 0.125" diameter, is necessary to ensure adequate flow and coverage. However, soldering is often less common for these gauges, as mechanical connectors or crimping is typically preferred. If soldering is required, a high-wattage soldering iron or a torch may be needed to achieve the necessary heat, and the process should be done quickly to minimize heat exposure.
In all cases, the flux core of the solder plays a critical role in ensuring a clean, strong joint. Rosin-core solder is suitable for most electrical applications, but for high-reliability connections, no-clean or water-soluble flux may be preferred. It’s also important to match the solder’s melting point to the wire’s heat tolerance, as excessive heat can degrade the wire’s insulation or alter its electrical properties. Always refer to manufacturer guidelines for specific wire and solder compatibility to ensure safe and effective connections.
Rivian's Electric Vehicle Revolution: Powering the Future of Mobility
You may want to see also
Explore related products
Heat Control to Prevent Damage
When soldering electrical wiring, heat control is paramount to prevent damage to the wires, insulation, and surrounding components. Excessive heat can melt insulation, degrade the wire’s integrity, or even damage sensitive electronic parts. The first step in heat control is selecting the right soldering iron. For electrical wiring, a low-wattage iron (15-30 watts) is typically sufficient, as it allows for precise heat application without overheating. Higher-wattage irons are unnecessary and increase the risk of damage. Additionally, using a temperature-controlled soldering station ensures consistent heat output, which is crucial for delicate tasks like soldering wires.
Proper technique is equally important for heat control. Always heat the wire and terminal or connection point rather than applying the solder directly to the iron tip. This method, known as "heating by conduction," ensures the joint reaches the necessary temperature for solder to flow without overheating the wire. Hold the iron tip against the wire and terminal for 2-3 seconds to transfer heat effectively. Once the joint is hot enough, touch the solder to the wire or terminal—not the iron—allowing it to melt and flow into the connection. This minimizes the time the iron is in contact with the wire, reducing the risk of heat damage.
Using heat-shrink tubing or insulation sleeves can further protect wires from heat exposure during soldering. Apply these protective layers to the wire before soldering, ensuring they are positioned away from the joint. After soldering, slide the tubing over the joint and use a heat gun or lighter to shrink it into place. This not only insulates the connection but also safeguards the wire from accidental heat exposure during the soldering process. Always work quickly and efficiently to minimize heat application time.
Another critical aspect of heat control is keeping the soldering iron clean and tinned. A clean, tinned tip (coated with a thin layer of solder) improves heat transfer and reduces the time needed to heat the joint. Wipe the tip regularly on a damp sponge to remove excess solder and debris, but avoid overheating the iron, as this can damage the tip and reduce its effectiveness. A well-maintained tip ensures precise heat application, lowering the risk of damage to the wiring.
Finally, practice and patience are key to mastering heat control. Beginners should practice on scrap wire to develop a feel for how quickly wires heat up and how long to apply the iron. Over time, you’ll learn to recognize visual cues, such as the wire’s insulation beginning to soften or smoke, indicating excessive heat. By combining the right tools, proper technique, and protective measures, you can effectively control heat during soldering and prevent damage to electrical wiring.
Charging Your Electric Car: A Step-by-Step Guide to Public Stations
You may want to see also
Frequently asked questions
For electrical wiring, use rosin-core solder, which is specifically designed for electronics and provides a strong, reliable connection without leaving corrosive residue.
No, acid-core solder is not recommended for electrical wiring as it can leave corrosive residue that damages components and connections over time.
A 60/40 tin-lead solder is commonly used for electrical wiring due to its low melting point and good conductivity, making it ideal for most applications.
Yes, lead-free solder (e.g., tin-silver-copper) is safe and environmentally friendly, but it requires a slightly higher melting point and may need more heat for proper application.
