When establishing an electrical ground, the choice of metal is crucial for ensuring safety, conductivity, and durability. Commonly used metals include copper, due to its excellent conductivity and corrosion resistance, making it ideal for most grounding applications. Aluminum is another option, valued for its lightweight and cost-effectiveness, though it requires proper installation to prevent oxidation. Galvanized steel is also utilized, particularly in environments where mechanical strength is essential, despite its lower conductivity compared to copper. Additionally, brass and bronze may be employed in specific scenarios, offering good conductivity and resistance to corrosion. The selection of metal depends on factors such as environmental conditions, cost, and the specific requirements of the electrical system.
Explore related products
What You'll Learn
- Copper: Most common grounding material due to conductivity, corrosion resistance, and availability
- Aluminum: Lightweight, cost-effective alternative to copper, but requires larger gauge for same conductivity
- Steel: Durable and strong, often used in grounding rods and systems, prone to corrosion
- Zinc: Sacrificial anode for corrosion protection, used in grounding systems for added longevity
- Brass: Copper-zinc alloy, good conductivity, corrosion resistance, and aesthetic appeal in grounding applications
Copper: Most common grounding material due to conductivity, corrosion resistance, and availability
Copper is widely recognized as the most common material used for electrical grounding, primarily due to its exceptional conductivity, corrosion resistance, and widespread availability. Its high electrical conductivity ensures minimal resistance in the grounding path, allowing fault currents to flow efficiently and safely dissipate into the earth. This property is crucial for protecting electrical systems and preventing hazards such as electrical shocks or fires. Compared to other metals, copper's conductivity is second only to silver, but its cost-effectiveness makes it the preferred choice for grounding applications in residential, commercial, and industrial settings.
Another key advantage of copper as a grounding material is its inherent corrosion resistance. When exposed to environmental factors like moisture, soil, or chemicals, copper forms a protective oxide layer that slows down further degradation. This natural defense mechanism ensures the longevity and reliability of grounding systems, even in harsh conditions. While other metals like aluminum or steel may corrode more rapidly, copper maintains its structural integrity and electrical performance over time, reducing the need for frequent maintenance or replacements.
The availability and versatility of copper further solidify its position as the go-to grounding material. Copper is readily available in various forms, including rods, plates, wires, and strips, making it adaptable to different grounding requirements. Its ease of installation and compatibility with standard electrical components streamline the grounding process, saving time and labor costs. Additionally, copper's recyclability aligns with sustainable practices, as it can be reused without significant loss of properties, making it an environmentally friendly choice.

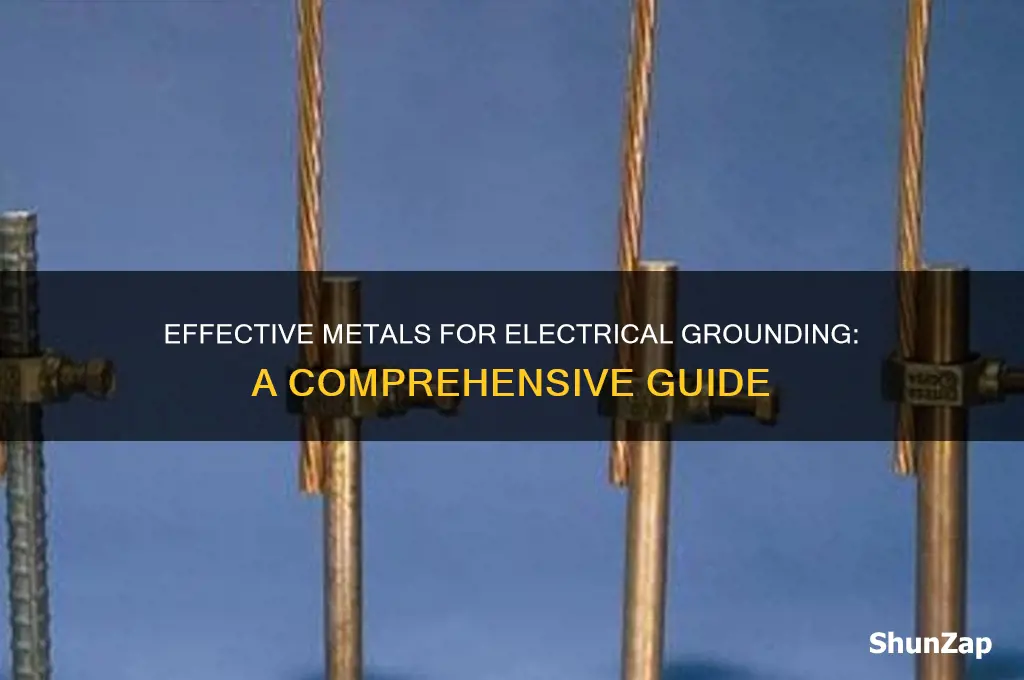

In practical applications, copper grounding systems are designed to meet specific safety standards and regulations. For instance, copper grounding rods are driven into the earth to establish a low-resistance connection, while copper grounding grids are used in larger installations to ensure uniform dissipation of currents. The material's flexibility also allows for custom solutions in challenging environments, such as areas with high soil resistivity or corrosive substances. Proper installation and periodic inspections are essential to maximize the effectiveness of copper grounding systems, ensuring they perform reliably when needed.
Despite its numerous benefits, copper is not without challenges. Its value makes it a target for theft in some regions, necessitating secure installation methods or alternative materials in high-risk areas. However, the overall advantages of copper—its conductivity, corrosion resistance, and availability—far outweigh these concerns, making it the standard choice for electrical grounding. As technology advances and safety requirements evolve, copper continues to play a critical role in safeguarding electrical systems and protecting lives and property.
Understanding Electric Vehicle Efficiency Through MPGe Ratings
You may want to see also
Explore related products
Aluminum: Lightweight, cost-effective alternative to copper, but requires larger gauge for same conductivity
Aluminum is increasingly recognized as a viable alternative to copper for electrical grounding applications, primarily due to its lightweight nature and cost-effectiveness. Compared to copper, aluminum is approximately one-third the weight, making it easier to handle and install, especially in large-scale projects. Additionally, aluminum is significantly less expensive than copper, which can lead to substantial cost savings, particularly in applications requiring extensive grounding systems. This combination of lightweight and affordability makes aluminum an attractive option for both residential and industrial electrical grounding needs.
Despite its advantages, aluminum does have limitations that must be carefully considered. One of the most critical factors is its conductivity. Aluminum has about 61% of the conductivity of copper by volume, meaning that to achieve the same level of conductivity as a copper conductor, a larger gauge aluminum wire is required. For example, a #8 AWG copper wire has a similar current-carrying capacity to a #6 AWG aluminum wire. This difference in gauge size is essential to account for when designing grounding systems to ensure proper functionality and safety.
Another important consideration when using aluminum as an electrical ground is its susceptibility to corrosion. Aluminum oxidizes quickly when exposed to air, forming a thin layer of aluminum oxide that can increase electrical resistance. To mitigate this, aluminum grounding conductors are often coated or treated to enhance corrosion resistance. Additionally, proper installation techniques, such as using compatible connectors and ensuring tight connections, are crucial to prevent galvanic corrosion, which can occur when aluminum comes into contact with dissimilar metals like copper.
In applications where weight and cost are significant concerns, aluminum’s benefits often outweigh its drawbacks. For instance, in overhead power lines, the lightweight nature of aluminum reduces structural stress on poles and towers, while its lower cost makes it an economical choice for long-distance transmission. Similarly, in renewable energy installations like solar farms or wind turbines, aluminum grounding systems can provide a cost-effective solution without compromising performance, provided that the larger gauge requirements are met.
When selecting aluminum for electrical grounding, it is essential to adhere to local electrical codes and standards, as they often specify the appropriate gauge and installation methods for aluminum conductors. For example, the National Electrical Code (NEC) in the United States provides guidelines for using aluminum in grounding applications, including requirements for conductor size and connection methods. Following these standards ensures that the grounding system is safe, reliable, and compliant with regulatory requirements.
In summary, aluminum offers a lightweight and cost-effective alternative to copper for electrical grounding, but its lower conductivity necessitates the use of larger gauge wires. By understanding its properties, addressing corrosion concerns, and adhering to proper installation practices, aluminum can be a practical and efficient choice for grounding applications. Its advantages make it particularly well-suited for projects where weight reduction and cost savings are priorities, provided that its limitations are carefully managed.
Electric Vehicles: Greener Future or Environmental Disaster?
You may want to see also
Explore related products
Steel: Durable and strong, often used in grounding rods and systems, prone to corrosion
Steel is a widely recognized and commonly used material for electrical grounding applications due to its exceptional durability and strength. Its robust nature makes it an ideal choice for grounding rods and systems, which are essential components in ensuring electrical safety. When it comes to establishing a reliable connection to the earth, steel's mechanical properties are highly advantageous. Grounding rods made of steel can be driven deep into the soil, providing a stable and long-lasting connection, even in challenging terrain. This is particularly important in areas prone to extreme weather conditions or where the ground may be subject to movement or erosion.
One of the key reasons steel is favored for grounding is its ability to handle high electrical currents. In the event of a fault or lightning strike, the grounding system must safely direct the electrical charge into the earth. Steel's conductivity allows it to efficiently dissipate this energy, protecting electrical systems and preventing potential hazards. Moreover, steel's strength ensures that the grounding infrastructure remains intact, even when subjected to the forces of nature or the stress of electrical surges.
However, a significant consideration when using steel for grounding is its susceptibility to corrosion. Steel, being an alloy of iron and carbon, is prone to rusting when exposed to moisture and oxygen. In grounding applications, where the material is in direct contact with the earth, corrosion can be a major concern. Over time, rust can compromise the integrity of the steel, leading to a weakened connection and potentially reducing the effectiveness of the grounding system. This is especially critical in areas with high moisture content or corrosive soils.
To mitigate corrosion, various strategies can be employed. One common approach is to use galvanized steel, where a protective layer of zinc is applied to the steel's surface. This zinc coating acts as a barrier, sacrificing itself to corrosion instead of the underlying steel. Another method is to use stainless steel, which contains chromium, providing enhanced corrosion resistance. Additionally, regular maintenance and inspections are crucial to identify and address any corrosion issues promptly. This may involve cleaning and re-galvanizing the steel or, in some cases, replacing severely corroded components.
Despite the corrosion challenge, steel remains a popular choice for electrical grounding due to its overall performance and cost-effectiveness. With proper installation and maintenance, steel grounding systems can provide long-term reliability. It is essential for professionals to carefully consider the specific environmental conditions and choose the appropriate type of steel or apply suitable corrosion protection measures. By doing so, the benefits of steel's strength and durability can be fully realized, ensuring a safe and efficient electrical grounding solution.
Top Places to Purchase Pre-Owned Electric Bikes: A Comprehensive Guide
You may want to see also
Explore related products
Zinc: Sacrificial anode for corrosion protection, used in grounding systems for added longevity
Zinc is a highly effective metal used as a sacrificial anode in grounding systems, primarily due to its ability to provide corrosion protection and extend the longevity of electrical infrastructure. When zinc is connected to a more noble metal in an electrolytic environment, it corrodes preferentially, sacrificing itself to protect the other metal from degradation. This process is known as cathodic protection, and it is particularly valuable in grounding systems where exposure to moisture and soil can accelerate corrosion. By using zinc as a sacrificial anode, the structural integrity of the grounding system is preserved, ensuring reliable electrical performance over time.
In grounding applications, zinc is often employed in the form of zinc strips, plates, or rods buried in the soil or attached to underground structures. Its effectiveness stems from its position in the galvanic series, where it is more active than metals like steel or iron commonly used in grounding electrodes. When zinc is electrically connected to these metals, it becomes the anode, and the grounding electrode becomes the cathode, significantly reducing the corrosion rate of the electrode. This sacrificial role is especially critical in harsh environments, such as coastal areas with salty soil or industrial sites with high chemical exposure, where corrosion is a persistent threat.
The use of zinc in grounding systems is not only protective but also cost-effective. While zinc itself corrodes over time, it is relatively inexpensive and easy to replace compared to the costly repairs or replacements of corroded grounding electrodes. Regular inspection and maintenance of zinc anodes ensure that they are replaced before the grounding system is compromised. This proactive approach minimizes downtime and ensures continuous electrical safety and reliability, making zinc an ideal choice for long-term corrosion protection.
Another advantage of zinc in grounding systems is its compatibility with a wide range of environmental conditions. Zinc’s corrosion rate is predictable and manageable, allowing engineers to design systems that account for its sacrificial role. Additionally, zinc’s natural oxide layer, which forms on its surface, provides some protection against rapid corrosion, further enhancing its durability. This makes zinc particularly suitable for applications where consistent performance and low maintenance are essential, such as in large-scale industrial or utility grounding systems.
In summary, zinc’s role as a sacrificial anode in grounding systems is invaluable for corrosion protection and extended longevity. Its ability to preferentially corrode, coupled with its affordability and adaptability to various environments, makes it a preferred choice for engineers and technicians. By incorporating zinc into grounding designs, the lifespan of electrical infrastructure is significantly increased, ensuring safety and reliability in critical applications. For those seeking robust and cost-effective corrosion solutions, zinc stands out as a proven and practical option in the realm of electrical grounding.
Unveiling the Process: How Electric Car Batteries Are Manufactured
You may want to see also
Explore related products
Brass: Copper-zinc alloy, good conductivity, corrosion resistance, and aesthetic appeal in grounding applications
Brass, a copper-zinc alloy, is a versatile and effective material for electrical grounding applications. Its composition typically ranges from 60% to 90% copper and 10% to 40% zinc, which imparts a unique combination of properties that make it suitable for grounding systems. One of the primary advantages of brass is its good electrical conductivity, which is essential for ensuring a low-resistance path for electrical currents to flow into the ground. While not as conductive as pure copper, brass still offers sufficient conductivity for most grounding needs, especially in residential and light commercial applications. This balance of conductivity and other properties makes brass a practical choice for grounding electrodes, busbars, and connectors.
In addition to its conductivity, brass exhibits excellent corrosion resistance, a critical factor for outdoor grounding applications. The zinc in brass forms a protective oxide layer on the surface, which shields the material from environmental factors such as moisture, salt, and chemicals. This corrosion resistance ensures the longevity and reliability of brass grounding components, even in harsh conditions. For instance, brass grounding rods and plates are commonly used in coastal areas where saltwater exposure can accelerate corrosion in less resistant materials. This durability reduces maintenance requirements and enhances the overall safety of the grounding system.
Another notable feature of brass is its aesthetic appeal, which makes it a preferred choice in applications where appearance matters. Brass has a distinctive golden-yellow color that can complement architectural designs, particularly in visible grounding installations like those found in public buildings or historical structures. Its polished finish can also be maintained with minimal effort, ensuring that the grounding components remain visually appealing over time. This combination of functionality and aesthetics sets brass apart from other grounding materials like galvanized steel or aluminum, which may lack the same visual appeal.
Brass is also highly malleable and machinable, making it easy to fabricate into various grounding components such as terminals, clamps, and connectors. Its ductility allows for the creation of intricate shapes and designs, which is advantageous in custom grounding solutions. Additionally, brass can be easily soldered or welded, facilitating secure and reliable connections in grounding systems. These manufacturing advantages contribute to the widespread use of brass in electrical grounding, particularly in applications requiring precision and adaptability.
Despite its many benefits, it is important to consider the cost and specific application requirements when choosing brass for grounding. While brass is more expensive than materials like galvanized steel, its superior corrosion resistance and conductivity often justify the investment, especially in demanding environments. However, for high-current applications or large-scale grounding systems, pure copper or copper-bonded materials might be more suitable due to their higher conductivity. In summary, brass is an excellent choice for electrical grounding applications where a balance of conductivity, corrosion resistance, and aesthetic appeal is required, making it a valuable option in the array of metals used for grounding.
Electric Vehicles and Horsepower: What's the Connection?
You may want to see also
Frequently asked questions
Metals are used as an electrical ground to provide a safe path for electrical currents to flow into the earth, preventing electrical shock, stabilizing voltage levels, and protecting equipment from surges.
Copper is the most commonly used metal for electrical grounding due to its high conductivity, corrosion resistance, and availability.
Yes, aluminum can be used as an electrical ground, especially in applications where weight is a concern, but it is less conductive than copper and requires proper installation to avoid corrosion.
Steel can be used for electrical grounding, particularly in structural applications, but it is less conductive than copper and may corrode over time, requiring additional protection like galvanization.
Yes, brass and bronze can be used as electrical grounds, especially in specific applications like marine environments, due to their corrosion resistance, though they are less conductive than copper.
